Tower Flight Data Manager Prototype System 19 October 2011 Vineet Mehta, Steven Campbell, James Kuchar, William Moser, Hayley Reynolds, Tom Reynolds, and Robert Seater TFDM - 1 This work was sponsored by the Federal Aviation Administration


slide-1
SLIDE 1

TFDM - 1 JKK 6/9/2011

Tower Flight Data Manager Prototype System

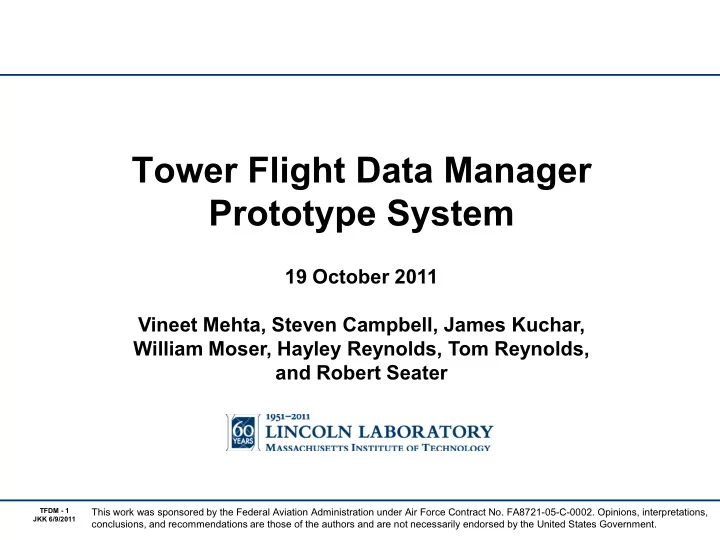

19 October 2011 Vineet Mehta, Steven Campbell, James Kuchar, William Moser, Hayley Reynolds, Tom Reynolds, and Robert Seater

This work was sponsored by the Federal Aviation Administration under Air Force Contract No. FA8721-05-C-0002. Opinions, interpretations, conclusions, and recommendations are those of the authors and are not necessarily endorsed by the United States Government.

slide-2
SLIDE 2

NextGen Tower-2 VM 10/22/2011

  • Motivation
  • System overview
  • Information management framework
  • Decision support tools
  • Computer human Interfaces
  • Field evaluation
  • Summary

Outline

slide-3
SLIDE 3

NextGen Tower-3 VM 10/22/2011

Evolving From Current Tower Operations

Challenges:

  • Multiple stove-piped systems
  • Coordination within tower
  • Coordination with other

facilities

  • Adequate situational

awareness

  • Operational efficiency

Approaches:

  • Net-centric architecture
  • Integrated computer-human

interfaces

  • Data sharing
  • Fusion and correlation
  • Decision support
slide-4
SLIDE 4

NextGen Tower-4 VM 10/22/2011

Message broker

Tower Flight Data Manager (TFDM) System Components

Controller Interfaces

Airline Operation Centers Other ATC Facilities Airport Authority

External Stakeholders Data Sources

Surveillance Flight Plan Traffic Constraints ffi C t i t Weather Obs. Ai li O ti t A th i ATC F iliti Forecasts

Surveillance & Data Fusion Decision Support Algorithms Common Services

Archive Message broker Message broker

i S t Information Bus

F t

slide-5
SLIDE 5

NextGen Tower-5 VM 10/22/2011

ERAM Adapter ASDE-X Adapter Flight Data Display Surveillance Display Airport Configuration Airport Configuration Surveillance Processor Surveillance Processor Surveillance Processor Supervisor Display TFMS Adapter ITWS Adapter RAPT Adapter Web Feature Service Camera Adapter

Decision Support Tools Data Fusion Computer-Human Interfaces Data Sharing Surveillance Flight Plans Traffic Constraints Weather Forecast & Constraints

FOC Adapter

Airline Data

Information Management Framework

Extensible system

  • Supports multiple tower positions
  • Adaptable to sites and different class airports

Flexible information architecture

  • Enables integration with current and planned NAS systems

Evolvable system – replaceable components

Net-Centric architecture is key to providing integrated system

Based on SWIM guidelines

  • Enables data sharing with other facilities

Concept validation platform

  • Enabler for validating ongoing FAA data modeling

e.g. Flight Object…)

slide-6
SLIDE 6

NextGen Tower-6 VM 10/22/2011

  • Surveillance Processor

– Combine ASDE-X dropped or split track data into single consistent track using multiple sensor reports – Smooth aircraft position and heading using Kalman Filter models – Handle high rate of ASDE-X reports – Extend tracks to 60nm

  • Surface Monitor

– Locate targets relative to surface features (runway, taxiway…) – Determine if aircraft is airborne or on ground – Model vehicle motion and predict position in near-future – Control runway entrance/threshold hold bars – Generate safety alerts

  • Target Broker

– Match data within and between different external data sources (ASDE-X, FDIO, TFMS…) – Provide unique and consistent identifier for flights within TFDM system

Data Fusion

Operational algorithms for identifying, tracking, and locating targets

slide-7
SLIDE 7

NextGen Tower-7 VM 10/22/2011

Decision Support Functions

Strategic Tactical

Decision Support Module

  • Setup efficient airport configuration
  • Consider surface winds
  • Consider traffic demand
  • Preempt delays & gridlock
  • Reroute flights
  • Coordinate departure time
  • Balance runway use
  • Assign taxi routes
  • Manage push-backs
  • Assist in meeting departure time
  • Establish efficient take-off sequence
  • Account for traffic constraints
  • Ensure aircraft depart safely
  • Adhere to surface separation and

enroute traffic constraints

Traffic Management Function Time

slide-8
SLIDE 8

NextGen Tower-8 VM 10/22/2011

Efficient Departure Routing

Route Availability Planning Tool Supervisor Flight plan data Accurate take-off time predictions

Decision support modules facilitate collaborative rerouting

Demand on Easterly blocked routes South-East routes available

slide-9
SLIDE 9

NextGen Tower-9 VM 10/22/2011

Metering Concept

Throughput

Number In Queue (Q) Q* = Saturation point Adding aircraft: Increases delay Increases fuel burn T minutes prediction of aircraft queue Number on surface

  • +

Q*

Aircraft push- back control aft qu Future scheduled departures Number of departures

Q-control: Control strategy to maintain queue at saturation

slide-10
SLIDE 10

NextGen Tower-10 VM 10/22/2011

Example for Metering Decision Support

(24 February 2011)

Surveillance Display Electronic Flight Strip Display Ground Control Predict queue build up Throttle push-backs

Weather triggered airport operation well above saturation point Opportunity to provide metering decision support

10 20 30 40 50 60 3 5 7 9 11 13 15 17 19 21 23 Number Of Departure Aircraft Local Hour 10 20 30 40 50 60 3 5 7 9 11 13 15 17 19 21 23 Number Of Departure Aircraft Local Hour

Weather impact time

slide-11
SLIDE 11

NextGen Tower-11 VM 10/22/2011

Accurate Taxi Time Models

Training Data Set Inputs:

Taxi distance Airline Origin Arrivals Departures

Supervised Learning Trained Model Real-Time Data Accurate taxi-time estimates required near push-back

Supervised learning model: Accurate & robust for real-time data

2 4 6 8 10 12 Linear Regression Supervised Learning Absolute Taxi Time Error (Minutes)

Average Taxi-Time Error Near Push-Back

slide-12
SLIDE 12

NextGen Tower-12 VM 10/22/2011

Human Factors Role In Design & Development

Operational concept and high level requirements Requirements and detailed design Tower Visits User Groups Operational Tests

Feedback: Operational utility, efficiency, workload, alerting/cueing, functionality, & robustness

Simulation Functional and benefits assessment Operational assessment

slide-13
SLIDE 13

NextGen Tower-13 VM 10/22/2011

Key Features: Surveillance Display

Aircraft icons based on type, weight category Alarms and alerts Runway hold bars Context-specific data block information Surveillance data smoothing Surveillance out to 60 NM Ribbon display Runway and taxiway closure indications Zoomable, rotatable display with multiple flexible subwindows

slide-14
SLIDE 14

NextGen Tower-14 VM 10/22/2011

Key Features: Flight Data Manager Display

Color coding consistent with Surveillance display Coordinated selection with surveillance targets User- and position-configurable layout Quick- entry hot buttons

Drag-and-drop touch screen interface

Alarms, alerts, and prompts Strip content tailored to controller position Editing, multiselect, create, delete, undo options Multiple sorting options Highlighting, acknowledgment, notes, flip capability Attention highlighting Search capability Metering advisories

slide-15
SLIDE 15

NextGen Tower-15 VM 10/22/2011

Key Features: Supervisor Display

Airport configuration manager Runway-to-fix map tool Flight-specific impact of weather Runway time & sequence prediction Integration of traffic management initiatives Coupled to other tower positions and displays Active flight list NOTAMs, RVR, checklists

slide-16
SLIDE 16

NextGen Tower-16 VM 10/22/2011

TFDM Field Demonstrations

East Tower (Primary) Center Tower (Shadow)

Dallas/Fort Worth Airport:

  • Size: 29.8 square miles
  • Operations: 1,800 per day
  • Passengers: 156,000 per day
  • Runways: 7
  • Towers: 2 primary, 1 backup

Testing:

  • Duration: 6 days, 8 hours per day
  • Operations: 2700 flights
  • Controllers: 18

E t

NextGen Towe -16 VM 10/22/2011

Test 1 – August 2010

  • Flight data and surveillance

Test 2 – April 2011

  • Decision support and

video surveillance

Follow-On Demonstrations

  • FY12, DFW or alternate site

er- 011

slide-17
SLIDE 17

NextGen Tower-17 VM 10/22/2011

User Rating Of TFDM Displays

4.0 3.0 4.1 3.8 4 3.8 2.9 1.9 4.7 2.8 3.6 3.5 2.6 4.6 4.0 1 2 3 4 5

Rwy Open/Close Dep Fix Airport Config Change Sup Chklst RVR CFR MIT/MINIT Arr Rate Rwy to Fix Map Wheels off time Wheels on time RAPT S&S Dep Routing NOTAMs Active Flights

Frequency Frequency

Supervisor Display Utility

slide-18
SLIDE 18

NextGen Tower-18 VM 10/22/2011

Successful System Evaluation

Example Positive Feedback:

  • “Tower ready”
  • “Very easy to use”

Example Suggested Improvements: Add Automated Radar Terminal System information Improve timing on change of aircraft state to airborne Example Positive Feedback:

  • Coupling with surveillance and Supervisor Display
  • Attention cues and prompts

Example Suggested Improvements: Propagate runway-to-fix pairing from Supervisor Add Beacon Code to electronic flight strip Example Positive Feedback:

  • Ability to propagate information to tactical controllers
  • Departure routing and metering decision support

Example Suggested Improvements: Ability to combine fixes and reroutes Greater ability to modify traffic management initiatives Surveillance Display Electronic Flight Strips Decision Support

slide-19
SLIDE 19

NextGen Tower-19 VM 10/22/2011

  • First highly integrated and operationally tested system for the

tower environment

– Surveillance, Flight Data, Weather, Traffic Constraints, Decision Support, Integrated Displays

  • Success enabled through early and frequent participation of

experienced controllers in designing for user acceptance

  • Work continuing to refine user interfaces and decision support

tools

Summary
