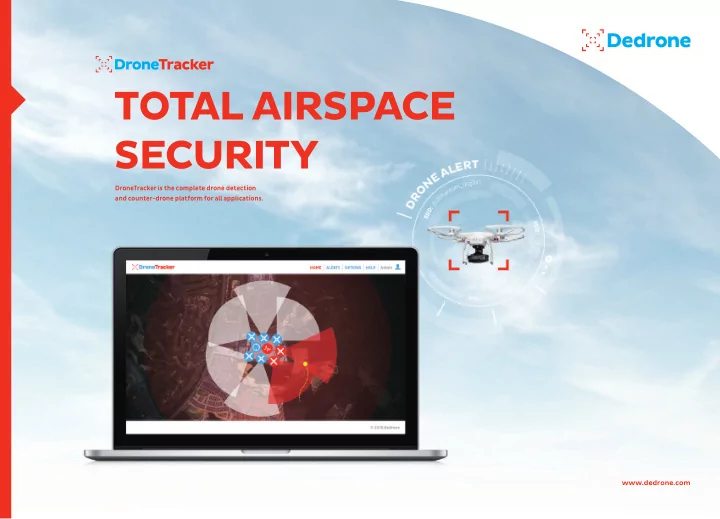

www.dedrone.com 1 DroneTracker is the complete drone detection and counter-drone platform for all applications.

TOTAL AIRSPACE SECURITY

www.dedrone.com

2 Total Airspace Security Man Jailed for Using Drone to Fly Drugs into Prisons THE GUARDIAN – JUL 21, 2016 Stansted Airport: Drone ‘Serious Crash Risk’ to Boeing 737 BBC – JUL 25, 2016 The ‘Danger Drone’ Is a $500 Flying Hacker Laptop MOTHERBOARD – JUL 28, 2016 Terrorist Drone Attacks Are Not a Matter of ‘If’ but ‘When’ NEWSWEEK – APR 29, 2016 Drone Slams into Seating Area at U.S. Open CNN – SEP 5, 2015 Drones over SRS Nuclear Site Prompt Discussion of No-Fly Zone THE STATE – JUL 14, 2016 More drone incidents on www.dedrone.com Rise of the Bad Drones There is hardly any other technology currently developing as fast as drone technology. However, the in- crease in drone efficiency also means more opportunities to misuse them for criminal purposes. When your airspace is exposed, no longer are fences, video cameras, and security guards adequate to protect sensitive buildings or persons.

Be Prepared for Aerial Threats Incidents +++

Delivering bombs Spraying chemicals Jamming or eavesdropping Capturing photos or video Smuggling drugs

Now you can be a lot more brazen in your attacks, because you’re not as worried about getting caught and going to jail.

Fran Brown, one of the two creators of the “Danger Drone”

“

www.dedrone.com 3 Fully Automatic Counterdrone Solution DroneTracker is a unique system designed to detect civilian drones. It‘s optimized, multi-sensor hardware can be mounted to facades, windows and special carriers in

• rder to identify approaching drones by means of visual,

acoustic, and frequency sensors. Noise, movement pattern, silhouette, and RF and Wi-Fi signals are pro- cessed and evaluated with the intelligent DroneTracker

• software. DroneTracker’s correlation and analysis of

this information reliably identifies approaching drones, and triggers alarms to alert security staff. Third-party sensors, such as surveillance cameras and radar, as well as jammers or other countermeasures, can be integrated.

Secure Your Airspace

APPLICATIONS

Data Centers Critical Infrastructure Stadiums Government Buildings Airports Prisons

AERIAL THREATS

Espionage Terror Smuggling Hacking Unwanted Publicity Vandalism

“Thanks to the DroneTracker,

• ur airspace is now protected

24/7, and no drone will cross

• ur perimeter unnoticed.”

Michael J. Franchi, Warden RF Sensor Multi Sensor Camera Radar Jammer DRONE ALERT

DRONE: Phantom 3 SSID: PHANTOM3_0af963 MAC: 60:60:1f:0a:f9:63 RSSI: -78 dBm RETURNING: 2x

4 Total Airspace Security

Safe Detection with Optimized Sensors

RF Sensor

The RF Sensor scans a wide frequency band for radio frequencies, classifies and decodes them. Drones that send signals in real time to a ground station – from video cameras, for example – are identified this way. The decoded data is recorded and available on the user interface. Video Optical sensor (daylight) 1080p HD CAM Each DroneTracker is equipped with a daylight camera. We use enhanced image analysis functions to analyze the live video feed. Near Infrared Optical sensor (night) 1080p HD CAM DroneTracker can be equipped with an infrared camera. The data is interpreted by means of enhanced image analysis methods. Audio / Ultrasonic Acoustical sensors Spectrum 0 - 96 kHz Civilian UAVs have typical acoustic characteristics that we recognize for their reliable detection. Wi-Fi Sensor Omnidirectional scanning 2.4 GHz ISM An integrated Wi-Fi sensor detects the WLAN signals

• f drones. It also permits identification of certain

drone models and even single devices.

Multi Sensor

www.dedrone.com 5

Scale the System to Your Needs

Multi Sensor

Audio, visual, Wi-Fi detection

RF Sensor

For RF triangulation

PTZ Camera

Video verification

User Interface IP Camera

Additional vertical/horizontal visual detection

Switch POE+

IEEE 802.3AT 25.5W

Edge Router Firewall Radar Dedrone Server Internet

DroneDNA Detects that Virus in the Sky

DroneTracker uses sensor-specific drone patterns and signatures, the DroneDNA, by which different drone models can be identified. This DroneDNA database is constantly updated similar to how a virus scanner would be, and every DroneTracker undergoes regular software updates.

www.dedrone.com 7

Trigger Countermeasures Benefits

Non-invasive measures

• Lead people to safety
• Block view
• Lock (cell) doors and gates
• Search site for dropped objects
• Search for pilot

Third-party solutions

• Jammer
• Fog bomb
• Locking system
• Shutters
• EMP

Depending on your individual security needs and legal preconditions, you can easily integrate third-party countermeasures into the DroneTracker platform and trigger them automatically via API.

Drone Jammer

(Third-party) A jammer transmits electromagnetic waves which interfere with the radio signal between the drone and its remote control

• unit. If a drone is flying on automatic pilot,

the GPS signals required for navigation can also be jammed. The DroneTracker system manages your airspace surveillance completely in one easy-to-use browser

• interface. The software allows the configuration of

multiple sensors, active and passive countermea- sures, and alerts. Special operators are not needed, so your existing staff can manage your airspace security with minimal resources. Drone detection with multiple sensors Integration of third-party countermeasures

Integration of third-party sensors

Scalable system for sites of all sizes Intuitive, easy to handle user interface Preservation of evidence Integration into existing security systems

A Real Threat From Above

Let’s face it: drones are now a part of everyday life. Their popularity has increased in parallel with the recent great advances in their sophistication, power, affordabi- lity and ease of access. The drones available today are no longer simply toys for kids

• r hobbyists, but are increasingly being used for spying, drug smuggling, and indus-

trial espionage. To make matters worse, drones can easily be fitted with weapons

• r explosives by anyone who wishes to physically harm rivals or governments.

New Safety Requirements

Drones are a true “threat from above” that present police authorities, governments and the security industry with a new challenge. Fences, video cameras and security guards no longer protect sensitive buildings or personnel adequately when your airspace is exposed. Dedrone has developed a technical solution to close this se- curity gap, the DroneTracker. DroneTracker effectively protects your airspace from airborne threats.

Intelligent Sensing For Reliable Detection

The size, speed and varying shape of drones make them extremely difficult to identify using a single monitoring method. DroneTracker therefore utilizes an array

• f sensors to identify air space intrusions in real time. This unique sensing system

enables DroneTracker to detect numerous threat parameters such as noise, shape, movement patterns, and frequencies. The built-in camera saves images and videos in HD quality, providing crucial evidence of the threat intrusion.

Dedrone Your Airspace

DroneTracker is the best protection for numerous applications:

• Government facilities
• Embassies
• Prisons
• Industrial facilities
• Data centers
• Nuclear power plants
• Test tracks
• Private properties
• Private events such as board

meetings and conferences

• Stadiums and public events
• Logistic centers

Spies

Spies equip drones with unpro- tected Wi-Fi sniffing devices and land them on your company. When employees connect unconsciously to these hot spot, the spies can easily steal information.

Smugglers

Smugglers use drones to carry drugs, weapons, mobile phones and other contraband with drones across borders, into prisons, or into your neighborhood.

Paparazzi

Paparazzi use HD camera drones in celebrities‘ private spaces to “shoot down” public figures.

DRONE DETECTION TECHNOLOGY WWW.DEDRONE.COM

Ease Of Use

The user-friendly web interface DT Control Center enables easy configuration of any number of DroneTrackers or retrieval of data such as photos or videos. The monitored airspace can be viewed in real time on a PC or tablet. When a threat is detected, you will be notified via SMS, email, network message (TCP/IP), SNMP or Pushover.net. The DroneTracker can also be integrated into home/business alarm

• systems. For large area protection or perimeter protection, multiple Trackers can

be combined in series.

Extensive Drone Database

DroneTracker’s intelligent identification software classifies each detected drone based on its unique characteristics. This signature, or DroneDNA, developed by Dedrone, is maintained at our centrally managed database and offered to users as regular updates.

The DroneTracker Identifies Drones In Real Time

The DroneTracker at a glance

• Modular sensor system: visual

sensors (HD- and infrared camera), acoustic and ultrasonic sensors, Wi-Fi scanning

• Intelligent pattern

recognition with DroneDNA

• Identification of certain drone

models and single devices

• Video confirmation and

evidence

• Integration of any number of

DroneTrackers

• Cloud-based service model

with regular updates

• User-friendly web interface

with multiple live views

• Mobile DroneTracker for

application at events

• Easy integration with

security systems

• Multiple alarms, including

SMS, email, network message (TCP/IP), SNMP, Pushover.net

Technical Specifications

Connectivity via LAN in existing IT infrastructure Power Supply active PoE+ (802.3at) or passive PoE 24 V L * W * H 440 mm x 440 mm x 164mm (23.2 " x 23.2 " x 6.46 ") Weight 3,8 kg (8,4 lb) Range up to 500 m (1640’) Operating Temperature

• 20 °C to +50 °C (-4 °F to +120 °F)

Software Configuration via web interface Alarm Notifications via software, SMS, email, network message (TCP/IP), SNMP, Pushover.net Video 1080p HD Camera / 10°–90° Audio 2 x Audio / Audible&Ultrasonic / Spectrum 0 – 96kHz Wi-Fi Omnidirectional Scanning (2.4 GHz ISM band and 5 GHz ISM band) Infrared Near Infrared HD Camera USA Dedrone Inc. +1 650 278-4461 info@dedrone.com www.dedrone.com GERMANY Dedrone GmbH +49 561 861799-0 info@dedrone.com www.dedrone.com DRONE DETECTION TECHNOLOGY WWW.DEDRONE.COM

Additional Information

Data Sheet DT RF Sensor V 2.5 1 / 1

Data Sheet DT RF Sensor

Range up to 3300 ft (1000 m) Device Type sensor Radio Frequency

• mnidirectional passive sensing and decoding

L x W x H 9.8“ x 7.3“ x 7.4“ (250 mm x 185 mm x 188 mm) Weight 6.8 lb (3.1 kg) Ingress Protection Rating IP54 Operating Temperature

• 4 °F to +122 °F (-20 °C to +50 °C)

Power Supply active PoE+ (IEEE802.3at) Power Consumption 15 W (typ.) Connectivity via LAN in existing IT infrastructure Software Configuration via web interface DT Control Center Operation via web interface DT Control Center Software Updates firmware and DroneDNA updates via cloud-based database connection Alarm Notifications via DT Control Center

Features

The DT RF Sensor is a passive, network-attached sensor for the detection of radio frequencies (RF) and Wi-Fi signals. It sup- plements the DroneTracker System with another level of detection. The DT RF Sensor detects and decodes targeted radio signals and sends the data, along with an alert, to the DroneTracker System.

Data Sheet DroneTracker Event Kit V1.1 1 / 1

Data Sheet DroneTracker Event Kit

Technical Data Scope of Delivery

The DroneTracker event kit is a fully self-contained portable solution for detecting drones. We imagine it can be used to give the user automated drone awareness at public events, concerts, sport and outdoor theatrical shows; any event where drone activity is unwanted. All the sensor support equipment is integrated into a robust professional case, including tripods, battery, router and safe stowage for the DroneTracker Multi-Sensor and DT RF Sensor. As a package, it is all you need for effective, automated, in- the-field detection of drones using passive sensors. L x W x H 27“ x 20.8“ x 14.41“ (687 mm x 528 mm x 366 mm) Weight

• Approx. 81.6 lb (31 kg) exlusive DroneTracker Multi-Sensor and DT RF Sensor

Ingress Protection Rating IP54* Operating Temperature

• 4 °F to +104 °F (-20 °C to +40 °C)

Battery Type Rugged lead acid battery (36 Ah) -? no dangerous goods Battery-Operating Time Up to 12 hours with 2 PoE+ units Battery-Charging Time

• Approx. 5.5 hours

Power Supply active PoE+ (IEEE802.3at) Connections Battery-charging-connection, Router ADSL / UP connector, 2x PoE+ connec- tor, PC / Notebook connector, Wi-Fi (2.4 GHz and 5.0 GHz) Switches Start-Button (outside the case) Transportation main switch (inside the case)

* Battery Charger: IP41

1 x Tec Case with wheels (with battery, fuses, energy management, Wi-Fi router, 2x PoE+ injectors) 2 x Tripod 1 x Battery Charger 1 x Installation Manual and Safety Information 2 x Patch Cable All components can be transported in the Tec Case with wheels, including a DroneTracker Multi-Sensor and one DT RF Sensor. Each component is protected by its own fuse.

Akba Technology & Defense Industry Inc Koreşehitleri Caddesi Yüzbaşı Kaya Aldoğan Sokak No:7 Aksoy Binası Zincirlikuyu 34394 İSTANBUL / TÜRKİYE www.akbatechnology.com

Your

Complete solution including drone detection and countermeasures Especially developed for urban sites Cost-e nt Extensive data about drone activity, e.g. frequency, ht paths, drone models Sensors except for radar, are not subject to regulatory approval

Upgrade Your Security Now
