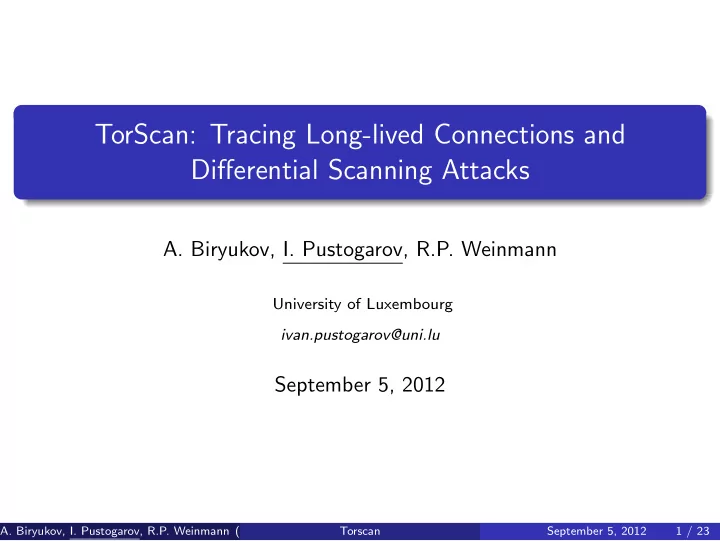

TorScan: Tracing Long-lived Connections and Differential Scanning Attacks

• A. Biryukov, I. Pustogarov, R.P. Weinmann

University of Luxembourg ivan.pustogarov@uni.lu

September 5, 2012

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 1 / 23

Overview

What is Tor and How it works A classification of published attacks on Tor Revealing Tor topology information Topology-based attacks Evaluation of the attacks

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 2 / 23

Tor anonymity network

Tor relays – Internet servers running Tor software Both relays and clients run the same software Authorities – 9 most trusted relays which maintain and distribute the list of Tor relays (the Consensus) Clients route their traffic through a chain of Tor relays Tor relays do not delay traffic nor use padding Is the most popular anonymity network (>3000 Tor relays; 400,000 users/day). It is fast.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 3 / 23

Tor anonymity network

A user chooses three Tor relays – guard,middle,exit – and builds a circuit: exchanging symmetric keys and updating the relays’ Tor routing tables Telescoping is used to exchange symmetric keys between the client and the relays Traffic flows down the circuit in fixed-size cells, which are unwrapped by a symmetric key at each node (like the layers of an onion) TLS connections between relays are used as the transport for Tor cells One TLS connection carries many circuits

TLS Guard Middle Exit Server Client TLS TLS

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 4 / 23

Classification of published attacks

server exit relay middle relay guard node user attacker

Passive traffic analysis attacks.

Cell counting, time correlation, Website fingerprinting

Active traffic analysis attacks

Watermarking, node clogging, etc.

Attacks based on information leakage from specific applications.

Bittorrent leaking IP addresses, etc.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 5 / 23

Intersection attack and Guard nodes

server exit relay middle relay guard node user attacker

Controlling the entry node and sniffing the server ≡ locating the client If the entry node is chosen randomly, as the client makes many different circuits over time, then the probability that the attacker will see a sample of the traffic goes to 1 It does not happen if the entry nodes are fixed. Each client has a pool of three guard nodes which are actual for 1 month

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 6 / 23

The attack goal

We do not reveal the actual IP address of a client We do reveal the guard nodes of a client Guard nodes are the next point to attack. Guard nodes are specific to the user and can be considered as his signature

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 7 / 23

The key to our attack

Before the Tor network was considered as a fully connected graph We have found ways to probe the connectivity of a Tor relay. We found how topology leakage can be used to trace back a user from an exit relay to a small set of potential entry nodes.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 8 / 23

Revealing Tor connectivity (1/5)

Each node is uniquely identified by its RSA public key (fingerprint) Use CREATE/CREATED cells to exchange a Diffie-Hellman key. Use EXTEND cell to relay a CREATE cell EXTEND cell contains the fingerprint and IP address of the next relay EXTENDED cell indicates the success; DESTROY cell indicates a failure

Bill Guard Middle Exit Server CREATE CREATED

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 9 / 23

Revealing Tor connectivity (2/5)

Each node is uniquely identified by its RSA public key (fingerprint) Use CREATE/CREATED cells to exchange keys. Use EXTEND cell to relay a CREATE cell EXTEND cell contains the fingerprint and IP address of the next relay EXTENDED cell indicates the success; DESTROY cell indicates a failure

Bill Guard Middle Exit Server (2) CREATE (1) EXTEND[CREATE] T

• FP_A@128.31.0.34

(4) EXTENDED[CREATED] (3) CREATED FP_A@128.31.0.34

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 10 / 23

Reavealing Tor connectivity (4/5)

Each pair of Tor relays tries to keep just one TLS connection A connections to Relay A is Canonical if IPA and fingerprintA of relay A are from the Consensus document The canonical connection will be used for all subsequent circuit extension requests to the relay with fingerprintA. IP address is ignored What happens if I indicate a fingerprint from the consensus and 127.0.0.1 as IP

Bill Steve FP_A@128.31.0.34 EXTEND[CREATE] T

• FP_A@127.0.0.1

DESTROY

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 11 / 23

Reavealing Tor connectivity (3/5)

Each pair of Tor relays tries to keep just one TLS connection A connections to Relay A is Canonical if IPA and fingerprintA of relay A are from the Consensus document The canonical connection will be used for all subsequent circuit extension requests to the relay with fingerprintA. IP address is ignored What happens if I indicate a fingerprint from the consensus and 127.0.0.1 as IP

Bill Steve FP_A@128.31.0.34 EXTEND[CREATE] T

• FP_A@127.0.0.1

EXTENDED

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 12 / 23

Reavealing Tor connectivity (5/5)

It takes less time to extend a circuit over already existing connection 18 additional steps ⇒ at least 18 RTT time slower

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 13 / 23

Show me!

One scan takes 30 seconds. Can be easily parallelized. 89 USD for scanning the whole network for a day (4 minutes between scans).

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 14 / 23

The attack scenarios

1 We will trace Long-lived connections: long-lived SSH sessions, very

large files downloads, file-sharing applications and communications

• ver instant messaging networks.

2 We will trace recurrent connections: Gmail establishes new

connections every 2 minutes; web sites with auto-refresh contents. Pseudonymous user is identified by a cookie or a login credential.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 15 / 23

Tracing Long-lived connections.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 16 / 23

Tracing Long-lived connections. Evaluation

How long should we wait for other connections to disappear? What is the asymptotic behaviour of the decay curve?

200 400 600 800 1000 1200 11Feb14:18 12Feb14:18 13Feb14:18 14Feb14:18 15Feb14:18 1500-bw-router, Control-Port-measurements 1500-bw-router, Canonical-Connections-Probing 36000-bw-router, Control-Port-Measurements 36000-bw-router, Canonical-Connections-Probing

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 17 / 23

Tracing Long-lived connections. Evaluation

How long should we wait for other connections to disappear?

What is connections duration distribution? Are there “immortal” connections? Incoming circuit rate for this connections is very high

What is the asymptotic behaviour of the decay curve?

20 40 60 80 100 1 2 3 4 5 6 7 8 9 10 11 12 Connections, % Connection duration, hours Connections medium-to-high bandwidth Connections medium-to-medium bandwidth 5 10 15 20 25 30 35 40 30000 60000 90000 120000 150000 180000 210000 % of routers Bandwidth weights from consensus BW distribution Percentage of immortal connections

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 18 / 23

Differential scanning

1 Tor Specification: a circuit (route) lives 10 minutes 2 Assume the client establishes recurrent connection to the server 3 The client is identified by his cookie or pseudonym 4 If we kill connection A, there is a probability that connection B will

drop as well

B A C D PPrivCom052 spfTOR3

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 19 / 23

Differential scanning. Evaluation

1 What is the probability that connections B drops (Signal)? 2 What is the probability that other connections drops (Noise)? 3 How many tries should we make?

→ C37B234FAD013453B90375EB55864FEBC876104A: 58 (PPrivCom052) bw=36500 ← CA1CF70F4E6AF9172E6E743AC5F1E918FFE2B476: 35 (spfTOR3) bw=29800

20 40 60 80 100 120 140 30000 60000 90000 120000 150000 180000 210000 Number of differentials Bandwidth weight Signal Noise

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 20 / 23

Some remarks

For many existing attacks: exhaustive probing of each link in the Tor network is required Existing attacks can become practical again since the amount of links to be probed is significantly reduced

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 21 / 23

Conclusion

All prior research on Tor assumed opacity of the Tor network topology meaning that the attacker had to assume a fully connected graph. In practice, the real degree of a node in this graph is substantially smaller than its maximum at any given point in time. For the first time, we have shown methods to determine the real connectivity of relays in the Tor network and the dynamics of the topology of the whole Tor network. Based on this, we described several novel attacks that use this information to deanonymize the entry points of the users into the Tor network.

• A. Biryukov, I. Pustogarov, R.P. Weinmann (UNI LU)

Torscan September 5, 2012 22 / 23

Thank you.
