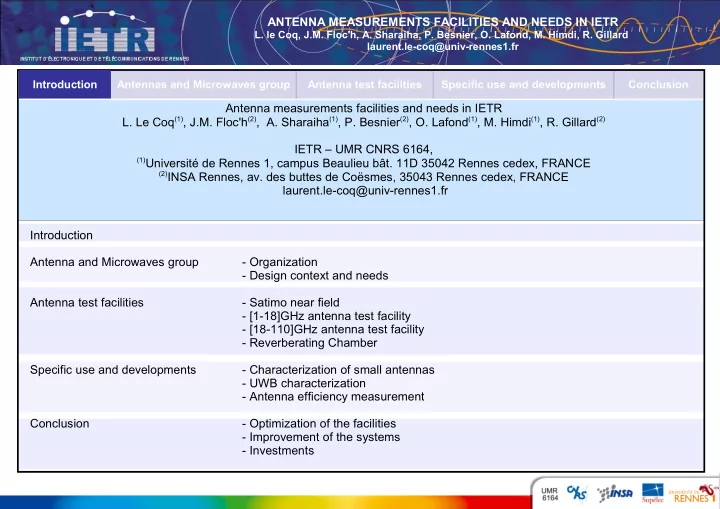

Organization
Design context and needs

Antenna test facilities

Satimo near field
[1-18]GHz antenna test facility
[18-110]GHz antenna test facility
Reverberating Chamber

Specific use and developments

Characterization of small antennas
UWB characterization
Antenna efficiency measurement

Conclusion

Optimization of the facilities
Improvement of the systems
Investments

Antenna measurements facilities and needs in IETR

L. Le Coq(1), J.M. Floc'h(2), A. Sharaiha(1), P. Besnier(2), O. Lafond(1), M. Himdi(1), R. Gillard(2)

IETR – UMR CNRS 6164, (1)Université de Rennes 1, campus Beaulieu bât. 11D 35042 Rennes cedex, FRANCE (2)INSA Rennes, av. des buttes de Coësmes, 35043 Rennes cedex, FRANCE laurent.le-coq@univ-rennes1.fr

SLIDE 2

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr IETR www.ietr.org University of Rennes 1 INSA of Rennes Supélec, Rennes Campus CNRS Involved in three competitiveness clusters:

Media & Networks
Premium Cars
Brittany Maritime

Member of two center of excellence : ACE, New Com Contractual work for and with industrial companies : European project, National Research Agency, bilateral contracts 250 lecturer-researchers, engineers, Ph.D students and admin. staff. Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments

SLIDE 3

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr ANTENNAS - MICROWAVES Electromagnetic modelling and optimisation New antenna designs and architectures Reconfigurable Antennas and innovative materials Millimetre wave antennas Electromagnetic Compatibility and signal integrity MICROELECTRONICS Thin-film devices and circuits Microtechnology: sensors and activators Development of a very low temperature technology Thin layer materials for antennae and electronic devices IMAGE PROCESSING – REMOTE SENSING Fast prototyping Image analysis and interpretation Multi-component and multi-modal images Representation and compression Radar remote sensing, SAR, Holography Polarimetry, Interferometry, Radargrammetry

COMM. – PROPAGATION - RADAR

Communications systems and cellular networks MIMO, OFDM, CDMA, UWB … techniques Software radio and cognitive radio Systems on Chip and embedded/on-board systems Analysis and modelling of transmission channels Propagation and UWB sounding Radar Systems – Radiolocalisation AUTOMATICS - COMMUNICATIONS Behavioural modelling and optimisation Dynamic systems performance and security Monitoring of hybrid and current complex systems Signal Processing Reconfigurable material architecture Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments

SLIDE 4

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Managers :

Pr. R. Gillard (raphael.gillard@insa-rennes.fr)
Pr. M. Himdi (mohamed.himdi@univ-rennes1.fr)

Five main topics : Electromagnetic modelling and optimisation : Dr. R. Loison (renaud.loison@insa-rennes.fr) New antenna designs and architectures : Dr. A. Sharaiha (ala.sharaiha@univ-rennes1.fr) Reconfigurable Antennas and innovative materials : Pr. K. Mahdjoubi (kouroch.mahdjoubi@univ-rennes1.fr) Millimetre wave antennas : Dr. O. Lafond (olivier.lafond@univ-rennes1.fr) Electromagnetic Compatibility and signal integrity : Dr. P. Besnier (philippe.besnier@insa-rennes.fr)

One team of 60 people
36 PhD studies in progress
was involved in 5 activities in the ACE network of excellence (A1.1, A1.2, A2.1, A2.2, A 3.1)
more than 45 contracts in the past three years including 2 european projects, 6 contracts under the

umbrella of the National Research Agency

some partners : Thales Alenia Space, PSA, Thales Communications, France Télécom R&D, CNES,

Renault, Onera, Alstom, CEA, ... Antennas and Microwaves group Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments

SLIDE 5

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Design of radiating structures is a basis of main of our studies Antennas topologies specifications and are as wide as our topics and contract context :

small and miniature antenna
active and passive structure
array, reflect array, single element
printed technology, 3D structures
from 100MHz to 110GHz

Antenna measurements is a key step of the research process, but not used for certification purposes Characterization needs are not focus on having a very specific antenna test range but having a set

f test ranges that are easily adaptable to the specificity of each of our design

Mainly, our test ranges are :

used for measurement of low and middle gain antennas
used for measurement of narrow and ultra wide band antennas
easy to use to keep the characterization as a step of the design process
adaptable and reconfigurable if necessary

Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments

SLIDE 6

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Four facilities for radiation characterization Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Measurements needs :

validation :

> classical design step > validation of software development > original topology of antenna and associated devices

reference values :

> simulation results > specific cut planes for software validation

not for certification

Context of investment :

financing thanks to contract, with supports of

CNRS, région Bretagne, Rennes Métropole, Université of Rennes 1, INSA Rennes

95% of utilization for our main needs
facility access depends on two main criteria :

> feasibility of measurement > acceptable with our current studies

SLIDE 7

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Facility description :

Far field antenna test facility
Frequency range : [1-18]GHz
Dimensions overall : 4,55m x 4,55m x 13,8m
Dimensions tips to tips : 3.2m x 3,2m x 12.7m
Emission/reception distance : [2-10]m

Measurement system :

Magnitude and phase measurements :
coaxial system
vector network analyser
positioning system : Orbit-fr
3 axis on reception part ( r/t/a )
1 axis on emission part

Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments [1-18]GHz far field chamber

SLIDE 8

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Facility description :

Far field antenna test facility
Frequency range : [18-110]GHz
Dimensions tips to tips : 9.4 x 3,1 x 2.6 m
Emission/reception distance : [1-7]m

Measurement system :

Magnitude and phase measurements :
waveguide system
waveguide/coaxial transition until 110GHz
vector network analyser
positioning system : microcontrol
4 axis on reception part ( e/r/t/a )
1 axis on emission part

Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments [18-110]GHz far field chamber

SLIDE 9

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Facility description :

near field antenna test facility (SATIMO SG32)
Frequency range : [0.8-6]GHz
internal diameter of the arch : 1.5 m
Dimensions of the chamber : 3.5 x 3.5 x 2.7 m

Measurement system :

Magnitude and phase measurements
31 probes
positioning system : 1 azimuth axis

Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments [0.8-6]GHz near field chamber

SLIDE 10

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Facility description :

Frequency range : from 200 MHz
Dimensions : 2.9m x 3.7m x 8.7 m
six arms mode-stirrer

Measurement system :

vector network analyser
arbitrary Waveform Generator and Digital

Sampling Oscilloscope Measurements capabilities :

total radiated power in EMC
Radiated immunity
Antenna radiation efficiency
gain diversity

Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Reverberation chamber

SLIDE 11

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Some measurements results (1/5) > Microstrip slot fed patch array with sequential rotation > Frequency range : [5-6]GHz > Axial Ratio computed from magnitude and phase measurements 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6.0 1.0 1.2 1.4 1.6 1.8 2.0 On axis Axial Ratio computed from cut planes [0;45;90;135]° measurements frequency(GHz) AR plane 0 plane 45° plane 90° plane 135° Microstrip patch array Context : Antenna Center of Excellence – WP1.2-3 'Self - Benchmarking of Antenna Measurement Facilities '

SLIDE 12

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Some measurements results (2/5) Context : PhD Study,”Study of reflectarray cells using coupled microstrip patches loaded with slots”, D. Cadoret

SLIDE 13

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr E-plane H-plane Rexolite ILA – f=28 GHz Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Some measurements results (3/5) Context : PhD Study, “Design and optimization of multilayer lens antenna and dielectric radome – applications to millimetric bands”,

G. Godi

SLIDE 14

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr E-plane Active planar antenna array f = 48.7GHz Multilayer planar antenna array designed for one-feed-per-beam reflector antennas H-plane Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Some measurements results (4/5) Context : MIPA European project (MEMS based Integrated Phased Array)

SLIDE 15

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Some measurements results (5/5) Inhomogeneous lens @ 77GHz Half Maxwell Fish Eye fed by an open-ended waveguide :

9 shells, diameter = 15 λ0
G = 28,54 dBi
D = 31,1 dBi
illumination efficiency = 58%
radiation efficiency = 55%
half power beamwidth apertures : 4,6°

in E-plane / 5,2° in H-plane Context : PhD study : “Stratified lenses and real sources associated - theoretical analysis and experimental validation in millimetric bands ” , B. Fuchs

SLIDE 16

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Context of the study :

PhD study : “Design and time/frequency compact

characterization of antennas for UWB applications”, C. Marchais

RNRT contract 'Aubade'

Characterization of UWB antennas contacts : A. Sharaiha, G. Le Ray Goal :

compact representation of UWB antenna with

respect to the frequency

minimization of the amount of data required by

UWB characterization Measurement protocol :

measurement of the S21(f) transmission coefficient
f two antenna facing each other at a fixed distance

> excitation signal is a frequency Dirac comb

btained in step mode with a vector network analyzer

> filtering out a part of the noise using time gating

time signal h(t) of the antenna is determined
extraction on poles/residues based on the Singularity

Expansion Method

SLIDE 17

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Characterization of UWB antennas contacts : G. Le Ray, A. Sharaiha, L. Le Coq Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Related studies

UWB antenna design
S11 and radiation characterization of UWB

Simulation Near Field Measurement Far Field Measurement

SLIDE 18

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Context of the study :

PhD study : “Characterization of UWB compact

antennas for digital wireless communication systems”,

G. Le Fur

Radiation efficiency measurements contacts : G.Le Fur, A .Sharaiha, P.Besnier Goal : Measurement of UWB antennas, narrow band antennas and multi-band antennas using UWB Wheeler CAP. Measurement procedures : > measurement of the S11(f) in free space and inside the UWB Wheeler Cap. > achievement of radiation and total efficiency through a simple calculation. 2 11 2 11 2 11 2 11 2 11 2 1 wc fs fs fs wc rad S S S S S + − − = η

SLIDE 19

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Context of the study :

PhD study : “Characterization of UWB compact

antennas for digital wireless communication systems”,

G. Le Fur

Time Reversal Efficiency Measurement method (TREM) contacts : G.Le Fur, A .Sharaiha, P.Besnier Goal : Global efficiency measurement using time reversal measurement protocol : Measurement of two antennas in the reverberation chamber using Arbitrary Waveform Generator and Digital Sampling Oscilloscope : > a pulse is transmitted by antenna 1(shape adapted to the antennas) > received signal at antenna 2 is sampled and recorded (DSO) > signal is time reversed and transmitted again by antenna 1(AWG) > refocalization of the initial pulse on antenna 2 > according to comparison of emitted and received powers a global efficiency is determined Reference : “Efficiency Measurement of UWB Small Antennas in Reverberation Chamber”, Sharaiha A., Besnier P., Le Fur G., Eucap 2007. Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments

SLIDE 20

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Optimization of system capabilities contacts : L. Le Coq, F. Boutet Goal : development of low cost procedures to improve measurements procedures Studies in progress

alignment procedure using phase measurements

> based on phase center determination > low cost and effective procedure

improvement of quiet zone quality using gating

> classical measurement to get raw data > time gate post-processing procedure to improve quiet zone quality

implementation of new measurement technique

> measurement needs for small and miniature antenna

out-of-range system capabilities

> measurement below 1GHz

SLIDE 21

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Magnitude Measurement @ 110 GHz Phase Measurement @ 110 GHz H-plane co-polar E-plane co-polar > 9 shells Maxwell Half Fish-Eye lens > measurement in ACE2 context > meas. @110GHz with a WR7 feed Optimization of system capabilities Alignment using phase center determination contact : L. Le Coq

SLIDE 22

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments > Phd Study context “Design of a dual-polarization broadband antenna system for signal interception and jamming in VUHF band [0.03-3]GHz”, S. Palud > Measurement @500MHz > Comparison with theory and meas.performed by TDF > study of multiple reflection in the chamber Optimization of system capabilities Out-of-range chamber capability contact : L. Le Coq, F. Boutet

SLIDE 23

TITRE

INSTITUT D’ÉLECTRONIQUE ET DE TÉLÉCOMMUNICATIONS DE RENNES ANTENNA MEASUREMENTS FACILITIES AND NEEDS IN IETR

L. le Coq, J.M. Floc'h, A. Sharaiha, P. Besnier, O. Lafond, M. Himdi, R. Gillard

laurent.le-coq@univ-rennes1.fr Introduction Antennas and Microwaves group Antenna test facilities Conclusion Specific use and developments Measurement facilities in IETR > 2 far field chamber > 1 near field chamber > 1 reverberation chamber > several vector network analysers Measurements needs > validation of design > correlated with our studies > induced some specific developments Financing > based on contractual activities > supports of CNRS, région Bretagne, Rennes Métropole, Université of Rennes 1, INSA Rennes Investment > upgrade of existing facilities :

new positioning system for the [1-18]GHz far field chamber (2007)
new vector network analyser for reverberation chamber (2007)
partial evolution of measurement system in the two far field chambers (2008)

> new measurement capabilities

feasibility of a compact-range for [10-300]GHz frequency range
prospection on measurement system above 110GHz
