Titel der Prsentation Treatment of residuals from coffee production in Costa Rica Naxos 13 June 2018 Gerold Hafner Treatment of residuals from coffee production in Costa Rica Organic Waste- and Resources Management in the context of NAMA

slide-1

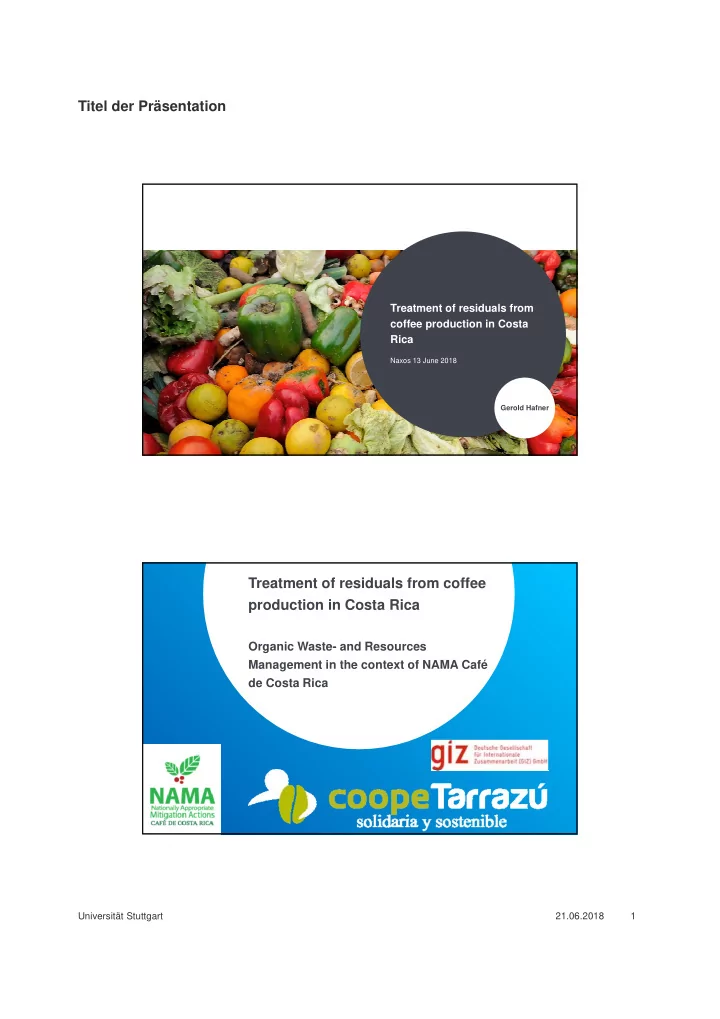

SLIDE 1

Titel der Präsentation

21.06.2018 Universität Stuttgart 1

Treatment of residuals from coffee production in Costa Rica

Naxos 13 June 2018 Gerold Hafner

Treatment of residuals from coffee production in Costa Rica

Organic Waste- and Resources Management in the context of NAMA Café de Costa Rica

slide-2
SLIDE 2

Titel der Präsentation

21.06.2018 Universität Stuttgart 2

Gerold Hafner 3

Content

Introduction & background Recommendations Methodology Research project Summary Preliminary results

Naxos/ 13 June 2018

Introduction

4

slide-3
SLIDE 3

Titel der Präsentation

21.06.2018 Universität Stuttgart 3

  • Costa Rica carbon neutral by 2021
  • Nationally Appropriate Mitigation Actions (NAMAs): NAMA Café de Costa Rica
  • Coffee production is an integral part of the nation’s history and identity.
  • Important economic sector of Costa Rica

Gerold Hafner 5

Background

Naxos/ 13 June 2018

  • Coffee production causes currently emissions of ca. 1.02 kg of CO2e / kg of green

coffee (Ruiz, 2017).

  • Treatment of residuals from coffee production
  • Diagnosis of the current status quo
  • Potential for optimization
  • Technical implementation
  • Alternative variants for treatment + valorization

Gerold Hafner 6

  • bjectives in the coffee sector

Naxos/ 13 June 2018

slide-4
SLIDE 4

Titel der Präsentation

21.06.2018 Universität Stuttgart 4

research project

Management of Coffee Residuals for Reducing Greenhouse Gas Emissions from Anaerobic Degradation (NSP Low Carbon Coffee Costa Rica)

7

  • Develop and apply a methodology to measure the impact of the application of an

aerobic treatment technology for coffee residuals

  • Potential to reduce greenhouse gases and other harmful impacts on the environment
  • Compare to the treatment previously applied

Gerold Hafner 8

  • bjectives of the study

NAMA de Cafe de Costa Rica

Naxos/ 13 June 2018

slide-5
SLIDE 5

Titel der Präsentation

21.06.2018 Universität Stuttgart 5

Gerold Hafner 9

Costa Rica NAMA de Cafe de Costa Rica

Naxos/ 13 June 2018 Gerold Hafner 10

Coffee Area NAMA de Cafe de Costa Rica

Naxos/ 13 June 2018

slide-6
SLIDE 6

Titel der Präsentation

21.06.2018 Universität Stuttgart 6 Cooperatives:

  • CoopeTarrazu R.L., San Marcos, Tarrazú
  • Coopeantes R.L. (The Diamond), Athens, Alajuela
  • Coopevictoria R.L., Greece, Alajuela
  • CoopeAgri R.L., Pérez Zeledón

Gerold Hafner 11

partners NAMA de Cafe de Costa Rica

Naxos/ 13 June 2018

Farms:

  • Lake View, San Marcos, Tarrazú
  • Santa Anita, Naranjo, Alujuela
  • Las Marias, Naranjo, Alajuela

Gerold Hafner 12

partners NAMA de Cafe de Costa Rica

Naxos/ 13 June 2018

slide-7
SLIDE 7

Titel der Präsentation

21.06.2018 Universität Stuttgart 7

Methodology

  • On-site inspection
  • Diagnosis of handling + composting of organic residues
  • Possiblities for technical optimization of composting process
  • Measurements + analysis of compost
  • Determination of boundary conditions
  • Identification of possible co-substrates
  • Alternative valorization

Gerold Hafner 14

Methodical approach

Naxos/ 13 June 2018

slide-8
SLIDE 8

Titel der Präsentation

21.06.2018 Universität Stuttgart 8

Gerold Hafner 15

delivery Handling of organic residues

Naxos/ 13 June 2018 Gerold Hafner 16

coffee fruits Handling of organic residues

Naxos/ 13 June 2018

slide-9
SLIDE 9

Titel der Präsentation

21.06.2018 Universität Stuttgart 9

Gerold Hafner 17

peeling process Handling of organic residues

Naxos/ 13 June 2018 Gerold Hafner 18

interim storage Handling of organic residues

Naxos/ 13 June 2018

slide-10
SLIDE 10

Titel der Präsentation

21.06.2018 Universität Stuttgart 10

Gerold Hafner 19

transport to composting Handling of organic residues

Naxos/ 13 June 2018 Gerold Hafner 20

Composting area Handling of organic residues

Naxos/ 13 June 2018

slide-11
SLIDE 11

Titel der Präsentation

21.06.2018 Universität Stuttgart 11

Gerold Hafner 21

No treatment of residuals Diagnosis of the current status quo

Naxos/ 13 June 2018 Gerold Hafner 22

Composting in cooperatives Diagnosis of the current status quo

Naxos/ 13 June 2018

slide-12
SLIDE 12

Titel der Präsentation

21.06.2018 Universität Stuttgart 12

Gerold Hafner 23

Composting in farms Diagnosis of the current status quo

Naxos/ 13 June 2018 Gerold Hafner 24

Direct application to coffee plants Diagnosis of the current status quo

Naxos/ 13 June 2018

slide-13
SLIDE 13

Titel der Präsentation

21.06.2018 Universität Stuttgart 13

Measurements

Gerold Hafner 26

Measurement of emissions Diagnosis of the current status quo

Naxos/ 13 June 2018

slide-14
SLIDE 14

Titel der Präsentation

21.06.2018 Universität Stuttgart 14

Gerold Hafner 27

Parameters Diagnosis of the current status quo

Naxos/ 13 June 2018

  • Temperature
  • Methane, CH4
  • Oxygen, O2
  • Carbon dioxide, CO2
  • Humidity
  • Hydrogen sulphide, H2S
  • Dinitrogen monoxide, N2O
  • Ammonia, NH3
  • Laboratory analyses

preliminary results

slide-15
SLIDE 15

Titel der Präsentation

21.06.2018 Universität Stuttgart 15

  • Anaerobic zones after one day of

composting

  • High humidity in piles at beginning
  • f process – too little humidity after

some days

  • Too little oxygen in center of piles
  • Insects, odor + dust
  • Large proportion of residuals

untreated

  • GHG: climate relevant emissions.

Gerold Hafner 29

Composting - Problems

Naxos/ 13 June 2018 9 O2 CH4 O2 O2 O2 O2 O2 O2 O2 O2 O2 CH4 CH4 CH4 CH4 Gerold Hafner 30

emissions Preliminary results

Naxos/ 13 June 2018

slide-16
SLIDE 16

Titel der Präsentation

21.06.2018 Universität Stuttgart 16

Gerold Hafner 31

CH4 Preliminary results

Naxos/ 13 June 2018 Gerold Hafner 32

temperature Preliminary results

Naxos/ 13 June 2018

slide-17
SLIDE 17

Titel der Präsentation

21.06.2018 Universität Stuttgart 17

Gerold Hafner 33

Oxigen Preliminary results

Naxos/ 13 June 2018

recommendations

slide-18
SLIDE 18

Titel der Präsentation

21.06.2018 Universität Stuttgart 18

Gerold Hafner 35

membrane cover Recommendations (excerpt)

Naxos/ 13 June 2018

  • Best Oxygen Supplement
  • Avoidance of anaerobic areas

Gerold Hafner 36

active ventilation Recommendations (excerpt)

Naxos/ 13 June 2018

slide-19
SLIDE 19

Titel der Präsentation

21.06.2018 Universität Stuttgart 19

  • Production of RDF
  • Anaerobic digestion (synergetic effects with waste water treatment)
  • Production of beverages (lemonade, beer, liqueur)

Gerold Hafner 37

Alternative valorization of organic residuals

Naxos/ 13 June 2018

summary

slide-20
SLIDE 20

Titel der Präsentation

21.06.2018 Universität Stuttgart 20 I. Relevant GHG emissions in coffee sector II. Process optimization through adapted operational management III. Add additional substrates IV. Training for cooperatives and individual farms V. Quality control of compost VI. Alternative valorization of coffee residues VII. Climate-neutral coffee production is possible

Gerold Hafner 39

summary

Naxos/ 13 June 2018

Co-authors

Gerold Hafner Martin Reiser Macarena San Martin

slide-21
SLIDE 21

Titel der Präsentation

21.06.2018 Universität Stuttgart 21

E-Mail Telefon +49 (0) 711 685-

Thank you very much!

Gerold Hafner 6 54 38 University of Stuttgart, ISWA (RIK) Gerold.Hafner@iswa.uni-stuttgart.de Bandtäle 2 70569 Stuttgart Germany
