Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors Presentation to: American Electroplaters and Surface Finishers (AESF) Society SUR/FIN Conference Chicago, IL June 25, 2002 Jay Brusse QSS Group, Inc. @ NASA Goddard Space


slide-1
SLIDE 1

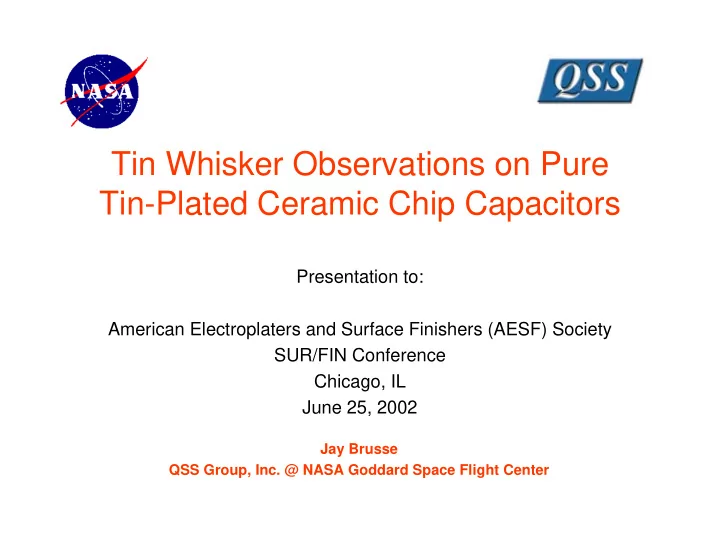

Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors

Jay Brusse QSS Group, Inc. @ NASA Goddard Space Flight Center

Presentation to: American Electroplaters and Surface Finishers (AESF) Society SUR/FIN Conference Chicago, IL June 25, 2002

slide-2
SLIDE 2

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 2

Outline

  • Quick Overview of Tin Whiskers

– Examples – Failure Modes – “Public Domain” Field Failure Experience

  • Multilayer Ceramic Capacitors (MLCCs)

– Typical Construction/Sizes – 4 Examples of MLCCs with Tin Whiskers

  • Conclusions
  • Recommendations
  • “NEW” Observations/Discoveries about Tin Whiskers
slide-3
SLIDE 3

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 3

Why ANOTHER Paper on Tin Whiskers?

  • The PAST:

– Tin Whiskers Known for ~60 Years – HUNDREDS of Independent Studies – Numerous Disparities Exist in Published Literature

  • The PRESENT: Combination of CONCERNING Factors

No “Accepted” Accelerated Whisker Tests Electronics Industry Conversion to Pure Tin Finishes Due to Pending Pb-Free Legislation Lower Application Voltages No Consensus Understanding of Whisker Growth Mechanism(s) SMALLER Circuit Geometries “New” Discoveries of Whisker-Prone Items

slide-4
SLIDE 4

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 4

Examples of EEE Components with Tin Whiskers

Hybrid Package Lid “Matte” Tin DIP IC Leads Transistor Header

Active Components Active Components

slide-5
SLIDE 5

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 5

Terminal Lugs Test Points

MORE Examples of EEE Components with Tin Whiskers

It’s about MORE than It’s about MORE than Just Active Components Just Active Components Relay Terminals Ceramic Caps SMT Fuses

PASSIVE Components PASSIVE Components

slide-6
SLIDE 6

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 6

Tin Whisker Failure Modes

  • Electrical Short Circuits

– Permanent ( if current < 10’s of mA) – Intermittent ( if current > 10’s of mA)

  • Debris/Contamination

– Interfere with Sensitive Optics or MEMS – Can Cause Shorts in Areas Remote From Whisker Origins

  • METAL VAPOR ARC in VACUUM

– When a Tin Whisker Causes a Short in Reduced Atmospheric Pressure, If V > ~18 V and I > 10’s of Amps, then Whisker can Vaporize into Highly Conductive Plasma of Tin Ions – Plasma can Form Arc Capable of Carrying HUNDREDS OF AMPERES – Arc Can Be Sustained by Tin Evaporated from Surrounding Areas

slide-7
SLIDE 7

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 7

“Reported” Tin Whisker-Induced Field Problems

Missile Program #1 Missile Program #2 Missile Program #3 Missile Program #4 Heart Pacemaker RECALL Commercial Satellite #1

Commercial Satellite #5

Commercial Satellite #6

Commercial Satellite #4

Commercial Satellite #2 Commercial Satellite #3

Medical Application

Space Application

X X X

Military Aircraft Defense Application Tin Whiskers are NOT Just Tin Whiskers are NOT Just

  • f Interest to Lab Researchers
  • f Interest to Lab Researchers
slide-8
SLIDE 8

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 8

Basic Construction of a Multilayer Ceramic Chip Capacitor (MLCC)

Ceramic Dielectric

(Typically Silver + Glass Frit)

Electrodes

slide-9
SLIDE 9

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 9

Typical Sizes of MLCCs

Note: Even “0201” Size Chip Caps are Now In Use

slide-10
SLIDE 10

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 10

Tin Whiskers and Multilayer Ceramic Capacitors (MLCCs) Past Research

  • Two Previous Papers by MLCC Manufacturers (1990 & 1997) Assert

MLCCs Have Following Attributes that make them Highly Resistant to Whisker

HOWEVER… HOWEVER…

“Large” (>5 µm), Well-Polygonized Tin Grain Structure “Thick” Matte Tin Plating (5 - 10 µm) Post-Plating Annealing

Promotes Grain Growth & Reduces Residual Stress

Ni-Underplate (> 2 µm)

Reduces Diffusion that Causes Internal Stress

  • ONE MLCC Mfr Experiment showed 18 Years WHISKER-FREE

Observations for MLCCs Stored Continuously at 50°C

slide-11
SLIDE 11

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 11

PROFUSE DENSITY of Tin Whiskers Currently up to 240 µ µ µ µm Long Found on Pure Tin Plated MLCCs after T-Cycle + Additional Ambient Storage

slide-12
SLIDE 12

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 12

Example #1: Tin Whiskers and MLCCs

MLCC Mfr “A”: T-Cycle of MLCCs Inside Hybrid Microcircuit

MLCC Construction (0805 size):

– Barium Titanate Ceramic Body – Silver Frit Base Termination 17 µ µ µ µm – Nickel Barrier Layer 6.5 µ µ µ µm – Matte Tin-Plated Final Finish 6.5 µ µ µ µm – Average Grain Size > 5 µ µ µ µm

Cross-Section of MLCC

Ceramic Silver Frit Nickel Tin

User Application:

– Hybrid Microcircuit (Herm-Sealed)

  • Gold Plated Substrate Pads
  • Substrate Line Spacing 125 µm (min.)

– ORDERED Pd-Ag Terminated MLCC, but Supplier Shipped PURE TIN – Chip Caps Mounted by Silver Epoxy

slide-13
SLIDE 13

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 13

Example #1: Tin Whiskers and MLCCs USER TEST ENVIRONMENTS

Condition 1: Temp Cycle: -40°C / +90°C (> 200 Cycles)

Whiskers ~ Whiskers ~100

100 µ µ µ µ µ µ µ µm m

Density > 800/mm Density > 800/mm2

2

Note: After an ADDITIONAL 1 Year “Ambient” Storage

Whiskers Whiskers Up to 240

Up to 240 µ µ µ µ µ µ µ µm m

Condition 2:

High Temp Storage: +90°C for 400 hrs

NO WHISKERS!!!

slide-14
SLIDE 14

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 14

Example #2: Tin Whiskers and MLCCs

MLCC Mfr “B”: Simulation of Reflow Temperature Exposure MLCC Construction:

– Barium Titanate Ceramic Body – Silver Frit Base Termination ~30 µm – Nickel Barrier Layer ~ 6 µm – Matte Tin-Plated Final Finish ~10 µm

Whiskers ~ 30 Whiskers ~ 30 µ µm m Test Condition:

– Heat Treated @ 215°C for 5 Seconds to “Simulate” Reflow Installation – Temp Cycle Unmounted:

  • 40°C / +90°C for 500+ Cycles

Cross-Section of MLCC

slide-15
SLIDE 15

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 15

Example #2: Tin Whiskers and MLCCs MLCC Mfr “C”: Thermal Cycle Exposure Testing

Whiskers ~ 30 Whiskers ~ 30 µ µ µ µ µ µ µ µm m

MLCC Construction

– Barium Titanate Ceramic Body – Silver Frit Base Termination – Nickel Barrier Layer – Matte Tin-Plated Final Finish

Test Condition:

– NO Heat Treatment to Simulate Installation – Temp Cycle Unmounted:

  • 40°C / +90°C for 100 Cycles
slide-16
SLIDE 16

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 16

  • Pure Tin-Plated 2220 and 1812 Size MLCCs

Mounted on FR4 Boards via Vapor Phase

– Solder = Sn63 / Pb37 – Installation Temp. = 217°C

  • Boards Subjected to Thermal Cycle/Shock (-55°C / +100°C)

for 50 to 400 Cycles

– RESULTS: Whiskers up to 30

Whiskers up to 30 µ µ µ µ µ µ µ µm m

  • Soldering Operations DO NOT Always Reflow ALL Tin Surfaces

Nor Mix them with the Mounting Solder

Example #3: Tin Whiskers and MLCCs

MLCC Mfr “B”: Whiskers AFTER Vapor Phase Installation and T-Cycle

Chip Cap

slide-17
SLIDE 17

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 17

Example #4: Tin Whiskers and MLCCs

MLCC Mfr “D”: Anecdotal Info - Whiskers AFTER Ambient Storage

User Application:

– MLCCs for Use Inside of Hybrid Microcircuit – User Orders Pd-Ag Terminated MLCCs, but Gets PURE TIN Supplied by Mistake

User Observations:

– After Removing MLCCs from Stock Storage, User Observes “Moss-Like” Growths on the Terminations “Moss-Like” Growths on the Terminations

( (i.e., Parts were NOT Subjected to Any Environmental Test Conditions) i.e., Parts were NOT Subjected to Any Environmental Test Conditions)

slide-18
SLIDE 18

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 18

Conclusions

  • Pure Tin-Plated Ceramic Chip Capacitors ARE Susceptible to Whisker

Formation (contrary to previously published claims)

  • Failures Due to Tin Whiskers are STILL a Significant Problem. Until

Significant Discoveries are Made Regarding Effective Mitigation Practices

– Problems WILL INCREASE with Increased Use of Pure Tin Coatings – Failures ARE STILL OCCURRING

  • Even when PROHIBITED by System Design and Procurement Practices,

Components Made with Pure Tin Finishes Continue to Appear in Electronic Equipment

  • Factors Affecting Tin Whisker Formation are NOT Completely
  • Understood. Risk Assessment Based on a SUBSET of Published

Literature Can Be DANGEROUS

slide-19
SLIDE 19

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 19

Recommendations

  • CONSENSUS Understanding of the Fundamental Mechanism(s) that

Drive Whisker Formation is Needed

  • “Accelerated” Test Method(s) to Judge Whisker Propensity of a Given

Product/Process is Needed

– Method Must be Tailorable to Assess a Broad Range of Device Constructions, Materials AND User Applications – Acceleration Factors MUST be Determined

  • Experiences with Tin (and OTHER Metal Whiskers--Zinc, Cadmium)

Need to be Shared MORE Openly

  • Electronic System Suppliers, Component Manufacturers and Plating

Suppliers Should Develop Practices to Assess and Mitigate the Risk of Tin Whisker Induced Failures in their Products

slide-20
SLIDE 20

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 20

And Now….. And Now….. A “Teaser” of A “Teaser” of Some Very Some Very NEW Observations NEW Observations

slide-21
SLIDE 21

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 21

GROWTH RINGS Tin Whiskers Grown on Ceramic Chip Capacitor Via Temp Cycling (-40°C to +90°C)

During a reliability study at NASA’s Jet Propulsion Laboratory,uniform whisker growth steps were observed and correlated with thermal

  • cycles. This work is on-going and results will be published in the near
  • future. The investigation was performed by Wayne Bosze and Saverio

D’Agostino of the Electronic Parts Engineering Section.

Photo Courtesy of NASA Goddard Space Flight Center

slide-22
SLIDE 22

June 25, 2002 Tin Whisker Observations on Pure Tin-Plated Ceramic Chip Capacitors 22

Contact Information

Jay Brusse QSS Group, Inc. (NASA Goddard) 301-286-2019 Jay.A.Brusse.1@gsfc.nasa.gov

Acknowledgments: Mike Sampson & Dr. Henning Leidecker (NASA Goddard) Jocelyn Siplon & Gary Ewell (Aerospace Corporation) Jong Kadesch (Orbital Sciences Corporation) Nilesh Shah (QSS Group, Inc.) Wayne Bosze & Saverio D’Agostino (Jet Propulsion Laboratory)

NASA Goddard Tin Whisker WWW Site

http://nepp.nasa.gov/whisker
