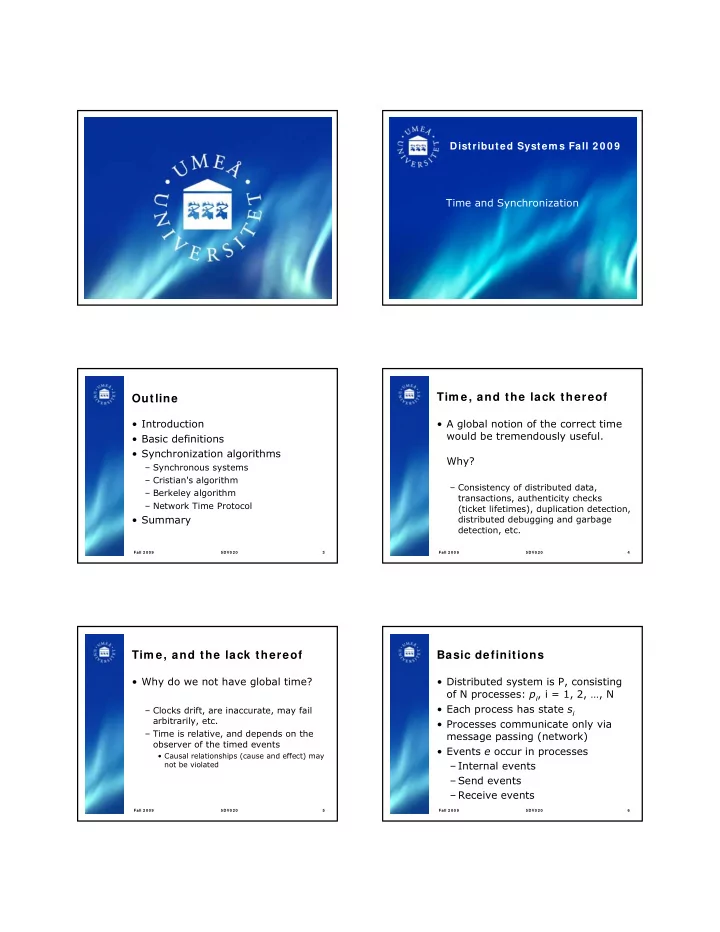

Distributed System s Fall 2 0 0 9 Time and Synchronization

Outline

• Introduction
• Basic definitions
• Synchronization algorithms

– Synchronous systems – Cristian's algorithm – Berkeley algorithm – Network Time Protocol

• Summary

Tim e, and the lack thereof

• A global notion of the correct time

would be tremendously useful. Why?

– Consistency of distributed data, transactions, authenticity checks (ticket lifetimes), duplication detection, distributed debugging and garbage detection, etc.

Tim e, and the lack thereof

• Why do we not have global time?

– Clocks drift, are inaccurate, may fail arbitrarily, etc. – Time is relative, and depends on the

• bserver of the timed events
• Causal relationships (cause and effect) may

not be violated

Basic definitions

• Distributed system is P, consisting
• f N processes: pi, i = 1, 2, …, N
• Each process has state si
• Processes communicate only via

message passing (network)

• Events e occur in processes

– Internal events – Send events – Receive events

Basic definitions

• Events are ordered within a process

by the relation →i

e0 →i e1 →i e2

• Define a history of pi as the events

as described by →i

history(pi) = hi = <ei

0, ei 1, ei 2, ...>

Basic definitions

• Clock skew

– Instantaneous difference between readings of any two clocks

• Clock drift

– Variations in how clocks count time (oscillations in a crystal), which cause divergence between clocks

Basic definitions

• Clock drift rate

– Change in offset between clock and a perfect clock

• Consumer level clocks 10-6 seconds/second,

roughly 1 second for each 11.6 days

Com puter clocks

• Hardware clock H(t)

– Gives “raw” time reading

• Software clock

C(t) = αH(t) + β – Scaled by OS to give accurate time – Used for timestamps

Tim e sources

• Coordinated Universal Time

(abbreviated UTC, thanks to the French)

– Atomic clocks – Used for synchronization of all kinds of equipment (e.g. your computer, GPS, fancy radio-controlled clocks, etc.)

Synchronization types

• External synchronization

– Processes are synchronized to external time source (e.g. UTC)

• Internal synchronization

– “Correct time” exists only within a group of processes – Must not be synchronized to external source

Correctness and m onotonicity

• Correctness (drift is bounded):

(1 – p)(t' – t) ≤ H(t') – H(t) ≤ (1 + p)(t' – t)

– Forbids “jumps” in hardware clocks to the bound p

• Monotonicity (ever-increasing)

t' > t ⇒ C(t') > C(t)

– Note: only deals with software clock – Simpler, and often sufficient

Synchronization algorithm s

• Internal synchronization

– In synchronous systems (trivial case) – Berkeley algorithm

• External synchronization

– Cristian's algorithm – Network Time Protocol (NTP)

Clock synchronization in synchronous system s

• Synchronous systems define

bounds on all relevant parts

– Clock drift – Message transmission delays – Process execution step requirements

• Send request, get response back

I n t e r n a l

Clock synchronization in synchronous system s

• Only uncertainty is actual current

transmission delay

u = (max – min) – Set time to (time in response) + u/2 – For N processes, optimum bound is u(1 - 1/N)

I n t e r n a l

Cristian's algorithm

• S is connected to time source
• p requests (mr) and receives (mt)

time

– S records time as soon before transmitting message as possible – p knows total round-trip-time Tround – Simply set time to (t + Tround / 2)?

E x t e r n a l

Cristian's algorithm

• Only if at same LAN! But then, if

minimum transmit time (tmin) is known:

– Latest time S could have placed time in mt was tmin after p dispatched mr, and tmin before p received mt – [t + tmin , t + Tround – tmin] – Width of range is (Tround – 2tmin), so accuracy is +-(Tround /2 - tmin)

E x t e r n a l

Cristian's algorithm

• Single point of failure!
• Crashing server?

– Multicast to group of servers

• Fake servers?

– Establish cryptographic authentication

• Arbitrarily failing servers?

– Have enough correct ones to achieve agreement

E x t e r n a l

Berkeley algorithm

• Uses Cristian's methods
• Master/Slave relationship
• Master polls slaves

– Gets current time in each slave – Sends the offset from own time to each slave

• Master fails?

– Crash: elect a new one! – Arbitrary failure? Oops…

I n t e r n a l

Netw ork Tim e Protocol

• Unlike the others, designed for

WAN rather than LAN use

– Time servers close to the time source are more trusted – Redundant paths → survives disconnects – Massively scalable – Authentication of time servers to avoid propagation of arbitrary failures

E x t e r n a l

Netw ork Tim e Protocol

• Synchronization subnets

– Primary level (stratum) is directly connected to time source – Secondary level syncs to primary, tertiary to secondary, etc.

• High strata number means less reliable

– Dynamically reconfigurable: if time source goes down, primary level becomes secondary level

E x t e r n a l

Netw ork Tim e Protocol

• Multicast mode

– “Time is X” between LAN nodes

• Only as accurate as LAN allows
• Used only for unimportant nodes
• Procedure-call mode

– Similar to Cristian's algorithm – More accurate than multicast mode

• Symmetric mode

– Pairs of messages – Used in lower strata

E x t e r n a l

Netw ork Tim e Protocol

• All messages sent over UDP
• For procedure-call and symmetric

mode, messages contain

– Local time of previous NTP messages between the nodes were sent and received – Local time of current message transmission

• Receiver notes local time when

message is received E x t e r n a l

Netw ork Tim e Protocol

• Delay in Server B may be non-

negligible

• Messages may be lost along the

way E x t e r n a l

Netw ork Tim e Protocol

• For each message pair calculate
• i estimated offset between clocks

di total transmission time (delay)

• True offset is denoted o (without

the index)

• Denote transmission time of m as t,

and that of m' as t' E x t e r n a l

Netw ork Tim e Protocol

Ti-2 = Ti-3 + t + o Ti = Ti-1 + t' – o leads to di = t + t' = Ti-2 – Ti-3 + Ti – Ti-1 also

• = oi + (t' – t)/2, where
• i = (Ti-2 – Ti-3 + Ti-1 - Ti)/2

E x t e r n a l

Netw ork Tim e Protocol

• Since t, t' ≥ 0, we know that
• i – di /2 ≤ o ≤ oi + di /2
• Or, in English: oi is an estimate of

the offset, and di is a measure of its accuracy E x t e r n a l

Netw ork Tim e Protocol

• Pairs are retained for quality

calculations

• NTP peers communicate with many
• ther peers, to decrease error

E x t e r n a l

Sum m ary

• We do not have universal time

– But we can synchronize clocks “reasonably well” anyway

• Internal vs. external

synchronization

• Real-time systems must use more

sophisticated algorithms than what we have seen during this lecture!

Sum m ary

• Algorithms

– Synchronous system (trivial) – Cristian's algorithm

• Used in many others

– Berkeley algorithm

• Master/Slave application of Cristian's for

internal synchronization

– Network Time Protocol

• Suitable for WANs
• Message pairs

Next lecture

• Logical time
• Global states
• Distributed debugging
