THUNDERSTORMS Convective heavy rain accompanied by lightning and thunder Ahrens Thunderstorms About 1,800 T-storms occur around the world at any instant Where do they occur the most? National Lightning Safety Institute Satellite lightning

slide-1
SLIDE 1

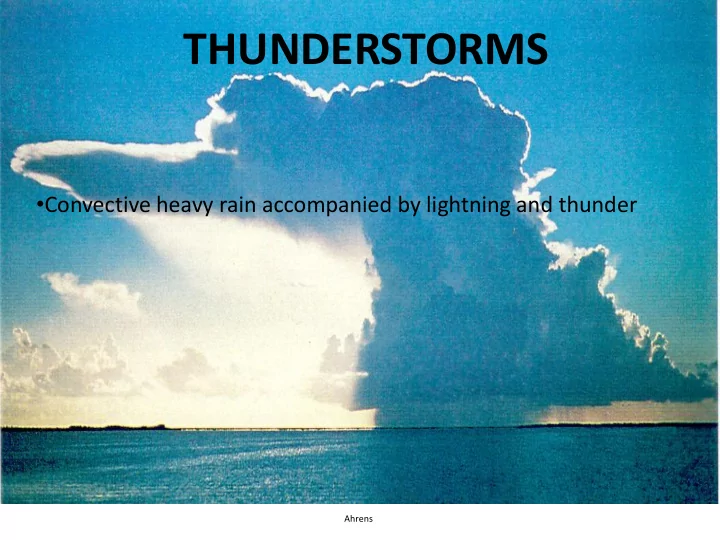

THUNDERSTORMS

  • Convective heavy rain accompanied by lightning and thunder

Ahrens

slide-2
SLIDE 2

Thunderstorms

About 1,800 T-storms occur around the world at any instant Where do they occur the most?

National Lightning Safety Institute

slide-3
SLIDE 3

Satellite lightning frequency: flashes per km2 per year

National Lightning Safety Institute

slide-4
SLIDE 4

Where do Thunderstorms occur the most often?

slide-5
SLIDE 5

Supercell thunderstorms on a visible satellite image

slide-6
SLIDE 6

CUMULUS STAGE

  • Dr. M. Pidwirny, Dep. of Geography, Okanagan University College

UPDRAFTS An “Air Mass” Thunderstorm, caused by heated surface parcels

slide-7
SLIDE 7

MATURE STAGE

  • Dr. M. Pidwirny, Dep. of Geography, Okanagan University College

Glaciated anvil top of a mature air-mass thunderstorm

slide-8
SLIDE 8

DISSIPATING STAGE

DOWNDRAFTS OCCUR IN THE SAME AREA AS THE UPDRAFTS

DISSIPATING STAGE (DOWNDRAFTS)

Microburst in the region of cold, precipitation laden downdrafts

slide-9
SLIDE 9

Microbursts and aviation dangers

slide-10
SLIDE 10

Development of the sea breeze and formation of convection

slide-11
SLIDE 11

Satellite and Radar images of the Florida Sea Breeze Front

How can the front be “seen” by radar?

slide-12
SLIDE 12

Lightning facts:

  • Breakdown potential: 3 MV/meter
  • For a 1000 m strike, how much Voltage needed?
  • Can carry 30-40 kA
  • The channel can reach 30000 degrees C
  • The channel can be seen for over 100 mi.
  • Thunder results from shockwave of exploding hot air channel
  • Sound travels at ~330 m/s in air
  • …one thousand one, one thousand two, one thousand three:
  • Cloud to cloud, Intracloud, Cloud to ground (10%)
  • Sprites and Jets
  • Positive (10%) or negative charge (90%)
  • Process leading to charge separation is complex
  • People still don’t really understand how lightning rods work
slide-13
SLIDE 13

Lightning

Charge separation:

  • Charges reside on the ice-crystal

surfaces

  • During collision between particles,

charges get transferred

  • Small ice crystals tend to acquire net

positive charge and then get carried toward the cloud top

  • Typical distribution of charges shown,

but it can be much more complex

slide-14
SLIDE 14

The lightning process

1: Stepped Leader A series of steps about 50 meters (160 ft) in length and 1 microsecond (0.000001 seconds) in duration. Studies of individual strikes have as many as10,000 steps! 2: Upward streamer Induction causes positive charges to trace an upward path from high, sharp points until channels meet 3: Connection Ionized path allows easy-flow of charge downward from cloud to surface 4: Return stroke Positive charge from the ground flows back upward along the path. This is where most of the current is: 30000 Amps produces heat, glow, and thunder

slide-15
SLIDE 15

Lightning and the rumbling thunder: an issue of path distance

slide-16
SLIDE 16

Red Sprites discharging from the top of a thunderstorm

slide-17
SLIDE 17

HAIL

slide-18
SLIDE 18

1970 Coffeyville KA hailstone

slide-19
SLIDE 19

Thunderstorms

HAIL DAMAGE

slide-20
SLIDE 20

Thunderstorms

HAIL DAMAGE

slide-21
SLIDE 21
  • Hail 3/4" or larger, or basically the size of any coin or larger

(a dime is 11/16" which the NWS accepts as 3/4")

  • Fallen tree limbs with a minimum diameter of an average adult's wrist
  • Living trees uprooted or blown down
  • Any part of a permanent, well-built structure damaged or destroyed
  • Measured wind gust from a calibrated anemometer of 58 MPH (50 knots) or greater

NWS definition of a severe thunderstorm

slide-22
SLIDE 22

SEVERE THUNDERSTORMS

THREE MAIN TYPES: 1) SQUALL LINE THUNDERSTORMS 2) MESOSCALE CONVECTIVE COMPLEX (MCC) 3) SUPERCELL THUNDERSTORMS All three types last much longer than

  • rdinary thunderstorms.

All three types need warm air and other factors in order to form.

slide-23
SLIDE 23

SQUALL LINE ON RADAR

slide-24
SLIDE 24

SQUALL LINE THUNDERSTORMS

*Develop ahead of cold fronts *Multi-cell storms *Often produce wind damage (DOWNBURSTS)

slide-25
SLIDE 25

Squall Line Thunderstorms

slide-26
SLIDE 26

Squall Line Thunderstorms L

North, Northwest winds Cold air Clearing skies South, Southwest winds Warm air Clearing skies behind warm front Until cumulus clouds and thunderstorms ahead of the cold front Cooler air Stratus clouds Snow, sleet, rain ahead of warm front

slide-27
SLIDE 27

Squall Line Thundestorms

slide-28
SLIDE 28

Mesoscale Convective Complex

slide-29
SLIDE 29

MCC

Nebraska MCC moving Southeast, July 1997 – 7 hour difference between satellite images CIMMS, WISC U *MCC must live more than 6 hrs *MCC high cloud cover must be larger than 18,000 square miles (size of CT, RI, MA) *MCC high cloud cover must be circular in shape

slide-30
SLIDE 30

MCC

Minnesota MCC moving Southeast, June 1994 NCDC

slide-31
SLIDE 31

MCC The Great USA Flood of 1993

1993 Mississippi River, Grafton IL Flooding, USGS – the “500-year” flood

slide-32
SLIDE 32

SUPERCELL THUNDERSTORMS

slide-33
SLIDE 33

SUPERCELL THUNDERSTORMS

slide-34
SLIDE 34

SUPERCELL THUNDERSTORMS

slide-35
SLIDE 35

SUPERCELL THUNDERSTORMS

slide-36
SLIDE 36

SUPERCELL THUNDERSTORMS

*Vertical Wind Shear *Two Downdrafts

slide-37
SLIDE 37

SUPERCELL THUNDERSTORMS

Chaseday.com

slide-38
SLIDE 38

Supercell Thunderstorms

slide-39
SLIDE 39

Tornados

slide-40
SLIDE 40

Tornados

A rotating column of air

slide-41
SLIDE 41

Tornados

slide-42
SLIDE 42

Tornados

slide-43
SLIDE 43

Tornados

slide-44
SLIDE 44

Tornados

slide-45
SLIDE 45

http://esminfo.prenhall.com/science/geoanimations/animations/Tornadoes.html

Development of Spin in a thunderstorm: Divergence and Wind Shear

slide-46
SLIDE 46

Tornado Tracks: Width, length, and intensity vary widely

slide-47
SLIDE 47

The New Fujita Scale

http://www.spc.noaa.gov/faq/tornado/ef-scale.html http://whyfiles.org/013tornado/3.html http://www.pbs.org/wgbh/nova/tornado/dam age.html

slide-48
SLIDE 48

Tornado Damage

NSSL

slide-49
SLIDE 49

Tornado Facts

Tornadoproject.com

slide-50
SLIDE 50

Area most likely to find favorable conditions for tornados

slide-51
SLIDE 51

Tornado Facts

NSSL

slide-52
SLIDE 52

Size of Tornados

slide-53
SLIDE 53

DOPPLER RADAR

NWS

slide-54
SLIDE 54

May 3, 1999 Oklahoma City Tornado Outbreak

NWS Norman

slide-55
SLIDE 55

May 3, 1999 Oklahoma City Tornado Outbreak

NWS Norman

Doppler on Wheels: 301 mph record measured wind speed

slide-56
SLIDE 56

May 3, 1999 Oklahoma City Tornado Outbreak

NWS Norman

slide-57
SLIDE 57

May 3, 1999 Oklahoma City Tornado Outbreak

NWS Norman

slide-58
SLIDE 58

Multiple Vortex Tornado

slide-59
SLIDE 59

Tornados

slide-60
SLIDE 60

Sideways Tornado

slide-61
SLIDE 61

Rope Tornado

slide-62
SLIDE 62

Rope Tornado

slide-63
SLIDE 63

Tornado damage

slide-64
SLIDE 64

Suction Vortices Signatures

SPC

slide-65
SLIDE 65

Other Rotating Columns of Air: Waterspout

  • Miss. Sound July 2005
slide-66
SLIDE 66

Other rotating columns of air: Dust-devil

BOM Australia
