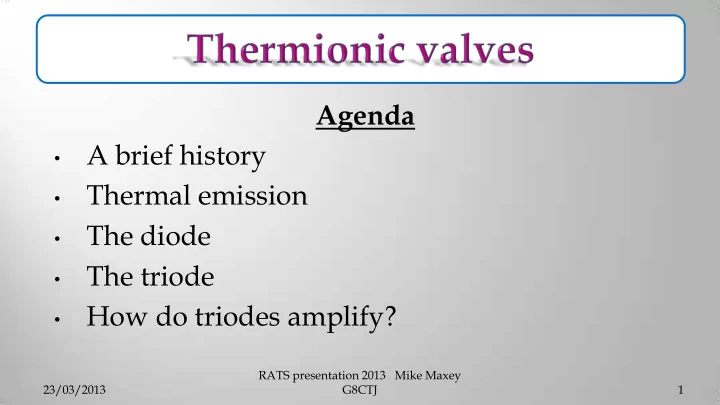

Agenda

• A brief history
• Thermal emission
• The diode
• The triode
• How do triodes amplify?

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 1



In 1802, Humphrey Davy invents the electric lamp - 1



In 1875, American, G.R. Carey invents the phototube.



In 1878, Englishman Sir William Crookes invents the Crookes tube - 2…



In 1895, German, Wilhelm Roengten invents an X-ray tube.



In 1897, German, Karl Ferdinand Braun invents the cathode ray tube. - 5



In 1904, John Ambrose Fleming invents the first practical valve called the 'Fleming Valve‘ / ‘Kenotron’. - 3



In 1906, Lee de Forest invents the Audion later called the

• triode. - 4

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 2

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 3

 One of the most famous Crookes tubes.  Demonstrates that electrons go in a straight line

and are stopped by metal, hence you see the shadow of the cross on the end glass.

 After a while due to fatigue of the glass the glow is

weaker

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 4

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 5

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 6

Important discoveries stemming from the Crookes tube.



Wilhelm Röntgen discovered X-rays using the Crookes tube in 1895.



In 1897 J. J. Thomson identified “cathode rays” as negatively charged particles, later renamed “electrons.”



Now Edison …

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 7

 Edison was facing a problem with his light bulbs due

to their short life.

 Although the filament life was a problem, the major

limiting factor was that the bulbs quickly became blackened.

 Initially this was attributed to atoms of carbon from the

filament hitting the glass.

 Despite this …

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 8

1880 Edison patent

U.S. Patent #223898 issued to Thomas Edison on January 27, 1880 for an incandescent lamp Twenty-two other people also devised versions of the light bulb, Edison's outstrip the others because

• Effective incandescent material,
• Higher vacuum
• High resistance made power

distribution from a centralized source economically viable.

• Photos ….

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 9

 Very early Edison lamp  Not very practical  But some were attractive..

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 10

The early lamps were attractive but very inefficient Edison effect…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 11



Particles leaving the filament were known to be negatively charged, so experiments were carried out to prevent them from hitting the glass.



One method that Edison tried involved placing a second electrode in the envelope.



He reasoned that if he placed a positive charge on the second electrode, particles would be attracted away from hitting the glass

• f the bulb.



Edison experimented with the polarity of the charge on the second electrode and he noticed that when the second element was made positive with respect to the filament a current flowed in the

• circuit. When the potentials were reversed this did not happen.



This became known as the Edison effect. Used by Flemming…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 12

 J.A. Fleming was a consultant to the Marconi  Coherers and Magnetic Detectors  In November 1904 whilst he was walking along Gower

Street in London’s West End he had what he called “a very happy thought".

 He wondered if the Edison Effect could be used to

rectify the "feeble to and fro motions of electricity from an aerial wire".

 Fleming set up an experiment and was able to prove

that the idea worked. Patented in 1905…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 13

Flemmings Patent 1905 The Kenotron…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 14

 Patent original  Others not so

attractive….

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 15

Actual hand blown Valves used in Flemming’s 1904 Experiments Then the first practical diode…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 16

Actual diode valve Used by Marconi in 1904

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 17

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 18

There are 3 types of electron Emission

 Secondary – High velocity particles – X rays  Photo – Photons of light – photo cells  Thermionic / Thermal Emission…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 19

 At ambient temperature outer shell electrons

have insufficient velocity to escape

 As temperature increases the molecular

vibration increases

 Rotational velocity increases  Electrons “Boil” off into surrounding space…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 20

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 21

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 22

Material Normal Operating Efficiency in Temperature mA of emission °K per watt heater power Tungsten 2450 to 2600 3 to 15 Thoriated Tungsten 1900 62.5 Oxide coated 1100 to 1170 50 to 125 All materials developed to produce maximum electron flow…

Two requirements for electron flow

 Filament heated to

correct temperature to achieve thermal emission

 Positive anode potential  Require to plot curves…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 23



A dynamic curve must be plotted to see how the diode

• works. This requires :-



A Fixed heater voltage



A Variable Anode voltage



We get an Ia /Va curve…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 24

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 25

From this curve we calculate the Ra….

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 26

 The workshop of Alfred Charles Cossor in

Clerkenwell London

 Latter to become a leading British valve

manufacturer.

 Photograph taken in 1896  Some of his workers (children!) preparing

glass tubes.

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 27

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 28

 Lee DE Forest  1906 works to improve diode  1908 patents at three electrode valve the

Audion…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 29

 Early Audion

1906

 Latter versions..

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 30

 The Audion valve

1908

 The Grid…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 31

 Fitted between heater and anode…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 32

Electrically it looks like…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 33

Like the diode we need to plot some curves….

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 34

With this circuit we can plot the Ia/Va and Ia/Vg curves…

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 35

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 36

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 37

 Input voltage  Output current

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 38

 Input voltage  Output current

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 39

 Input voltage  Output current  To output voltage

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 40

 Directly heated – Battery powered sets  Indirectly heated – Mains powered sets  Directly heated specials – large rectifiers and

transmitting valves

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 41

23/03/2013

 The R' valve (1922)  The first widely used triode  Note the thin wire filament

suspended inside helical wire grid, inside tubular anode.

RATS presentation 2013 Mike Maxey G8CTJ 42



Ediswan AR (1922)



Cossor P2 (1922)



Cosmos SP18 (1925)



The Cossor device used an unusual 'hat' construction to avoid infringing patents which specified tubular electrodes.

23/03/2013 RATS presentation 2013 Mike Maxey G8CTJ 43
