The Tutte polynomial and a bijection between subgraphs and orientations Olivier Bernardi - CRM Combinatorics Seminar at CRM, October 2006, Barcelona Content of the talk The Tutte Polynomial and its specializations A new characterization of the

slide-1
SLIDE 1

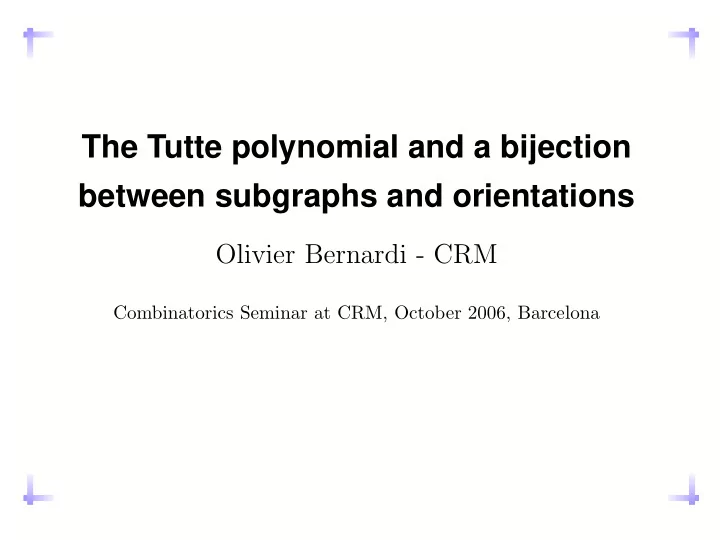

The Tutte polynomial and a bijection between subgraphs and orientations

Olivier Bernardi - CRM

Combinatorics Seminar at CRM, October 2006, Barcelona

slide-2
SLIDE 2

Content of the talk

The Tutte Polynomial and its specializations A new characterization of the Tutte Polynomial (based on the embeddings of graphs) A nice bijection between subgraphs and orientations

CRM, October 2006 Olivier Bernardi - CRM – p.1/31

slide-3
SLIDE 3

The Tutte polynomial

[Whitney ∼30 - Tutte ∼40]

CRM, October 2006 Olivier Bernardi - CRM – p.2/31

slide-4
SLIDE 4

The Tutte polynomial

Graph G = (V, E).

CRM, October 2006 ▽Olivier Bernardi - CRM – p.3/31

slide-5
SLIDE 5

The Tutte polynomial

Graph G = (V, E). Spanning subgraph: contains every vertex and a subset of the edges.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.3/31

slide-6
SLIDE 6

The Tutte polynomial

Graph G = (V, E). Spanning subgraph: contains every vertex and a subset of the edges. |S| = 5 c(S) = 3 We denote by:

  • |S| the number of edges,
  • c(S) the number of connected components.

CRM, October 2006 Olivier Bernardi - CRM – p.3/31

slide-7
SLIDE 7

The Tutte polynomial

Definition: The Tutte polynomial of the graph G = (V, E) is TG(x, y) =

  • S⊆G

(x − 1)c(S)−c(G)(y − 1)|S|+c(S)−|V |.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.4/31

slide-8
SLIDE 8

The Tutte polynomial

Definition: The Tutte polynomial of the graph G = (V, E) is TG(x, y) =

  • S⊆G

(x − 1)c(S)−c(G)(y − 1)|S|+c(S)−|V |. Example : TK3(x, y) = x2 + x + y (x − 1)2 (y − 1) + 3 · (x − 1) + TK3(x, y) = 3 · 1 +

CRM, October 2006 ▽Olivier Bernardi - CRM – p.4/31

slide-9
SLIDE 9

The Tutte polynomial

Definition: The Tutte polynomial of the graph G = (V, E) is TG(x, y) =

  • S⊆G

(x − 1)c(S)−c(G)(y − 1)|S|+c(S)−|V |.

  • c(S) − c(G): renormalized number of connected

components.

  • |S| + c(S) − |V |: cyclomatic number.

CRM, October 2006 Olivier Bernardi - CRM – p.4/31

slide-10
SLIDE 10

The Tutte polynomial of the union of two disjoint graphs : TG1∪G2(x, y) = TG1(x, y) × TG2(x, y).

CRM, October 2006 ▽Olivier Bernardi - CRM – p.5/31

slide-11
SLIDE 11

The Tutte polynomial of the union of two disjoint graphs : TG1∪G2(x, y) = TG1(x, y) × TG2(x, y). = ⇒ We restrict our attention to connected graphs.

CRM, October 2006 Olivier Bernardi - CRM – p.5/31

slide-12
SLIDE 12

Relations of induction

Proposition [Tutte 1947]:

  • T•(x, y) = 1,
  • TG(x, y) = yTG\e(x, y) if e is a loop,
  • TG(x, y) = xTG/e(x, y) if e is a ismuth,
  • TG(x, y) = TG\e(x, y) + TG/e(x, y) otherwise.

CRM, October 2006 Olivier Bernardi - CRM – p.6/31

slide-13
SLIDE 13

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.7/31

slide-14
SLIDE 14

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

  • TG(2, 2) = 2|E| = Number of sugraphs.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.7/31

slide-15
SLIDE 15

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

  • TG(2, 2) = 2|E| = Number of sugraphs.
  • TG(1, 2) = Number of connected subgraphs.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.7/31

slide-16
SLIDE 16

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

  • TG(2, 2) = 2|E| = Number of sugraphs.
  • TG(1, 2) = Number of connected subgraphs.
  • TG(2, 1) = Number of forests.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.7/31

slide-17
SLIDE 17

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

  • TG(2, 2) = 2|E| = Number of sugraphs.
  • TG(1, 2) = Number of connected subgraphs.
  • TG(2, 1) = Number of forests.
  • TG(1, 1) = Number of spanning trees.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.7/31

slide-18
SLIDE 18

Specializations

TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

  • TG(2, 2) = 2|E| = Number of sugraphs.
  • TG(1, 2) = Number of connected subgraphs.
  • TG(2, 1) = Number of forests.
  • TG(1, 1) = Number of spanning trees.

Other specializations: chromatic polynomial, flow polynomial, acyclic orientations, strongly connected

  • rientations, bipolar orientations, score vectors, sandpile

configurations, Potts model, reliability polynomial. . .

CRM, October 2006 Olivier Bernardi - CRM – p.7/31

slide-19
SLIDE 19

Specializations: Example

TG(x, y) = x2 + x + y TG(2, 2) = 8 = #subgraphs = #orientations.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.8/31

slide-20
SLIDE 20

Specializations: Example

TG(x, y) = x2 + x + y TG(1, 2) = 4 = #connected subgraphs

CRM, October 2006 ▽Olivier Bernardi - CRM – p.8/31

slide-21
SLIDE 21

Specializations: Example

TG(x, y) = x2 + x + y TG(1, 2) = 4 = #connected subgraphs = #root-connected orientations.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.8/31

slide-22
SLIDE 22

Specializations: Example

TG(x, y) = x2 + x + y TG(2, 1) = 7 = #forests

CRM, October 2006 ▽Olivier Bernardi - CRM – p.8/31

slide-23
SLIDE 23

Specializations: Example

TG(x, y) = x2 + x + y 0 0 1 1 1 1 1 1 1 2 2 1 2 2 1 1 1 1 2 2 TG(2, 1) = 7 = #forests = #score vectors.

CRM, October 2006 Olivier Bernardi - CRM – p.8/31

slide-24
SLIDE 24

A new characterization

  • f the Tutte polynomial

CRM, October 2006 Olivier Bernardi - CRM – p.9/31

slide-25
SLIDE 25

Several characterizations

Tutte polynomial: TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |. Subgraph expansion [Tutte, Whitney].

CRM, October 2006 ▽Olivier Bernardi - CRM – p.10/31

slide-26
SLIDE 26

Several characterizations

Tutte polynomial: TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |. Subgraph expansion [Tutte, Whitney]. Induction definition [Tutte 47] Spanning tree expansion [Tutte 54] Orientation expansion [Las Vergnas 84]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.10/31

slide-27
SLIDE 27

Several characterizations

Tutte polynomial: TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |. Subgraph expansion [Tutte, Whitney]. Induction definition [Tutte 47] Spanning tree expansion [Tutte 54] Orientation expansion [Las Vergnas 84] + [Gessel & Wang 79] [Gessel & Sagan 96] [Kostic & Yan 06]

CRM, October 2006 Olivier Bernardi - CRM – p.10/31

slide-28
SLIDE 28

Spanning trees

A spanning tree T.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.11/31

slide-29
SLIDE 29

Spanning trees

Fundamental cycle of an external edge e.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.11/31

slide-30
SLIDE 30

Spanning trees

Fundamental cycle of an external edge e.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.11/31

slide-31
SLIDE 31

Spanning trees

Fundamental cocycle of an internal edge e.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.11/31

slide-32
SLIDE 32

Spanning trees

Fundamental cocycle of an internal edge e.

CRM, October 2006 Olivier Bernardi - CRM – p.11/31

slide-33
SLIDE 33

Embeddings

A combinatorial embedding of a graph is a choice of a cyclic ordering of the half-edges around each vertex.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.12/31

slide-34
SLIDE 34

Embeddings

A combinatorial embedding of a graph is a choice of a cyclic ordering of the half-edges around each vertex. An embedding is rooted if an half-edge is distinguished as the root.

CRM, October 2006 Olivier Bernardi - CRM – p.12/31

slide-35
SLIDE 35

Embeddings

Theorem [Mohar & Thomasen]: There is a one-to-one correspondence between combinatorial embeddings and topological embeddings in (orientable) surfaces considered up to homeomorphism. ⇐ ⇒

CRM, October 2006 ▽Olivier Bernardi - CRM – p.13/31

slide-36
SLIDE 36

Embeddings

Theorem [Mohar & Thomasen]: There is a one-to-one correspondence between combinatorial embeddings and topological embeddings in (orientable) surfaces considered up to homeomorphism. ⇐ ⇒

CRM, October 2006 Olivier Bernardi - CRM – p.13/31

slide-37
SLIDE 37

Moving in an embedded graph

To move in an embedded graph, one can

  • Turn around a vertex:
  • Cross an edge :

CRM, October 2006 Olivier Bernardi - CRM – p.14/31

slide-38
SLIDE 38

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-39
SLIDE 39

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-40
SLIDE 40

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-41
SLIDE 41

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-42
SLIDE 42

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-43
SLIDE 43

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-44
SLIDE 44

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-45
SLIDE 45

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-46
SLIDE 46

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-47
SLIDE 47

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-48
SLIDE 48

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-49
SLIDE 49

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.15/31

slide-50
SLIDE 50

The tour of a spanning tree

Start from the root. Iterate the move : External half-edge = ⇒ Turn. Internal half-edge = ⇒ Cross + turn. Example :

CRM, October 2006 Olivier Bernardi - CRM – p.15/31

slide-51
SLIDE 51

Tour: graphical interpretation

CRM, October 2006 Olivier Bernardi - CRM – p.16/31

slide-52
SLIDE 52

Activities of spanning trees

CRM, October 2006 ▽Olivier Bernardi - CRM – p.17/31

slide-53
SLIDE 53

Activities of spanning trees

Consider the order of appearance of the edges around the tree.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.17/31

slide-54
SLIDE 54

Activities of spanning trees

5 4 6 2 1 3 Consider the order of appearance of the edges around the tree.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.17/31

slide-55
SLIDE 55

Activities of spanning trees

5 4 6 2 1 3 Consider the order of appearance of the edges around the tree. An internal/external edge is active if it is minimal in its fundamental cocycle/cycle.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.17/31

slide-56
SLIDE 56

Activities of spanning trees

5 4 6 2 1 3 Consider the order of appearance of the edges around the tree. We denote by:

  • i(A) the number of internal active edges,
  • e(A) the number of external active edges.

CRM, October 2006 Olivier Bernardi - CRM – p.17/31

slide-57
SLIDE 57

Tutte polynomial

Theorem [B.] : The Tutte polynomial is equal to : TG(x, y) =

  • T spanning tree

xi(T)ye(T).

CRM, October 2006 ▽Olivier Bernardi - CRM – p.18/31

slide-58
SLIDE 58

Tutte polynomial

Theorem [B.] : The Tutte polynomial is equal to : TG(x, y) =

  • T spanning tree

xi(T)ye(T). Example : TK3(x, y) = x2 + x + y. TK3(x, y) = x2 + x + y

CRM, October 2006 ▽Olivier Bernardi - CRM – p.18/31

slide-59
SLIDE 59

Tutte polynomial

Theorem [B.] : The Tutte polynomial is equal to : TG(x, y) =

  • T spanning tree

xi(T)ye(T). Subgraph expansion [Brylawsky] : TG(x, y) =

  • S⊆G

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V |.

CRM, October 2006 Olivier Bernardi - CRM – p.18/31

slide-60
SLIDE 60

From spanning trees to subgraphs

CRM, October 2006 ▽Olivier Bernardi - CRM – p.19/31

slide-61
SLIDE 61

From spanning trees to subgraphs

CRM, October 2006 ▽Olivier Bernardi - CRM – p.19/31

slide-62
SLIDE 62

From spanning trees to subgraphs

T T − T +

CRM, October 2006 Olivier Bernardi - CRM – p.19/31

slide-63
SLIDE 63

Partition of the subgraphs

Proposition [B.] : 2E =

  • T spanning tree

[T −; T +]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.20/31

slide-64
SLIDE 64

Partition of the subgraphs

Proposition [B.] : 2E =

  • T spanning tree

[T −; T +] Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.20/31

slide-65
SLIDE 65

Partition of the subgraphs

Proposition [B.] : 2E =

  • T spanning tree

[T −; T +] Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.20/31

slide-66
SLIDE 66

Partition of the subgraphs

Proposition [B.] : 2E =

  • T spanning tree

[T −; T +] Proposition [B.] :

  • S∈[T −,T +]

(x − 1)c(S)−1(y − 1)|S|+c(S)−|V | = xi(T)ye(T)

CRM, October 2006 Olivier Bernardi - CRM – p.20/31

slide-67
SLIDE 67

Bijection subgraphs ⇐ ⇒ orientations

CRM, October 2006 Olivier Bernardi - CRM – p.21/31

slide-68
SLIDE 68

Φ : Subgraphs → Orientations

For spanning trees:

CRM, October 2006 ▽Olivier Bernardi - CRM – p.22/31

slide-69
SLIDE 69

Φ : Subgraphs → Orientations

For spanning trees: Internal edges are oriented from father to son.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.22/31

slide-70
SLIDE 70

Φ : Subgraphs → Orientations

For spanning trees: Internal edges are oriented from father to son. External edges are oriented in such a way their heads appear before their tails around the tree.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.22/31

slide-71
SLIDE 71

Φ : Subgraphs → Orientations

For spanning trees: Internal edges are oriented from father to son. External edges are oriented in such a way their heads appear before their tails around the tree.

CRM, October 2006 Olivier Bernardi - CRM – p.22/31

slide-72
SLIDE 72

Activity et acyclicity

Remark : The fundamental cycle of an external active edge is oriented.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.23/31

slide-73
SLIDE 73

Activity et acyclicity

Remark : The fundamental cycle of an external active edge is oriented. Hence, Φ(T) acyclic = ⇒ T internal.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.23/31

slide-74
SLIDE 74

Activity et acyclicity

Remark : The fundamental cycle of an external active edge is oriented. Hence, Φ(T) acyclic ⇐ ⇒ T internal.

CRM, October 2006 Olivier Bernardi - CRM – p.23/31

slide-75
SLIDE 75

Activity et strong connectivity

Remark : The fundamental cocycle of an internal active edge is oriented.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.24/31

slide-76
SLIDE 76

Activity et strong connectivity

Remark : The fundamental cocycle of an internal active edge is oriented. Hence, Φ(T) strongly connected = ⇒ T external.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.24/31

slide-77
SLIDE 77

Activity et strong connectivity

Remark : The fundamental cocycle of an internal active edge is oriented. Hence, Φ(T) strongly connected ⇐ ⇒ T external.

CRM, October 2006 Olivier Bernardi - CRM – p.24/31

slide-78
SLIDE 78

Φ : Subgraphs → Orientations

For any subgraph S:

Φ ?

CRM, October 2006 ▽Olivier Bernardi - CRM – p.25/31

slide-79
SLIDE 79

Φ : Subgraphs → Orientations

For any subgraph S: The subgraph S is in an interval [T −, T +].

Φ ? Φ

CRM, October 2006 ▽Olivier Bernardi - CRM – p.25/31

slide-80
SLIDE 80

Φ : Subgraphs → Orientations

For any subgraph S: The subgraph S is in an interval [T −, T +]. Reverse the fundamental cycle/cocycle of the edges in T△S.

Φ Φ

CRM, October 2006 Olivier Bernardi - CRM – p.25/31

slide-81
SLIDE 81

Φ : Subgraphs → Orientations

Theorem [B.] : For any graph G, the mapping Φ establishes a bijection between subgraphs and

  • rientations.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.26/31

slide-82
SLIDE 82

Φ : Subgraphs → Orientations

Theorem [B.] : For any graph G, the mapping Φ establishes a bijection between subgraphs and

  • rientations.

Example :

CRM, October 2006 ▽Olivier Bernardi - CRM – p.26/31

slide-83
SLIDE 83

Φ : Subgraphs → Orientations

Theorem [B.] : For any graph G, the mapping Φ establishes a bijection between subgraphs and

  • rientations.

Example :

CRM, October 2006 Olivier Bernardi - CRM – p.26/31

slide-84
SLIDE 84

Specializations

Subgraphs Orientations general connectedexternal general root- connected strongly connected mini general forest internal acyclic mal general

CRM, October 2006 Olivier Bernardi - CRM – p.27/31

slide-85
SLIDE 85

Specializations

Connected: TG(1, 2)

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-86
SLIDE 86

Specializations

Connected: TG(1, 2) :Root-connected.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-87
SLIDE 87

Specializations

External: TG(0, 2)

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-88
SLIDE 88

Specializations

External: TG(0, 2) :Strongly-connected.

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-89
SLIDE 89

Specializations

Forests: TG(2, 1)

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-90
SLIDE 90

Specializations

Forests: TG(2, 1) :Minimal (⇐ ⇒ score vectors).

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-91
SLIDE 91

Specializations

Internal: TG(2, 0)

CRM, October 2006 ▽Olivier Bernardi - CRM – p.28/31

slide-92
SLIDE 92

Specializations

Internal: TG(2, 0) :Acyclic.

CRM, October 2006 Olivier Bernardi - CRM – p.28/31

slide-93
SLIDE 93

Specializations

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

CRM, October 2006 ▽Olivier Bernardi - CRM – p.29/31

slide-94
SLIDE 94

Specializations

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Connected subgraphs and root-connected orientations.

TG(1, 2) [Gioan 06]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.29/31

slide-95
SLIDE 95

Specializations

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Connected subgraphs and root-connected orientations.

TG(1, 2) [Gioan 06]

  • Forests and minimal orientations (⇐

⇒ score vectors). TG(2, 1) [Stanley 80]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.29/31

slide-96
SLIDE 96

Specializations

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Connected subgraphs and root-connected orientations.

TG(1, 2) [Gioan 06]

  • Forests and minimal orientations (⇐

⇒ score vectors). TG(2, 1) [Stanley 80]

  • Trees and minimal root-connected orientations

(⇐ ⇒ root-connected score vectors). TG(1, 1)[Gioan 06]

CRM, October 2006 Olivier Bernardi - CRM – p.29/31

slide-97
SLIDE 97

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Internal subgraphs and acyclic orientations.

TG(2, 0) [Winder 66, Stanley 73, Gessel & Sagan 96]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.30/31

slide-98
SLIDE 98

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Internal subgraphs and acyclic orientations.

TG(2, 0) [Winder 66, Stanley 73, Gessel & Sagan 96]

  • External subgraphs and strongly-connected
  • rientations.

TG(0, 2) [Las Vergnas 84, Gioan & Las Vergnas 06]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.30/31

slide-99
SLIDE 99

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Internal subgraphs and acyclic orientations.

TG(2, 0) [Winder 66, Stanley 73, Gessel & Sagan 96]

  • External subgraphs and strongly-connected
  • rientations.

TG(0, 2) [Las Vergnas 84, Gioan & Las Vergnas 06]

  • Internal trees and acyclic root-connected orientations.

TG(1, 0) [Greene & Zaslavsky 83, Gessel & Sagan 96, Gebhard & Sagan 00]

CRM, October 2006 ▽Olivier Bernardi - CRM – p.30/31

slide-100
SLIDE 100

Theorem [B.] : For any graph G, the mapping Φ induces a bijection between:

  • Internal subgraphs and acyclic orientations.

TG(2, 0) [Winder 66, Stanley 73, Gessel & Sagan 96]

  • External subgraphs and strongly-connected
  • rientations.

TG(0, 2) [Las Vergnas 84, Gioan & Las Vergnas 06]

  • Internal trees and acyclic root-connected orientations.

TG(1, 0) [Greene & Zaslavsky 83, Gessel & Sagan 96, Gebhard & Sagan 00]

  • External trees and minimal strongly-connected
  • rientations (⇐

⇒ strongly-connected score vectors). TG(0, 1) [Gioan 06]

CRM, October 2006 Olivier Bernardi - CRM – p.30/31

slide-101
SLIDE 101

Thanks.

CRM, October 2006 Olivier Bernardi - CRM – p.31/31
