SLIDE 1

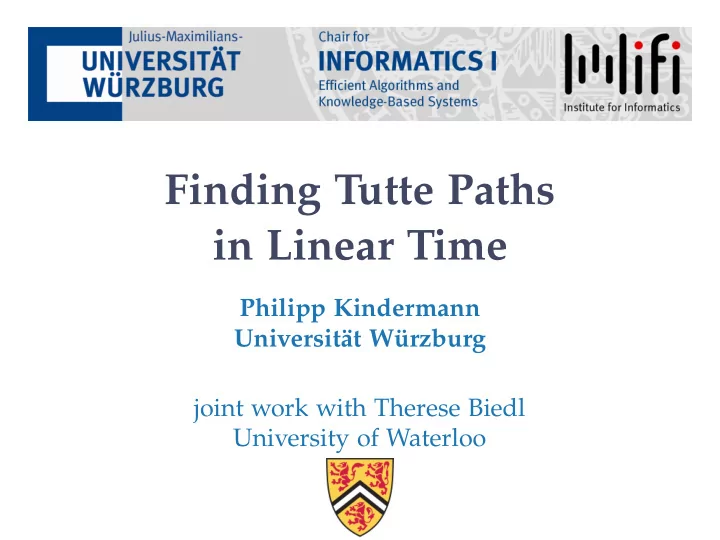

Finding Tutte Paths in Linear Time

Philipp Kindermann Universit¨ at W¨ urzburg joint work with Therese Biedl University of Waterloo

SLIDE 2

Tutte Paths

Planar graph G

SLIDE 3

Tutte Paths

X Planar graph G

SLIDE 4

Tutte Paths

X Planar graph G Y

SLIDE 5

Tutte Paths

X α Planar graph G Y

SLIDE 6

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G Y

SLIDE 7

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G P Y

SLIDE 8

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G P Y

SLIDE 9

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G P Y

SLIDE 10

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G P Y Every comp. attached to ≤3 vtcs of P

SLIDE 11

Tutte Paths

X α Tutte path: Path from X to Y via α Planar graph G P Y Every comp. attached to ≤3 vtcs of P

SLIDE 12

Tutte Paths

X α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Planar graph G P Y Every comp. attached to ≤3 vtcs of P

SLIDE 13

Tutte Paths

X α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Planar graph G P Y Every comp. attached to ≤3 vtcs of P

SLIDE 14

What is known?

X Y α

SLIDE 15

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 16

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 17

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 18

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 19

Tutte Paths

X Y α Planar graph G P Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P

SLIDE 20

Tutte Paths

X Y α Planar graph G P TSDR-path: Tutte path + System of Distinct Representatives: Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P

SLIDE 21

Tutte Paths

X Y α Planar graph G P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P

SLIDE 22

Tutte Paths

X Y α Planar graph G P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P

SLIDE 23

Tutte Paths

X Y α Planar graph G P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P

SLIDE 24

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 25

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 26

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time (= Hamil. path) [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 27

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time (= Hamil. path) [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 28

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 29

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 30

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

SLIDE 31

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

Tint

SLIDE 32

Tutte paths

X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 33

Tutte paths

Tint-path: X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 34

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 35

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 36

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 37

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 38

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 39

Tutte paths

Tint-path: –TSDR-path – visits all ext. vtcs – all comp. assigned to int. vtcs X Y Planar graph G P α Tutte path: Path from X to Y via α Every outer comp. attached to 2 vtcs of P Every comp. attached to ≤3 vtcs of P TSDR-path: Tutte path + System of Distinct Representatives: Injective assignment of comp. to attachment pts

SLIDE 40

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

Tint

SLIDE 41

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

Tint

int.

SLIDE 42

What is known?

X Y α [Tutte ’77] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Thomassen ’83] G 2-conn., X, Y, α on outer face ⇒ Tutte path [Chiba & Nishizeki ’89] G 4-conn. ⇒ Tutte path in O(n) time [Schmid & Schmidt ’18] . . . in O(n2) time (= Hamil. path) . . . in O(n) time [Schmid & Schmidt ’15] . . . in O(n2) time [Gao, Richter & Yu ’95, ’06] G 3-conn., X, Y, α on outer face ⇒ TSDR-path [Sanders ’96] G 2-conn., X, Y, α on outer face ⇒ Tutte path

Tint

int.

SLIDE 43

Triangulated Graphs

X Y α

SLIDE 44

Triangulated Graphs

X Y α

[Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 45

Triangulated Graphs

X Y α

[Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 46

Triangulated Graphs

X Y α

[Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 47

Triangulated Graphs

X Y α

[Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 48

Triangulated Graphs

X Y α

triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 49

Triangulated Graphs

X Y α

k vertices triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 50

Triangulated Graphs

X Y α

k vertices 2k − 5 int. faces triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 51

Triangulated Graphs

X Y α

k vertices 2k − 5 int. faces k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 52

Triangulated Graphs

X Y α

k vertices 2k − 5 int. faces k − 2 int. edges in P k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 53

Triangulated Graphs

X Y α

k vertices 2k − 5 int. faces k − 2 int. edges in P k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 54

Triangulated Graphs

X Y α

k vertices 2k − 5 int. faces k − 2 int. edges in P k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 55

Substitution Trick

SLIDE 56

Substitution Trick

SLIDE 57

Substitution Trick

SLIDE 58

Substitution Trick

X Y α

SLIDE 59

Substitution Trick

X Y α

SLIDE 60

Substitution Trick

X Y α

SLIDE 61

Substitution Trick

X Y α

SLIDE 62

Substitution Trick

SLIDE 63

Triangulated graphs

X Y α

k vertices 2k − 5 faces k − 2 edges in P−α k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 64

Triangulated graphs

X Y α

k vertices 2k − 5 faces k − 2 edges in P−α k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 65

Triangulated graphs

X Y α

k vertices 2k − 5 faces k − 2 edges in P−α k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time.

SLIDE 66

Triangulated graphs

X Y α

k vertices 2k − 5 faces k − 2 edges in P−α k − 3 int. vtcs triangulation ⇒ Tutte path in O(n) time. [Asano, Kikuchi & Saito ’85] 4-conn. triangulation ⇒ Hamiltonian path in O(n) time. Tint-

SLIDE 67

Corner-3-connectivity

int. 3-conn.

SLIDE 68

Corner-3-connectivity

int. 3-conn.

SLIDE 69

Corner-3-connectivity

int. 3-conn.

corner-3-conn.

X Y α

SLIDE 70

Corner-3-connectivity

int. 3-conn.

corner-3-conn.

X Y α

SLIDE 71

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 72

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 73

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 74

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 75

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 76

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 77

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 78

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

SLIDE 79

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

G is corner-3-conn., X, Y, α on outer face ⇒ Tint-path

SLIDE 80

Corner-3-connectivity

int. 3-conn.

corner-3-conn. side

X Y α

G is corner-3-conn., X, Y, α on outer face ⇒ Tint-path

SLIDE 81

Case 1: Outer Face is Triangle

SLIDE 82

Case 1: Outer Face is Triangle

X Y α

SLIDE 83

Case 1: Outer Face is Triangle

X Y α

SLIDE 84

Case 1: Outer Face is Triangle

X Y α

SLIDE 85

Case 2: left-right cutting pair

X Y α

SLIDE 86

Case 2: left-right cutting pair

X Y α

SLIDE 87

Case 2: left-right cutting pair

X Y Gt Gt α

SLIDE 88

Case 2: left-right cutting pair

X Y Gb Gt Gt Gb α

SLIDE 89

Case 2: left-right cutting pair

X Y Gb Gt Gt Gb α

SLIDE 90

Case 2: left-right cutting pair

X Y Gb Gt X Y Gt Gb α α

SLIDE 91

Case 2: left-right cutting pair

X Y Gb Gt X Y Gt Gb α α

SLIDE 92

Case 2: left-right cutting pair

X Y Gb Gt X Y Gt Gb X Y α α α

SLIDE 93

Case 2: left-right cutting pair

X Y Gb Gt X Y Gt Gb X Y α α α

SLIDE 94

Case 2: left-right cutting pair

X Y Gb Gt X Y Gt Gb X Y α α α

SLIDE 95

Case 3: top-right cutting pair

X Y α

SLIDE 96

Case 3: top-right cutting pair

Gb X Y Gb α

SLIDE 97

Case 3: top-right cutting pair

Gb Gt X Y Gb Gt α

SLIDE 98

Case 3: top-right cutting pair

Gb Gt X Y Gb Gt α

SLIDE 99

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Gt α α

SLIDE 100

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Gt α α

SLIDE 101

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α

SLIDE 102

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α

SLIDE 103

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α

SLIDE 104

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α

SLIDE 105

Case 3: top-right cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α

SLIDE 106

Case 3’: top-left cutting pair

Gb Gt X Y Gb Y X Y Gt X α α α y

SLIDE 107

Case 3”: top-bottom cutting pair

Gb Gt X Y Y Gt X Gb X Y α α α

SLIDE 108

Case 4: No cutting pair

X Y YX α

SLIDE 109

Case 4: No cutting pair

X Y Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs YX α

SLIDE 110

Case 4: No cutting pair

X Y Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs xs

=x0

YX α

SLIDE 111

Case 4: No cutting pair

X Y x1 x2 xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs fi xs

=x0

YX α

SLIDE 112

Case 4: No cutting pair

X Y x1 x2 xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side fi xs

=x0

YX α

SLIDE 113

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side xs

=x0

YX α

SLIDE 114

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side xs

=x0

YX α G0

SLIDE 115

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side G1 xs

=x0

YX α G0

SLIDE 116

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side G2 G1 xs

=x0

YX α G0

SLIDE 117

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side G2 G1 xs

=x0

YX α G0 Gi

SLIDE 118

Case 4: No cutting pair

X Y x1 x2 fi xi Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side G2 G1 xs

=x0

YX α G0 Gi Gs

SLIDE 119

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 120

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α G0 Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 121

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α G0 Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 122

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α G0 Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 123

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α G0 Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 124

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α G0 Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 125

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 126

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 127

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 128

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 129

Case 4: No cutting pair

X Y YX G0 G2 Gi Gs α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 130

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 131

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 132

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 133

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 134

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 135

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Gs α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 136

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Y X Gs α α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 137

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Y X Gs α α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 138

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Y X Gs α α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 139

Case 4: No cutting pair

X Y YX G0 G2 Gi X Y Y X Gs C2 α α α Necklace YX=x0, f1, x1, . . . , xs−1, fs, xs,xi face-adj. to right side,G1 = ∅

SLIDE 140

Running Time

SLIDE 141

Running Time

SLIDE 142

Running Time

Store:

SLIDE 143

Running Time

Store:

corners

SLIDE 144

Running Time

Store:

faces: all vtcs on each side
corners

SLIDE 145

Running Time

Store:

faces: all vtcs on each side
vtcs: all face-incidences to each side
corners

SLIDE 146

Running Time

Store:

faces: all vtcs on each side
vtcs: all face-incidences to each side
corners
sides: all cutting pairs

SLIDE 147

Necklace scan

X Y YX α

SLIDE 148

Necklace scan

X Y YX α

SLIDE 149

Necklace scan

X Y YX α

SLIDE 150

Necklace scan

X Y YX α

SLIDE 151

Necklace scan

X Y YX α

SLIDE 152

Necklace scan

X Y YX α

SLIDE 153

Necklace scan

X Y YX α

SLIDE 154

Necklace scan

X Y YX α

SLIDE 155

Necklace scan

X Y YX α

SLIDE 156

Necklace scan

X Y YX α

SLIDE 157

Necklace scan

X Y YX α

SLIDE 158

Necklace scan

face gets scanned: X Y YX α

SLIDE 159

Necklace scan

face gets scanned: X Y YX α

SLIDE 160

Necklace scan

face gets scanned:

⇒ one vtx becomes outer

X Y YX α

SLIDE 161

Necklace scan

face gets scanned:

⇒ one vtx becomes outer

X Y YX α

SLIDE 162

Necklace scan

face gets scanned:

⇒ one vtx becomes outer ⇒ O(1) times

X Y YX α

SLIDE 163

Necklace scan

face gets scanned:

⇒ one vtx becomes outer ⇒ O(1) times ⇒ O(∑ f deg( f )) = O(n) time

X Y YX α

SLIDE 164

Necklace scan

face gets scanned:

⇒ one vtx becomes outer ⇒ O(1) times ⇒ O(∑ f deg( f )) = O(n) time

Theorem.

G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time. X Y YX α

SLIDE 165

Applications

SLIDE 166

Applications

X Y α

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

SLIDE 167

Applications

X Y α

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

SLIDE 168

Applications

X Y α

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

SLIDE 169

Applications

W X Y U

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. X Y α

SLIDE 170

Applications

W X Y U

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. X Y α

SLIDE 171

Applications

W X Y U

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. X Y α

SLIDE 172

Applications

W X Y U

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. X Y α

SLIDE 173

Applications

W X Y U

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. X Y α

SLIDE 174

Conclusion

SLIDE 175

Conclusion

Theorem.

G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 176

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time. G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 177

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time. G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 178

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time. G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 179

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time. X, Y, α on different faces? G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 180

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time. X, Y, α on different faces? Non-planar graphs? G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.

SLIDE 181

Conclusion

Theorem. Theorem.

G 2-conn., X, Y, α on outer face ⇒ Tutte path in O(n) time.

Theorem.

G int. 3-conn. ⇒ binary spanning tree in O(n) time.

Theorem.

G int. 3-conn. ⇒ 2-circuit in O(n) time. X, Y, α on different faces? Non-planar graphs? G int. 3-conn., X, Y, α on outer face ⇒ Tint-path in O(n) time.
