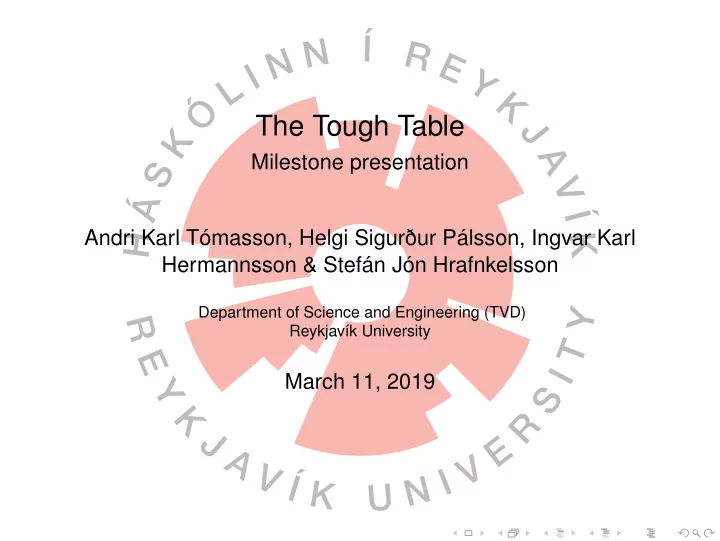

The Tough Table

Milestone presentation Andri Karl Tómasson, Helgi Sigurður Pálsson, Ingvar Karl Hermannsson & Stefán Jón Hrafnkelsson

Department of Science and Engineering (TVD) Reykjavík University

March 11, 2019

SLIDE 2

Introduction

The tough table
A sturdy, tough dining table which can be changed into a working

bench with a flip of a plate

The solution for people to maximize the usage of their homes
Suitable for all-size households
Axiomatically designed

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 2 / 10

SLIDE 3

History and background

No dual purpose dining tables
No dining tables rotatable about the horizontal axis
No previous patent found on rotatable tables

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 3 / 10

[1] [2]

SLIDE 4

Use case

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 4 / 10

SLIDE 5

Design: Overview

50mm Solid oak plate
5x60mm Low carbon steel flat bars for legs
27mm low carbon steel axle welded on 2x40mm flat bars
30mm OD low carbon pipe
4 locking pins
1400x1000x1mm steel plate

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 5 / 10

SLIDE 6

Details

ID Functional Requirements Design parameters 1 Hold minimum 100kg Solid oak plate 2 Flip table Axle in pipe 3 Can be locked in place, stop rotation Locking pins 4 Different surface Oak and Steel plate

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 6 / 10

SLIDE 7

Design: Bill of materials (BOM)

What materials are needed for this project?

1 x Solid Oak board 40.000 kr
1 x 30mm Low carbon steel pipe with 27mm ID 2400 kr
1 x 27mm Low carbon steel axle 3000 kr
2x Low carbon steel flat bars for the legs 7300 kr
1x 1400x1000x1mm steel plate 3900 kr

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 7 / 10

SLIDE 8

Status

Done

Sketches and cad drawings
Stress analysis with Inventor

Problems

Problem solving for stability
Problem solving for assembly
Looking in to upscalability

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 8 / 10

SLIDE 9

Tasks remaining

To further develop the table it would be useful to look in to making a prototype or making a fully functional computer model. Further more look at the cost vs the budget.

Andri, Helgi, Ingvar, Stefán (RU) The Tough Table March 11, 2019 9 / 10

SLIDE 10

References

Thank you for your time. Questions? [1] D. Stine, “Custom Oak Dining Tables.” [Online]. Available: https://www.stinewoodworking.com/furniture/oak-dining-tables/ [2] J. Ellis, “Jason Ellis | Flip-top Workbench.” [Online]. Available: http://www.randomstringofwords.com
