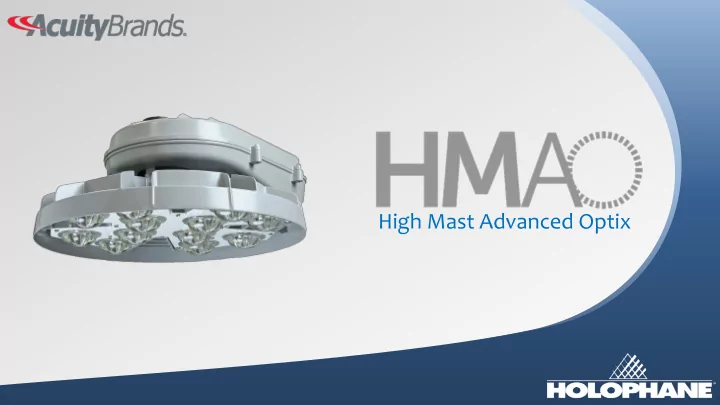

High Mast Advanced Optix

Applications

Freight Terminals Industrial Facilities Car Parks/Truck Stops Ports and Docks Rail Toll Plazas Airports

Value Proposition

• Minimises maintenance cost
• Dirt resistant low static glass optics
• Ventilated air flow design.
• Optical solution with high performance glass refractors
• Maximise light output and controls glare –
• Minimises hard shadowing ensuring excellent uniformity for a safe & practical working area.
• Purposely designed for high mounting environments where durability,

performance and reliability are critical.

• Available as a retrofit on existing installations or as part of a complete

new High Mast Lighting solution.

Product Layout

Two piece die cast aluminium housing. Anti corrosive IP sealed capsule containing drivers, 10KV surge protection device and all electrical terminations. Designed to optimise thermal performance. Rotatable optical assembly. Aligns optic assembly for particular applications whilst maintaining the head frame load. Single piece ‘flow-through’ optical cover. Allows air and rain flow all around optical modules to maximise thermal performance and create self cleaning ‘venturi effect’. Modular glass refractors. Low glare

• ptical design that maximises vertical and

horizontal uniformity. Zero uplight. Hinged housing door. Allows for ease of installation and on site access. Electrical termination can be easily accessed.

5

Thermal Management

• Utilizes the principles of conduction and

convection to deliver a life of up to 100,000hrs and lumen packages of up to 58,000lms

• Strategically designed to ensure critical

electronic components are mounted in a separate housing away from heat generated by the LEDS. This separation of Drivers and LED’s reduces the thermal impact on each other.

Flexibility

• Available with a wide range of lumen outputs

and optical distributions to suit a variety of applications and heights.

• Suitable for a mounting to existing and new

masts via Ø 42/60mm side entry.

• Rotatable optics allows the lighting to be

adjusted and controlled to the environment required without compromising the head frame load.

• Available as part of a complete Holophane

High Mast solution.

42/60mm Side entry Rotatable Optic

7

Lumen Maintenance

• Lumen packages from 30,000 to 58,000 lumens
• Up to 118lm/W with chip on board technology.
• Flow Through

Glass Self Cleaning Optical Design Optics System

• Product design results in a lumen

depreciation of L80 at 100,000 within 25oC ambient.

+ =

8

Performance

• Five dedicated distributions using glass

refractor technology.

• Glass refractors ‘pods’ deliver a Prismaglow

lighting effective that results in no dark spots or drop in uniformity in the event of LED depreciation/failure.

• When compared to equivalent LED high

mast luminaire HMAO achieves:

• Energy savings of over 20%
• A more uniformed lighting solution
• Longer lumen maintenance

*Designed to EN12464-2:2014 ref 5.4

High Mast Advanced Optix Equivalent LED High Mast Luminaire

Performance

Retrofit Installation

Existing 1000W MH High Mast Luminaire HMAO.L444 Luminaire

Parameters: Designed to EN 12464-2:2014 Target of 30 lux 30m mounting height in a 1000m grid Designed to 8000 hours

32 No of Luminaires 32 67165 Delivered Lumens 46672 31 Eav (lux) 32 0.552 Uniformity 0.597 34.72 Total Power Load (kW) 12.03 £13,940 Year 1 Energy £4,831

66%

Energy Cost Reduction

White light provides excellent uniformity, color rendition, and visibility in space with substantial energy savings compared to high pressure sodium

Improved Visibility

Existing HPS Installation HMAO Installation

Performance

New Installation

Equivalent High Mast LED Luminaire HMAO.L584 Luminaire

Parameters: Designed to EN 12464-2:2014 Target of 30 lux 30m mounting height in a 1000m grid Designed to 8000 hours

26 No of Luminaires 26 56380 Delivered Lumens 57687 30 Eav (lux) 30 0.651 Uniformity 0.779 15.86 Total Power Load (kW) 13 £6,368 Year 1 Energy £5,220

20%

Energy Cost Reduction

L70B50 (40oC) achieved at 100,000 hours.

Performance

Product Code Drive Current

(mA)

No of LED’s (COB) Lumens+ Power Consumption*

(W)

Luminaire Performance*

(Lm/W)

Power Factor*

(Ø)

HMAO.L304 1000 6 29760 245 118lpw 0.90 HMAO.L444 1000 9 44211 368 118lpw 0.90 HMAO.L584 1000 12 57770 490 118lpw 0.90

+ Average delivered lumens from distributions available.

*Subject to final testing COB (Chip On Board)

Competitors

Product Lumen Range Power Usage

(W)

Lm/W CRI Lifetime@ L70B50

(25oC)

Ta IP Rating Weight (kg)/ Windage (m2) Controls Option

DALI/1-10V

List Price

CU Phosco P855 11,500 – 36,000 99-324 103 - 126 >70 L95 @90,000

• 30oC to

45oC IP66 16kg/0.085 DALI c.£1500 CU Phosco FL800 13,250 – 39,750 150 -450 88 – 90 70 L90 @ 100,000

• 40oC to

25oC IP66 7 to 18/0.033 to 0.118 DALI and 1-10V) c.£1300 Urbis Schreder OMNISTAR 30,000 – 120,000* 285 – 1410 85 – 105 TBC 100,000*+

• 35oC to

55oC IP66 (optic) 14 (optic only) DALI & CLO TBC Kingfisher TLED PRO 3,520 – 45,530* 33-444 102 - 106 >80 L80B20 @ 50,000 40oC IP66 8 to 20/0.029 to 0.255 DALI and 1-10V £1431

(36k lumen version)

Holophane HMAO 29,760 - 57770 245 – 500 118 70 100,000

• 20oC to

45oC IP65 21 to 23/0.120 DALI £1265

(L584 version)

*Not delivered based on LED manufacturers data. +L70 and ambient not specified.

Competitors

Lumen output range published is not the delivered outputs. Below are extracts form the Kingfisher and Urbis product brochure.

Holophane data is based on actual delivered lumens from the luminaire at 25oC.

Key Points

• Product is supplied as standard with 10KV surge protection,

enhanced paint finish.

• DALI, 1-10v and Constant Lumen Output available as standard
• ptions.
• Available to configure as a combination with HMS2.
• Holophane High Mast head frame available via NCP
• Photocell and NEMA sockets available as standard options.
• 90O, 120O & 180O backlight shield available as accessories.

Launch Material

• Brochure available with key features and benefits.
• LED data sheet updated and available to download from the

Holophane Intranet.

• Website updated with the addition of HMAO.
• Envision is already available for quotations.
• Photometry is available to download from Mobile Utilities.
