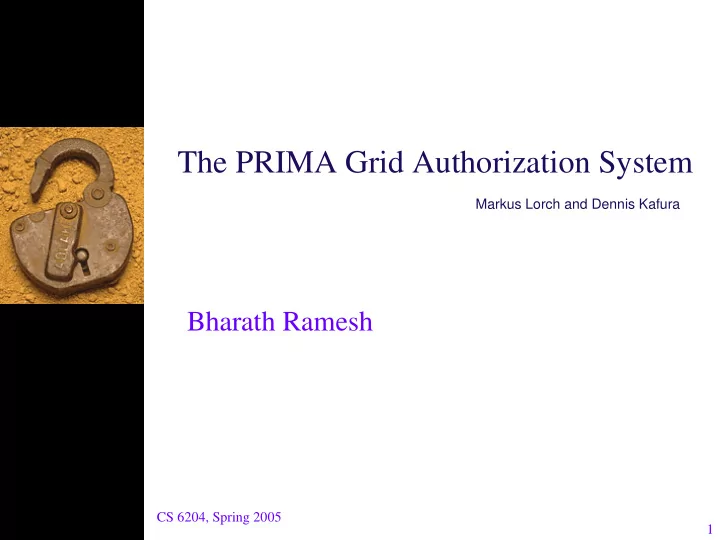

SLIDE 1
1 CS 6204, Spring 2005
The PRIMA Grid Authorization System
Markus Lorch and Dennis Kafura
2 CS 6204, Spring 2005
The PRIMA Grid Authorization System Markus Lorch and Dennis Kafura - - PowerPoint PPT Presentation
The PRIMA Grid Authorization System Markus Lorch and Dennis Kafura - - PowerPoint PPT Presentation
The PRIMA Grid Authorization System Markus Lorch and Dennis Kafura Bharath Ramesh CS 6204, Spring 2005 1 PRIvilege Management Authorization (PRIMA) A system to provide enhanced grid security services Secure, fine grained privileges
SLIDE 2
SLIDE 3
3 CS 6204, Spring 2005
Security Requirements
Security requirements that were identified from the surveys
♦ Fully distributed mechanism ♦ Fine grained access rights ♦ Direct delegation of authorization ♦ Selective use of access rights ♦ Fine grain enforcement ♦ Support for legacy and untrusted applications
How PRIMA addresses these requirements
♦ Privileges ♦ Dynamic policies ♦ Dynamic execution environments
SLIDE 4
4 CS 6204, Spring 2005
PRIMA Concepts: Overview
SLIDE 5
5 CS 6204, Spring 2005
PRIMA Concepts: Privileges
Privilege refers to access rights with the following properties
– Fully associated: explicitly specify subjects, objects and allowed action by the subjects on that object – Directly applicable: access rights can be exercised without interpretation
Privileges are embedded in a container to protect against manipulation PRIMA privileges properties:
– Well defined lifetime – Fine grain
SLIDE 6
6 CS 6204, Spring 2005
PRIMA Concepts: Dynamic Policies
All permissible privilege constitute a dynamic policy for a request Policy Enforcement Point (PEP) checks for:
– Applicability – Validity – Authority
Policy Decision Point (PDP) makes the following decisions:
– Coarse decision – Obligations of PEP
SLIDE 7
7 CS 6204, Spring 2005
PRIMA Concepts: PEP Obligations
♦ Additional constraints to an authorization
decision is called obligations
♦ If PEP cannot fulfill an obligation then it
disallows access to proceed
♦ Obligation address the subtle issues of fine-
grained authorization like mismatch in level
- f detail between request and policies.
♦ Obligations help in maintaining system
state.
SLIDE 8
8 CS 6204, Spring 2005
PRIMA Concepts: Dynamic Execution Environments
♦ Each authorized request is executed within a specific
execution environment.
♦ Execution environment can be impelented as:
– Unix process space – Sandboxing – Hosting environment for web and grid services
♦ The execution environment provide the added benefit to
execute legacy and untrusted applications.
♦ Execution environments can be provisioned in various
ways like:
– Identity authorization – Mixed mode authorization – Privilege-based authorization
SLIDE 9
9 CS 6204, Spring 2005
PRIMA Architecture and System Components: Overview
SLIDE 10
10 CS 6204, Spring 2005
PRIMA Architecture and System Components: The Globus GRAM Authorization Call-Out
♦ Globus Gatekeeper extended with two
interfaces:
– Identity mapping interface.
- Replaces static grid-map file mechanism.
– Code for parsing call-out configuration file.
- Loading and initializing modules.
- Logging to the existing Globus gss_assist library.
SLIDE 11
11 CS 6204, Spring 2005
PRIMA Architecture and System Concepts: PRIMA Authorization Module
PRIMA Authorization module interfaces with Globus gatekeeper. The authorization module performs following steps in sequence
– Validate privileges and requests authorization decisions. – Determines user account which will be used to service request. – Provision the selected user account with access rights.
SLIDE 12
12 CS 6204, Spring 2005
PRIMA Architecture and System Components: Validation and Decision process
♦ PRIMA authorization module receives Generic Security Services
(GSS) context from Globus gatekeeper.
♦ Authorization module extracts and verifies privileges contained in
GSS.
♦ On validation PRIMA authorization module determines authority of
the privilege attributes issuer.
SLIDE 13
13 CS 6204, Spring 2005
PRIMA Architecture and System Components: Authorization request and response
SLIDE 14
14 CS 6204, Spring 2005
PRIMA Architecture and System Components: User Mapping
SLIDE 15
15 CS 6204, Spring 2005
PRIMA Architecture and System Components: Enforcement Mechanisms
PRIMA uses the following mechanisms to control file access:
– POSIX.1E file system access control list. PRIMA dynamically modifies system’s ACL based on authorization module to set access rights for execution environment. – XML- based Grid Access Control Lists (GACL’s). The enforcement mechanism is similar to that used by POSIX ACL’s.
PRIMA can be extended to use iptables to control access to network PRIMA Privilege Revocator associated with PRIMA enabled resources, automatically revokes privileges and dynamic users as they expire.
SLIDE 16
16 CS 6204, Spring 2005
