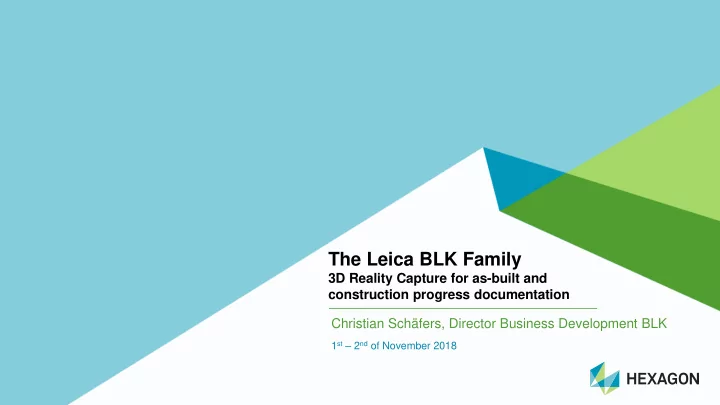

The Leica BLK Family

3D Reality Capture for as-built and construction progress documentation Christian Schäfers, Director Business Development BLK

1st – 2nd of November 2018

SLIDE 2 Confidential 2

Leica Geosystems is the industry leader in measurement and information technologies. Professionals from a diverse mix of industries trust Leica Geosystems for all their geospatial needs.

SLIDE 3 Confidential 3

SLIDE 4 Confidential 4

Reality Capture Technology

SLIDE 5 Confidential 5

Employs 7% of the world’s working-age population Every year $10 trillion spent on construction related goods and services

SLIDE 6 Confidential 6

Construction industry is among the least

digitized sectors in the world

Global labor-productivity growth in construction has averaged only 1 percent a year

SLIDE 7 Confidential 7

“Your best teacher is your last mistake”

Ralph Nader

SLIDE 8 Confidential 8

Can you spot the mistake?!

No processes in place
Not trained
Lack of communication
“the human factor”
“…that Friday feeling…”
Analog systems

SLIDE 9 Confidential 9

OFFICE

LOST INFORMATION

REAL WORLD

SLIDE 10 Confidential 10

Digital Fingerprint of Reality

allowing to mirror the real world into the digital world

SLIDE 11 Confidential 11

From Experts to Everyone

SLIDE 12

Leica BLK360

3D Imaging Laser Scanner

SLIDE 13

60m range 1button push 1 kg in weight 3mins capture

Recap Pro Mobile Auto-registration

SLIDE 14 Confidential 14

SLIDE 15

Nice Point Cloud…

… and now what do I do with it?

SLIDE 16

Actionable Real-World Data

Dimension, view & interact to make better decisions

7.201m

SLIDE 17

No modelling required Quick accurate dimensions Improved site awareness

SLIDE 18 Confidential 18

See the spaces between spaces Virtually visit your sites Complete 3D picture

SLIDE 19

Create entire digital cities Validate and check design changes Simulate changes such as airflow & shading 3D city models

simulate urban landscape changes

SLIDE 20 Confidential 20

The Leica BLK360

Capturing 3D Reality at the push of a button.

The Leica BLK3D

Beyond the visible.

SLIDE 21 Confidential 21

Imagine you can simply take an image – just like with your smartphone.

SLIDE 22 Confidential 22

...and then you’re all set to…

SLIDE 23 Confidential 23

0.45 m

8.23 m2

… do precise 3D Measurements in a 2D image.

SLIDE 24 Confidential 24

Introducing the Leica BLK3D

Real-time, in-picture 3D measurement Beyond the visible.

SLIDE 25 Confidential 25

3D Measurements in a 2D image

SLIDE 26 Confidential 26

Accuracy EDM: ± 1mm (± 1/16’’)
Accuracy 2D: ± 3mm (± 1/8’’)*
Accuracy 3D: ± 6mm (± 1/4’’)*

SLIDE 27 Confidential 27

Simplification and Democratisation

Make exclusive technologies available to a wide audience, across many industries.

The art of photogrammetry. Simplified.

SLIDE 28 Confidential 28

Capture critical moments throughout the life of a building.

Progressive project documentation for AEC.

SLIDE 29 Confidential 29

Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.

Working with digital floorplans.

SLIDE 30 Confidential 30

Access projects. Anywhere, anytime.

On-Site - in the office - on the BLK3D - in real-time - retrospect.

SLIDE 31 Confidential 31

SLIDE 32 Confidential 32

Th Thank y ank you

Christian Schäfers

An Any quest y questions ions
