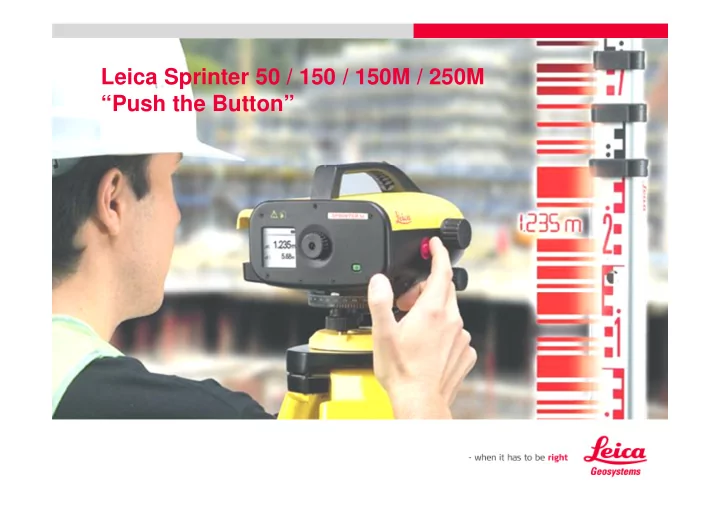

Leica Sprinter 50 / 150 / 150M / 250M “Push the Button”

2

Leica Sprinter 50 / 150 Construction Levels Product Offering

Sprinter 50 (Standard / US)

• Art. No. 762628 / 764686
• Sprinter 50, 2.0 mm, electronic level

(standard version: Meter [m] / US version: Foot [ft])

• Container, strap, adjustment tool
• Multi-language user manual, leaflet, 4

AA batteries Sprinter 150

• Art. No. 762629
• Sprinter 150, 1.5 mm, electronic level
• Automatic delta height, reduced level

calculation

• Container, strap, adjustment tool
• Multi-language user manual, 4 AA

batteries

• Language setting,

tracking measurement, unit setting

3

Leica Sprinter 150M / 250M Advanced Levels Product Offering

Sprinter 150M / 250M

• Art. No. 762630 / 762631
• Sprinter 150M / 250M, 1.5 mm / 1.0 mm, electronic level, CD-ROM, USB data

transfer cable

• Container, strap, adjustment tool
• Multi-language user manual, 4 AA batteries
• Internal data storage
• Easy data-transfer to PC via USB interface
• Language setting, tracking measurement,

unit setting

• Sprinter 250M achieves 0.7 mm with fibreglass,

1 section staff

4

Leica Sprinter 150M / 250M Advanced Levels Onboard Software

Delta Height, Reduced Level

• Automatic delta height, reduced level calculation (as well Sprinter 150)

Line Levelling

• Choose needed line levelling job such as

backsight (B) – intermediate sight (I) – foresight (F) BIF, BF, BFFB

• Follow onboard instruction to complete

your levelling job

• Data stored in appropriate order to download

Cut & Fill

• Calculates automatically Cut & Fill results based
• n a reference, design level

Cut Fill

5

Leica Sprinter 50 / 150 / 150M / 250M Product Features

Main Product Features

• Electronic height accuracies per 1 km double-run

2.0 mm Sprinter 50, 1.5 mm Sprinter 150 / 150M, 1.0 mm Sprinter 250M

• Optical height accuracy 2.5 mm, magnification 24x
• Distance range 2 – 100 m
• Time for single measurement 3 sec
• Data storage up to 1’000 points

(only Sprinter 150M / 250M)

• Environmental conditions IP55
• Automatic inverse staff recognition, out of level indication
• Working temperature -10 to +50 °

C

• Weight 2.5 kg

6

Leica Sprinter 50 / 150 / 150M / 250M Product Comparison

Model Accuracy Height, Distance Delta Height Multi- lingual Line Levelling Cut & Fill Data Storage Sprinter 50 2.0 mm Sprinter 150 1.5 mm Sprinter 150M 1.5 mm Sprinter 250M 1.0 mm / 0.7 mm

7

Leica Sprinter 50 “One-Touch” Level Benefits, Customers

Main Benefits

• Quick and easy one-touch operation

“one-touch does it all”

• Like an auto-level with digital readout
• “My first electronic level”
• Fast digital readout for height and

distance

• Robust and site proof
• No training required

Main Customers, Markets

• Users with little levelling skills – even

with optical levels

• Users who are content with limited

functions

• General construction
• Small contractors
• … for all daily levelling tasks

8

Leica Sprinter 50 “One-Touch” Level Positioning, Competition

Positioning

• Differentiation from NA724:

Error free reading Time saving

• Differentiation from Sprinter 150:

No delta height, red. level calculation Not multi-lingual No tracking (No Competition) as Unique in the Market

• (Topcon

DL-103 / 103AF)

• (Sokkia

SDL50) Price Performance

9

Leica Sprinter 150 / 150M / 250M Advanced Levels Benefits

Main Benefits, Improvements

• Quick, user-friendly data-download via USB: Start DataLoader on PC, connect

with Sprinter, click to start data-export to Excel (only Sprinter 150M / 250M)

• Multi-lingual: Simple change of language on the instrument
• User-friendly firmware: Clear menu structure, easy to operate onboard

applications

• Improved Accuracy: 1.5 mm for Sprinter 150 / 150M,

1.0 mm for Sprinter 250M, 0.7 mm for Sprinter 250M with 1-section fibreglass staff

• More onboard applications: Common line-levelling

applications, useful Cut & Fill program, timer function for monitoring work (only Sprinter 150M / 250M)

• Double memory capacity: Up to 1’000 points (only Sprinter 150M / 250M)

10

Leica Sprinter 150 / 150M / 250M Advanced Levels Customers

Main Customers, Markets

• Users who want to have more functions than

just height and distance results

• Mid-size, large building, civil engineering

contractors

• Surveyors, civil engineer consultants,

architects

• Road-, railway construction
• … for all professional, advanced levelling

tasks, 0.7 mm accuracy of Sprinter 250M allows even subsidence measurements

11

Leica Sprinter 150 / 150M / 250M Advanced Levels Positioning, Competition

Positioning

• Differentiation from Sprinter 50:

Higher accuracy Onboard applications

• Differentiation from DNA:

No alphanumeric keyboard Smaller memory capacity Less accurate (DNA03) Competition

• Sokkia

SDL30

• Topcon

DL-102C

• Trimble DiNi, Topcon DL-101C are

high precision levels in the segment

• f DNA

Price Performance
