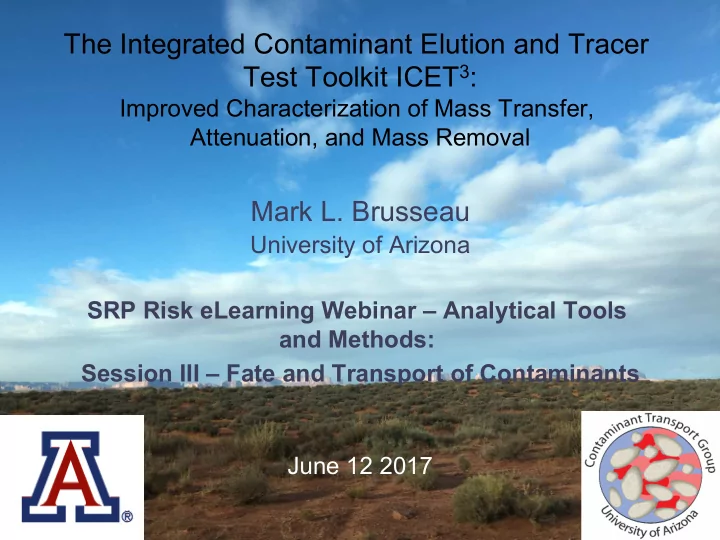

The Integrated Contaminant Elution and Tracer Test Toolkit ICET 3 : Improved Characterization of Mass Transfer, Attenuation, and Mass Removal Mark L. Brusseau University of Arizona SRP Risk eLearning Webinar Analytical Tools and Methods: Session

slide-1
SLIDE 1

1 1

The Integrated Contaminant Elution and Tracer Test Toolkit ICET3:

Improved Characterization of Mass Transfer, Attenuation, and Mass Removal

Mark L. Brusseau

University of Arizona SRP Risk eLearning Webinar – Analytical Tools and Methods: Session III – Fate and Transport of Contaminants June 12 2017

slide-2
SLIDE 2

Outline

  • What are contaminant elution tests (CET)
  • CET advantages and applications
  • Implementation
  • Case study

2

slide-3
SLIDE 3

Contaminant Elution Test

  • AKA
  • induced-gradient contaminant elution test
  • contaminant pumping test
  • mass discharge test

Monitor COC concentration in fluid discharge during groundwater (or soil vapor) extraction

3

slide-4
SLIDE 4

CET Data

  • Qualitative analysis- Landmarks
  • Quantitative analysis- Mathematical modeling

10 20 30 40 50 60 70 80

Data from Brusseau et al., 2007

Time (d)

200 400 600 800 1000 1200 1400 1600 1800

Concentration (ug/L)

EW 1 EW 2

TCE Data

4

slide-5
SLIDE 5

Advantages

  • Induced gradient stresses system, enhancing hydraulic

and concentration gradients

– Improved sensitivity for measuring mass transfer and attenuation

  • Integrated measurement over interrogated domain

– Reduced uncertainty from spatial variability

  • Modified CET – clean water injection to displace resident

solution (background plume)

– Delineation of local fluxes and associated processes

  • ICET3 - tracer application

– Characterization of specific processes and associated rates

  • Rapid and relatively low cost

5

slide-6
SLIDE 6

Outcomes

  • Improved characterization of mass transfer, attenuation,

and mass removal processes

  • increased accuracy of risk assessments
  • improved CSM and RI/FS
  • enhanced remedial action design
  • Ultimately, improve decision making for cost-effective

site management

  • Integrate with other site characterization tools

6

slide-7
SLIDE 7

Applications

  • Measure contaminant mass discharge (CMD)
  • Characterize mass-removal and persistence behavior
  • Delineate specific mass-transfer & attenuation processes
  • Determine process-specific rate coefficients
  • Estimate resident contaminant mass
  • Test prospective remedial actions

7

slide-8
SLIDE 8

Applications

  • Measure contaminant mass discharge (CMD)

Data from Brusseau et al., 2011

TCE Data

  • Assess remedial

action performance

Note: CMD in ROD as a RAO for Commencement Bay-South Tacoma Channel Superfund site

8

slide-9
SLIDE 9

Applications

  • Characterize mass-removal and persistence behavior

200 400 600 800 1000 1200 1400 1600 1800

Concentration (ug/L)

EW 1 EW 2 EW 3 EW 4

Landmarks:

– High Conc steady state – Low Conc steady state – Low Conc asymptotic – Distinct changes in slope

  • Qualitative

analysis:

Examine elution profiles to assess Type behavior

5 10 15 20 25 30

Time (d) 9

slide-10
SLIDE 10

Fraction Mass Discharge Reduction

Applications

  • Characterize mass-removal and persistence behavior
  • Quantitative analysis: CMDR-MR relationship

1 0.9

90 Mass Reduction (%) 99 99.9 99.99

0.8 0.7 0.6

99.9

0.5 0.4

99

0.3 0.2 0.1

90

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1

1:1 Minimal Reduction Maximal Reduction Site Data 1:1 Minimal Reduction Maximal Reduction Site Data

Mass Discharge Reduction (%) Fraction Mass Reduction From Brusseau, 2013

10

slide-11
SLIDE 11

Applications

  • Delineate specific mass-transfer & attenuation processes

>>>use of tracer suite

  • Straightforward for

systems with a single predominant mass- removal process

  • Difficult for multi-

process systems

  • Implement tracer-test

component

11

slide-12
SLIDE 12

Applications

  • Use of tracer suite to characterize specific processes and

associated rate coefficients

  • Multiple NRTs with

different D0 = diffusive mass transfer

  • Sorbing tracer =

retardation

  • Transformation

tracers = bio/chem degradation

  • NAPL partitioning

tracers = NAPL characterization

12

slide-13
SLIDE 13

Applications

  • Estimate resident contaminant mass
  • Typically

Data from Brusseau et al., 2013

unknown and difficult to determine

  • Fit source-

depletion function to temporal CMD data

Mi = 993 kg

13

slide-14
SLIDE 14

Implementation

  • Well-field configuration is key design factor
  • Based on test objectives
  • Test of EW

from Guo and Brusseau 2017

14

isolation from surrounding plume

Standard dipole Double dipole Nested dipoles

from Guo and Brusseau 2017

slide-15
SLIDE 15

Case Study: TIAA Superfund Site

  • NPL Listing in 1983
  • COC = TCE
  • Regional aquifer

impacted

  • Multiple OUs and

remedial operations

15

slide-16
SLIDE 16

GW Pump & Treat Operation

  • High-resolution data set to characterize mass removal

16

slide-17
SLIDE 17

UA- TIAA Study

Objectives: Understand T&F behavior at site and improve remediation effectiveness

  • Activities
  • Characterization- ICET3
  • Laboratory Experiments
  • Mathematical Modeling
  • Evaluate Conceptual Site Model
  • Pilot Tests of Remedial Technologies

17

slide-18
SLIDE 18

ICET3 Application

  • Presence of higher COC concs in major low-K unit
  • Diffusive mass transfer (back diffusion) influencing mass

removal

0.5

>>> Diffusive

Bromide

tracer test

0.4 HPCD Bromide simulation 0.3

Major clay unit

0.2 0.1 1 2 3 4

Pore Volumes

Non-reactive tracers [HPCD D0 < Br D0]

HPCD simulation

Relative Concentration

18

slide-19
SLIDE 19

ICET3 Application

  • Presence of DNAPL in source zone

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 2 4 6 8 10

NRT- Br

  • PT- SF6

Time (d)

PT NRT

>>> NAPL Partitioning tracer test

Concentration (ug/L)

  • Retardation of PT

12000

  • Steady state at high concs

10000 8000

  • Rebound after stop flow

6000 4000 2000 20 40 60 80 100

Time (d)

CET with Stop Flow

19

slide-20
SLIDE 20

ICET3 Application

  • Mass removal mediated by NAPL dissolution

>>> Numerical Modeling

  • Impact of NAPL

dissolution rate coefficient

10 20 30 40 50 60 100 200 300 400 500 600

Concentration (ug/L)

Measured Sim- 4 e-9 Sim- 2 e-9 Sim- 4 e-10

Time (d)

20

slide-21
SLIDE 21

ICET3 Application

  • Information obtained from ICET3 applications used to

support 3-D plume-scale modeling

  • Simulation showing impact of

DNAPL in source zones >>> Modeling used to predict impact of source-zone remediation

21

slide-22
SLIDE 22

ICET3 Application

  • ISCO (permanganate) implemented for source zones

22

  • Measure CMD before and after ISCO
slide-23
SLIDE 23

ICET3 Application

  • Comparison to plume-scale aggregate CMD
  • Reasonable correspondence

23

slide-24
SLIDE 24

Summary

  • Utility of contaminant elution and tracer tests for

site characterization

  • Just one component of full site assessment
  • Thank you

24
