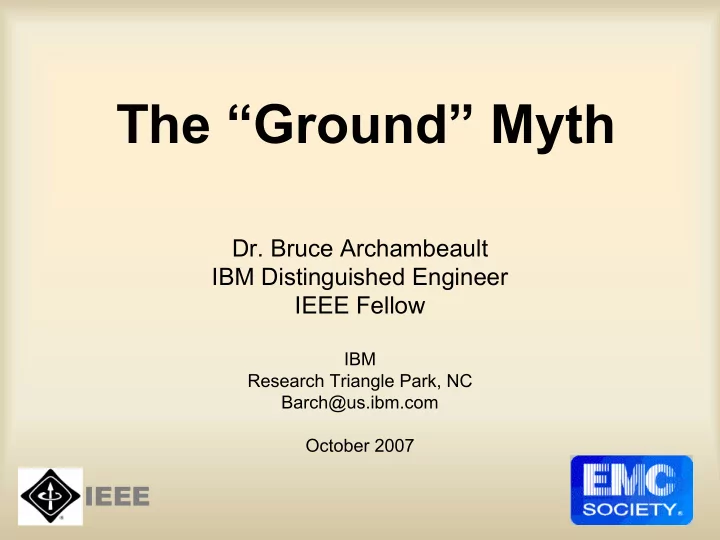

The Ground Myth Dr. Bruce Archambeault IBM Distinguished Engineer - - PowerPoint PPT Presentation
The Ground Myth Dr. Bruce Archambeault IBM Distinguished Engineer IEEE Fellow IBM Research Triangle Park, NC Barch@us.ibm.com October 2007 IEEE IEEE Outline Electromagnetics Skin Effect Inductance Ground
IBM Distinguished Engineer IEEE Fellow
IBM Research Triangle Park, NC Barch@us.ibm.com October 2007
IEEE IEEE
October 2007
2
October 2007
3
In the Beginning
connected
‘action from a distance’
relationship between electric lines of force and time-changing magnetic fields
– Faraday was very good at experiments and ‘figuring out’ how things work
October 2007
4
impressed with Faraday’s ideas
mathematical link between the “electro” and the “magnetic”
contribution to the world (next to Scotch)
October 2007
5
A difference in Magnetic Field across a small piece of space A difference in Electric Field across a small piece of space A change in Electric Flux Density with respect to time A change in Magnetic Flux Density with respect to time
October 2007
6
in E-field (at that point) with time
in H-field (at that point) with time
constants)
October 2007
7
frequency increases
– Uses entire conductor – Only resistance inhibits current
– Only small part of conductor (near surface) is used – Resistance is small part of current inhibitor – Inductance is major part of current inhibitor
October 2007
8
metal surface at high frequencies
Frequency Skin Depth Skin Depth 60 Hz 260 mils 8.5 mm 1 KHz 82 mils 2.09 mm 10 KHz 26 mils 0.66 mm 100 KHz 8.2 mils 0.21 mm 1 MHz 2.6 mils 0.066 mm 10 MHz 0.82 mils 0.021 mm 100 MHz 0.26 mils 0.0066 mm 1 GHz 0.0823 mils 0.0021 mm
µσ π δ f 1 =
October 2007
9
Resistance is determined by the area of the copper conductor actually used at each frequency!
October 2007
10
S21 Skin Effect Loss ONLY-- Comparison for Microstrip (1 cm Long) Various Widths -- 50 ohms (FR4, 4.2, 0.021) Trace Thickness = 0.6mil
0.1 1 10 100 Frequency (GHz) Loss (dB) 1 Mil Wide uStrip 2 Mil Wide uStrip 4 Mil Wide uStrip 6 Mil Wide uStrip 8 Mil Wide uStrip
October 2007
11
S21 Dielectric Loss ONLY-- Comparison for Microstrip (1 cm Long) Various Widths -- 50 ohms (FR4, 4.2, 0.021) Trace Thickness = 0.6mil
0.1 1 10 100 Frequency (GHz) Loss (dB) 1 Mil Wide uStrip 2 Mil Wide uStrip 4 Mil Wide uStrip 6 Mil Wide uStrip 8 Mil Wide uStrip
October 2007
12 S21 Loss Comparison Between Stripline and Microstrip (1 cm Long) 6 mil wide -- 50 ohms (FR4, 4.2, 0.021) Trace Thickness = 0.6mil
0.1 1 10 100 Frequency (GHz) S21 Mag (dB) 6 mil Wide uStrip 6 mil Wide StripLine
October 2007
13 S21 Loss Comparison for 6 Mil Wide Microstrip Loss (1 cm Long) Various Dielectric Loss -- 50 ohms (FR4, 4.2) Trace Thickness = 0.6mil
0.1 1 10 100 Frequency (GHz) S21 Mag (dB) Skin Only Diel (.010) Only Diel (.021) Only Diel (.029) Only Diel (.021) + Skin
October 2007
14
present
October 2007
15
inductance!
frequency and is MAJOR concern at high frequencies
October 2007
16
Courtesy of Elya Joffe
October 2007
17
⋅ ∂ ∂ − = ⋅ S d t B dl E
V B Area = A
The minus sign means that the induced voltage will work against the current that
October 2007
18
− ≈ 2 8 ln r a a L µ
+ − + − + + + + =
2 2
1 1 2 1 1 2 1 1 ln 2 p p p p p a L π µ
Note that inductance is directly influenced by loop AREA and only less influenced by conductor size!
radius wire side
length p =
October 2007
19
into pieces in order to find total inductance
L3 L4 L2 L1
L total=Lp11+ Lp22 + Lp33 + Lp44 - 2Lp13 - 2Lp24
October 2007
20
pads as possible
Height above Planes Via Separation
Inductance Depends
October 2007
21
October 2007
22
October 2007
23
October 2007
24
trace and must return (somehow) to its source
forgotten, and is most often the cause of EMC problems
October 2007
25
‘Grounding’ Needs Low Impedance at Highest Frequency
– 4 milliohms/sq @ 100KHz – 40 milliohms/sq @ 10 MHz – 400 milliohms/sq @ 1 GHz
nH
– @ 100 MHz Z = 1.3 ohms – @ 500 MHz Z = 6.5 ohms – @ 1000 MHz Z = 13 ohms – @ 2000 MHz Z = 26 ohms
October 2007
26
October 2007
27
this impossible!
makes this impossible!
your system can stand…...
October 2007
28
GND via
Board A Board B Metal Enclosure
GND via GND via GND via GND via GND planes
October 2007
29
Reality Overcomes Single-Point Ground Intentions
GND via
Board A Board B Metal Enclosure
GND via GND via GND via GND via GND planes
October 2007
30
October 2007
31
Ground/Earth Teletype Receiver Teletype Transmitter
October 2007
32
Ground/Earth Teletype Receiver Teletype Transmitter
October 2007
33
Lightning striking house
FIG 7 Lightning
October 2007
34
Lightning effect without rod
October 2007
35
Lightning effect with rod
Lightning rod Lightning
October 2007
36
Circuit “Ground” Chassis “Ground” Digital “Ground”
D
Analog “Ground”
A
October 2007
37
October 2007
38
IC1 IC2 IC3 Return currents on ground Signal trace currents
October 2007
39
Actual Current Return is 3-Dimensional
Ground Layer Signal Trace IC Ground Vias Ground Layer Signal Trace IC Ground Via BOARD STACK UP: Ground Layer Signal Trace CURRENT LOCATION:
October 2007
40
Ground Plane Driver Receiver
October 2007
41
Ground Plane Driver Receiver
October 2007
42
Microstrip Transmission Line Stripline Transmission Line
Dielectric Reference Planes Signal Trace
October 2007
43
Signal Traces Reference Planes (Power, “Ground”, etc.)
October 2007
44
(8mil wide trace, 8 mils above plane, 65 ohm)
Electric Field Lines
Vcc
October 2007
45
Common Mode 8 mil wide trace, 8 mils above plane, 65/115 ohm)
Electric Field Lines
Vcc
October 2007
46
Differential Mode 8 mil wide trace, 8 mils above plane, 65/115 ohm)
Electric Field Lines
Vcc
October 2007
47
Symmetrical Stripline
Vcc GND
October 2007
48
Symmetrical Stripline (Differential)
Vcc GND
October 2007
49
Asymmetrical Stripline
Vcc GND
October 2007
50
Asymmetrical Stripline (Differential)
October 2007
51
differential
– Two complementary single-ended drivers
– Receiver is differential
October 2007
52
matching current in nearby plane
– No issue for discontinuities
have return currents in nearby plane that must return to source!
– All normal concerns for single-ended nets apply!
October 2007
53
coupled to nearby plane than each other
mode currents!
October 2007
54 Differential Voltage Pulse with Skew 1 Gbit/sec with 95 psec rise/fall time
0.2 0.4 0.6 0.8 1 1.2 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (nsec) Voltage Complementary -- Line1 Complementary -- Line 2 Skew=2ps Skew=6ps Skew = 10ps Skew = 20ps Skew = 30ps Skew =40ps Skew =50ps Skew =60ps
October 2007
55 Common Mode Voltage From Differential Voltage Pulse with Skew 1 Gbit/sec with 95 psec rise/fall time
0.2 0.4 0.6 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (nsec) Voltage Balanced Skew=2ps Skew=6ps Skew =10ps Skew =20ps Skew =30ps Skew =40ps Skew =50ps
October 2007
56 Common Mode Current From Differential Voltage Pulse with Skew 1 Gbit/sec with 95 psec Rise/fall Time
20 40 60 80 100 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (nsec) Level (ma) Balanced Skew=2ps Skew=6ps Skew =10ps Skew =20ps Skew =30ps Skew =40ps Skew =50ps Skew =60ps
October 2007
57 Common Mode Current From Differential Voltage Pulse with Skew 1 Gbit/sec with 95 psec Rise/fall Time
50 60 70 80 90 100 110 120 130 140 150 1.E+08 1.E+09 1.E+10 1.E+11 Frequency (Hz) Level (dBuA) Skew=2ps Skew=6ps Skew =10ps Skew =20ps Skew =30ps Skew =40ps Skew =50ps Skew =60ps
October 2007
58 Differential Voltage Pulse with Rise/Fall Variation/Unbalance 1 Gbit/sec with 95 psec Nominal Rise/Fall Time
0.2 0.4 0.6 0.8 1 1.2 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (ns)
Level (volts)
Original Pulse rise=95ps Complementary Pulse Rise=90ps Complementary Pulse Rise=80ps Complementary Pulse Rise=105ps Complementary Pulse Rise=115ps
October 2007
59 Common Mode Voltage From Differential Voltage Pulse with Various Rise/Fall Unbalance 1 Gbit/sec with 95 psec Nominal Rise/Fall Time
0.05 0.1 0.15 0.2 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (ns) Voltage Complementary Pulse Rise=90ps Complementary Pulse Rise=80ps Complementary Pulse Rise=105ps Complementary Pulse Rise=115ps
October 2007
60 Common Mode Current From Differential Voltage Pulse with Various Rise/Fall Unbalance 1 Gbit/sec with 95 psec Nominal Rise/fall Time
20 40 60 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Time (ns) Current (ma) Complementary Pulse Rise=90ps Complementary Pulse Rise=80ps Complementary Pulse Rise=105ps Complementary Pulse Rise=115ps
October 2007
61 Common Mode Current From Differential Voltage Pulse with Various Rise/Fall Unbalance 1 Gbit/sec with Nominal 95 psec Rise/fall Time
50 55 60 65 70 75 80 85 90 1.E+08 1.E+09 1.E+10 1.E+11 Frequency (Hz) Level (dBua) Complementary Pulse Rise=90ps Complementary Pulse Rise=80ps Complementary Pulse Rise=105ps Complementary Pulse Rise=115ps
October 2007
62
significant common mode current
can cause significant amount of common mode current
etc) and convert significant amount of differential current into common mode current
October 2007
63
concept that does not exist
the return current flow?”
October 2007
64
reference plane
reference planes)
October 2007
65
– Bad practice – Stitching capacitor required across split to allow return current flow
– Major source of Common Mode current!
October 2007
66
impedance
returned directly
October 2007
67
PWR GND
October 2007
68
With Stitching Capacitors
PWR GND
Stitching Capacitors Allow Return current to Cross Splits ???
October 2007
69
Measured Impedance of .01 uf Capacitor
0.1 1.0 10.0 100.0 1.E+06 1.E+07 1.E+08 1.E+09 Frequency (Hz) Impednace (ohms)
October 2007
70
Frequency Domain Amplitude of Intentional Current Harmonic Amplitude From Clock Net
40 60 80 100 120 140 160 200 400 600 800 1000 1200 1400 1600 1800 2000 freq (MHz) level (dBuA)
October 2007
71
October 2007
72
October 2007
73
is an unshielded product
important
critical net crossing split reference plane
October 2007
74
Near Field Radiation from Microstrip on Board with Split in Reference Plane
Comparison of Maximum Radiated E-Field for Microstrip With and without Split Ground Reference Plane
20 30 40 50 60 70 80 90 100 110 120 10 100 1000 Frequency (MHz) Maximum Radiated E-Field (dBuv/m) No-Split Split
October 2007
75
With “Perfectly Connected” Stitching Capacitors Across Split
Comparison of Maximum Radiated E-Field for Microstrip With and without Split Ground Reference Plane and Stiching Capacitors
20 30 40 50 60 70 80 90 100 110 120 10 100 1000 Frequency (MHz) Maximum Radiated E-Field (dBuv/m) No-Split Split Split w/ one Cap Split w/ Two Caps
October 2007
76
Stitching Caps with Via Inductance
Comparison of Maximum Radiated E-Field for Microstrip With and without Split Ground Reference Plane and Stiching Capacitors
20 30 40 50 60 70 80 90 100 110 120 10 100 1000 Frequency (MHz) Maximum Radiated E-Field (dBuv/m) No-Split Split Split w/ one Cap Split w/ Two Caps Split w/One Real Cap Split w/Two Real Caps
October 2007
77 Example of Common-Mode Noise Voltage Across Split Plane
5 10 15 20 25 200 400 600 800 1000 1200 1400 1600 1800 2000 Distance (mils) Gap Voltage
100MHz 200MHz 300MHz 400MHz 500MHz 600MHz 700MHz 800MHz 900MHz 1000MHz
October 2007
78
spectrum
critical signals
October 2007
79
Return Current must go around entire keep out area --- just as bad as a slot Return current path deviation minimal s d Recommend s/d > 1/3
October 2007
80
Six-Layer PCB Stackup Example
Signal Layer Signal Layer Signal Layer Signal Layer Plane Plane
October 2007
81
Trace Via
October 2007
82
What happens to Return Current in this Region?
Return Current
October 2007
83
plane to the other through the plane
– skin depth
through decoupling capacitor, around second plane at the second via hole!
October 2007
84
GND PWR
October 2007
85
With Decoupling Capacitor (on Top)
Return Current Decoupling Capacitor Reference Planes Displacement Current
Common-Mode Current
October 2007
86
October 2007
87
(expanded view)
October 2007
88
Bad
Signal Layer Signal Layer Signal Layer Signal Layer Reference Plane Reference Plane
Bad
Signal Layer Signal Layer Signal Layer Signal Layer Reference Plane Reference Plane
Good
Signal Layer Signal Layer Signal Layer Signal Layer Reference Plane Reference Plane
Six-Layer Board
October 2007
89
Compromise Routing Option for Many Layer Boards
Good Compromise
Reference Plane Gnd Vcc1
Lot’s of Decoupling caps near ASIC
October 2007
90
switch IC load IC driver VDC GND CL VCC Z0, vp GND IC load IC driver VCC VCC charge
logic 0-to-1
Z0, vp IC load IC driver GND VCC 0 V discharge
logic 1-to-0
Z0, vp
October 2007
91
Vcc1 Vcc1 “Fuzzy” Return Path Area “Fuzzy” Return Path Area Return Path Options:
TEM Transmission Line Area
October 2007
92
Return Path Options:
Vcc1 Vcc2 “Fuzzy” Return Path Area “Fuzzy” Return Path Area TEM Transmission Line Area
October 2007
93
Route critical signals on either side of ONE reference plane Drop critical signal net to selected layer close to driver/receiver
Many decoupling capacitors to help return currents
Do NOT change reference planes on critical nets unless ABSOLUTELY NECESSARY!! Make sure at least 2 decoupling capacitors within 0.2” of via with critical signals
October 2007
94
same plane on both sides of the connector
October 2007
95
Connector
Signal Path
GND PWR Signal Signal PWR GND Signal Signal
October 2007
96
Connector
De-cap Signal Path
GND PWR Signal Signal PWR GND Signal Signal
Return Path De-cap Displacement Current
October 2007
97
PWR GND Signal Signal
Connector
Signal Path
GND PWR Signal Signal
Return Path
October 2007
98
C
n e c t
P C B P l a n e 1 PCB Plane 2 M i c r
t r i p Microstrip V Ground-to-Ground noise
October 2007
99
Individual Differential Signals ADDED Common Mode Noise 170 mV P-P 500 mV P-P (each)
October 2007
100
205 mV P-P
October 2007
101
Dipole antenna PCB GND planes Non-Dipole antenna
October 2007
102
Signal Pin Related Ground Pins 37.17 nH 25.21 nH 16.85 nH 20.97 nH (a) (b) (c) (d)
October 2007
103
pins based on the number of signal lines referenced to power or “ground” planes
same planes on either side of connector
October 2007
104
– Avoid split reference planes & changing reference planes
mode, and must follow normal EMC rules
October 2007
105
IEEE IEEE
