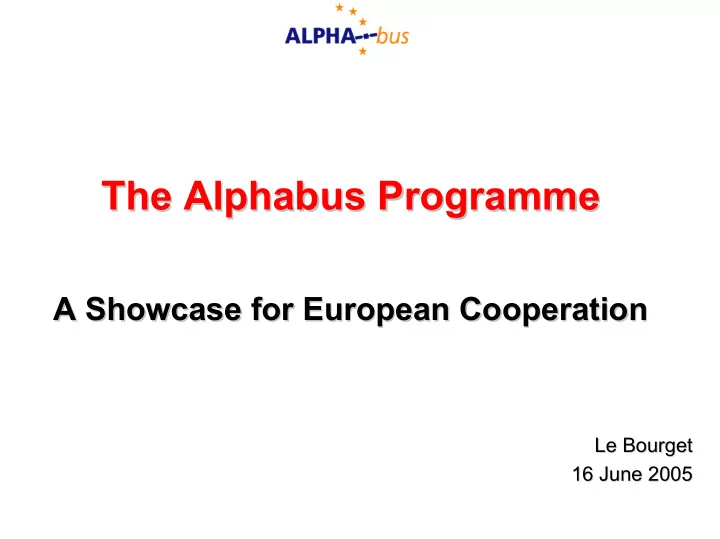

The Alphabus Programme The Alphabus Programme A Showcase for - - PowerPoint PPT Presentation

The Alphabus Programme The Alphabus Programme

A Showcase for European Cooperation A Showcase for European Cooperation

Le Bourget Le Bourget 16 June 2005 16 June 2005

The Market The Market

Satcom Market 2000

• European satcom industry has > 50% of the free market in low to

medium satcom range

• Global competitors move into satcom range accommodating very high

payload power > 12 kW; gain market niche of 4 BEURO

• European industry in need of a product to follow the market

E vo lutio n o f Com sats Size

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1981 1982 1983 1 984 198 5 1986 1987 1988 1989 1 990 19 91 1992 1993 1994 1995 1 996 19 97 1998 1999 2000 2001 2002 20 03 200 4

Year Payload DC Power (kW) Average order Largest order

E vo lutio n o f Com sats Size

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1981 1982 1983 1 984 198 5 1986 1987 1988 1989 1 990 19 91 1992 1993 1994 1995 1 996 19 97 1998 1999 2000 2001 2002 20 03 200 4

Year Payload DC Power (kW) Average order Largest order

The European Response (1) The European Response (1)

Edinburgh 2001

• European space government and industry leaders create programmatic

foundation for a large platform initiative

• Global satcom market in relapse; allows time for Europe to bridge

product gap with global competitors!

Le Bourget 2003:

• Announcement of Cooperation EADS Astrium (F) and Alcatel (F) for the

development of a joint Alphabus product line covering 12 – 18 kW payload power

• Lessons Learned from Competitor In-Orbit Experience: Alphabus

commercial enterprise shall avoid a technology drive!

The European Response (2) The European Response (2)

Alphabus ESA/CNES Preparatory Programme 2002 – 2004

• Alphabus design consolidated with sound mix of

Eurostar/Spacebus heritage and mature enabling technology

• Global markets start recovery; new demand for large satcom

for direct TV and mobile applications

8 9 10 11 12 13 14 15 Payload power (kW) Loral 1300

(>8kW pl)

Echostar-9 DirecTV_7S Estrela Do Sul Optus-C1 Satmex-6 Europe*Star-1 iPStar-1 IA-8

Astrium E3000

W3A Amazonas Intelsat-10-02 Inmarsat-4 (3) Hot Bird 8 Anik F1R,F3 Echostar-7 Nimiq-2 NSS-7 NSS-6 Rainbow 1

Lockheed Martin A2100

(>8kW pl)

Garuda-1 AMC-14 JCSat 9

Delivered Backlog @Bus @Bus

Boeing 702

Galaxy 11 Thuraya-2 Thuraya-3 Spaceway (2) Anik F1 PAS-1R Galaxy-3C XM 1,2,3 Anik-F2 NSS-8 Thuraya-1 XM 4 DirecTV 10, 11, 12

Alcatel SB4000

Apstar-6 Worldsat 3 Astra-1K (except avionics) Chinasat 9 Koreasat 5 Worldsat 2 HB 7A (SB3000)

Alphabus Alphabus Objective Objective

• Alphabus will be the common top range product for Alcatel Space and

EADS Astrium

• Alphabus brings Europe back in the same league as global competitors

and completes the full range of European products

5 15

ALCATEL ALCATEL kW

SB 3000 B2 SB 3000 B2-

• B3

B3

ASTRIUM ASTRIUM

SB 4100 SB 4100 10 22 30 E 3000 E 3000

@BUS @BUS

3 12

kW

8 18 24 E 2000+ E 2000+

The The Alphabus Alphabus Product (1) Product (1)

• Alphabus: a new multi-purpose platform used by EADS Astrium and

Alcatel Space to build communication satellites for the high power payload market

• Alphabus takes full benefit of the capabilities of the new generation of 5

meter fairing commercial launchers

• Compared to Eurostar/Spacebus
• 40 – 50 % more payload mass
• 40 – 50 % more payload power
• 50% more transponders

The The Alphabus Alphabus Product (2) Product (2)

• Alphabus covers the development and qualification of a product line:
• Satellite mass: up to 8 metric tons
• Life Time: 15 Years
• Payload power 12 - 18 kW
• Payload mass 1000 – 1200 kg
• Alphabus surpasses Eurostar & Spacebus growth constraints and will

facilitate a wide range of commercial missions:

• Hybrid C + Ku + Ka missions for TV broadcast and fixed services
• Ku + Ka multi-spot multimedia applications for broadband access
• S band multi-spot for mobile mass market S-DMB type
• Includes procurement of Alphabus protoflight model as fully flight worthy,

allowing a rapid response to a first satellite flight opportunity

The Cooperation (1) The Cooperation (1)

• At Industry level Alphabus cooperation is significant in terms of

strengthening of the European satcom industry

• The full development phase is funded by the agencies (to the level of

about €200 million) and industrial investment

• Alcatel Space (F) and EADS Astrium (F) achieve two major

cooperation agreements for the commercial phase:

• a set of commercial agreements covering the terms and conditions for

a joint marketing of the Alphabus product line.

• an agreement on the responsibility and work-share for the production
• f Alphabus
• For the ESA/CNES funded development phase: a joint industrial offer

with a combined prime project team for Alphabus

• Alphabus consolidates the supplier line not only for Alphabus, but

also extends to the existing Eurostar/Spacebus product lines

The Cooperation (2) The Cooperation (2)

• At the level of Agencies the cooperation between ESA and CNES

during the Alphabus preparatory phase proved exemplary

• the concept of a combined customer project management team

worked

• ne uniform request for quotation of the Alphabus main development

phase based on a common ESA/CNES contractual baseline achieved

• a combined ESA/CNES Alphabus Design Review and a combined

tender evaluation for the main development phase proved highly effective

• A combined release of one unique ESA/CNES Development Phase

contract

Novel approach for European Institutional Novel approach for European Institutional Space Funding Space Funding

• Evaluation & selection of equipment bids cover both institutional

development and competitive aspects of industrial commercial follow-on

• European participating states pay into the Alphabus

institutional programme a posteriori according to the results of the equipment selection process

• Alphabus supplier based on best competitive result and funding priorities

for key technologies in European participating states

• Alphabus secures long-term industrial commercial agreements between

equipment supplier and Alphabus prime

Alphabus Alphabus Ultimate Vision Ultimate Vision

• Alphabus is exemplary for what can be achieved through European

cooperation

• Alphabus completes the European product range matching and

exceeding global satcom competition

• Alphabus combines the strengths of European satcom industry

improving our industrial competitiveness and offering one unique European product

• Alphabus market entry for commercial bids early 2007
