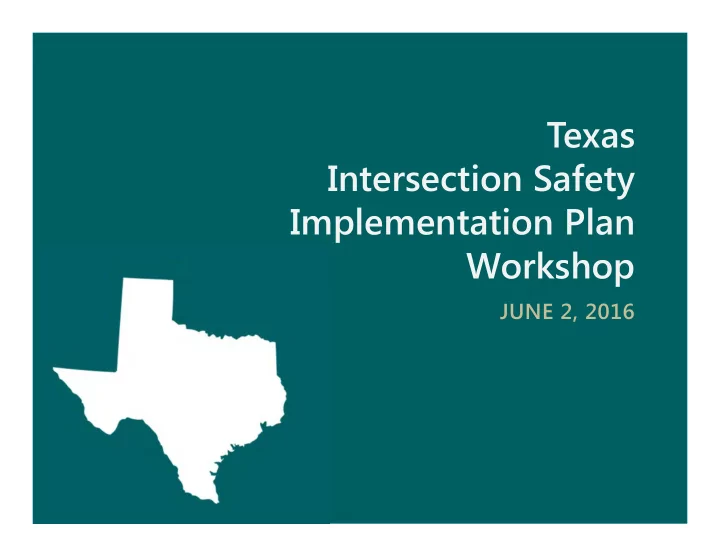

Texas Intersection Safety Implementation Plan Workshop

JUNE 2, 2016

Why Intersection Safety?

• A small part of overall

highway system, but…

• Each year roughly 50% of all

crashes – estimated 3 million – involve intersections

9

10

12

Texas: 802 Intersection Fatalities (2014)

Why a systemic approach for intersections? Realizing the SHSP Vision and Goals

• The general consensus among

those involved in transportation safety is that further reductions are not only desirable, but feasible.

• BUT…achieving means new tools,

new approaches, new ideas

13

Texas SHSP ‐ Intersection

15

Texas SHSP ‐ Pedestrians

16

Approaches to Saving Lives and Preventing Serious Injuries

Traditional Systemic Comprehensive Policy Culture

17

Conventional vs. Systematic

Conventional/Traditional:

• Based on “High‐crash Locations”

– Purely reactive; identified by very high number of crashes at specific intersection – Usually involves application of countermeasures with high CRF values, but also at high cost (e.g., reconstruction or widening) – Usually fewer than 10‐20 per year in a average size state – By itself, negligible impact on reducing statewide fatalities

18

Traditional Systemic Comprehensive Policy Culture

18

Traditional Systemic Comprehensive Policy Culture

Conventional vs. Systematic

Systematic/Comprehensive

• Reverses the traditional approach, then enhances it

– Start with known effective, low‐cost countermeasures – Install systematically at large number of intersections with both moderate and high crash histories where cost‐effective results are expected – Typically find that 3‐8% of the intersections with any crash history account for 25‐40% of the statewide intersection problem – Substantial reduction of statewide intersection injuries/ fatalities can be realized with this approach (ties directly to SHSP goals) – Plan can be tailored to available resources – Can also include a Corridor/Community 3E component

19

Basic Approach for Intersections

20

Key: Making Intersections Incrementally Safer

• Increase visibility of intersections and traffic control devices
• Increase awareness of intersections
• Improve the design of intersections to reduce conflicts
• Improve driver comprehension to reduce confusion
• Improve the operations of intersections
• Improve sight distance at intersections
• Improve driver compliance with traffic control devices

21

The End Goal

• It is estimated that deploying these countermeasures will cost

$__M and prevent ____ fatalities and serious injuries over a _ year period.

• The projected Benefit‐Cost Ratio is approximately __:1
• With continued observation/evaluation, most successful

treatments to be considered for systemwide policy/standardization

22

Recognizing the Systemic Approach

• New Emphasis in MAP‐21:

– “The term ‘systemic safety improvement’ means an improvement that is widely implemented based on high risk roadway features that are correlated with particular crash types, rather than crash frequency.”

23

http://safety.fhwa.dot.gov/systemic

*Multiple ISIPs in TX

FAS-INT: Systemic Intersection Safety Plans

DC FLH PR

State considering or pursuing ISIP independent of HSA-FAS Intersection Safety Implementation Plan (ISIP) completed through HSA-FAS

From 2008-Current



SHSP objective & recent trajectory

• 2015 objective: Reduce KA intersection crashes by 5% (2010)

32

 19%  16%

SHSP objective & recent trajectory

• Latest raw data suggest these may be out of sync
• Good opportunity to consider other approaches

(e.g., systemic approach)

33

ISIP derivation

• Texas SHSP
• FHWA support, national resources
• TxDOT inputs
• MPO inputs

Texas ISIP

36

• Local agency inputs

FHWA ISIP process

Overarching goals of Texas ISIP Project

• 1. Prioritize intersection locations and

countermeasures for near-term implementation

• 2. Strengthen partnerships between TxDOT, MPOs,

local governments, and FHWA

• 3. Identify opportunities for enhancing Texas’s data

systems to allow for more robust systemic analyses in the future

37

Basics

• Analysis period:

– January 2010 – December 2014

• Focused on Texas’s 5

largest MPOs:

– San Antonio (AAMPO) – Austin (CAMPO) – El Paso (El Paso MPO) – Houston (H-GAC) – Dallas-Fort Worth (NCTCOG)

44

Intersection crashes by severity and year

Year Fatal A B C PDO Unknown Total KA %KA 2010 330 2,672 12,760 24,774 69,033 1,921 111,490 3,002 2.69% 2011 372 2,609 12,275 24,661 65,753 1,994 107,664 2,981 2.77% 2012 428 2,906 13,359 26,086 67,878 1,460 112,117 3,334 2.97% 2013 372 3,133 14,757 27,676 79,813 2,150 127,901 3,505 2.74% 2014 415 3,240 15,502 29,856 91,812 2,431 143,256 3,655 2.55% Subtotal 1,917 14,560 68,653 133,053 374,289 9,956 602,428 16,477 2.74%

For 5 MPOs combined 45

Systemic analysis | concept meets reality

• Data challenges

– No single statewide intersection database – Traffic volume data not widely available for non State- maintained routes

• What is available?

– MPO TAZ shapefiles  area type (rural/urban) – TxDOT RHiNo database  classification of maintaining agency – CRIS database  traffic control type as recorded by the reporting officer – ESRI Street file  node location in GIS

47

Distribution of intersections and KA intersection crashes by area type and traffic control

* *

Most significant

• verrepresentation

51

Summary & recommendation for TX ISIP

• KA crashes comprise less than 3% of

crashes but 47% of the costs

• 90% of KA crashes are in urban areas
• Nearly 50/50 split of KA crashes

between State & Local intersections

• Signalized intersections are

significantly overrepresented in terms of proportion of KA crashes

• vs. proportion of intersections

Focus on State & Local Urban Signalized intersections

52

Dallas-Fort Worth area | ≥1 KA crash

59

Dallas-Fort Worth area | ≥3 KA crashes

60

Potential crash thresholds for systemic treatments

Crash Threshold KA Crashes Intersections

• Avg. Per‐Intersection Funding

(assuming $45M funding) Number Percent Number Percent 1 or more KA crash 7,212 100.0% 4,789 100.0% $9,397 2 or more KA crashes 3,797 52.6% 1,374 28.7% $32,751 3 or more KA crashes 2,021 28.0% 486 10.1% $92,593 4 or more KA crashes 1178 16.3% 210 4.4% $214,286

• For example, more than half of the KA intersection crashes could be

addressed by targeting just 29% of the KA intersection crash locations

67

Random Intersection Inventory

• Identified 100 urban signalized intersections under State or

local control that had 2 or more KA crashes during study period

• No. of intersections from each region was roughly

proportional to no. of KA crashes by region

• Utilized Google Earth and Streetview

– Maximize information gathered

Random intersections | Statewide (100)

73

Roadway attributes

• 19 of every 20 had some form of

lighting fixture

• 15 of every 16 sites were not noted to

be offset and/or skewed

83

LT Arrangement by Approach

• Considering approaches from which left turns were

permitted:

– 70% have exclusive LT lanes or – Only 4% have dual LT lanes

92

Traffic Control Count

Pedestrian signals 86% Signal head per lane 78% Backplates 54% Automated red light enforcement (cameras) 37% Advance Signal Ahead warning sign 29% Advance street name sign 26% No Turn on Red sign 19% Red light indicator lights 7% Flashing beacons on advance Signal Ahead sign 3% Advance control detection system 2%

98

Inventory to Countermeasures

• Knowing the estimated level of countermeasure deployment

allows the plan to estimate additional deployments of low cost countermeasures

• Builds on sources including FHWA, TxDOT, research

Key Systemic Countermeasures

• Stop‐Controlled Intersections

– Basic set of sign and marking improvements – Improve sight distance for speed limits

• Signalized Intersections

– Basic set of sign and marking improvements – Install one signal head per lane – Retime Traffic Signals including change intervals – Protected‐only left turn phases

• Both Stop‐Controlled and Signalized Intersections

– Access management of high volume driveways within 50‐100 feet – Delineate or remove fixed objects at intersections

5

Benefits:

• Provides visual benefits during both

daytime and nighttime conditions

• Enhanced signal visibility for aging

and color vision impaired drivers.

• May alert drivers to signals during

periods of power outages when the signals would otherwise be dark.

Backplates with Retroreflective Borders

Low Cost – Big Safety Benefit

Costs range from $35 for adding reflective tape to existing backplates to $56‐110 for replacing the backplates with reflective material already incorporated A 15 percent reduction in all crash types—a crash modification factor (CMF) of 0.85 (2005 study by Sayed et al)

17

Straw Man Outline and Packaging of Safety Countermeasures

Desired countermeasure characteristics

• Potential for widespread use
• Potential impact to severe crashes
• Easy deployment
• Low cost
• Favorable benefit-cost ratio

30

Straw Man outline

• Represents high-level benefit/cost analysis
• 5-year analysis period is common
• Comprises estimates of key characteristics:

– Crash reduction factor – Current and potential deployment levels – Construction and maintenance costs – Potential no. and economic benefits of crashes prevented – B/C ratio

31

Deployment levels

• Existing

– Estimate based on random intersection inventory

• Potential

– Considers existing applications and target crash types – Estimates will be made on applicability where no inventory could be made (e.g., clearance interval adjustment)

• No. of potential installations across focus

intersections will be estimated

33

Potential benefits

• In terms of anticipated KA crashes prevented
• Ties back to estimated no. of installations
• Converts crash savings into cost savings (NSC

method)

• Planning-level B/C ratio estimated

35

Systemic approach | today & tomorrow

• Current ISIP effort

– Applying systemic principles – Using available data to derive risk factors, drive focus – Initial prioritization zeros in on sites with crash history

• Future ISIP efforts

– Opportunities to collect and share additional data attributes across all public roads? – Having traffic volume and geometric characteristic data would allow better identification of risk factor combos – Prioritization could reach beyond crash intersections to sites having similar combinations of risk factors

4

Project next steps

• Complete planning-level B/C analysis
• Refine prioritized list of intersections
• Develop draft ISIP document
