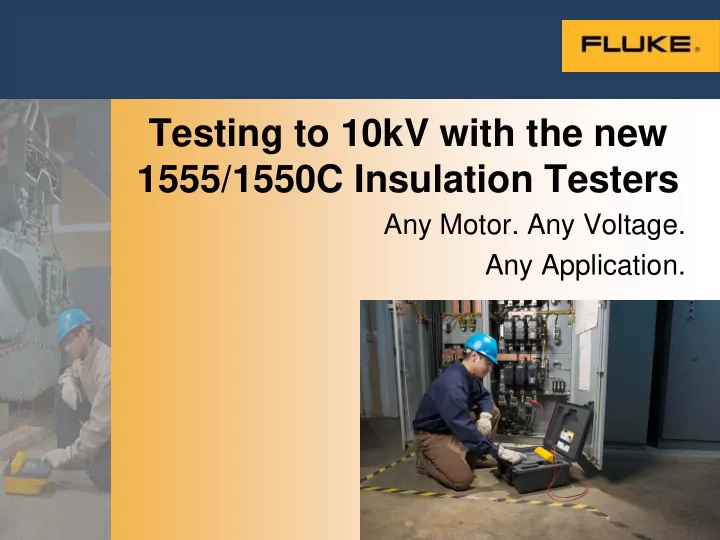

Testing to 10kV with the new 1555/1550C Insulation Testers

Any Motor. Any Voltage. Any Application.

Fluke 1555/1550C Overview

• The new 1555 and redesigned Fluke 1550C insulation resistance

testers, offer customers digital insulation testing up to 10kV for testing a wide range of high voltage equipment including switchgear, motors, generators and cables

• With these new insulation testers, customers can conduct the

entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating

• Measurement storage and PC interface mean the 1555 and 1550C

are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur

Where is it used and why?

• Cables/Lines
• Switchgear
• Substation transformers
• High voltage buses
• Motors
• Line transformers
• Capacitor banks
• Generators
• Insulation resistance/leakage current
• Step voltage
• Dielectric discharge
• Dielectric absorption ratio
• Polarization index
• Ramp voltage

Insulation Resistance Test Applications Typical Tests Conducted with Insulation Resistance Testers

Who will use?

• Power transmission and distribution
• Power generation
• Industrial manufacturing
• Process Industry
• Other
• Engineer
• Manager
• Substation specialist
• Troubleshooter
• Lineman

Industries Where Customers Work Typical Job Titles

Customer Benefits

• 10kV test voltage provides measurement solutions for all

applications

• Increased protection with CAT III 1000V, CAT IV 600V safety

rating

• Data storage and computer software/interface cable allows unit to

be easily incorporated into preventative maintenance programs

• Large, easy to read display
• New rugged test clips stay where they are put
• Capability to complete the latest testing requirements for rotating

machinery according to IEEE 43-2000

• Customizable with user selected voltage levels

Key Product Features

• Ideal for testing a wide range of high voltage equipment including

switchgear, motors, generators and cables. Conduct testing to 5 kV (1550C)or 10 kV (1555), the entire range of test voltages specified in IEEE 43-2000

• Selectable test voltages in 50 V steps from 250 to 1000 V, and 100

V steps above 1000 V

• Measurements can be stored in up to 99 memory locations, with

each location assigned a unique, user defined, label for easy recall

• PC interface for preventative or predictive maintenance programs
• Automatic calculation of Dielectric Absorption (DAR) and

Polarization Index(PI) with no additional setup

• Guard system eliminates the effect of surface leakage current on

high resistance measurements

• Capacitance and leakage current measurement
• Ramp function for breakdown testing
• CAT III 1000 V, CAT IV 600 V safety rated

Key Product Features

IP67 Waterproof Hard Case (kits only) Ruggedized Alligator Clips (1555 and kits) Fluke ViewForms software included

• Cert. of Calibration

(kits only) Built in handle for easy carrying Easy access to IR communication port without removing from case Large LCD Screen allows use without removing from case

Product Specifications

Ordering Information

Fluke 1555 (Item 3665056) Fluke 1555/KIT (Item 3665111)

• 10 kV Insulation Tester
• Deluxe Soft Case
• Ruggedized Alligator Clips
• 10 kV Insulation Tester
• IP67 Hard Case
• NIST Traceable Certificate of

Calibration

Ordering Information

Fluke 1550C (Item 3665021) Fluke 1550C/KIT (Item 3665127)

• 5 kV Insulation Tester
• Deluxe Soft Case
• 5 kV Insulation Tester
• IP67 Hard Case
• NIST Traceable Cert. of Calibration
• Ruggedized Alligator Clips

Direct Replacement for Fluke 1550B
