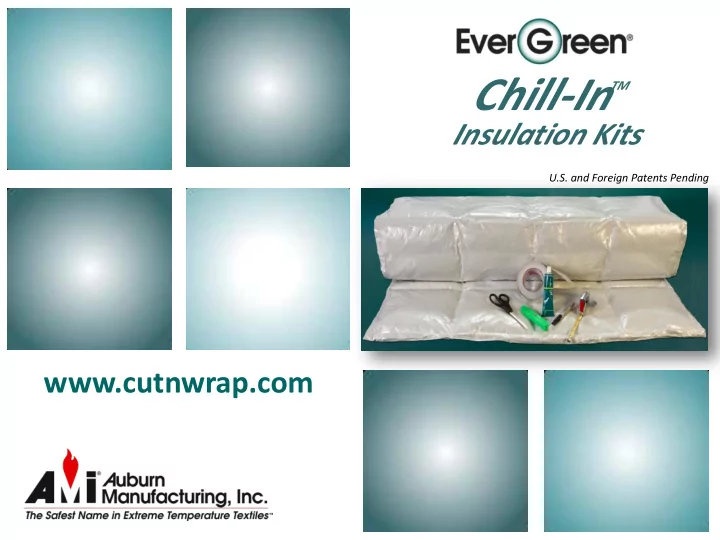

SLIDE 1
Chill-In
TM
Insulation Kits
1 U.S. and Foreign Patents Pending
Chill-In
TM
Chill-In TM Insulation Kits U.S. and Foreign Patents Pending - - PowerPoint PPT Presentation
Chill-In TM Insulation Kits U.S. and Foreign Patents Pending - - PowerPoint PPT Presentation
Chill-In TM Insulation Kits U.S. and Foreign Patents Pending www.cutnwrap.com 1 Chill-In TM Insulation Kits Removable/reusable insulation kit system for components on chilled water systems www.cutnwrap.com Chill-In TM Insulation Kits
SLIDE 2
SLIDE 3
Chill-In
TM
Insulation Kits
Easy-to-Apply Vapor-Sealed Insulation Blanket System For Piping Components
www.cutnwrap.com
SLIDE 4
Chill-In
TM
Insulation Kits
Ideal for components requiring maintenance & inspection
www.cutnwrap.com
SLIDE 5
Chill-In
TM
Insulation Kits
Chill-In Insulation Kit
- 4’ x 8’ flexible blanket faced with zero-
perm vapor retarder on both sides
- 1 roll of zero-perm pressure sensitive
tape
- Silicon caulk
- Utility knife
SLIDE 6
Chill-In
TM
Insulation Kits
Quilted design aids in flexibility and installation ease
www.cutnwrap.com
SLIDE 7
Chill-In
TM
Insulation Kits
Reduces condensation,
corrosion and energy waste
SLIDE 8
Chill-In
TM
Insulation Kits
Removable and reusable after installation
www.cutnwrap.com
SLIDE 9
Chill-In
TM
Insulation Kits
Modular Insulation Blanket
- 2” thick, 4’ x 8’ fiberglass insulation
blanket
- Continuous zero-perm vapor
retarder on both sides
- Zero-perm pressure sensitive tape
seals the blanket to most surfaces www.cutnwrap.com
SLIDE 10
Chill-In
TM
Insulation Kits
- Cut. Seal. Wrap. Tape. Caulk.
Insulating chilled water components is quick and easy.
www.cutnwrap.com
SLIDE 11
Chill-In
TM
Insulation Kits
Use quilted blocks to help
measure the length & width
www.cutnwrap.com
SLIDE 12
Chill-In
TM
Insulation Kits
Cut the blanket to size using scissors or utility knife
www.cutnwrap.com
SLIDE 13
Chill-In
TM
Insulation Kits
Tape to seal raw edges
www.cutnwrap.com
SLIDE 14
Chill-In
TM
Insulation Kits
Seal raw blanket edges with zero-perm tape
www.cutnwrap.com
SLIDE 15
Chill-In
TM
Insulation Kits
Wrap the sized blanket around the component
www.cutnwrap.com
SLIDE 16
Chill-In
TM
Insulation Kits
Repeat steps to cover additional areas of the component
www.cutnwrap.com
SLIDE 17
Chill-In
TM
Insulation Kits
Tape to the pipe/equipment
www.cutnwrap.com
SLIDE 18
Chill-In
TM
Insulation Kits
Seal gaps and openings with silicone caulk
www.cutnwrap.com
SLIDE 19
Chill-In
TM
Insulation Kits
Removable & reusable insulation for bare components done in minutes!
www.cutnwrap.com
SLIDE 20
Chill-In
TM
Insulation Kits
20
www.cutnwrap.com
SLIDE 21
Chill-In
TM
Insulation Kits
21
www.cutnwrap.com
SLIDE 22
Chill-In
TM
Insulation Kits
22
www.cutnwrap.com
SLIDE 23
Chill-In
TM
Insulation Kits
23
