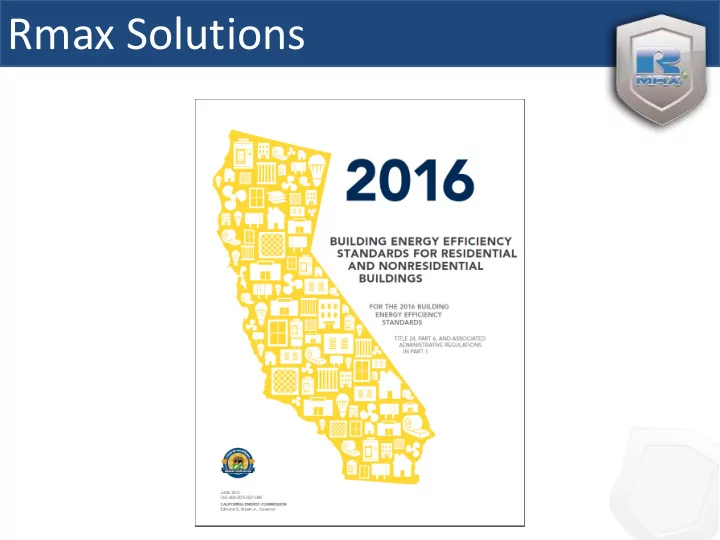

Rmax Solutions Rmax Solutions A complete line of insulation solutions To help meet Title 24 requirements. Roof Insulation Rmax Nail Base Products Meet CA 2016 Title 24 Roof Insulation Requirements Option A Continuous Insulation Above
SLIDE 2
SLIDE 3
Rmax Nail Base Products Meet CA 2016 Title 24 Roof Insulation Requirements
– Option A – Continuous Insulation Above Roof Rafters – No Air Space (R8) or With Air Space (R6)
Roof Insulation
SLIDE 4
Composite Panel – 7/16” OSB, Polyiso Foam Insulation
Nailable Base-3
Climate Zone
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Building Envelope Insulation: Roofs/Ceilings Option A Continuous Insulation Above Roof Rafter Roof Type No Air Space NR NR NR R8 NR NR NR R8 R8 R8 R8 R8 R8 R8 R8 R8 With Air Space NR NR NR R6 NR NR NR R6 R6 R6 R6 R6 R6 R6 R6 R6
TABLE 150.1-A COMPONENT PACKAGE-A STANDARD BUILDING DESIGN
SLIDE 5
Composite Panel – 7/16” OSB, Vent Space, Polyiso Foam Insulation
- 1”, 1.5” or 2” vent space
based on length of run
- On-line calculators such as
www.metalera.com
- Net free area per linear foot
Vented & Multi-Vent Nailable Base-3
Climate Zone
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Building Envelope Insulation: Roofs/Ceilings Option A Continuous Insulation Above Roof Rafter Roof Type No Air Space NR NR NR R8 NR NR NR R8 R8 R8 R8 R8 R8 R8 R8 R8 With Air Space NR NR NR R6 NR NR NR R6 R6 R6 R6 R6 R6 R6 R6 R6
TABLE 150.1-A COMPONENT PACKAGE-A STANDARD BUILDING DESIGN
SLIDE 6
- Continuous Insulation Reduces Thermal Bridging
- Won’t Sag or Settle
- Maintains Ventilated Attic Option For Better Moisture Control
- Provides a Base for Shingle/Tile Application
- Engineered to Allow for Expansion of OSB
- Easy, Familiar Install
Nail Base Product Advantages
SLIDE 7
- Nail Board Fasteners
Installation
SLIDE 8
Details
SLIDE 9
Rmax Thermasheath-RDeck
Foil faced polyiso laminated to 7/16” OSB Meet CA 2016 Title 24 Roof Insulation Requirements – Option A – Continuous Insulation Above Roof Rafters – No Air Space (R8) or With Air Space (R6)
Insulated Roof Deck
All-In-One Cool Attic Solution – Nailable Surface – Roof Diaphragm – Continuous Insulation – Interior Radiant Barrier Finish
*PATENT PENDING*
SLIDE 10
- Nail Board Fasteners
- Engineering Document
Sealed by PE
– SDPWS, Section 4.2 Tables – Nominal unit shear capacities for blocked and unblocked diaphragms – Fastener capacity tables
Installation
SLIDE 11
Rmax Solutions
A Multitude of Products
- Thermasheath-3; Thermasheath-XP; ThermaBase-CI; Thermasheath-SI;
TSX-8500; TSX-8510; Durasheath-3; Fasteners; Tapes; Flashings For A Multitude of Applications
- Stud walls; cavity walls; masonry walls; exterior stucco; re-siding; vaulted
ceilings; attics and crawl spaces; concrete foundations; roofing
The Rest of the Building Envelope
SLIDE 12
The Rest of the Building Envelope
SLIDE 13
The Rest of the Building Envelope
Closed-cell Polyisocyanurate (Polyiso) rigid foam board insulation that provides the highest R-Value per inch Thermasheath-3 Fire tested rigid foam board for exposed applications that don’t require a thermal barrier Thermasheath-XP Structurally engineered insulation sheathing & Insulated OSB panels that provide a durable nailable substrate for cladding Thermasheath-SI / ThermaBase-CI
SLIDE 14
The Rest of the Building Envelope
Benefits of Polyiso
- R-value per Inch & Cost per R
- Air Barrier
- Moisture Control
– Water Resistive Barrier – Vapor retarder – Water absorption
- Fire properties
SLIDE 15
For more information, visit www.rmax.com or contact your local rep:
Rmax Residential Solutions
Protecting against the elements for over 35 years.
Steve Dubin Architectural Development Manager Cell Phone: 707-392-7269 sdubin@rmax.com
