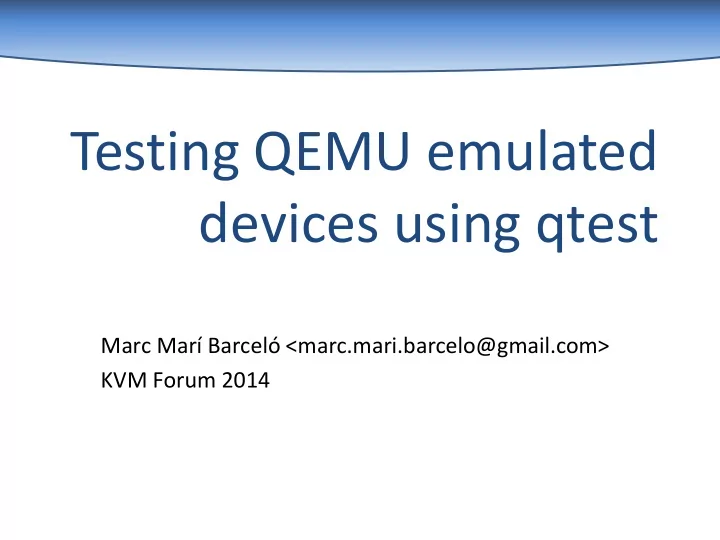

Testing QEMU emulated devices using qtest

Marc Marí Barceló <marc.mari.barcelo@gmail.com> KVM Forum 2014

slide-2
SLIDE 2

Who am I?

Computer Science student Worked on QEMU in GSoC project Other hacking activities:

  • Satellite software
  • Android Real Time Operating System

Marc Marí – Testing QEMU emulated devices using qtest 2

slide-3
SLIDE 3

What will I talk about?

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 3

slide-4
SLIDE 4

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 4

slide-5
SLIDE 5

Why are QTests necessary?

  • QEMU emulates hardware
  • Acceptance test: checks hardware works as

expected.

  • How to verify specification compliant?

Qtests: directly test emulated devices without running a full guest.

Marc Marí – Testing QEMU emulated devices using qtest 5

slide-6
SLIDE 6

Who uses QTests?

  • Developers:

– Test cases for new devices – Regression tests for bugs

  • Testers:

– Automate tests – Exercise error paths (by broken or malicious guests)

Marc Marí – Testing QEMU emulated devices using qtest 6

slide-7
SLIDE 7

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 7

slide-8
SLIDE 8

GLib tests

  • GLib provides a unit testing framework
  • QTests are based on GLib testing framework
  • GLib provides:

– Test cases: methods – Test suite: group of test cases

Source: https://developer.gnome.org/glib/unstable/glib-Testing.html Marc Marí – Testing QEMU emulated devices using qtest 8

slide-9
SLIDE 9

Libqtest

  • API to control QEMU
  • Expands GLib test framework:

– Wraps QEMU init – Enables debugging functions – Performs a clean exit

  • Adds basic operations:

– Clock – Memory and I/O – IRQ – QMP (QEMU machine protocol)

Marc Marí – Testing QEMU emulated devices using qtest 9

slide-10
SLIDE 10

LibQOS

  • Device driver framework for writing qtest

cases

  • Bus wrappers
  • Contains functions specific to each bus
  • Simplifies the device developer work
  • Standarizes access to devices

Marc Marí – Testing QEMU emulated devices using qtest 10

slide-11
SLIDE 11

Objective

  • Have a complete test suite
  • Each device implemented has one test suite
  • LibQOS has a implementation for each bus
  • Create a full testing enviroment:

– Can detect loaded devices – Can check automatically and autonomously

Source: http://www.linux-kvm.org/wiki/images/8/89/2012-forum-Liguori-qtest.pdf Marc Marí – Testing QEMU emulated devices using qtest 11

slide-12
SLIDE 12

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 12

slide-13
SLIDE 13

Marc Marí – Testing QEMU emulated devices using qtest 13

GUEST MACHINE

Bus (emulated)

Device (emulated)

QEMU HOST MACHINE

Bus (real)

Device (real)

slide-14
SLIDE 14

Marc Marí – Testing QEMU emulated devices using qtest 14

GUEST MACHINE

(qtest mode) Bus (emulated)

Device (emulated)

QEMU HOST MACHINE

Bus (real)

Device (real)

TEST

LibQOS

Bus Drivers

slide-15
SLIDE 15

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 15

slide-16
SLIDE 16

Simple test case

/* AC97 test case */ static void nop(void) { } int main(int argc, char **argv) { int ret; g_test_init(&argc, &argv, NULL); qtest_add_func("/ac97/nop", nop); qtest_start("-device AC97"); ret = g_test_run(); qtest_end(); return ret; } Marc Marí – Testing QEMU emulated devices using qtest 16

slide-17
SLIDE 17

Simple test case

/* AC97 test case */ static void nop(void) { } int main(int argc, char **argv) { int ret; g_test_init(&argc, &argv, NULL); qtest_add_func("/ac97/nop", nop); qtest_start("-device AC97"); ret = g_test_run(); qtest_end(); return ret; } Marc Marí – Testing QEMU emulated devices using qtest 17 Initialize the GLib testing framework

slide-18
SLIDE 18

Simple test case

/* AC97 test case */ static void nop(void) { } int main(int argc, char **argv) { int ret; g_test_init(&argc, &argv, NULL); qtest_add_func("/ac97/nop", nop); qtest_start("-device AC97"); ret = g_test_run(); qtest_end(); return ret; } Marc Marí – Testing QEMU emulated devices using qtest 18 Add the test case with path /ac97/nop and function nop

slide-19
SLIDE 19

g_test_add_func() or qtest_add_func()

qtest_add_func() adds the architecture in front

  • f the path:

qtest_add_func("/ac97/nop", nop);

Is equivalent to (running a i386 guest):

g_test_add_func("/i386/ac97/nop", nop);

Marc Marí – Testing QEMU emulated devices using qtest 19

slide-20
SLIDE 20

Simple test case

/* AC97 test case */ static void nop(void) { } int main(int argc, char **argv) { int ret; g_test_init(&argc, &argv, NULL); qtest_add_func("/ac97/nop", nop); qtest_start("-device AC97"); ret = g_test_run(); qtest_end(); return ret; } Marc Marí – Testing QEMU emulated devices using qtest 20 Setup and start the guest machine with the extra QEMU parameters –device AC97

slide-21
SLIDE 21

Simple test case

/* AC97 test case */ static void nop(void) { } int main(int argc, char **argv) { int ret; g_test_init(&argc, &argv, NULL); qtest_add_func("/ac97/nop", nop); qtest_start("-device AC97"); ret = g_test_run(); qtest_end(); return ret; } Marc Marí – Testing QEMU emulated devices using qtest 21 Run the test and perform a clean exit

slide-22
SLIDE 22

Libqtest API – IRQ

/* ide-test.c extract */ irq_intercept_in("ioapic"); /* More test here */ g_assert(!get_irq(14)); Also void irq_intercept_out( const char *string)

Marc Marí – Testing QEMU emulated devices using qtest 22

slide-23
SLIDE 23

Libqtest API – QMP

/* qdev-monitor-test.c extract */ response = qmp("{\"execute\": \"device_add\"," " \"arguments\": {" " \"driver\": \"virtio-blk-pci\"," " \"drive\": \"drive0\"" "}}"); g_assert(response); error = qdict_get_qdict(response, "error"); g_assert_cmpstr( qdict_get_try_str(error, "class"), ==, "GenericError"); QDECREF(response);

Marc Marí – Testing QEMU emulated devices using qtest 23

slide-24
SLIDE 24

Libqtest API – QMP

/* virtio-blk-test.c extract */ qmp_discard_response("{" "'execute': 'block_resize', " "'arguments': { 'device': 'drive0', " "'size': %d " "}}", n_size);

Marc Marí – Testing QEMU emulated devices using qtest 24

slide-25
SLIDE 25

Libqtest API – Clock

/* rtc-test.c extract */ for (i = 0; i < 4; i++) { if (get_irq(RTC_ISA_IRQ)) { break; } clock_step(1000000000); } Also int64_t clock_step_next(void) int64_t clock_set(int64_t val)

Marc Marí – Testing QEMU emulated devices using qtest 25

slide-26
SLIDE 26

Libqtest API – Memory

To read and write from the guest memory:

uint8_t readb(uint64_t addr) uint16_t readw(uint64_t addr) uint32_t readl(uint64_t addr) uint64_t readq(uint64_t addr) void memread(uint64_t addr, void *data, size_t size) void writeb(uint64_t addr, uint8_t value) void writew(uint64_t addr, uint16_t value) void writel(uint64_t addr, uint32_t value) void writeq(uint64_t addr, uint64_t value) void memwrite(uint64_t addr, const void *data, size_t size) void qmemset(uint64_t addr, uint8_t patt, size_t size) Marc Marí – Testing QEMU emulated devices using qtest 26

slide-27
SLIDE 27

Libqtest API – I/O

To read and write from I/O space:

uint8_t inb(uint64_t addr) uint16_t inw(uint64_t addr) uint32_t inl(uint64_t addr) void outb(uint64_t addr, uint8_t value) void outw(uint64_t addr, uint16_t value) void outl(uint64_t addr, uint32_t value)

Marc Marí – Testing QEMU emulated devices using qtest 27

slide-28
SLIDE 28

Libqtest API – Misc

/* virtio-blk-test.c extract */ const char *arch = qtest_get_arch(); if (strcmp(arch, "i386") == 0 || strcmp(arch, "x86_64") == 0) { qtest_add_func("/virtio/blk/pci/basic", pci_basic); } else if (strcmp(arch, "arm") == 0) { qtest_add_func("/virtio/blk/mmio/basic", mmio_basic); }

Marc Marí – Testing QEMU emulated devices using qtest 28

slide-29
SLIDE 29

Libqtest API – Misc

/* libqos/virtio-pci.c extract */ if (qtest_big_endian()) { for (i = 0; i < 8; ++i) { u64 |= (uint64_t)qpci_io_readb( dev->pdev, addr + i) << (7 - i) * 8; } } else { for (i = 0; i < 8; ++i) { u64 |= (uint64_t)qpci_io_readb( dev->pdev, addr + i) << i * 8; } }

Marc Marí – Testing QEMU emulated devices using qtest 29

slide-30
SLIDE 30

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 30

slide-31
SLIDE 31

Guest memory functionalities

  • Allocate memory: qguest_alloc
  • Free memory: qguest_free

Marc Marí – Testing QEMU emulated devices using qtest 31

slide-32
SLIDE 32

PCI functionalities

  • Device operations (qpci_device_find,

qpci_device_enable…)

  • Config operations (qpci_config_readb,

qpci_config_writel…)

  • I/O operations (qpci_iomap,

qpci_io_readw, qpci_io_writeb…)

  • MSIX functionalities (qpci_msix_enable,

qpci_msix_pending…)

Marc Marí – Testing QEMU emulated devices using qtest 32

slide-33
SLIDE 33

VirtIO functionalities

  • Device operations

(qvirtio_pci_device_enable, qvirtio_set_features…)

  • Config operations (qvirtio_config_readb,

qvirtio_config_writel…)

  • Virtqueues (qvirtqueue_setup,

qvirtqueue_add…)

  • Interruptions (qvirtio_wait_queue_isr…)

Marc Marí – Testing QEMU emulated devices using qtest 33

slide-34
SLIDE 34

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 34

slide-35
SLIDE 35

Where’s the code?

  • Tests: qemu/tests/
  • Libqos drivers: qemu/tests/libqos/
  • Makefile: qemu/tests/Makefile

Marc Marí – Testing QEMU emulated devices using qtest 35

slide-36
SLIDE 36

How to add a test

/* Makefile extract */ tests/usb-hcd-ehci-test$(EXESUF): \ tests/usb-hcd-ehci-test.o $(libqos-pc-obj-y) tests/vhost-user-test$(EXESUF): \ tests/vhost-user-test.o qemu-char.o \ qemu-timer.o $(qtest-obj-y) tests/qemu-iotests/socket_scm_helper$(EXESUF): \ tests/qemu-iotests/socket_scm_helper.o tests/test-qemu-opts$(EXESUF): \ tests/test-qemu-opts.o libqemuutil.a \ libqemustub.a tests/new-test$(EXESUF): tests/new-test.o \ {dependencies}

Marc Marí – Testing QEMU emulated devices using qtest 36

slide-37
SLIDE 37

Compiling and running tests

  • Compile and run all the test suite:

make check

  • Compile just your test:

make tests/new-test

  • Run your test:

QTEST_QEMU_BINARY=\

i386-softmmu/qemu-system-i386 \ tests/new-test

Marc Marí – Testing QEMU emulated devices using qtest 37

slide-38
SLIDE 38

Debugging

QTEST_LOG=1 QTEST_STOP=1 \ QTEST_QEMU_BINARY=\ i386-softmmu/qemu-system-i386 \ tests/new-test

Marc Marí – Testing QEMU emulated devices using qtest 38

slide-39
SLIDE 39

Debugging

  • QTEST_LOG=1: write to stderr all operations

[R +0.025815] outl 0xcf8 0x80000000 [S +0.025852] OK [R +0.025881] inw 0xcfc [S +0.025900] OK 0x8086 [R +0.025927] outl 0xcf8 0x80000000 [S +0.025940] OK [R +0.025963] inw 0xcfc [S +0.025974] OK 0x8086

Marc Marí – Testing QEMU emulated devices using qtest 39

slide-40
SLIDE 40

Debugging

  • QTEST_STOP=1: stop to connect the debugger

– Attach GDB: gdb --pid=$(pidof new-test) – Continue executing: kill -SIGCONT \ $(pidof qemu-system-i386)

Marc Marí – Testing QEMU emulated devices using qtest 40

slide-41
SLIDE 41

Index

  • Introduction
  • What is a QTest? What is libqos?
  • How are devices accessed?
  • Basic test structure
  • Libqos API functions
  • Debugging and testing
  • Conclusion

Marc Marí – Testing QEMU emulated devices using qtest 41

slide-42
SLIDE 42

Conclusion

  • Testing in QEMU is essential to maintain

integrity

  • Libqtest and libqos make developing device

tests in QEMU easier.

  • There is a lack of tests for devices

Have fun coding them!

Marc Marí – Testing QEMU emulated devices using qtest 42

slide-43
SLIDE 43

Thanks to

  • Stefan Hajnoczi
  • Paolo Bonzini
  • All the QEMU people that is open to questions

every day at any hour

Marc Marí – Testing QEMU emulated devices using qtest 43

slide-44
SLIDE 44

Questions?
