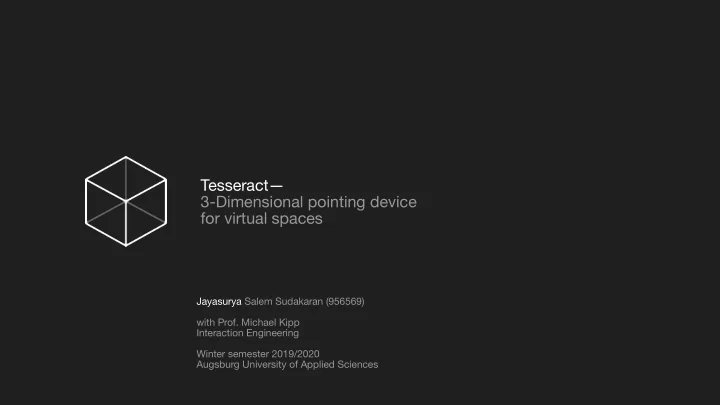

Tesseract— 3-Dimensional pointing device for virtual spaces

Jayasurya Salem Sudakaran (956569) with Prof. Michael Kipp Interaction Engineering Winter semester 2019/2020 Augsburg University of Applied Sciences

slide-2
SLIDE 2

Ball — Controller, moves within the frame in 3D space Frame — Hollow cube, provides structure for the device Elastic suspensions — Pulls back the ball into place, zero Rei-bung! matchbox — Marker for the phone to track

COMPONENTS

slide-3
SLIDE 3

3D physical input — 2D virtual context 6 degrees of freedom — Translation and rotation* in X-Y-Z axes

slide-4
SLIDE 4

RATE-BASED MAPPING

0.1cm with clutch 0.1cm x conversionFactor

slide-5
SLIDE 5

RATE-BASED MAPPING

0.1cm for 3sec 0.1cm/sec x 3sec x conversionFactor Distance as rate of movement and time as multiplier Ex: Gas pedal 0.1cm with clutch 0.1cm x conversionFactor

slide-6
SLIDE 6

AN EXISTING SOLUTION

3Dconnexion space mouse Blue and red are not in equal space as green

slide-7
SLIDE 7

TRACKING

Tracks movement of marker in 3D space relative to center of cube as zero

slide-8
SLIDE 8

TRACKING

Tracks movement of marker in 3D space relative to center of cube as zero Unity for 3D position tracking Vuforia is an Augmented Reality library that tracks any predefined marker

slide-9
SLIDE 9

TRACKING

Tracks movement of marker in 3D space relative to center of cube as zero Unity for 3D position tracking Vuforia is an Augmented Reality library that tracks any predefined marker

slide-10
SLIDE 10

TRACKING

Tracks movement of marker in 3D space relative to center of cube as zero Unity for 3D position tracking Vuforia is an Augmented Reality library that tracks any predefined marker

slide-11
SLIDE 11

CUSTOM PLATFORM

slide-12
SLIDE 12

CUSTOM PLATFORM

TCP socket over IP

slide-13
SLIDE 13
slide-14
SLIDE 14

USER TESTING SCENARIO

Carry the white cube (cursor) to the blue cube Tesseract v mouse with axis clutches Primary evaluation factor— Time taken

slide-15
SLIDE 15

FUTURE DEVELOPMENT

  • More stable physical prototype
  • Rotation implementation
  • Driver for OS level operations
  • Cursor design to indicate direction
  • 3D space indications
slide-16
SLIDE 16

FUTURE DEVELOPMENT

  • More stable physical prototype
  • Rotation implementation
  • Driver for OS level operations
  • Cursor design to indicate direction
  • 3D space indications

Demonstration

slide-17
SLIDE 17

FUTURE DEVELOPMENT

  • More stable physical prototype
  • Rotation implementation
  • Driver for OS level operations
  • Cursor design to indicate direction
  • 3D space indications

Thanks!
