TERRAIN SDP Soundproof System for waste water drainage We are living in a always NOISE = STRESS = ILLNESS more hectically times. People are looking for comfort, quietness and recreation in their own for walls. In one word; people want

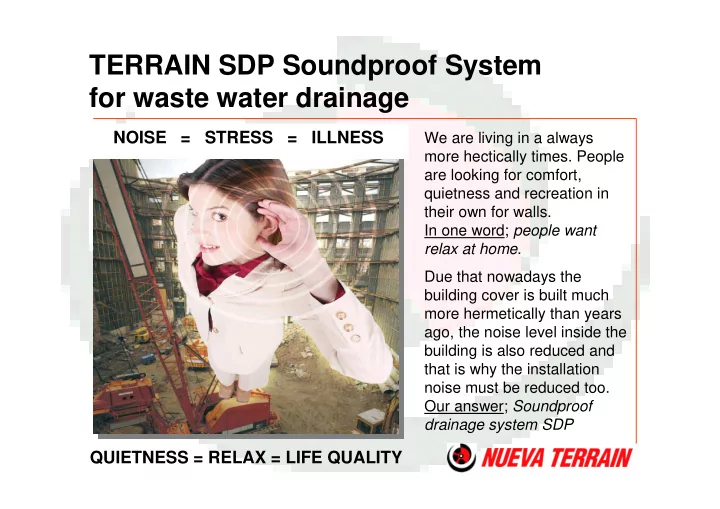

SLIDE 1

TERRAIN SDP Soundproof System for waste water drainage

We are living in a always more hectically times. People are looking for comfort, quietness and recreation in their own for walls. In one word; people want relax at home. Due that nowadays the building cover is built much more hermetically than years ago, the noise level inside the building is also reduced and that is why the installation noise must be reduced too. Our answer; Soundproof drainage system SDP

NOISE = STRESS = ILLNESS QUIETNESS = RELAX = LIFE QUALITY

SLIDE 2

TERRAIN SDP Soundproof System for waste water drainage

In our R&D centre we developed four years ago a comprehensive PVC Soundproof piping system with the aim to offer solutions to the always higher demand of “silence” inside buildings.

SLIDE 3

TERRAIN SDP Soundproof System for waste water drainage

We can offer you a comprehensive PVC Soundproof piping

system. The PLUS+ in the

range of d50, 110, 125

and160mm. And the ECO

from d32 – 250mm. All unions are made in the PushFit assembly technology with rubber rings. The rubber rings helps to reduce the transmission of vibrations and controls also the expansion in the riser.

SLIDE 4

TERRAIN SDP Soundproof System

Noise outside Situation: A typical old building, which don’t reduce much the noise from outside inside the building. Outside noise inside building Installation noise Cohabitants

SLIDE 5

TERRAIN SDP Soundproof System

Noise outside Situation: NEW building, which is built very hermetically and therefore is reducing much the noise from outside inside the building. Installation noise Cohabitants !!! Problem: Now the gap between the inside noise and the installation noise is quite big and the result is stress between the residents. Solution: Soundproof systems which reduce the drainage noise and thicker walls from one to other apartments!

SLIDE 6

Which points in planning and execution should be taken in consideration?

POINT 2: Use always 45º elbows because when less noise inside the pipe less noise outside the pipe… 2 x 45º 2 x 45º

SLIDE 7

Which points in planning and execution should be taken in consideration?

POINT 3: Obligatory! Always brackets with rubber Acoustic Brackets POINT 4: Avoid direct contact from the piping system to the building Legend:

1. Airborne sound
2. Transmission to the structure
3. Structural noise
4. PVC=U Pipe TERRAIN SDP
5. Acoustic Brackets

3 2 1 4 5

SLIDE 8

Which points in planning and execution should be taken in consideration?

THE CRUCIAL RULES

1. If possible let the noise in the same flat 2. Use always 45º elbows because when less noise inside the pipe less noise outside the pipe… 3. Brackets with rubber is a must 4. Avoid direct contact from the piping system to the building 5. Insolating 1,5m of the impact zone helps to achieve the <30 dBA in the Meeting Room

1,5 m insulation

High Impact Zone always 2 x 45º

2 4 3 5 1

SLIDE 9

Which points in planning and execution should be taken in consideration?

Shafts should always be isolated by the two sides with glass wool insulation to avoid the "box effect of resonance." Tests have shown that the noise increases inside shafts around 10dBA. Obviously this increase would also increase noise in the outer part of the shaft. The solution is to isolate the two inner sides with a thickness of 30mm. This ensures that the noise does not bounce because it is absorbed into the surface of the insulation. 50dBA 40dBA Without insulation With insulation

SLIDE 10

Comparison Sound Proofed Systems

Values in the comparison are from this room

All systems has been carried out under the same conditions in the German FRAUNHOFER INSTITUT FÜR BAUPHYSIK

SLIDE 11

Comparison Sound Proofed Systems

In the following chard we will show you the values measured in the German FRAUNHOFER INSTITUT FÜR BAUPHYSIK conforming the test report P-BA 265/2007e for our SOUNDPROOF PLUS system respectively conforming test report P-BA 288/2007e for our SOUNDPROOF system.

SLIDE 12

Comparison Sound Proofed Systems

All systems has been carried out under the same conditions in the German FRAUNHOFER INSTITUT FÜR BAUPHYSIK Values in dBA measured “UG-rear” *) it is not assured that is the same value measured on UG – rear (all this information is taken from the manufacturers Website)

dBA

5 10 15 20 25 30 0,5 l/s 1,0 l/s 2,0 l/s 4,0 l/s

TERRAIN PLUS+ TERRAIN ECO SKOLAN dB *) POLOKAL 3S REHAUPIANO-Plus URALITA AR-M1 AQUA SILENT FRIAPHON SILENT dB20 WAVIN AS PHONOFIRE BluePower Düker (cast iron)

SLIDE 13

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

A1, A2, B, C, D, F = Classification regarding the FIRE PROPOGATION S1, S2, S3 = Classification regarding the SMOKE PRODUCTION D0, D1, D2 = Classification regarding the DROPS / PARTICLES

Near all member countries of the European Union (EU) have adopted the harmonized Euroclass system of reaction to fire performance of building products The fire performance of the PVC-U from TERRAIN SDP regarding the above mentioned norm is as following: B / S1 / D0 = M1 (old classification)

SLIDE 14

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

No performance requirements Acceptable contribution to fire Acceptable contribution to fire Limited contribution to fire Very limited contribution to fire No contribution to fire No lateral propagation of flame till the mark

n the sample will

be produced No lateral propagation of flame till the mark

n the sample

will be produced FIGRA ≤ 750 W/s FIGRA ≤ 250 W/s THR ≤ 15 MJ FIGRA ≤ 120 W/s THR ≤ 7,5 MJ Not criteria of behavior exist or has not completed with the requirement for the class E Vertical propagation of fire with attack by flame ≤150mm with a time of exposition of 15s Vertical propagation of fire with attack by flame ≤150mm with a time of exposition of 30s Vertical propagation of fire with attack by flame ≤150mm with a time of exposition of 30s Vertical propagation of fire with attack by flame ≤150mm with a time of exposition of 30s Non-combustibility products e.g. metals

F E D C B A1 / A2

Classification concerning the FIRE PROPOGATION

(Test conforming UNE EN ISO 11925-2)

FIGRA = fire growth rate index THR = total heat release

SLIDE 15

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

No behavior is declared, or does not comply the requirements for S1 and S2

SMOGRA ≤ 180 M2/S2 TSP ≤ 200 M2 SMOGRA ≤ 30 M2/S2 TSP ≤ 50 M2

S3 S2 S1

Classification concerning the SMOKE PRODUCTION

SMOGRA = smoke growth rate index TSP = total smoke production No behavior is declared, or does not

comply the requirements for D0 y D1,

Flaming drops / particles with a persistence less than 10s No production of flaming droplets and particles

D2 D1 D0

Classification concerning the PRODUCTION OF DROPS / PARTICLES

SLIDE 16

x x E – d2

Easily inflammable

B3 F D - s1 d2 D - s2 d2 D - s3 d2 B2 D - s1 d0 D - s2 d0 D - s3 d0 E x

Normal flammability

A2 - s3 d2 B - s3 d2 C - s3 d2 A2 - s1 d1 A2 - s1 d2 B - s1 d1 B - s1 d2 C - s1 d1 C - s1 d2 x A2 - s2 d0 A2 - s3 d0 B - s2 d0 B - s3 d0 C - s2 d0 C - s3 d0 x B1 B - s1 d0 TERRAIN SDP C - s1 d0

Low flammability

A2 A2 - s1 d0 A1 A1 x x

Non-Combustible No production of flaming droplets No smoke Building material class according DIN4102 European Class according EN 13501-1 Additional requirements Building-Authority description

Assignment of the EuroClasses to the usual building material classes according DIN4102-1

As you can see, the DIN4102 don’t differentiate much the

materials. However, SDP has

the best result that can be achieve for burning materials!

SLIDE 17

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

SLIDE 18

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

Not defined F 0 to 2 minutes E 2 to 10 minutes D 10 to 20 minutes C No “flash over” TERRAIN SDP B No “flash over”; Calorific Value < 3 MJ/Kg A2 No “flash over”; Calorific Value < 2 MJ/Kg A1 Time to “flash over” acc. the “Room Corner Test” EUROCLASS The new European Euro classes “Fire Protection Classification”

Remarks: PVC isn’t a polyolefin and therefore it hasn’t “flash over” effect which is very important to protect against fire. PE, PP, etc. are polyolefin's and therefore they burn much more. Remarks: PVC isn’t a polyolefin and therefore it hasn’t “flash over” effect which is very important to protect against fire. PE, PP, etc. are polyolefin's and therefore they burn much more.

SLIDE 19

Reaction to fire Performance EUROCLASS / Norm UNE EN 13501-1:2002

Obtained results of our two Soundproof systems

TERRAIN SDP TERRAIN SDP PLUS B FIGRA = 12,27 W/s B THR = 1,9 MJ No lateral propagation of flame till the mark on the sample will be produced S1 SMOGRA = 1,5 M2/S2 D0 No production of flaming droplets and particles B FIGRA = 3,36 W/s B THR = 0,3 MJ No lateral propagation of flame till the mark on the sample will be produced S1 SMOGRA = 1,49 M2/S2 D0 No production of flaming droplets and particles

SLIDE 20

Comparison Sound Proofed Systems

Some good reasons to use TERRAIN SDP Soundproof System

Easy and fast installation
High chemical resistance and durability of PVC-U
Fire protection conforming UNE EN 13501-1 (B-s1-d0)
Best values regarding sound reduction
Very competitive price
