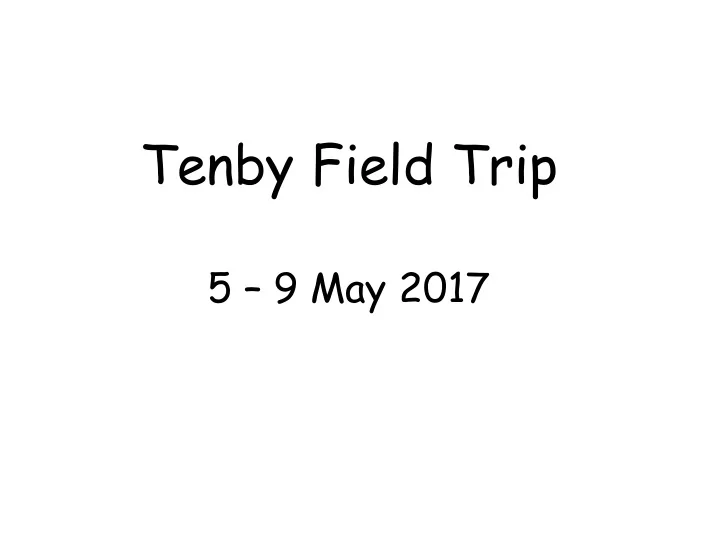

Tenby Field Trip

5 – 9 May 2017

slide-2
SLIDE 2

Area Map

slide-3
SLIDE 3

Geological Overview

  • South Pembrokeshire
  • Mainly sedimentary upper Palaeozoic rocks
  • Devonian to Permian
  • ESE – WNW trending tracts
  • Conformable and unconformable transitions from marine Silurian to

continental Devonian red sandstones

  • Sandstones, limestones, mudstones and coal measures
  • Rich variety of fossils
  • Older sedimentary and igneous strata exposed along

major fault lines and cores of anticlines

  • Precambrian to Silurian
  • Mainly in the North of the region
  • Oldest (643 MYA) is the Johnston Complex of metamorphosed

plutonic igneous rocks

  • Diorites; Granodiorites and granites
slide-4
SLIDE 4

Plate Tectonics Setting for Deformation of South Wales Rocks

  • Early Palaeozoic Deformations
  • Caledonian Orogeny
  • Avalonia docks with Laurentia closing the Iapetus Ocean (Late Silurian)
  • Acadian Orogeny
  • Closing of the Rheic Ocean (Mid Devonian)
  • Later Palaeozoic Deformations
  • Variscan Orogeny
  • Progressive convergence of Gondwana with Larussia (Upper

Carboniferous)

  • Eventual formation of Pangea supercontinent
  • South Wales lies in the ‘Forebold Edge’ of the thrust
  • Uplifting, folding, faulting and erosion over 50 – 100 MY
slide-5
SLIDE 5

From: Geology of South Wales, second edition - Gareth T. George

slide-6
SLIDE 6

Day 2 – 6 May 2017

  • Morning
  • Skrinkle Haven
  • Afternoon
  • Manorbier
slide-7
SLIDE 7

Skrinkle Haven

slide-8
SLIDE 8

Skrinkle Haven

  • Late Devonian to Early Carboniferous
  • Transitional contact visible between:
  • Pembroke Limestone Group
  • Lower Limestone Shales
  • Skrinkle Sandstone
  • Ridgeway Conglomerate
  • Freshwater West Formation
  • ‘Cavern Collapse’ Breccia
  • Visible along coast line
  • Fossiliferous
slide-9
SLIDE 9

The Geo eology of f Shrinkle Haven

From: Geology of South Wales, second edition - Gareth T. George

slide-10
SLIDE 10

Skrin inkle Haven

slide-11
SLIDE 11

Im Impressive Natural Arch in in th the Bla lack Rock Lim imestone Forming th the Horseback

slide-12
SLIDE 12

Coprolit ite

slide-13
SLIDE 13

Crin inoid Stems

slide-14
SLIDE 14

Chertified Lim imestone

slide-15
SLIDE 15

Humocky cr cross - Str tratifi fication

slide-16
SLIDE 16

Bry ryozoa

slide-17
SLIDE 17

Skri rinkle Carboniferous Fossil il Assemblage: Crinoids, , Fenestella Bry ryozoa, , Rugose Corals

slide-18
SLIDE 18

Mic ichelinia Tab abulate Co Coral

slide-19
SLIDE 19

Pala laeocasts

slide-20
SLIDE 20

Draught - Lydstep Penin insula la

slide-21
SLIDE 21

Th The Group at th the Lydstep Peninsula

slide-22
SLIDE 22

At Draught on Lydstep Peninsule – Showing Blo lowhole and Coll llapsed Breccia

slide-23
SLIDE 23

Manorbier

slide-24
SLIDE 24

Manorbier

  • Devonian
  • Freshwater West Formation
  • Old Red Sandstone (ORS)
  • Near Vertical Strata in Cliffs above high water mark
  • Fining up
  • Six cycles visible each capped with fine mudstones containing Calcretes
  • Interpreted as fills of ephemeral meandering fluvial channels
slide-25
SLIDE 25

Th The Geolo logy of Manorbie ier

From: Geology of South Wales, second edition - Gareth T. George

slide-26
SLIDE 26

Manorbie ier Bay

slide-27
SLIDE 27

Red Beds wit ith Many Trace Fossil ils

slide-28
SLIDE 28

ORS S - with ith Whit ite Ca Calc lcrete and Halo los Around th the Bu Burr rrows

slide-29
SLIDE 29

Beaconit ites Trace Fossil

slide-30
SLIDE 30

ORS - With White Calcrete an and Halo los Around th the Burrows

slide-31
SLIDE 31

Trace fossil - A Sin ingle Mil illipede in in Cross Sectio ion

slide-32
SLIDE 32

Mud Aggregate in in Mudstone

slide-33
SLIDE 33

Matu ture Soil il Profile le

slide-34
SLIDE 34

Beaconit ites Trace Fossil

slide-35
SLIDE 35

Dis ispla lacement on Fault lt

slide-36
SLIDE 36

Erosio ional Base of f Sandstone

slide-37
SLIDE 37

Buria ial l Chamber at t Kin ing's Quoit it

slide-38
SLIDE 38

Sit itting on th the Burial Chamber at t Kin ing's Quoit

slide-39
SLIDE 39

Tuff Band

slide-40
SLIDE 40

Townsend Tuff

slide-41
SLIDE 41

Tuff Band at t Rooks Cave

slide-42
SLIDE 42

Tuff Band at t Rooks Cave

slide-43
SLIDE 43

Possib ible le Faecal Pelle llets

slide-44
SLIDE 44

Day 3 – 7 May 2017

  • Morning
  • Freshwater West
  • Afternoon
  • West Angle Bay
slide-45
SLIDE 45

Freshwater West

slide-46
SLIDE 46

Freshwater West

  • Lower Limestone Shales
  • Upper ORS
  • Skrinkle Sandstone
  • Lower ORS
  • Ridgeway Conglomerate
  • Freshwater West Formation
  • Moor Cliffs Formation
  • Chapel Point Calcretes
  • Townsend Tuff Bed
  • Silurian Shales (Wenlock)
  • Ordovician Shales (Llanvirn)
slide-47
SLIDE 47

Freshwater West

From: Geology of South Wales, second edition - Gareth T. George

slide-48
SLIDE 48

Freshwater West

slide-49
SLIDE 49

Gareth Exp xplains Rock Types and Deposition Str tructures

slide-50
SLIDE 50

Using th the Str tream to Demonstrate Deposition Str tructures in in Flo lowing Water

slide-51
SLIDE 51

Standin ing Waves

slide-52
SLIDE 52

Alm lmost Anti ti-Dune

slide-53
SLIDE 53

Mudstone in in Silt ilt - Lower Ordovician - Lla lanvirn Ser eries

slide-54
SLIDE 54

Lava Bread Seaweed

slide-55
SLIDE 55

Freshwater East Formatio ion - Upper Silu ilurian

slide-56
SLIDE 56

Porphyry ry - From Outside of f This Area

slide-57
SLIDE 57

Red Beds of f th the Moor Cli liffs Formation

slide-58
SLIDE 58

Fault lt - Silu iluria ian / / Devonia ian Unconformit ity

slide-59
SLIDE 59

Fossili liferio ious Rock A

slide-60
SLIDE 60

Fossili liferio ious Rock B

slide-61
SLIDE 61

Chapel l Poin int Calc lcrete at t th the Fault lt

slide-62
SLIDE 62

Chapel l Poin int Calc lcrete - at t th the Fault lt

slide-63
SLIDE 63

Chapel l Poin int Calc lcrete

slide-64
SLIDE 64

Freshwater West Formation

slide-65
SLIDE 65

Rip ipple les at t Top of f Formation

slide-66
SLIDE 66

Fin inin ing up Sequence

slide-67
SLIDE 67

Trace Fossil of f Large Worm Tube

slide-68
SLIDE 68

Laminatio ions Approaching Beaconites Beds

slide-69
SLIDE 69

Orthocone - Long Shore Dri rift

slide-70
SLIDE 70

Beaconit ites Trace Fossil ils

slide-71
SLIDE 71

Beaconit ites Trace Fossils

slide-72
SLIDE 72

Green Sand

slide-73
SLIDE 73

Beaconites Trace Fossils in in Green Sand

slide-74
SLIDE 74

Mult lti Story Orig igin inal l Erosional l Surface

slide-75
SLIDE 75

Rid idgeway Conglomorate A

slide-76
SLIDE 76

Rid idgeway Conglomorate B

slide-77
SLIDE 77

West Angle Bay

slide-78
SLIDE 78

West Angle Bay

  • Formed by erosion of lower Carboniferous (Dinantian)

Limestone within the Angle Syncline

  • Main Rock Types
  • Blackrock Limestone
  • Avon Group (Limestone Shales)
  • Very Fossiliferous
slide-79
SLIDE 79

West Angle Bay

From: Geology of South Wales, second edition - Gareth T. George

slide-80
SLIDE 80

Lower Lim imestone Shales of f th the Avon Group

slide-81
SLIDE 81

Crin inoid Debris in in th the Sandy Lim imestone

slide-82
SLIDE 82

Slic lickensid ides Min inerali lised wit ith Calc lcit ite

slide-83
SLIDE 83

Zaphrentis is – A Rugose Coral

slide-84
SLIDE 84

Worm Burrow

slide-85
SLIDE 85

Approachin ing North Cove

slide-86
SLIDE 86

Sili ilicifie ied Worm Burrows

slide-87
SLIDE 87

Mappin ing th the Peric icli lines - North Cove

slide-88
SLIDE 88

Dynamite Cracks fr from Previous Quarrying - North Cove

slide-89
SLIDE 89

Sty tylo loli litic ic Contact in in North Cove

slide-90
SLIDE 90

Gla lacial l Ti Till ll - Dia iamic icton

slide-91
SLIDE 91

Gastropod

slide-92
SLIDE 92

Day 4 – 8 May 2017

  • Morning
  • Tenby South beach
  • Tenby North beach
  • Afternoon
  • Amroth
  • Ladies Cave
slide-93
SLIDE 93

Tenby South Beach

slide-94
SLIDE 94

Tenby South Beach

  • Rock Types
  • Bioclastic and Oolitic (Hunts Bay) Limestone
  • Crowded with Brachiopods
  • Caswell Bay Mudstone
  • Thinly bedded with Hunts Bay Limestone
  • Dipping steeply in cliffs
  • Blackrock Limestone
  • Dolomitised Bioclastic Limestone
  • High Tor Limestone
slide-95
SLIDE 95

Geology of Tenby

From: Geology of South Wales, second edition - Gareth T. George

slide-96
SLIDE 96

Slic lickensid ides on South Beach Clif liffs

slide-97
SLIDE 97

Small ll Cave at t th the Start of f South Beach

slide-98
SLIDE 98

Large Calc lcit ite Vein ins - South Beach

slide-99
SLIDE 99

Observing the Dip at the Start of the South Beach Cliffs

slide-100
SLIDE 100

Jell llyfish

slide-101
SLIDE 101

Pseudo-Breccia Formed Durin ing Dia iagenesis

slide-102
SLIDE 102

South Beach – Steps le leading to th the Atlantic Hotel

slide-103
SLIDE 103

Gig igantoproductus Gig iganteus

slide-104
SLIDE 104

Sip iphonodendron Martin ini i - Colonial Rugose Coral

slide-105
SLIDE 105

Corals

slide-106
SLIDE 106

The Group Progresses Along South Beach

slide-107
SLIDE 107

Syringapora Coral

slide-108
SLIDE 108

Examinin ing Another Pseudo-Breccia ia

slide-109
SLIDE 109

Lit ithostrotion Coral

slide-110
SLIDE 110

Unknown Coral

slide-111
SLIDE 111

Slic lickensid ides - South Beach Clif liffs

slide-112
SLIDE 112

Lit ithostrotion Coral l - Dis istance

slide-113
SLIDE 113

Lit ithostrotion Coral - Clo lose Up p - Was on a Reef

slide-114
SLIDE 114

Sip Siphonodendron Ju Junceum - Sp Spaghetti i Lik ike, , Co Colo lonia ial l Rugose Co Coral

slide-115
SLIDE 115

Rugose Coral

slide-116
SLIDE 116

Tenby North Beach

slide-117
SLIDE 117

Tenby North Beach

  • Complex Folding and Faulting during the Variscan Orogeny
  • Seen in cliff and low outcrops on the beach
  • Main Rock Types
  • Marros Group (Middle Carboniferous)
  • Sandstone, Mudstone & Siltstone
  • Pembroke Limestone Group (Lower Carboniferous)
slide-118
SLIDE 118

North Beach- Pla lan & Cross Section

From: Geology of South Wales, second edition - Gareth T. George

slide-119
SLIDE 119

Start of f North Beach fr from Tenby Harbour

slide-120
SLIDE 120

Gosker Rock fr from Tenby Harbour

slide-121
SLIDE 121

Conglomerate Horiz izon at t Fir irst Poin int

slide-122
SLIDE 122

Amroth

slide-123
SLIDE 123

Amroth

  • Rock Types
  • Upper Carboniferous (Westphalian Strata)
  • South Wales coal measures
  • Sandstone, Mudstone, Limestone & ORS
  • Heavily folded and faulted
  • Slumping
  • Fossiliferous
slide-124
SLIDE 124

Th The Geo eology Around th the Amroth Area

From: Geology of South Wales, second edition - Gareth T. George

slide-125
SLIDE 125

Amroth Notic ice Board

slide-126
SLIDE 126

Walk lkin ing Towards Amroth East

slide-127
SLIDE 127

St Stratig igraphy at t Amroth th East – Th The La Lady Froli lic Co Coal l Se Seam Above th the Bla Black Mudstones

slide-128
SLIDE 128

Clo loser Detail of f th the Str tratigraphy at Amroth East

slide-129
SLIDE 129

Th The Amroth Slu lump Sheet

slide-130
SLIDE 130

Th The Amroth Slu lump Sheet

slide-131
SLIDE 131

Rip ipple le Marks in in th the Slu lump Sheet

slide-132
SLIDE 132

Basal Lag Conglomerate fr from th the Tel elpyn Point Sandstone

slide-133
SLIDE 133

Cli limbing Rip ipple Cross Lamination

slide-134
SLIDE 134

Ir Iron Nodule les

slide-135
SLIDE 135

Non-Marine Bivalves (Mussels) in Amroth Freshwater Limestone - Possibly Anthracosia Regularis

slide-136
SLIDE 136

Pla lant Remain ins

slide-137
SLIDE 137

Non-Marine Bivalves (Mussels) in Amroth Freshwater Limestone

slide-138
SLIDE 138

Ladies Cave

slide-139
SLIDE 139

Ladies Cave

  • Classic Chevron Fold Anticline
  • Shale Beds
  • Softer Mudstone at fold hinge
slide-140
SLIDE 140

Cross Section Around Ladie ies Cave

From: Geology of South Wales, second edition - Gareth T. George

slide-141
SLIDE 141

Ladies Cave

slide-142
SLIDE 142

Ladie ies Cave

slide-143
SLIDE 143

Fossil Leaf at Ladies Cave

slide-144
SLIDE 144

Day 5 – 9 May 2017

Laugharne

slide-145
SLIDE 145

Laugharne

  • Succession of ORS Facies
  • Red Mudstones
  • Red Siltstones
  • Immature Calcretes
slide-146
SLIDE 146

Boat House

slide-147
SLIDE 147

Local Trouble Mak akers Examining th the Devonian ORS Cli liffs

slide-148
SLIDE 148

Graphic ic Log of Exposed Clif liffs Alo long th the Estu tuary

From: Geology of South Wales, second edition - Gareth T. George

slide-149
SLIDE 149

Calc lcretes

slide-150
SLIDE 150

Base ase of

  • f In

Intraformational Con

  • nglomerate Bed of
  • f Reworked

Calc alcrete Nodule les

slide-151
SLIDE 151

Lensoid idal Sandstone Str trin ingers

slide-152
SLIDE 152

Clim limbin ing Rip ipple les

slide-153
SLIDE 153

Beaconites Burrows in in Mudstone

slide-154
SLIDE 154

Cross Sectio ions of f Beaconites Burrows in in Sandstone

slide-155
SLIDE 155

Concoidal Fracture

slide-156
SLIDE 156

Small ll Dyke

slide-157
SLIDE 157

An Ic Ice Cream and Th Then Home

slide-158
SLIDE 158

The End
