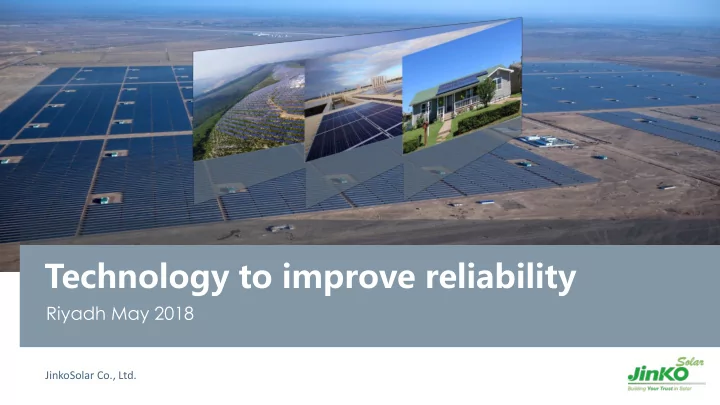

Technology to improve reliability Riyadh May 2018 JinkoSolar Co., - - PowerPoint PPT Presentation
Technology to improve reliability Riyadh May 2018 JinkoSolar Co., - - PowerPoint PPT Presentation
Technology to improve reliability Riyadh May 2018 JinkoSolar Co., Ltd. Conf nflic icting ng Demand mand Maximum P erformance Most Lowest Cost Durable P roducts Resea search ch and and Developm velopment ent Prominent R&D
SLIDE 2
SLIDE 3
3
Resea search ch and and Developm velopment ent
Prominent R&D Team with around 200 R&D personnel holding Doctor/Master degrees driving significant product improvements Using DuPont's advanced materials to produce high-efficiency and low-cost solar cells Cooperating with global universities and research institutions, developing the latest technology Own several core technology patents on ingot, wafer, cell and modules processing Continuous R&D investment
SLIDE 4
4
Quali lity ty Cont ntro rol
EMS- Electronic Management System
- 16 in-line quality control points in module workshop
- Precise data-recording & supervision for all the manufacturing QC points
Product Traceability Control
- Tracking card with unique barcodes tracing from module back to ingot
- SAP process traceability system with 26-year data storage.
- 40 in quality checkpoints in the entire process
Employ Electroluminescence Test (EL) to inspect for potentially defective cells.
SLIDE 5
5
Cert rtific ification ation
Product Certificates
MCS TUV UL CQC JET ISO 9001:2008 ISO 14001:2004 OHSAS 18001:2007
System Certificates
SLIDE 6
Additio itional nal Cert rtific ificat ation ion
AMMONIA R E SIST ANC E IEC61716 S A L T MIST R E SIST ANC E IEC61701 DUST AND SAND IE C60068-2- 68 Anti- PID 85℃/85% RH, -1000V IEC62804
Agriculture Coastal Temperature & humidity Desert
SLIDE 7
IEC Cert rtific ificati ation
- n
SLIDE 8
Field ld Failures ures
SLIDE 9
Tech chnical nical Bankabi kabili lity ty
Certification Test beyond IEC Other Voluntary Tests R&D Activities Participation in development
- f standards
SLIDE 10
10
LAB ABS
SLIDE 11
11
Micr cro-crac cracking ng
Portable EL Microcracking can lead to hotspot, power degradation and snail trails Generally the snail-trails will happen after more than half a year on-site, through simulation we can predict the probability and severity . Microcrack & Snail-trails Simulation
SLIDE 12
Obse served ved Back ckshe sheet et failures ures
SLIDE 13
Focu cus s on Yield
SLIDE 14
14
Half cell
SLIDE 15
15
Advantages of Half cell
SLIDE 16
16
Shading Advantages of Half cell
SLIDE 17
17
Hot Spot Elimination
Cell Shading condition Maxim temperature from test Delta Mc-Si Full cell 115.4 / ½ half cell 96.0 19.4 Mono PERC Full cell 122.4 / ½ half cell 98.0 24.4
- Current, thus
Power of half-cell is halved
- Lower Power
dissipated on shaded cell
- Around 20°C
lower temp. In hot spot test
- Less risk for
system operation
SLIDE 18
Bifacial: Tech. Concept Conventional Bifacial Front Side Back Side Front Side Back Side
18
Internal Jinko
ARC n+ P-type mono wafer Al contact
Grid EVA
CELL CELL BACKSHEET GLASS Sunlight ARC n+/p+ P-type/N-type mono wafer
Grid
ARC
Grid
EVA CELL CELL GLASS Sunlight GLASS Sunlight
SLIDE 19
0% 5% 10% 15% 20%
白漆 黄沙 水泥 草地 水面
P-type bifacial module(bifacial factor 0.7)
Per watt power generation gain (only front side power concerned)(%)
17%-19% 7%-9% 6%-7% 6%-7% 4%-5% 80%-85% 22%-25% 30%-33% 10%-20% 2%-5%
Surface Reflectance
19
Bifacial: Real Power Generation Gain
Address：Jinko factory, Haining，30.32° north latitude， 120.42° east longitude Tilt angle：30 °, close to the latitude； Mounting height：the distance from the lower edge to the ground is 1.2m； Capacity：1.5kW/array.
White paint Sand Grass Water Cement
Internal Jinko
SLIDE 20
20 www.jinkosolar.com 20
South Africa | 91 MW Lebanon | 1 MW Jordan | 23 MW Kuwait | 10 MW
Some me Refer erences nces
