Road to commercialising sanitation technologies: Engineering Field Testing platform in Durban, South Africa Ruth Cottingham N Alcock, C Buckley, T Gounden, S Mercer, L Ngubane, R Sindall, C Sutherland eThekwini Water and Sanitation, Khanyisa

slide-1
SLIDE 1

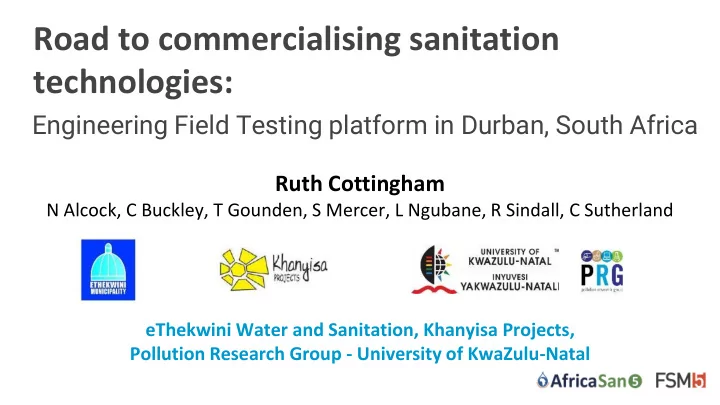

Road to commercialising sanitation technologies:

Ruth Cottingham

N Alcock, C Buckley, T Gounden, S Mercer, L Ngubane, R Sindall, C Sutherland eThekwini Water and Sanitation, Khanyisa Projects, Pollution Research Group - University of KwaZulu-Natal

Engineering Field Testing platform in Durban, South Africa

slide-2
SLIDE 2

The Reinvented Toilet

  • Is desirable to use
  • Removes pathogens
  • Recovers energy, clean water

and nutrients in situ

  • Operates off the grid
  • Costs less than US$ 0.05 (5

cents) per user per day

BILL & MELINDA GATES FOUNDATION

slide-3
SLIDE 3

BILL & MELINDA GATES FOUNDATION

End products

Reinvented Toilet

Liquids (recycled for flush or handwashing / recover nutrients) Solids (recover nutrients/agriculture/ fuel source/non-hazardous waste disposal) Air emissions Noise emissions Excreta waste (urine+faeces or separated) Heat/energy (recovered for process

  • peration and/or external use)

End products

slide-4
SLIDE 4

The EFT platform and product development

Phases of new product development:

BILL & MELINDA GATES FOUNDATION

slide-5
SLIDE 5

Field Testing phase

BILL & MELINDA GATES FOUNDATION

slide-6
SLIDE 6

The Engineering Field Testing (EFT) platform in Durban:

  • Real world testing, many users
  • Evaluates performance over an

extended period

  • Feedback from community on

suitability and impact

  • Uses the information and data

generated to improve sanitation for all

BILL & MELINDA GATES FOUNDATION

slide-7
SLIDE 7

How the EFT platform works:

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION TECHNOLOGY CONSTRUCTION SHIPPING

> > > > >

FEEDBACK BACK AT ALL STAGES TO:

  • TECHNOLOGY DEVELOPERS
  • DURBAN EFT TEAM
  • FUNDERS
slide-8
SLIDE 8

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

slide-9
SLIDE 9

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

slide-10
SLIDE 10

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

slide-11
SLIDE 11

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

slide-12
SLIDE 12

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

slide-13
SLIDE 13

SITE SELECTION COMMUNITY ENGAGEMENT SITE PREPARATION INSTALL & COMMISSION TESTING DECOMMISSION

DUKE UNIVERSITY CENTER FOR WaSH-AID

slide-14
SLIDE 14

Testing on the Durban EFT platform:

2017 – 2019, currently testing or confirmed for testing

TECHNOLOGY DEVELOPERS

10

PROTOTYPES

14

TESTING SITES

23

slide-15
SLIDE 15

Testing on the Durban EFT platform:

14 prototypes:

COMMUNITY SCALE

9

HOUSEHOLD SCALE

5

FRONT END

3

BACK END

7

INTEGRATED SYSTEMS

4

slide-16
SLIDE 16

(A few of) the lessons learned…

slide-17
SLIDE 17

Testing on a platform = greater benefits than individual field tests

TECH DEVELOPERS CAN FOCUS MORE ON TECHNOLOGY, LESS ON LOGISTICS FASTER ESTABLISHMENT KNOWLEDGE SHARING COMBINE TECHNOLOGIES SHARED INFRASTRUCTURE REGULATOR SEES PERFORMANCE UNDER LOCAL CONDITIONS

slide-18
SLIDE 18
  • Accessibility
  • Space
  • Topography
  • Shared use
  • Illegal connections
  • No as-built drawings
  • Ground conditions
  • Speed vs. job creation
  • Lack of layout

flexibility

  • Unexpected issues

Site selection & preparation is challenging

slide-19
SLIDE 19
  • Political tensions
  • Security
  • Community Liaison Officers
  • Community can stop the project
  • Good community engagement

is key to success of EFT

Community support more important than technical suitability

slide-20
SLIDE 20

Managing expectations

  • Setting precedents
  • Testing has an end
  • Local employment
  • EFT can’t solve all problems
  • Timelines change a lot
  • Working hours
slide-21
SLIDE 21

Testing

  • Product standards (e.g.

recycled water quality) must be context-appropriate

  • New SOPs needed
  • Agree up front on timelines

DUKE UNIVERSITY CENTER FOR WaSH-AID

slide-22
SLIDE 22

What does it cost – (1) Direct costs (indicative)

SITE PREPARATION & ESTABLISHMENT TESTING DECOMMISSIONING

Community site

US$ 20,000

Household site

US$ 1,800 US$ 35,000 to US$ 100,00, dependent on analyses required US$ 2,500

slide-23
SLIDE 23

What does it cost – (2) Personnel

MUNICIPALITY ENGINEERING & PROJECT MANAGEMENT COMPANY UNIVERSITY

  • US$ 160,000/year

in-kind contributions

  • Management,

engineering, community engagement lead, O&M, consumables

  • Management inputs
  • Project manager
  • Project engineer
  • Community

engagement inputs

  • Community liaison
  • fficers
  • Admin/finance
  • Principal investigator
  • Project manager
  • Ops manager
  • 6 platform engineers
  • Lab manager
  • 4 Lab technicians
  • Social research lead
  • 4 social researchers
  • Field workers
  • Workshop manager
  • Workshop assistant
  • Admin/finance
  • 9 Masters & 4 PhD students
slide-24
SLIDE 24

Typical timelines

SITE PREPARATION & ESTABLISHMENT COMMISSIONING & TESTING DECOMMISSIONING

Community site

2 to 5 months

Household site

1 to 3 months Variable – a few months to

  • ne year

1 to 2 months

Note: community engagement, ethics, contracts & utilities can be lengthy!

slide-25
SLIDE 25

Recommendations

  • Don’t test on the EFT too early
  • Decide on primary aim: testing technology or testing suitability for

Durban

  • Community engagement can make or break project
  • Communicate early about design (visits are valuable)
  • Flexibility
  • Local regulations
  • Security/vandalism
  • Local procurement
  • Align expectations early (timeline, working hours, staffing…)
  • Exit strategy

…for technology developers

slide-26
SLIDE 26

Recommendations

  • Strength of municipality – private company – university partnership
  • State minimum readiness level for technologies
  • Resource planning is difficult!
  • Get communication right (internal + external)
  • Who is driving the programme?
  • Establish how EFT host city will benefit:
  • Monitoring requirements
  • Structured knowledge sharing
  • Partner with local technologies

…for setting up an EFT

slide-27
SLIDE 27

FSM5 Workshop

Field Testing New Technologies

Friday 22 February 2019 Afternoon Session - 13:30 to 17:00

slide-28
SLIDE 28

Acknowledgements

  • Technology developers
  • The communities, households, schools and other sites

hosting the field tests

  • Bill & Melinda Gates Foundation
  • South African Water Research Commission
  • South African Department of Trade & Industry

EFT platform funders & partners

slide-29
SLIDE 29

For more information contact: Susan Mercer Pollution Research Group mercer@ukzn.ac.za Ruth Cottingham Khanyisa Projects ruth@khanyisapr.co.za Website: prg.ukzn.ac.za

Thank you!

Case study video of EFT platform available; also see publicity from China Reinvented Toilet Expo
