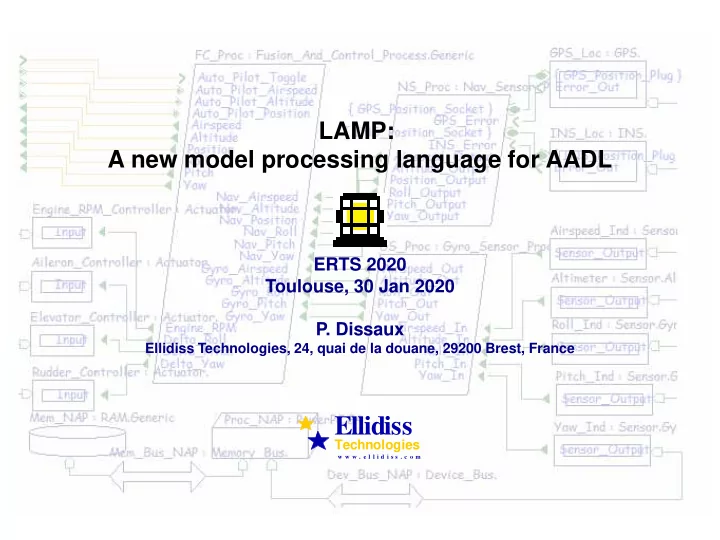

SLIDE 1

ERTS 2020 Toulouse, 30 Jan 2020

P. Dissaux

Ellidiss Technologies, 24, quai de la douane, 29200 Brest, France

LAMP: A new model processing language for AADL

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 2

Model Processing 1/2

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

Model processing goals

Observe: model exploration, queries and views
Enrich semantics: add constraints not reflected by the syntax
Verify static properties: rules checkers
Perform model transformations:
Model to Model transformations:
Refinement: transform a descriptive models along the development life-cycle
Verification: transform a descriptive model into a verification model
Model to Text transformations
Code generation
Documentation generation

Model processing requirements

Require a model processing language
With a way to get access to model éléments (API)
With strong and well defined semantics
Especially to support verification activities for critical systems (qualification)
Better with an existing set of predefined rules and utilities (libraries)

SLIDE 3

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

Model Processing Languages

May be specific to the modeling language or development environment:
OMG world: OCL, ATL, QVT, MOFM2T
AADL world: REAL, LUTE, RESOLUTE, AGREE
Or a general purpose programming language: Java, Ada, Python, Prolog
Declarative style is appropriate to express rules

Model Processing Applications

Off-line processing:
Part of a modeling/verification environment (tool plugins)
Under responsability of the tool editor
Independent from the actual model instance that will be processed
On-line processing:
Part of the model to be processed (model extension)
Can be developed/customized by the end user
May access actual model instance information
Can also be used to prototype an off-line processing tool

Model Processing 2/2

SLIDE 4

LMP: a generic model processing approach

LMP: Logic Model Processing

Using the Prolog language as a Model Processing language

(Declarative predicates, Boolean logics, unification and backtracking)

Applying a dedicated development and runtime process:

LMP development and runtime process:

Any Meta-Model can be represented by a set of Prolog Fact Definitions
Any Model can be represented by a populated Prolog Facts Base
Any Model processing action (queries, constraints, transformations, …)

can be represented by a Prolog Rules Base

Prolog facts and rules base can be merged together to get the expected result

LMP Model A Model B Goal X Facts Base A Facts Base B Rules Base X Prolog Engine Expected Result

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 5

LMP runtime process

prolog engine result Facts base input parser or generator Parsers:

aadlrev
xmlrev
adarev
crev

Generators:

Stood
AADL Inspector
C library

Rules bases processing library:

Model analysis
Model exploration
M2M transformation
M2T transformation

Rules bases Rules bases Rules bases Rules bases Input Model in files

r

in memory Textual

r

byte code Output Model Check Report Source code … Facts base input parser or generator Facts base input parser or generator

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

Models to be processed Model processing applications Model processing result

SLIDE 6

LMP for tag-based models (XMI/XML)

Fragment of the meta-model: XML Schema Definition (XSD)

<xsd:schema ... > <xsd:complexType name="SPEC-OBJECT"> ... <xsd:attribute name="DESC" type="xsd:string" use="optional"/> <xsd:attribute name="IDENTIFIER" type="xsd:ID" use="required"/> <xsd:attribute name="LAST-CHANGE" type="xsd:dateTime" use="required"/> <xsd:attribute name="LONG-NAME" type="xsd:string" use="optional"/> </xsd:complexType> ... </xsd:schema>

Corresponding prolog Fact Definition:

isSpecObject(Desc,Identifier,LastChange,LongName).

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 7

LMP for token based models

Fragment of the meta-model: Backus-Naur Form (BNF)

… component_type ::= component_category component_identifier { property }* end component_identifier; property ::= property_name => property_value; …

Corresponding prolog Facts definition:

isComponentType(ComponentCategory,ComponentIdentifier). isProperty(ComponentIdentifier,PropertyName,PropertyValue).

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 8

isSpecObject('','','','Temp_Lower_Bound'). isSpecObject('','','','Temp_Upper_Bound'). ... isComponentType('Thread','Thermostat'). isProperty('Thermostat','Coverage','Temp_Lower_Bound'). isProperty('Thermostat','Coverage','Temp_Upper_Bound').

LMP: Merging and Processing

2. Add the rules base:

check requirements coverage:

checkCoverage :- isSpecObject(_,_,_,R), isComponentType(_,C), not(isProperty(C,'Coverage’,R)), writeErrorMessage(R).

1. Merge together the two facts bases:

model A (requirements) model B (design) rule to check

3. Run the Prolog engine

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 9

Benefits of the LMP approach

Generic solution for:
Model queries
Model constraints
Model transformations: M to M or M to T
Model exploration and architectural reasoning
Standard prolog language (ISO/IEC 13211-1)
Independent: compatible with the main meta-modelling formats (BNF, XSD, Ecore)
Declarative: rules oriented approach
Modular:
separate fact and rules bases
rules bases transitivity: e.g. Marte to Cheddar : Marte to AADL and AADL to Cheddar
Formal (boolean logic): appropriate for tool qualification
Flexible:
Supports heterogeneous models
Supports incomplete models (subsets)
Supports erroneous models (debugging)
Industrial return of experience of many off-line processing tools:
Airbus: LMP applied for the verification of DO-178 certified projects (A380, A350)
European Space Agency: used in the TASTE tool-chain
Honeywell: architecture reasoning
Ellidiss: AADL Inspector model adaptors and Stood code generators
Commercial support

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 10

AADL

Architecture Analysis and Design Language:

– Describes Systems with Hardware and Software components – Formal static and run-time semantics (real-time) – Textual and graphical notations

SAE aerospace division – AS-2C subcommittee:

– AADL 1.0 (AS 5506) 2004 – AADL 2.0 (AS 5506A) 2009 – AADL 2.1 (AS 5506B) 2012 – AADL 2.2 (AS 5506C) 2017 – AADL 3.0 : in preparation

Annex documents

– Annex A: ARINC 653 Interface (AS 5506/1A) 2015 – Annex B: Data Modelling (AS 5506/2) 2011 – Annex C: Code Generation Annex (AS 5506/1A) 2015 – Annex D: Behavior Annex (AS 5506/3) 2017 – Annex E: Error Model Annex v2 (AS 5506/1A) 2015

Online resources

– https://www.sae.org/standards/content/as5506c – http://www.openaadl.org

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 11

Off-line LMP plugins in AADL Inspector

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

LMP plugin category AADL semantic rules model checker AADL instance builder model exploration AADL ARINC 653 rules model checker UML MARTE to AADL model transformation SysML to AADL model transformation Capella to AADL model transformation AADL to Cheddar model transformation AADL to Marzhin model transformation AADL to OpenPSA model transformation AADL printer model unparser LAMP checker model checker

SLIDE 12

On-line LMP programs for AADL: the LAMP annex

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

package Ellidiss::ERTS2020::paper26::e1 public abstract A

- a LAMP annex at component level

annex LAMP {** /* standard prolog syntax */ **}; end A;

- a LAMP annex at package level

annex LAMP {** /* standard prolog syntax */ **}; end Ellidiss::ERTS2020::paper26::e1;

SLIDE 13

The LAMP stack

Prolog Engine Prolog Libraries LMP Facts LAMP Std Library

in AADL Packages

LAMP Checker

AADL Inspector plugin

LAMP Rules Libraries

in AADL Packages

LAMP Local Rules

in AADL Components

LMP Libraries

prolog byte code prolog source code uses

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 14

LAMP AADL Annex subclause:

Syntax: ANNEX LAMP {** /* standard prolog syntax */ **};
LAMP user defined libraries in AADL Packages
LAMP user defined local rules in AADL Components
No new langage to define and maintain
Direct access to the LMP low level API (all AADL model elements)
Can also work on incorrect models (debugging)

LAMP standard library: LAMPLib.aadl:

High level API to the AADL declarative model
High level API to the AADL instance model
High level API to the Behavior and Error annexes
API to analysis results (e.g. simulation traces)
Utility rules (printing, …)

LAMP support inside AADL Inspector

LAMP checker analysis plugin
LAMPLib is pre-loaded within the AADL "environment"
Available since A.I. 1.7 (http://www.ellidiss.com/downloads)

Inside LAMP

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 15

LAMP Std Lib (1/3)

package Ellidiss::LAMP::Declarative public annex LAMP {** getClassFeatures(Class,Name,Categ,FClass) :- … getClassSubcomponents(Class,Name,Categ,SClass) :- … getLocalProperties(Class,Name,Val,Owner) :- … … **}; end Ellidiss::LAMP::Declarative; package Ellidiss::LAMP::Instance public annex LAMP {** getRoot(Class) :- getInstances(Id,Categ,Class) :- … /* components */ getInstances(Id,Categ,Class) :- … /* features */ getProperties(Id,Class,Prop,Val) :- … … **}; end Ellidiss::LAMP::Instance;

returns all the features of a classifier (component type and ancestors) returns all the subcomponents

f a classifier (component

implementation and ancestors) returns all the properties of a classifier (comp. type and impl. and ancestors.) returns the root classifier (component implementation) returns all the component instances returns all the feature instances returns all the properties for the given instance element

AADL core language accessors

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 16

LAMP Std Lib (2/3)

package Ellidiss::LAMP::BA2 public annex LAMP {** getBAVariables(Class,Name,VClass,Value) :- … getBAStates(Class,Name,Initial,Complete,Final):- … getBADispatch(Class,Condition) :- … getBAComputation(Class,Duration) :- … … **}; end Ellidiss::LAMP::BA2; package Ellidiss::LAMP::EMV2 public annex LAMP {** getErrorTypes(Class,Name,Ancestor) :- … getErrorStates(Class,Name,TypeSet,Kind) :- … … **}; end Ellidiss::LAMP::EMV2;

AADL annexes accessors

returns all the BA variables of a classifier returns all the BA states of a classifier returns all the BA dispatch conditions of a classifier returns all the BA computation actions of a classifier returns all the known error types from within a classifier returns all the error states of a classifier

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 17

LAMP Std Lib (3/3)

package Ellidiss::LAMP::Analysis public annex LAMP {** getResponseTime(Id,Duration) :- … getPortValue(Id,Tick,Value) :- … … **}; end Ellidiss::LAMP::Analysis;

Other analysis tools feedback

returns the computed response time of a thread returns the computed response time of a thread

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 18

LAMP Example (1/6)

PACKAGE p PUBLIC SYSTEM IMPLEMENTATION s.i SUBCOMPONENTS a : PROCESS a.i; c : PROCESSOR c; PROPERTIES ACTUAL_PROCESSOR_BINDING => (REFERENCE(c)) APPLIES TO a; SCHEDULING_PROTOCOL => (RMS) APPLIES TO c; ANNEX LAMP {** write('hello!'), nl, getInstances(X,'THREAD',C), checkPeriod(X,C), checkWCET(X,C), checkDeadline(X,C), checkOverflow(X,C) **}; END s.i; … ANNEX LAMP {** checkPeriod(Id,Class) :- … checkWCET(Id,Class) :- … checkDeadline(Id,Class) :- … checkOverflow(Id,Class) :- … **}; END p;

rules to be checked in component (goal) local library rule in package (detailed in next slides)

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 19

LAMP Example (2/6)

THREAD t FEATURES i : IN DATA PORT d;

: OUT DATA PORT d;

PROPERTIES DISPATCH_PROTOCOL => Periodic; PERIOD => 15ms; DEADLINE => 8ms; COMPUTE_EXECUTION_TIME => 2ms..2ms; ANNEX Behavior_Specification {** VARIABLES v : d; STATES s : INITIAL COMPLETE FINAL STATE; TRANSITIONS t : s -[ON DISPATCH]-> s { rand!(v); computation(10ms); o := v }; **}; END t; ANNEX LAMP {** checkPeriod(Id,Class) :- getProperties(Id,Class,'DISPATCH_PROTOCOL','PERIODIC'), not(getProperties(Id,Class,'PERIOD',_)), write('periodic thread '), write(Id), write(' has no period'), nl, fail. checkPeriod(_,_). **}

AADL properties consistency

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 20

LAMP Example (3/6)

THREAD t FEATURES i : IN DATA PORT d;

: OUT DATA PORT d;

PROPERTIES DISPATCH_PROTOCOL => Periodic; PERIOD => 15ms; DEADLINE => 8ms; COMPUTE_EXECUTION_TIME => 2ms..2ms; ANNEX Behavior_Specification {** VARIABLES v : d; STATES s : INITIAL COMPLETE FINAL STATE; TRANSITIONS t : s -[ON DISPATCH]-> s { rand!(v); computation(10ms); o := v }; **}; END t; ANNEX LAMP {** checkWCET(Id,Class) :- getProperties(Id,Class,'COMPUTE_EXECUTION_TIME',W), getMinMax(W,_,M), getBAComputation(Class,V), timeToInt(M,A), timeToInt(V,B), A \= B, write('WCET inconsistency for thread '), write(Id), nl, write('( '), write(A), write(' != '), write(B), write(' )'), nl, fail. checkWCET(_,_). **}

consistency between core property and sublanguage

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 21

LAMP Example (4/6)

THREAD t FEATURES i : IN DATA PORT d;

: OUT DATA PORT d;

PROPERTIES DISPATCH_PROTOCOL => Periodic; PERIOD => 15ms; DEADLINE => 8ms; COMPUTE_EXECUTION_TIME => 2ms..2ms; ANNEX Behavior_Specification {** VARIABLES v : d; STATES s : INITIAL COMPLETE FINAL STATE; TRANSITIONS t : s -[ON DISPATCH]-> s { rand!(v); computation(10ms); o := v }; **};

END t;

ANNEX LAMP {** checkDeadline(Id,Class) :- getProperties(Id,Class,'DEADLINE',D), timeToInt(D,A), strToNum(A,B), getResponseTime(Id,R), strToNum(R,C), C > B, write('deadline missed for thread '), write(Id), nl, write('( '), write(C), write(' > '), write(B), write(' )'), nl, fail. checkDeadline(Id,Class). **}

consistency between property and simulation results

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 22

LAMP Example (5/6)

THREAD t FEATURES i : IN DATA PORT d;

: OUT DATA PORT d;

PROPERTIES DISPATCH_PROTOCOL => Periodic; PERIOD => 15ms; DEADLINE => 8ms; COMPUTE_EXECUTION_TIME => 2ms..2ms; LAMPExample2_Prop::MAX_VALUE => 80 APPLIES TO o; ANNEX Behavior_Specification {** VARIABLES v : d; STATES s : INITIAL COMPLETE FINAL STATE; TRANSITIONS t : s -[ON DISPATCH]-> s { rand!(v); computation(10ms); o := v }; **}; END t; ANNEX LAMP {** checkOverflow(Id,Class) :- concat(Id,'.o',F), getProperties(F,Class,'LAMPExample2_Prop::MAX_VALUE',M), getPortValue(F,T,V), strToNum(V,W), strToNum(M,N), W > N, , write('overflow of out data port '), write(F), sp, write(' at tick '), write(T), nl, write('( '), write(W), write(' > '), write(80), write(' )'), nl, fail. checkOverflow(Id,Class). **}

verflow detection from

simulation traces

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 23

LAMP Example (6/6)

PROCESS a FEATURES i : IN DATA PORT d;

: OUT DATA PORT d;

END a; PROCESS IMPLEMENTATION a.i SUBCOMPONENTS t1 : THREAD t; t2 : THREAD t; t3 : THREAD t; CONNECTIONS x : PORT i -> t1.i; y : PORT t1.o -> o; END a.i;

launch the LAMP checker view the AADL declarative model facts view the AADL instance model facts

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

SLIDE 24

LAMP: Logical AADL Model Processing

Ellidiss

Technologies

w w w . e l l i d i s s . c o m

Use standard prolog language a processing language for AADL
No new dedicated language to define & learn &maintain
Declarative syntax and formal semantics (ISO/IEC 13211)
Fully integrated within AADL declarative models (LAMP Annex)
Enhanced by processing libraries
User defined in local AADL package
User defined in other AADL packages of the project
Standard LAMPLib
Prolog byte code can be used for IP libraries
Complete access to model entities of AADL core and other annexes
Can merge several input data sets (requirements, analysis results, …)
In-line processing: can work on the actual model instance
Appropriate to specify customized assurance cases
Available since AADL Inspector 1.7 (LAMP Checker)
