The Evolution of Distributed Systems on Kubernetes Bilgin Ibryam Product Manager @RedHat @bibryam 1 Bilgin Ibryam Product Manager at Red Hat Former Architect/Consultant Committer at Apache Camel Author of Camel Design

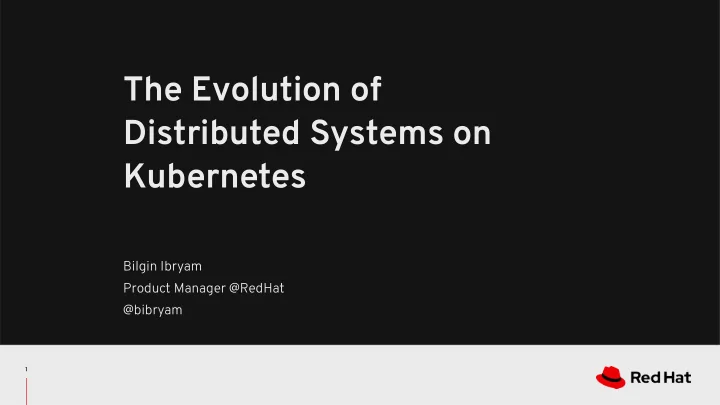

slide-1
SLIDE 1

Bilgin Ibryam Product Manager @RedHat @bibryam

The Evolution of Distributed Systems on Kubernetes

1

slide-2
SLIDE 2

@bibryam

Bilgin Ibryam

2

  • Product Manager at Red Hat
  • Former Architect/Consultant
  • Committer at Apache Camel
  • Author of “Camel Design Patterns” and

“Kubernetes Patterns” books

  • Latest interest: cloud native data

@bibryam

slide-3
SLIDE 3

What comes after Microservices?

3

slide-4
SLIDE 4

@bibryam

Agenda

4

  • Distributed system needs
  • Monolithic architectures
  • Cloud-native technologies

■ Kubernetes, Istio, Knative, Dapr

  • Future architecture trends
slide-5
SLIDE 5

@bibryam

5

Modern distributed applications

  • 100s of components and 1000s of instances
  • Polyglot, independent, and automatable components
  • Hybrid workloads on hybrid environments
  • Open source, open standards, and interoperable
  • Based on Kubernetes ecosystem
slide-6
SLIDE 6

What are the needs of distributed applications?

6

slide-7
SLIDE 7

@bibryam

7

Distributed application needs

slide-8
SLIDE 8

@bibryam

8

Distributed application needs

Lifecycle management

  • Deployment/rollback
  • Placement/scheduling
  • Configuration management
  • Resource/failure isolation
  • Auto/manual scaling
  • Hybrid workloads (stateless, stateful,

serverless, etc)

slide-9
SLIDE 9

@bibryam

9

Distributed application needs

Advanced networking

  • Service discovery and failover
  • Dynamic traffic routing
  • Retry, timeout, circuit breaking
  • Security, rate limiting, encryption
  • Observability and tracing
slide-10
SLIDE 10

@bibryam

10

Distributed application needs

Resource bindings

  • Connectors for APIs
  • Protocol conversion
  • Message transformation
  • Filtering, light message routing
  • Point-to-point, pub/sub interactions
slide-11
SLIDE 11

@bibryam

11

Distributed application needs

Stateful abstractions

  • Workflow management
  • Temporal scheduling
  • Distributed caching
  • Idempotency
  • Transactionality (SAGA)
  • Application state
slide-12
SLIDE 12

Monolithic architectures

12

slide-13
SLIDE 13

@bibryam

13

Traditional middleware capabilities

  • Stateful primitives
  • Resource bindings
  • Networking
slide-14
SLIDE 14

@bibryam

14

Traditional middleware limitations

  • Lifecycle management

○ Single, shared language runtime ○ Manual deployment/rollback ○ Manual placement ○ Manual scaling ○ No resource/failure isolation

slide-15
SLIDE 15

Cloud-native architectures

15

slide-16
SLIDE 16

@bibryam

16

Microservices and Kubernetes

slide-17
SLIDE 17

@bibryam

17

Microservices and Kubernetes

slide-18
SLIDE 18

@bibryam

Health probes

18

slide-19
SLIDE 19

@bibryam

Managed start/stop

19

slide-20
SLIDE 20

@bibryam

Declarative deployment

20

slide-21
SLIDE 21

@bibryam

21

Demands & placement

Predictable resource demand Automated placement

slide-22
SLIDE 22

@bibryam

22

Configuration management

  • ConfigMaps used in Pods as:

○ environment variables ○ volumes

  • Secrets:

○ Minimal Node spread ○ Only stored in memory in a tmpfs ○ Encrypted in the backend store (etcd) ○ Access can be restricted with RBAC

slide-23
SLIDE 23

@bibryam

23

Foundational kubernetes capabilities

More Kubernetes Patterns

  • Foundational patterns
  • Structural patterns
  • Configuration patterns
  • Behavioural patterns

(For more Kubernetes Patterns, check out the link at the end of the slides)

slide-24
SLIDE 24

@bibryam

Batch/Periodic Job

24

Hybrid workloads

Global Singleton Stateful Service Stateless Service

slide-25
SLIDE 25

@bibryam

25

Lifecycle capabilities

  • Deployment/rollback
  • Placement/scheduling
  • Configuration management
  • Resource/failure isolation
  • Auto/manual scaling
  • Hybrid workloads: stateless, stateful,

batch jobs, serverless

slide-26
SLIDE 26

How do we extend Kubernetes?

26

slide-27
SLIDE 27

@bibryam

27

Out-of-process extension mechanism

Deployment guarantees Lifecycle guarantees

slide-28
SLIDE 28

@bibryam

Sidecar

28

slide-29
SLIDE 29

@bibryam

Controller Pattern

29

Default schema

  • ReplicaSet
  • StatefulSet
  • Job, CronJob

Default controllers

  • replicaset
  • statefulset
  • job, cronjob

Managed resources state

  • Pod
  • PVC...

Custom controller -> Custom behaviour

slide-30
SLIDE 30

@bibryam

Operator Pattern

30

kind: ConfigWatcher apiVersion: k8spatterns.io/v1 metadata: name: webapp-config-watcher spec: configMap: webapp-config podSelector: app: webapp

Custom operator

  • Go
  • Helm
  • Ansible
  • Java
  • Python

Custom application

  • AI/ML
  • Big Data
  • Storage
  • Streaming
  • Monitoring

CustomResourceDefinition + Controller = Operator

slide-31
SLIDE 31

Kubernetes based platforms

31

slide-32
SLIDE 32

@bibryam

32

What is Service Mesh?

slide-33
SLIDE 33

@bibryam

33

What is Service Mesh?

slide-34
SLIDE 34

@bibryam

34

What is Service Mesh?

slide-35
SLIDE 35

@bibryam

35

What is Service Mesh?

slide-36
SLIDE 36

@bibryam

36

Networking capabilities

API Gateway Service Mesh

Abstract away details and decouple consumers from implementations

  • Controls what’s allowed in/out
  • Bridging security domains
  • Request / response transformation
  • Protocol, data format transformation
  • API composition
  • Rate limiting

Enhances the reliability and the visibility of the networking interactions

  • Telemetry, tracing collection
  • Service discovery, load balancing
  • TLS termination/origination
  • Request routing, traffic splitting
  • Traffic shadowing
  • Rate limiting
slide-37
SLIDE 37

@bibryam

37

What is Knative?

Serving Common infrastructure for request-driven interactions that can "scale to zero". Eventing Common infrastructure for consuming and producing events declaratively.

Kubernetes-based platform to deploy, and manage serverless workloads.

slide-38
SLIDE 38

@bibryam

38

Knative Serving concepts

  • Scale-to-zero & activation
  • Rapid autoscaling
  • Traffic splitting
  • Callable by Knative eventing
  • Simplified deployment model

○ Single Port ○ No PersistentVolumes ○ Single Container

apiVersion: serving.knative.dev/v1alpha1 kind: Service metadata: name: lotto spec: replicas: 1 selector: matchLabels: app: lotto template: metadata: labels: app: lotto spec: containers:

  • image: cds19/lotto
slide-39
SLIDE 39

@bibryam

39

Knative Eventing concepts

  • Sources (Kafka, CronJob, Apache Camel 200+, etc)
  • Broker implementations (In-memory, Kafka, etc)
  • CloudEvents data format
  • Trigger with filters
  • Sequence: chaining multiple steps composed of

containers

slide-40
SLIDE 40

@bibryam

40

Lifecycle, networking, binding capabilities

  • Knative Serving

○ Simplified deployment for stateless workloads ○ Traffic based autoscaling including Scale-to-Zero ○ Traffic splitting for custom rollout / rollback scenarios

  • Knative Eventing

○ External triggers for feeding Knative Services ○ Based on CloudEvents ○ Backed by proven messaging systems ○ Declarative messaging infrastructure

slide-41
SLIDE 41

@bibryam

41

What is Dapr?

Sidecar architecture Developer first, standard APIs used from any programming language or framework. Building blocks Make it easy for developers to create microservice without being an expert in distributed systems.

A portable runtime for building distributed applications.

slide-42
SLIDE 42

@bibryam

42

Dapr building blocks

Distributed Tracing See and measure the message calls across components and networked services Service Invocation Act as a reverse proxy with built-in service discovery, tracing and error handling Publish & Subscribe Secure, scalable messaging between services Resource Bindings Trigger code through events from input and output bindings to external resources. Actors Encapsulate code and data in reusable actor objects as a common microservices State Management Provides a key/value-based state API with pluggable state stores for persistence

slide-43
SLIDE 43

@bibryam

43

Dapr architecture

Source: https://github.com/dapr/docs

slide-44
SLIDE 44

@bibryam

44

Dapr on Kubernetes

Source: https://github.com/dapr/docs

slide-45
SLIDE 45

@bibryam

45

Full circle

  • Centralized control plane
  • Centralized data plane
  • Centralized control plane
  • Decentralized, highly-scalable data plane

Service discovery Dynamic routing Resiliency Observability Deployment Placement Config mgmt Scaling Bindings State abstraction Pub/Sub Observability Connectors Eventing Filtering Serverless

slide-46
SLIDE 46

Future cloud native trends

46

slide-47
SLIDE 47

@bibryam

47

Lifecycle trends

Source: https://operatorhub.io

slide-48
SLIDE 48

@bibryam

  • Introduction of Service Mesh Interface specification
  • Architecture consolidation of Istio with istiod
  • More L7 protocols: MongoDB, DynamoDB, ZooKeeper, MySQL, Redis, Kafka(8188)

○ KIP-559 can enable bridging, validation, encryption, filtering, transformation

  • HTTP Cache filter (eCache)
  • HTTP tap filter (with matcher)
  • WebAssembly (wasm) filters with dynamic loading (C++ -> Rust, Go, etc)

48

Networking trends

slide-49
SLIDE 49

@bibryam

49

Binding trends

Dev Environment Cloud kamel CLI Camel K Operator Custom Resource Running Pod Fast redeploy! Less than 1 second!

  • from:

uri: "direct:route" steps:

  • split:

tokenize: ","

  • to: "mock:split"

Camel-K Operator: 1. Choose a runtime 2. Scaffold a project 3. Add boilerplate 4. Add dependencies 5. Create container image 6. Create Kubernetes resources for deployment

Source: https://github.com/apache/camel-k Live updates!

slide-50
SLIDE 50

@bibryam

50

State trends

Source: https://github.com/cloudstateio/cloudstate

slide-51
SLIDE 51

What does all this mean?

51

slide-52
SLIDE 52

@bibryam

52

Multi-runtime microservices are here

slide-53
SLIDE 53

@bibryam

53

Smart sidecars and dumb pipes

slide-54
SLIDE 54

@bibryam

54

What comes after Microservices?

slide-55
SLIDE 55

Thank You

55

@bibryam https://k8spatterns.io
