SLIDE 1
T
- m Manville | April 25th, 2018
2

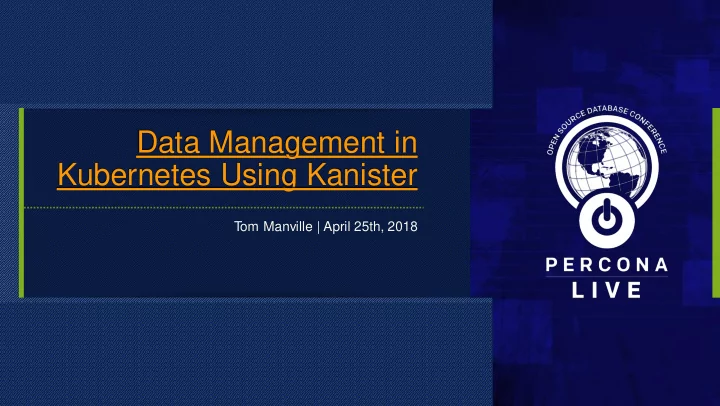

Data Management in Kubernetes Using Kanister T om Manville | April - - PowerPoint PPT Presentation
Data Management in Kubernetes Using Kanister T om Manville | April - - PowerPoint PPT Presentation
Data Management in Kubernetes Using Kanister T om Manville | April 25th, 2018 2 3 4 yes* 5 Database Operations in Kubernetes kanister.io 6 Agenda Background DB in a container DB in Kubernetes Kanister Use
SLIDE 2
SLIDE 3
3
SLIDE 4
4
SLIDE 5
5
yes*
SLIDE 6
6
Database Operations in Kubernetes
kanister.io
SLIDE 7
7
Agenda
- Background
- DB in a container
- DB in Kubernetes
- Kanister
- Use Cases
- Components
- Walkthrough
- Demo
SLIDE 8
8
whoami
SLIDE 9
9
DB in a Container
$ docker run -d \ percona/percona-server:5.7
SLIDE 10
10
DB in a Container
$ docker run -d \ –v /local/datadir:/var/lib/mysql \ percona/percona-server:5.7
SLIDE 11
11
Cloud Native
- Container Package
- Dynamically Managed
- Micro-Services Oriented
SLIDE 12
12
SLIDE 13
13
SLIDE 14
14
SLIDE 15
15
Requirements
https://kubernetes.io/ https://github.com/kubernetes/kubernetes https://www.helm.sh/ https://github.com/kubernetes/helm
SLIDE 16
16
DB in Kubernetes
$ helm install stable/percona
SLIDE 17
17
Application Centric Use Cases
- Portability between cloud providers
- Testing on real data
- Filtering
- Masking
- Backup/Recover
- Distributed point-in-time consistency
- Incremental backups
SLIDE 18
18
Install Kanister
$ helm install stable/kanister-operator $ helm repo add kanister http://charts.kanister.io
SLIDE 19
19
Kanister DB Charts
$ helm install kanister/kanister-mysql \
- -set kanister.s3_bucket="mysql-backup-bucket"
\
- -set kanister.s3_api_key="${AWS_ACCESS_KEY_ID}"
\
- -set kanister.s3_api_secret="${AWS_SECRET_ACCESS_KEY}" \
SLIDE 20
20
Kanister Components
API Objects
- ActionSet
- Blueprints
- Profiles (coming soon!)
- Locations
- Credentials
Controller
- Watches for new API objects
- Launches actions
- Creates events / logs status
SLIDE 21
21
Controller Blueprint Database
SLIDE 22
22
Controller Blueprint CLI Database
SLIDE 23
23
ActionSet Controller Blueprint CLI Database
SLIDE 24
24
ActionSet Controller Blueprint CLI Database
SLIDE 25
25
ActionSet Controller Blueprint CLI Database
SLIDE 26
26
ActionSet Controller Blueprint Action CLI Database
SLIDE 27
27
ActionSet Controller Blueprint Action CLI Database
SLIDE 28
28
ActionSet Controller Blueprint Action CLI Database
SLIDE 29
Demos
Click to add text
SLIDE 30
30
An Abridged ActionSet
spec: actions:
- name: backup
blueprint: mysql-blueprint
- bject:
kind: Deployment name: mysql-sakila namespace: video-store-app status: ...
SLIDE 31
31
backup: phases:
- func: KubeExec
args:
- "{{ .Deployment.Namespace }}"
- "{{ index .Deployment.Pods 0 }}"
- kanister-sidecar
- bash
- -c
- |
s3_path="s3://${S3_BUCKET}/{{ .ArtifactsOut.mysqlCloudDump.path }}" s3_cmd=(aws "${S3_VERIFY_SSL}" s3 cp - "${s3_path}") mysqldump --password="${MYSQL_ROOT_PASSWORD}" | gzip - | ${s3_cmd[@]}
Blueprint: Backup
SLIDE 32
32
restore: phases:
- func: KubeExec
args:
- "{{ .Deployment.Namespace }}"
- "{{ index .Deployment.Pods 0 }}"
- kanister-sidecar
- bash
- -c
- |
s3_path="s3://${S3_BUCKET}/{{ .ArtifactsIn.mysqlCloudDump.path }}" s3_cmd=(aws "${S3_VERIFY_SSL}" s3 cp "${s3_path}" -) ${s3_cmd[@]} | gunzip -c - | mysql --password="${MYSQL_ROOT_PWD}"
Blueprint: Restore
SLIDE 33
33
Chaining ActionSets
$ kanctl perform restore --from backup-mysql-04-23
SLIDE 34
34
Database Operations in Kubernetes
kanister.io
SLIDE 35
35
Try Kanister Today!
- Site: https://kanister.io/
- Github: https://github.com/kanisterio/kanister
- Docs: https://docs.kanister.io/
- Slack: https://kasten.typeform.com/to/QBcw8T
SLIDE 36
Backup Slides
Click to add text
SLIDE 37
37
SLIDE 38
38
SLIDE 39
39
SLIDE 40
40
Common Databases
SLIDE 41
41
SLIDE 42
42
