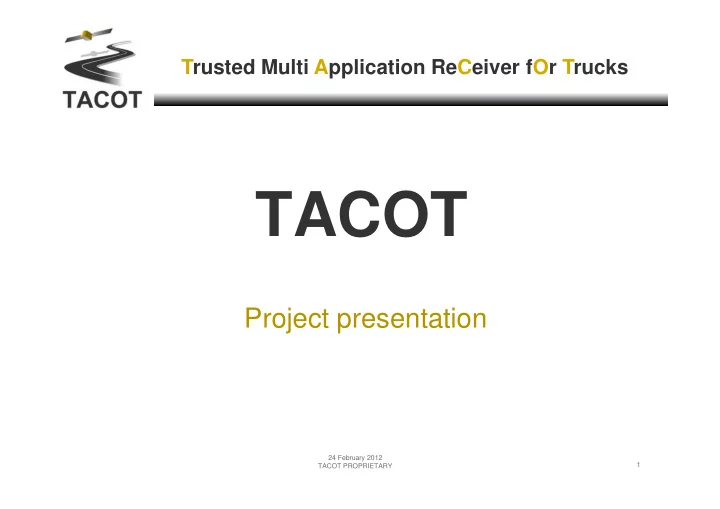

SLIDE 1

Trusted Multi Application ReCeiver fOr Trucks

TACOT

24 February 2012 TACOT PROPRIETARY 1

Project presentation

SLIDE 2

Presentation outline

1. Objectives and motives
2. End results
3. Scope
4. Market potential

2

5. Approach
6. Consortium
7. Contact information

SLIDE 3

Objectives and motives

Context: TACOT is a project co-funded by the European Commission in the frame

f FP7 (Galileo area) and managed by the European GNSS Agency (GSA).

Objective: TACOT aspires to prepare the introduction and promote the use of EGNOS and Galileo in the road transportation industry through the realisation of a Trusted GNSS function to be used by the Digital Tachographs (DT).

3

Market interest: the integration of the TACOT trusted GNSS function in DT and/or existing ITS applications and services will directly benefit to the road

community. It allows the use of GNSS in applications requiring a minimum level of

confidence in the PVT information: In the specific case of Tachographs, this solution will notably offer the possibility to record positions of start and end of trucks’ journeys as requested by regulation It will also benefits to other ITS domains (regulated or not) such as: PAYD, Anti-theft systems, Fleet Management Systems. Furthermore, it shall also benefit Industry by authorizing new applications and services using the trusted PVT for a low cost

SLIDE 4

1. Objectives and motives
2. End results
3. Scope
4. Market potential

Presentation outline

4

5. Approach
6. Consortium
7. Project identity

SLIDE 5

End results (1/2)

1. Design a trusted GNSS function to be implemented in the commercial

vehicles and modify an existing DT design to take into account this new capability

2. Ensure that the new design do not compromise the security
3. Draft PVT module and extended DT interface specifications to embed

the trusted GNSS function into the commercial vehicles system architecture

5

4. Develop a prototype of extended DT including the trusted GNSS function

and the interface it with a third party ITS application (including validation)

5. Propose as inputs to the ad-hoc standardisation bodies the “Trusted

GNSS” protection profile and the new extended “DT” and “Trusted GNSS function” interface specifications

6. Propose solutions for the next EU regulatory framework about DT if

needed

SLIDE 6

End results (2/2)

TACHOGRAPH

Storage Odometer

Interface Protocol Appli 1 Fleet Management Appli 2 PAYD Insurance

GNSS

6

Prototype augmented tachograph

Trusted PVT

Appli 3 Road Tolling Other applications...

GNSS Other sensors

Interface Protocol

Existing Developed in TACOT Enabled by TACOT

SLIDE 7

1. Objectives and motives
2. End results
3. Scope
4. Approach

Presentation outline

7

5. Market potential
6. Consortium
7. Project identity

SLIDE 8

Scope

The TACOT project will bring innovation in three different domains:

Sensors fusion

The TACOT project will be the first implementation of the Bayesian techniques to merge several sensors outputs, including GNSS data, to make it as robust as a digital tachograph (security level EAL4+).

PVT confidence

TACOT will offer a unique mean to get real time, continuous, precise and

8

TACOT will offer a unique mean to get real time, continuous, precise and low cost PVT information associated to a level of confidence in for the road domain.

Digital Tachograph

More reliable location data and better detection of tachograph manipulation.

Other ITS applications

More reliable location data and better detection of location data manipulation.

SLIDE 9

Presentation outline

1. Objectives and motives
2. End results
3. Scope
4. Market potential

9

5. Approach
6. Consortium
7. Project identity

SLIDE 10

Market potential

The DT market The DT market already exists and represents grossly 1 to 2 million new units per year in the EU-27, for a value of several hundreds of M€. Number of Transport Companies Freight Transport Companies (EU-27): 608 713 Passengers Transport Companies (EU-27): 336 517

10

Passengers Transport Companies (EU-27): 336 517 Number of Registered Vehicles in EU-27: 2007 Bus & coaches: 797 600 Goods: 33 193 600 2008 Bus & coaches: 816 900 Goods: 33 970 300 33.3 million vehicles in the EU equipped with a tachograph ACEA : 500,000 new commercial vehicles with a digital tachograph each year (2009)

SLIDE 11

Presentation outline

1. Objectives and motives
2. End results
3. Scope
4. Market potential

11

5. Approach
6. Consortium
7. Project identity

SLIDE 12

WP 2000: Market & Regulatory requirements

WP2100: Policy & Regulatory Req.
WP2200: Market Study

WP 5000: Exploitation

WP5100: Business & exploitation plan
WP5200: Dissemination
WP5300: Standardisation

Approach (1/2)

5 Work packages

WP 1000: Management

(General & Technical)

WP 1000: Management

(General & Technical)

12

WP2200: Market Study
WP2300: Users needs & spec.
WP5300: Standardisation

WP 3000: Design & Development

WP3100: Design & Development Plan
WP3200: Augmented DT interface definition
WP3300: Secure PVT function
WP3400: Tachograph evolution
WP3500: Fleet Management System

WP 4000: Integration & Validation

WP4100: Assembly, Integration &

Validation Plan

WP4200: Integration
WP4300: Test & Validation

SLIDE 13

Approach (2/2)

13

SLIDE 14

1. Objectives and motives
2. End results
3. Scope
4. Market potential

Presentation outline

14

4.

5. Approach
6. Consortium
7. Project identity

SLIDE 15

Consortium

12 partners and 3 Advisory Organisms for broad expertises

Tachograph Industry Fleet management provider Business & Exploitation plan Security certification

15

GNSS dev & sensor fusion Users representatives Legal & regulatory aspects Technical development Technical development Test & Validation Test & Validation Support to Commercialisation Support to Commercialisation

SLIDE 16

1. Objectives and motives
2. End results
3. Scope
4. Market potential

Presentation outline

16

5. Approach
6. Consortium
7. Project identity

SLIDE 17

Project identity

Grant Agreement Number N°287180 Project acronym: TACOT Project title: Trusted Multi Application Receiver for Trucks COLLABORATIVE PROJECT

17

Funding Scheme: COLLABORATIVE PROJECT GALILEO-2011-1.2-01 AREA 7.4.1.2 PROFESSIONAL APPLICATIONS Period covered: January 2012 - January 2014 Total budget 2 502 053 € EC funded budget: 1 397 602 € (56%) E-mail: steeve.favre@fdc.eu

SLIDE 18

Market potential

THANK YOU FOR YOUR ATTENTION

18

THANK YOU FOR YOUR ATTENTION
