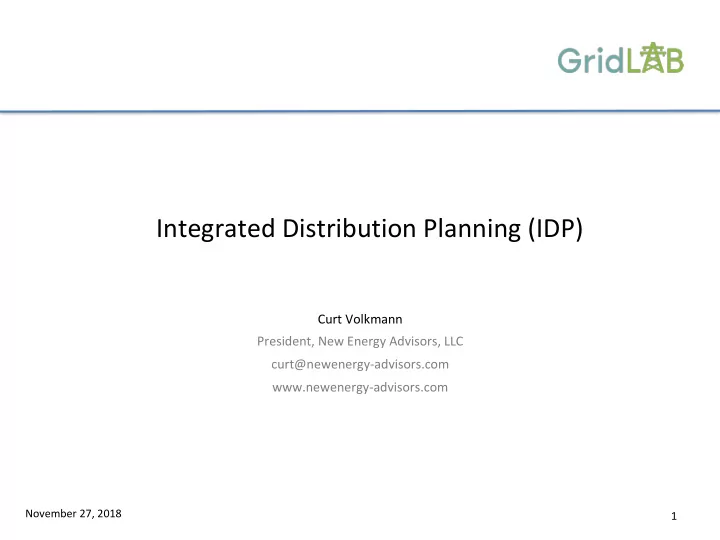

Integrated Distribution Planning (IDP)

Curt Volkmann President, New Energy Advisors, LLC curt@newenergy-advisors.com www.newenergy-advisors.com

1

November 27, 2018

DER Growth and its Implications

2

• Significant growth in distributed generation, EE, DR, CHP, EVs, energy

storage, microgrids

• Increased flexibility
• Increased complexity of distribution system planning and operations
• New opportunities for customers and third parties to provide Local

Distribution Grid Services, reducing the need for ratepayer-funded capital investments

– Distribution capacity or peak load reduction – Voltage regulation – Reliability/resilience – Hosting capacity

November 27, 2018

Small and Targeted Investment

3

Source: SolarCity Grid Engineering, 2016

November 27, 2018

Targeted Demand Response

4

Individual customers providing and receiving compensation for Local Distribution Grid Services to reduce costs for all customers …

November 27, 2018

Key Question for Regulators

5

To what extent will you establish an open, competitive market for customers and third parties to provide Local Distribution Grid Services?

November 27, 2018

From today’s Distribution Planning …

6

Load Forecasting System Assessment Solution Identification Grid Needs Identification Project Design and Construction

Distribution Planning

System Monitoring and Control DG Interconnection EE/DR Programs

November 27, 2018

… to Integrated Distribution Planning

7

Load and DER Forecasting System Assessment Solution Identification including Non-Wires Alternatives (NWA) Grid Needs and Locational Value Identification Project Design and Construction Hosting Capacity Analysis

Integrated

Distribution Planning

System and DER Monitoring and Control NWA Acquisition DG Interconnection EE/DR Programs

November 27, 2018

New IDP Capabilities

8

Capability Description

1) Advanced Forecasting and System Modeling Probabilistic planning and DER adoption scenario analyses; more granular load and power flow modeling; enhanced modeling of new smart inverter capabilities; and the ability to monitor, manage and

• ptimize DER connected to the system.

2) Hosting Capacity Analysis Determining how much additional DER each distribution circuit can accommodate without requiring upgrades. 3) Disclosure of Grid Needs and Locational Value Identification and publication of opportunities for DER to provide grid services as non-wires alternatives; identification and publication of locations on each circuit where DER deployment can provide grid benefits. 4) New Solution Acquisition Acquiring or sourcing DER to provide grid services using pricing, programs or procurement. 5) Meaningful Stakeholder Engagement Establishing processes for open dialogue, transparent information sharing, collaboration, and consensus building among stakeholders.

November 27, 2018

Load Forecasting Today

9

90% 80% 70% 60% 50% 40% 30% 20% 10% 0%

YEAR % UTILIZATION

2004 2008 2012 2016 2020 2024 2028 2032 2036

75% utilization is the desired maximum 70% utilization or less is preferred for operational flexibility

ACTUAL DEMAND FORECAST DEMAND CONSERVATIVE FORECAST MAXIMUM % UTILIZATION DESIRED % UTILIZATION

FIGURE 3. Typical Distribution Load Forecasting Results

November 27, 2018

New IDP Capabilities

10

Capability Description

1) Advanced Forecasting and System Modeling Probabilistic planning and DER adoption scenario analyses; more granular load and power flow modeling; enhanced modeling of new smart inverter capabilities; and the ability to monitor, manage and

• ptimize DER connected to the system.

2) Hosting Capacity Analysis Determining how much additional DER each distribution circuit can accommodate without requiring upgrades. 3) Disclosure of Grid Needs and Locational Value Identification and publication of opportunities for DER to provide grid services as non-wires alternatives; identification and publication of locations on each circuit where DER deployment can provide grid benefits. 4) New Solution Acquisition Acquiring or sourcing DER to provide grid services using pricing, programs or procurement. 5) Meaningful Stakeholder Engagement Establishing processes for open dialogue, transparent information sharing, collaboration, and consensus building among stakeholders.

November 27, 2018

Hosting Capacity Results

11

November 27, 2018

New IDP Capabilities

12

Capability Description

1) Advanced Forecasting and System Modeling Probabilistic planning and DER adoption scenario analyses; more granular load and power flow modeling; enhanced modeling of new smart inverter capabilities; and the ability to monitor, manage and

• ptimize DER connected to the system.

2) Hosting Capacity Analysis Determining how much additional DER each distribution circuit can accommodate without requiring upgrades. 3) Disclosure of Grid Needs and Locational Value Identification and publication of opportunities for DER to provide grid services as non-wires alternatives (NWA); identification and publication of locations on each circuit where DER deployment can provide grid benefits. 4) New Solution Acquisition Acquiring or sourcing DER to provide grid services using pricing, programs or procurement. 5) Meaningful Stakeholder Engagement Establishing processes for open dialogue, transparent information sharing, collaboration, and consensus building among stakeholders.

November 27, 2018

New IDP Capabilities

13

Capability Description

1) Advanced Forecasting and System Modeling Probabilistic planning and DER adoption scenario analyses; more granular load and power flow modeling; enhanced modeling of new smart inverter capabilities; and the ability to monitor, manage and

• ptimize DER connected to the system.

2) Hosting Capacity Analysis Determining how much additional DER each distribution circuit can accommodate without requiring upgrades. 3) Disclosure of Grid Needs and Locational Value Identification and publication of opportunities for DER to provide grid services as non-wires alternatives (NWA); identification and publication of locations on each circuit where DER deployment can provide grid benefits. 4) New Solution Acquisition Acquiring or sourcing DER to provide grid services using pricing, programs or procurement. 5) Meaningful Stakeholder Engagement Establishing processes for open dialogue, transparent information sharing, collaboration, and consensus building among stakeholders.

November 27, 2018

New IDP Capabilities

14

Capability Description

1) Advanced Forecasting and System Modeling Probabilistic planning and DER adoption scenario analyses; more granular load and power flow modeling; enhanced modeling of new smart inverter capabilities; and the ability to monitor, manage and

• ptimize DER connected to the system.

2) Hosting Capacity Analysis Determining how much additional DER each distribution circuit can accommodate without requiring upgrades. 3) Disclosure of Grid Needs and Locational Value Identification and publication of opportunities for DER to provide grid services as non-wires alternatives (NWA); identification and publication of locations on each circuit where DER deployment can provide grid benefits. 4) New Solution Acquisition Acquiring or sourcing DER to provide grid services using pricing, programs or procurement. 5) Meaningful Stakeholder Engagement Establishing processes for open dialogue, transparent information sharing, collaboration, and consensus building among stakeholders.

November 27, 2018

Getting Started with IDP

15

• Establish clear objectives and guiding principles
• Require utility reports to understand current capabilities

– Planning methods and tools; spending categories and amounts; proposed HCA use cases; NWA suitability criteria and pilots

• Establish IDP Technical Working Group(s)

– DER adoption and growth scenarios; smart inverter functions and settings; NWA suitability criteria and process for pilots; HCA use cases, methodology, timeline for implementation; development of data sharing portals

November 27, 2018

Additional resources …

https://gridlab.org/publications/

November 27, 2018

Additional resources (continued) …

… plus RMI’s upcoming NWS Playbook
