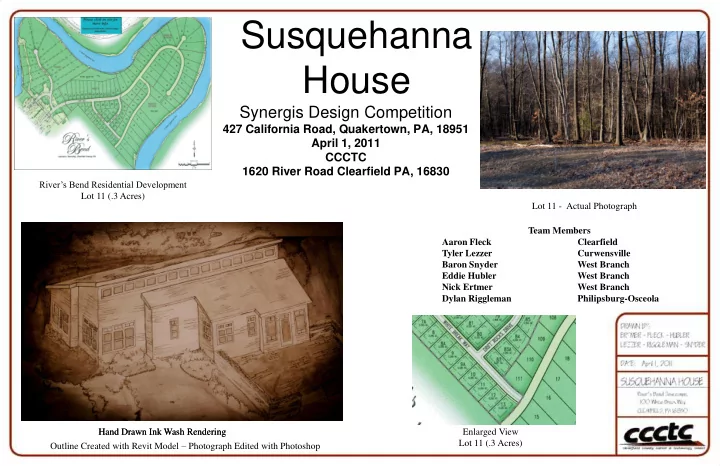

Susquehanna House

Synergis Design Competition

427 California Road, Quakertown, PA, 18951 April 1, 2011 CCCTC 1620 River Road Clearfield PA, 16830

Team Members Aaron Fleck Clearfield Tyler Lezzer Curwensville Baron Snyder West Branch Eddie Hubler West Branch Nick Ertmer West Branch Dylan Riggleman Philipsburg-Osceola River‟s Bend Residential Development Lot 11 (.3 Acres) Lot 11 - Actual Photograph Enlarged View Lot 11 (.3 Acres) Hand Drawn Ink Wash Rendering Hand Drawn Ink Wash Rendering Outline Created with Revit Model – Photograph Edited with Photoshop

Preliminary Design Criteria

General

1100 Square Feet Front Door Facing Road ADA Requirements LEED Considerations Plan Layout Building Products Construction Methods Appearance Cost Considerations Materials Construction

Kitchen

Approximately 200 Square Feet Southern Maximum Natural Lighting ADA Compliant – Kraftmaid Passport Series L or U shaped Integral Laundry

Bathroom

Walk in Bathtub ADA Grab Bars Approximately 75 Square Feet

Foyer

Place to Walk in Closet for Storing Shoes Approximately 50 Square Feet

Master Bedroom

Approximately 200 Square Feet Bigger then Other Bedroom

Guest Room/Hobby

Approximately 150 Square Feet Two Purpose Room

Living room

Open to Kitchen/Dining Room.

Dining/Garden

Garden for Scenery Southern Side for Natural Lighting Approximately 200 Square Feet

Exterior Renderings

Floor Plan

The final floor plan evolved from our preliminary design criteria. The most challenging thing was to keep the basic layout and stay within 1100 square feet total area while using modular dimensions.

Area Plan

Kitchen Design

Wall Color: „Sherwin Williams' “Energetic Orange” The Team Chose Kraftmaid Passport Series Cabinetry For Several Reasons:

• Known for Quality
• Availability
• ADA Compliant
• Large Selection

Floor: “Mohawk” “Bamboo” Stain: “Burnished Ginger” Cabinet Style: “Arlington Maple Miter-Door Style” Counter Top: Dow –Quartz “Mineral Pearl”

Base 2 Pull Width Trays Waste basket Pantry pull out Washer & Dryer

Energy Star Compliant, and ADA Compliant

Refrigerator

ADA Compliant And Energy Star Compliant

Dishwasher

ADA compliant And Energy Star Compliant

Stove

ADA complaint, and Energy Star Compliant

Base 3 drawer Sink Base Dish washer cabinet

• Wall Color

“Sherwin Williams' “Energetic Orange”

Floor:

“Bamboo”

Ceiling;

“Sherwin Williams” “Morning sun”

Kitchen Design

Living Room

Wall Colors: „Sherwin Williams‟ “Energetic Orange” & “Morning Sun” Ceiling: „Sherwin Williams‟ “Morning Sun” Floor: “Bamboo”

Dining Room

Wall Colors: „Sherwin Williams‟ „Energetic Orange” & “Morning Sun” Ceiling: „Sherwin Williams‟ “Morning Sun” Floor: Bamboo Glen Gery “St. Augustine “

Thin Brick

Master Bedroom

Master Bedroom Carpet: „ShawFloor‟ “Copper Crest” Master Bedroom Wall Color2: „Sherwin Williams‟ “Muslin” Master Bedroom Ceiling Color: „Sherwin Williams‟ “Muslin” Master Bedroom Wall Color: „Sherwin Williams„ “Fire Works”

Spare Bed Room / Hobby Room

Spare Bed room Wall Color: „Sherwin Williams' “Stream” Spare Bedroom Wall / Ceiling color: „Sherwin Williams‟ “Muslin”

Bathroom

Bathroom Flooring Color: „Mohawk‟ “Slate” Bathroom Wall Color: „Sherwin Williams‟ “Rhapsody Lilac” Bathroom Ceiling Color: „Sherwin Williams‟ “Whimsical White”

Foyer

Foyer Wall Color: „Sherwin Williams‟ “Overjoy” Foyer Ceiling: „Sherwin Williams‟ “Full Moon” Dining Room Floor: “Bamboo”

Building Section

• We chose to make a single story house with no

basement because the occupants wouldn‟t be able to use a basement and it would cost a lot more money than using slab

• n grade construction.
• We looked at many different foundation options but

decided to use 10” CMU‟s because they‟re cost efficient, a natural material and are made only 3 miles from our building site.

• We used 2x4 studs @ 24” OC for our walls because it

uses less materials, it is cost efficient , and we chose NU- WOOL for the cavity because it has a high R- Value and makes a very dense wall.

• We agreed on using thin brick veneer because it is

cost efficient ,it is made only 7 miles from our building site, it is very durable, requires little to no maintenance and still has the same great look of brick but uses a lot less natural material.

• We chose Hardie Board siding because it resists

damage from insects, wind and hail, water resistant ,it can not catch fire, good in cold climate and humid climates, requires little maintenance and creates a dense wall.

• We chose SIPs panels because we have a cathedral

ceiling and wanted the massive beams to be shown and because the greatly decrease heating and cooling costs

• We used 2” EPS below the slab because it is water

resistance, and has a high compressive strength.

Wall Section

Wall Section

Roof Design

ATAS International, Inc 6612 Snowdrift Road Allentown Pa 18106 (610) 395-8445 SUSTAINBLE BUILDING PRODUCTS ATAS INTERNATIONAL, INC

• ATAS – “Scan Roof”
• Metal Roofing Panels
• “Medium Bronze”
• “ATAS” Metal Roofing Panels
• Model: Scan Roof – SCP163
• Color: Medium Bronze
• Cedar Shake Look
• LEED Points

– LESS NEED FOR REPLACEMENT – RECYCLED CONTENT – LOCAL MANUFACTURER – LESS WASTE – LESS SAVINGS ON HEATING AND COOLING COSTS

• Reasons for choosing Pella

– Triple Pane Window – More Energy Efficient – Enviromently Friendly – Superior Noise Reduction

• Styles

– Awning – Double-Hung – Casement – Fixed

• Designer Series

– Exclusive Snap-In Between-The-Glass Blinds and Fabric Shades – Decorative Panels and Grilles – Triple-Pane for Energy Efficiency

Awning Casement Double-Hung

Windows

LEED

• Ceiling

– Paint

• Contains low VOC
• Walls

– Paint

• Contains low VOC

– Insulation

• Dow Styrofoam
• Nu-Wool – Recycled Content
• Flooring

– Carpeting

• The Carpeting we chose called “Smart

Strand” by Mohawk is made with corn starch

• It has very low VOC

– Bamboo

• The reason we used bamboo is because

it is a highly renewable resource and it has great durability

Interior Materials Exterior Materials

• Siding
• Hardie Board
• Made locally
• No VOC
• Low Maintenance
• Outsanding Durability
• Glen-Gray Thin-Brick
• Natural Materials
• No VOC
• Low Maintenance
• Made 7 Miles from Building Site
• Less Material than standard brick

Other Considerations

• Location

– House is close to shopping, Hospital, Parks, Entertainment, Restaurants

• Construction

– Energy efficient design with standard construction methods

• Overall Layout

– Southern exposure – Small square footage – Efficient design – Central plumbing

• Content

– Energy Star appliances – Efficient heating and cooling systems

• Promotion

– We setup a website for the project and will be adding content after project is submitted – http://susquehannahouse.wordpress.com/

American National Standard

Accessible and Usable Buildings and Facilities

306.2 Toe Clearance 609 Grab Bars

• Designed as per; Chapter 10 Dwelling and Sleeping Units
• 402 Accessible Route maintained throughout residence
• All appliances ADA compliant
• All Plumbing fixtures ADA compliant

American National Standard Accessible and Usable Buildings and Facilities

Section 404 Doors & Doorways

Software

• Autodesk Revit Architecture

– Construct 3D model – various components

• Custom Walls, Roofs,

Windows, Site

• Documentation: Renderings,

Plans, Sections, Etc. – Generate sections and details – Walkthrough

• Photoshop

– Picture Adjustment – Rendering enhancement

• Microsoft Power Point

– Presentations

• Autodesk 3Ds Max Design

– Renderings

• Autodesk Autocad

– Custom components

• Ink wash
• Learned the basic of developing an ink wash design
• Insulation and R values
• We learned about R-Values and how they relate to

building materials

• We followed the guidelines in the 2009 International

Residential Code: Table 1102.1 Insulation and Fenestration Requirements by Component

• Zone 6
• Wood Frame Wall R-Value – 13+5 (meaning 13

in the wall cavity and 5 insulated sheathing) or 20

• Slab R-Value: R10 – 4 Feet Deep
• We looked at various insulation types and buildings

methods and decided to use cavity insulation with insulated sheathing to reduce the amount of materials used and reduce potential for stud ghosting.

• Standard Residential Construction Methods
• Slab on grade
• Wood frame construction
• Sips
• CMU Foundation
• ADA codes
• How to design a house to be ADA compliant
• Kitchen Design
• The different shapes of kitchen L, U - Island
• Various door styles, finishes, materials
• Countertop types
• Manufacturers
• Plumbing Fixtures – How to choose ADA compliant
• Residential Design
• Open plans, Living – Service – Sleeping Areas
• Bubble Plans
• Windows
• Window frames: Wood, Aluminum
• Different styles of Window grills
• Different window panes (multiple panes)
• Different styles of windows and how they are used

in different ways

• You can fill double pane with argon to increase the

R value.

• You can put low E inside or outside the window or

both to allow light through that blocks UV rays and radiation

• Egress Requirements
• Manufactures
• LEED points
• We learned how the point system works and how

to make are house LEED certified

• Site planning
• We learned about property lines, contours, utilities,

and set backs.

• We Learned to put deciduous trees on the south

side to block the sun in the summer but let sun in in the winter to heat up the house.

• Most windows on southern side of house
• Modular Dimensions

How to make a modular house The rules to design a house is modular CMU‟s Odd Feet: inches are 4” Even Feet: inches are 0” or 8” Minimize waste from un used materials

Lessons We Learned
