2020 H-GAC A ERIAL O RTHOIMAGERY P ROJECT K ICK - OFF M EETING December 03, 2019 Ed Turner VP, Business Development John Boeding CP, PLS Senior VP, Sales & Marketing Chesterfield, Missouri Chesterfield, Missouri Cornell Rowan CP

slide-1
SLIDE 1

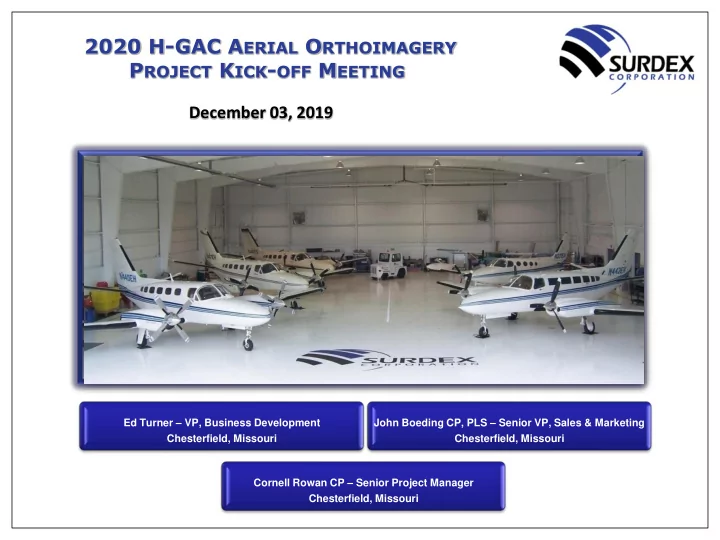

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT KICK-OFF MEETING

December 03, 2019

Cornell Rowan CP – Senior Project Manager Chesterfield, Missouri John Boeding CP, PLS – Senior VP, Sales & Marketing Chesterfield, Missouri Ed Turner – VP, Business Development Chesterfield, Missouri

slide-2
SLIDE 2

2

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

  • Cornell Rowan CP
  • 11 years with Surdex Corporation
  • B.S. Degree in Engineering Technology
  • ASPRS Certified Photogrammetrist Since 1997
  • More than 34 years in the industry
  • Former Photogrammetry Manager and Independent

Contractor

  • Project Manager for numerous Private and Government

projects in the State of Texas and many other States as well

  • H-GAC 2016 & 2018 Orthophoto projects and 2017

Hurricane Harvey Orthophoto project

  • Texas Statewide 2014 - 2016 Orthoimagery project

PROJECT MANAGER

slide-3
SLIDE 3

3

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

  • Approximately 100 employees
  • Financially Sound
  • 65 years in the industry (Since 1954)
  • Aerial acquisition – Imagery (film & digital) and LiDAR
  • Imagery and LiDAR Processing
  • Ground Surveying
  • Aerotriangulation
  • Orthophotography Production
  • Planimetric & Topographic Mapping
  • GIS Services
  • All production operations based in Chesterfield, MO

ABOUT SURDEX

slide-4
SLIDE 4

4

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

  • Clientele
  • Local government/COG’s
  • State government (DOT, DNR, statewide, etc.)
  • Federal government (USGS, USDA, USACE, NGA,

FEMA, etc.)

  • Oil & Gas
  • Personnel
  • Extremely low turnover rate – long-term employees
  • Numerous with advanced degrees
  • 9 Certified Photogrammetrists
  • Registered Land Surveyors

ABOUT SURDEX

slide-5
SLIDE 5

5

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

  • Dedicated R&D staff to improve performance,

quality, and cost-effectiveness

  • Algorithm and process development
  • Hardware and software integration and

development

  • Key resources
  • 10 aircraft with hangar where in-house inspections,

maintenance and repairs are performed

  • 9 digital sensors (5-ADS100, 3-DMC, 1-RCD-

30/Oblique)

  • 4 film cameras
  • 3 Optech Galaxy LiDAR sensors
  • 30+ softcopy workstations, including stereoscopic
  • 2.5 PB of on-line storage

ABOUT SURDEX

slide-6
SLIDE 6

6

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Pressurized Twin-Turbine with

*RVSM

Flight Range:

2,193nm

Max Altitude:

1,200 – 35,000 agl

Certified Altitude:

35,000msl

Cruise Speed:

300+ knots

Endurance:

>6 hours

* RVSM stands for Reduced Vertical Separation Module – required by the FAA for operations above 28,000’ MSL

One of Surdex’s 10 Aircraft

slide-7
SLIDE 7

7

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Surdex Hangar and In-House Maintenance

slide-8
SLIDE 8

8

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

The Leica ADS100 mounted in the Cessna 441 Conquest II – 10

slide-9
SLIDE 9

9

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Review of Scope and Specifications

Surdex Corporation has been contracted to acquire, process and deliver leaf-off true color 6-inch and 12-inch ground sample distance (gsd) orthophotos.

  • Camera Type: Leica ADS100 Pushbroom Sensor
  • Acquisition Widow: Late December (after first hard freeze) – Late February (when deciduous trees are bare)
  • Sun Angle: 30 degrees or greater above the horizon
  • Airspace: Surdex’s Responsibility
  • Conditions: Free from haze, fog, dust, smoke, snow or floodwaters (streams must be with normal banks)
  • Clouds: Less than 5% cloud cover on any single photograph/image or tile
  • Sidelap: 20 – 30% over entire AOI – Min 15% - Max 45%
  • Building Lean: Reduced by adding supplemental flightlines
  • Flight Altitude: 1:1 ration between pixel and ground resolution

(6-inch at ~6,250’ agl & 12-inch at ~12,500’ agl)

  • Airborne GPS & IMU: Data shall be recorded at all times
  • Geodetic Control: Existing Control will be utilized and additional points will be surveyed as needed
  • Image Tile Scheme: Lambert Grid
  • Image Tile Buffer: No Buffer
  • Spectral Resolution: 4-band
  • Projection: State Plane – TX South Central and Central Zones
  • Horizontal Datum: NAD 1983 (2011)
  • Horizontal Units: US Foot
  • Metadata: Conformed to the Federal Geographic Data Committee (FGDC) Content Standard for Digital

Geospatial Metadata (FGDC-STD-001-1998)

slide-10
SLIDE 10

10

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Existing Ground Control Diagram – 6-inch and 12-inch GSD

slide-11
SLIDE 11

11

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Existing Ground Control Diagram – 6-inch and 12-inch GSD

slide-12
SLIDE 12

12

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch and 12-inch Flightlines

slide-13
SLIDE 13

13

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch and 12-inch Flightlines

slide-14
SLIDE 14

14

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Supplemental Flightlines to be Flown to Reduce Building Lean

slide-15
SLIDE 15

15

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

30 Degree or Greater Sun Angle Chart

slide-16
SLIDE 16

16

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Surdex Flight Tracker

slide-17
SLIDE 17

17

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch re-sampled to 12-inch

slide-18
SLIDE 18

18

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch re-sampled to 12-inch

slide-19
SLIDE 19

19

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch re-sampled to 12-inch

slide-20
SLIDE 20

20

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch and 12-inch Lambert Grids

slide-21
SLIDE 21

21

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

6-inch and 12-inch Lambert Grids

slide-22
SLIDE 22

22

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

■ Surdex web-based client product inspection tool  Data resides at Surdex  Corrections made based on client inspection results  Delivery after validated corrections  ESRI ImageServer piped through a web browser  Seamless roam of product image data  Base Maps for product validation  Base Map swipe feature  Overlays (tile layout, seamlines, previous project imagery, etc.)  Client ability to overlay graphics  Tracking of shipping, acceptance, correction dates  Robust statistics SurCheck

slide-23
SLIDE 23

23

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

SurCheck – Client Review

slide-24
SLIDE 24

24

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Preliminary Project Production Schedule

slide-25
SLIDE 25

25

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Building Lean

slide-26
SLIDE 26

26

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Seamline

slide-27
SLIDE 27

27

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Seamline

slide-28
SLIDE 28

28

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Building Lean and Seamline

slide-29
SLIDE 29

29

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Surdex Web Hosting of 2020 Orthoimagery ■ Surdex will create separate web hosting services for each partner/area and provide a dedicated e-mail to a group of web administrators to setup user accounts for each partner as needed. ■ Surdex will provide sample connection strings for Web Mapping Services typically used in CAD and

  • ther GIS packages and how to add a

connection in ESRI software.

slide-30
SLIDE 30

30

2020 H-GAC AERIAL ORTHOIMAGERY PROJECT

COMPETITION SENSITIVE

Questions… Answers…
