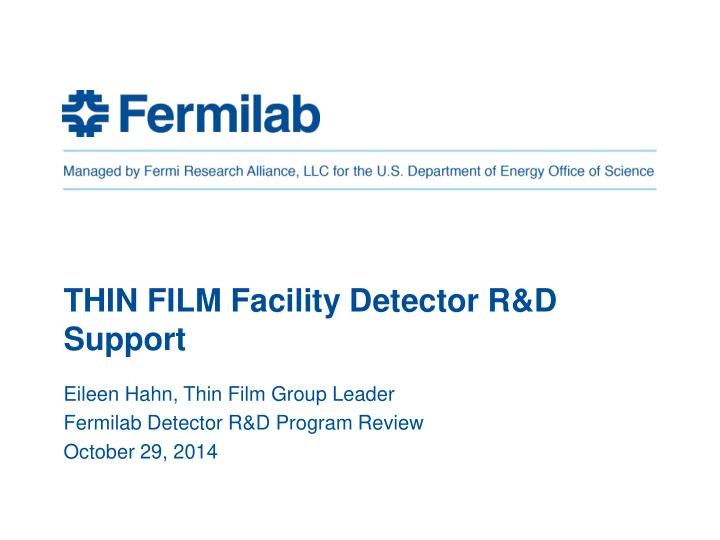

THIN FILM Facility Detector R&D Support

Eileen Hahn, Thin Film Group Leader Fermilab Detector R&D Program Review October 29, 2014

2

THIN FILM GROUP at LAB 7

• R&D support specialties:

– Sputtered & Resistive coatings – Optical fiber polishing – Plastics and Aluminum polishing – In vacuum heat treatments up to 1200ºC – Out-gassing of materials & Rate of Rise tests – Assembly techniques – Glues & Epoxies

10/29/2014 Eileen Hahn - PPD / DDOD / Thin Film 2

3

– T1015 dual readout calorimetry detector development and fabrication for Corrado Gatto and Anna Mazzacane – LAPPD (Large-Area Pico-second Photo Detector) R&D in collaboration with Univ. of Chicago, ANL, Berkley’s SSL, and Incom in “electroding” of Multi-Channel Plates (MCPs) – T1041 Univ. of Iowa CMS Forward Calorimetry sputter and evaporative coatings on quartz plates for Yasar Onel – T958 Fast Timing Group sputtered coatings on quartz bars for Andrew Brandt, Univ. of Texas Arlington – T1041 CMS Forward Calorimetry R&D (Caltech) with fiber polish, gluing, and connector polish – CMS upgrades

• Multiple layer metal sputter

coatings on graphite/carbon/TPG for Indium soldering

• Quartz capillary tube mirroring
• Connector polish i.e. Shashlik

module – pCT (Proton Computed Tomography) polish of Delrin sleeve connectors and provided

• ptical fiber polish & mirroring

– Liquid Argon - metal and

• rganics coatings

– Coating of molybdenum plugs with Cs2Te for source at NML – Heat Treatments of Niobium material for SEM studies and Hydrogen de-gassing of 3.9 GHz cavities – Beam Profile Monitor R&D coatings and polishing – James Madison University fiber splicing –

• Univ. of Liverpool fiber polishing

& mirroring

THIN FILM Facility R&D Activities

Eileen Hahn-PPD/DDOD/Thin Film 10/29/14

4

Calorimetry R&D-T1015 Detector 2011-2014 for M-Test runs

– Most recent, built Proto A & B glass dual readout detectors for 2014 test run – Fiber polishing & mirroring for several iterations of Dual detector design – Sputter coating of Platinum Iridium on highly polished Inconel bars for glass molding release – Specialized “ice polish” of bundled fibers already in detector- earlier run version

• f glass detector

– Winston cone coatings – Develop and improve optical gluing technique and fabricated heat treatment station for large construction prototype – Researched and tested epoxy and filler mixtures for reflective properties and cure temperatures

Eileen Hahn-PPD/DDOD/Thin Film

5

Calorimetry R&D- Univ. of Iowa Quartz Plate coatings

Eileen Hahn-PPD/DDOD/Thin Film

• ZnO2-Ga sputter

coatings on several generations of quartz plates

• Fluorescent compound

coatings on quartz plates

6

LAPPD (Large-Area Pico-second Photo Detector ) R&D “electroding” of 33mmDIA and 8inch Multi-Channel Plates – NiCr coatings

– In 2010, reconfigured a system for initial attempt to “electrode” 33mm MCPs-technique not currently available in industry – Designed and assembled a vacuum system for “electroding” 8 inch square MCPs – Researched and purchased high vacuum rotating motor – Designed and fabricated internal holding fixtures and electrical feeds – Experimented with several versions of electrical feeds, amount of target material to temperature – Developed and improved procedures for coating in the process of providing coated MCPs

Eileen Hahn-PPD/DDOD/Thin Film 10/29/14

7

CMS HCAL Upgrade R&D Work

10/29/2014 Eileen Hahn - PPD / DDOD / Thin Film 7

8

NIU/Proton Computer Tomography Detector R&D Support

10/29/2014 Eileen Hahn - PPD / DDOD / Thin Film 8

9

UHV COATING OF Cs2Te ON Mo SUBSTRATES FOR ASTA

10/29/2014 Eileen Hahn - PPD / DDOD / Thin Film 9
