Studies of the microwave emission of extensive air showers with GIGAS and MIDAS at the Pierre Auger Observatory a b c R. Gaor , for the Pierre Auger Collaboration , M. Richardson a Laboratoire de Physique Nuclaire et de Hautes

slide-1

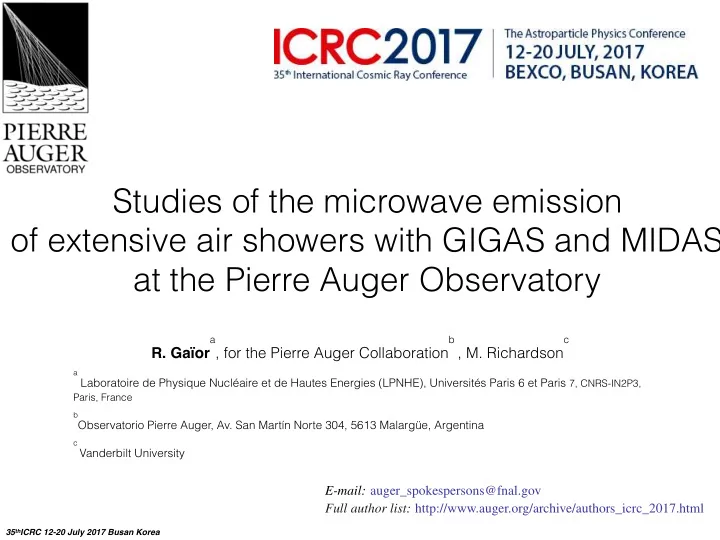

SLIDE 1

Studies of the microwave emission


  • f extensive air showers with GIGAS and MIDAS


at the Pierre Auger Observatory

  • R. Gaïor

a

, for the Pierre Auger Collaboration

b

, M. Richardson

c

a

Laboratoire de Physique Nucléaire et de Hautes Energies (LPNHE), Universités Paris 6 et Paris 7, CNRS-IN2P3,

Paris, France


b

Observatorio Pierre Auger, Av. San Martín Norte 304, 5613 Malargüe, Argentina

c

Vanderbilt University

E-mail: auger_spokespersons@fnal.gov Full author list: http://www.auger.org/archive/authors_icrc_2017.html

35thICRC 12-20 July 2017 Busan Korea

slide-2
SLIDE 2

Motivations: Detection of MBR


(Molecular Bremsstrahlung Radiation)

2

  • Signal from a EM shower observed in

microwave frequency [1]

  • Interpreted as Molecular Bremsstrahlung

Radiation (MBR)

  • Emitted isotropically
  • like Fluorescence with 100% duty cycle
  • Experimental effort


Accelerator: AMY / MAYBE
 CR exp in situ : CROME / AMBER / MIDAS / EASIER

  • No observation of MBR from particle shower


so far

  • Detailed calculation of the MBR lowered the

expected intensity by a factor 70 to 200 [2,3]

[1] Gorham et al Phys. Rev D78 (2008) 032007 [2] Al Samarai et al, Astropart. Phys. 67 (2015) 26 [3] Al Samarai et al, Phys. Rev. D93 (2016) 052004

35thICRC 12-20 July 2017 Busan Korea

slide-3
SLIDE 3

Microwave detection at
 the Pierre Auger Observatory

3

35thICRC 12-20 July 2017 Busan Korea

Two complementary radio detectors*

GIGAS MIDAS

The Pierre Auger Observatory
 Ideal to probe new techniques

* a third one AMBER exists but is not presented here

slide-4
SLIDE 4

4

35thICRC 12-20 July 2017 Busan Korea

GIGAS

slide-5
SLIDE 5

GIGAS


GHz Identification of Giant Air Shower

5

35thICRC 12-20 July 2017 Busan Korea

  • Radio surface detector
  • Triggered by SD station
  • in regular Auger data set
  • 3 implementations

★ GIGAS61


C-band (3.4 - 4.2 GHz) / G~9dBi / 90° HPBW / Tsys~100K
 ~50 antennas / 6 years
 —>Observed EAS with this setup but at small distance to shower axis

★ GIGADuck-C


C-band / G~ 15dBi / 30° HPBW / Tsys ~50 - 60K
 7 antennas / 2 years

★ GIGADuck-L


L-band (1 - 1.4 GHz) / G~ 15dBi / 30° HPBW /
 Tsys ~100 -150K
 7 antennas / 6 months

40 MHz FADC

EASIER antenna SD electronics box EASIER box α PMT PMT

PMT

Water Cherenkov Detector GIGAS61 GIGADuck-C GIGADuck-L !

GIGAS

slide-6
SLIDE 6

GIGADuck

6

35thICRC 12-20 July 2017 Busan Korea

Fsignal = kB · Tsys Aeff(θ, φ) · √ τ · ∆ν

GIGADuck-L GIGADuck-C GIGAS

slide-7
SLIDE 7

GIGAS : Event search

7

35thICRC 12-20 July 2017 Busan Korea

Reconstruction Quality Cut out Lightning event R > 3000 m Energy > 5EeV θ < 60° R < 2000 m

background sample signal sample

define a threshold with background sample radio signal > threshold ± 250 ns around the particle arrival time

Radio selection

particle trigger

slide-8
SLIDE 8

EASIER : Event study

8

35thICRC 12-20 July 2017 Busan Korea

  • All signals found at distance to shower axis < 240m
  • No signal observed in GIGADuck setup


with this analysis → features of a coherent emission


(see VHF bandwidth / CROME experiment [1] / ANITA [2])

→ next step is to produce limits on MBR with the
 non-observed events

Event date 2011/06/30 2012/09/05 2013/01/03 2013/06/04 2013/07/16 2013/09/26 2015/02/03 Energy [EeV] 16 6 27 19.5 42 6.2 28 Distance [m] 112 103 237 133 181 208 176 (θ,φ) (29.6, 17) (48, 167) (55, 34) (53, 1.2) (40, 155) (59, 49) (54, 1) Radio maximum 13 7.7 12.3 6.9 63 8.5 9.4

Table of observed event (all with GIGAS61)

[1] CROME: R. Šmida et al., Phys. Rev. Lett. 113 (2014) 221101 [2] ANITA: S. Hoover et al. Phys. Rev.Lett. 105 (2010) 151101

slide-9
SLIDE 9

9

35thICRC 12-20 July 2017 Busan Korea

9

MIDAS

slide-10
SLIDE 10

MIDAS : MIcrowave Detection of Air Showers


See ref [1]

10

35thICRC 12-20 July 2017 Busan Korea

  • Inspired from

Fluorescence Detector

  • First Level Trigger


Time over threshold

  • Second level trigger


4-fold FLT in time

Power Detector

+18 V +5 V

1 GHz counting room

FEED

BIAS-T roof

DC Pulse

4 GHz

To ADC

FILTER IMPEDANCE ADAPTER

Sensor

Trigger strategy Detector calibration and simulation

  • Effective area = 9.1 m2


(central pixel)

  • System temperature = 65K


(measured with sun flux)

[1] J. Alvarez-Muñiz et al., Nucl. Instrum. Meth. A 719 (2013) 70–80.


simulated pattern simulated event

53 C-band LNBf

slide-11
SLIDE 11

MIDAS : Event search

11

35thICRC 12-20 July 2017 Busan Korea

Data set Event search results

Nobs = 1 event

SD event: 2.5 EeV Distance: 53 km

Data set: SLT 09/2012 —> 09/2014 Remove noisy period (rate > 0.5Hz) Time coincidence with Auger SD ± 300μs

—> Effective livetime of MIDAS :
 372 days (8.2×105 events)

TMIDAS - TAuger [s]

Nexp(bkg) =0.3 event
 (Rexp . TMIDAS)

Rexp = 2 · RSD · RMIDAS · τ · · and RMIDAS = 1.8x10≠2 Hz

with RSD = 9x10≠4 Hz an

slide-12
SLIDE 12

MIDAS : Limits on MBR intensity

12

35thICRC 12-20 July 2017 Busan Korea

Gorham et al.[1]

Excludes the interpretation in terms of MBR of original beam test [1] Further improvement would require a change of technology

If = If,ref ρ ρ0 ✓d R ◆2 ✓ N Nref ◆α

  • Simulation of SD events
  • GH profile
  • MBR emission according [1]
  • 95% CL limits

[1] Gorham et al Phys. Rev D78 (2008) 032007

d: beam to antenna distance R: shower to antenna distance If,ref: Intensity observed in lab Nref: Nr of particle in lab. exp.

Excluded region

◆α

Log10 (If,ref) [W / m2 / Hz]

slide-13
SLIDE 13

Conclusions

13

35thICRC 12-20 July 2017 Busan Korea

2 complementary experimental efforts for the MBR search
 at the Pierre Auger Observatory

GIGAS: 3 radio surface detector arrays implemented
 results: Detection of 7 events but close to the shower axis


Status: Last installed array in Dec 2016, Decommissioning foreseen for Nov. 2017
 Future: Further search of event and results/limits.


MIDAS: Microwave telescope for EAS
 results: Set stringent limits on MBR emission by UHECR


Status: Data taking ended. (Sept 2012 - Sept 2015)

Results understood together as a coherent emission from EAS at GHz

slide-14
SLIDE 14

Thanks for your attention

14

slide-15
SLIDE 15

15

Back up

slide-16
SLIDE 16

GIGAS : Temperature measurement

16

35thICRC 12-20 July 2017 Busan Korea

[1] Gorham et al Phys. Rev D78 (2008) 032007

setup 1 setup 2

SKY TB = 4K GROUND TB = 270K

power detector

  • scilloscope

power detector

  • scilloscope

Telec = Thot − YTcold Y − 1 where Y = Phot Pcold

slide-17
SLIDE 17

GIGADuck

17

Improved design: lower the threshold of sensitivity

  • higher gain: increase Aeff

two versions: C-band (3.4-4.2 GHz) & L-band (1-1.5GHz)

  • geometry change (FOV overlap)

improve SNR + increase coincidence probability

slide-18
SLIDE 18

GIGADuck-C : Temperature measurement

18

35thICRC 12-20 July 2017 Busan Korea

[1] Gorham et al Phys. Rev D78 (2008) 032007

System temperature with the sun flux for GIGADuck-C

slide-19
SLIDE 19

GIGADuck-C : Temperature measurement

19

35thICRC 12-20 July 2017 Busan Korea

[1] Gorham et al Phys. Rev D78 (2008) 032007

slide-20
SLIDE 20

GIGADuck-L : Calibration and monitoring data

20

35thICRC 12-20 July 2017 Busan Korea

[1] Gorham et al Phys. Rev D78 (2008) 032007

  • Calibration with sun biased by other modulations
  • Modulation aligned with Local Sidereal Time


(Could be positioning satellites)

  • Direct calibration is used to estimate the noise

temperature

In lab calibration

slide-21
SLIDE 21

MIDAS : Pixel patterns

21

35thICRC 12-20 July 2017 Busan Korea

[1] Gorham et al Phys. Rev D78 (2008) 032007

slide-22
SLIDE 22

Radio emission mechanism: VHF band (30-80MHz)

22

Geomagnetic effect

  • Geomagnetic effect

Askaryan effect

  • Observed in VHF band (30-80MHz)


(AERA, Codalema … )

  • Short pulse (~20 ns)
  • beamed emission (steep decrease

with distance to shower axis)

  • dense array (100s of meter

spacing)

Geosynchrotron


Acceleration of charge in earth magnetic

Experimental characteristics

Askaryan effect


charge excess —>coherent radiation

slide-23
SLIDE 23

Radio emission mechanism: Microwave

23

  • in microwave (1-6GHz)
  • isotropic


(large distance observation)

  • unpolarised
  • several efforts in lab (AMY,

MAYBE) and in situ
 (CROME, MIDAS)

Experimental characteristics

—> currently not confirmed

Molecular Bremsstrahlung


ionization electron in molecules field

Gorham et al PRD 2008 78 032007
