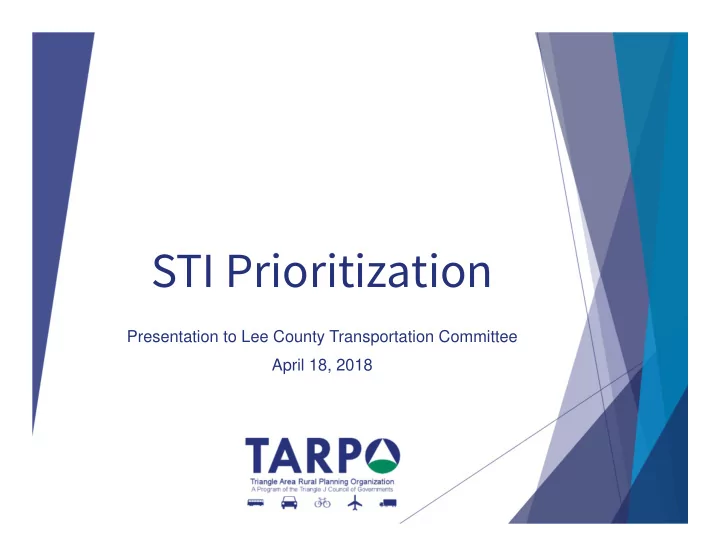

STI Prioritization

Presentation to Lee County Transportation Committee April 18, 2018

How Do Projects get Funded?

NCDOT develops a Statewide Transportation Improvement Program (STIP) every two years. This document shows “programmed” projects for the upcoming ten-year period. A 2018-2027 STIP was approved last summer and we are now in the process of developing a 2020-2029 STIP that will be adopted in 2019. Projects within the first five years of the adopted STIP (in this case, through 2022) are generally considered “committed”

• projects. Projects beyond 2022 are included in the STIP so

that work may begin on project development (environmental studies, design work, etc.) but these projects are not considered committed and are subject to reprioritization.

How Do Projects get Funded?

Example STIP Section:

What projects are already committed for funding?

Committed Projects in Lee County:



R-3830 Broadway Road widening



U-5727 US 1/Pendergrass improvements



U-5722 Horner Blvd improvements



U-5709 Carthage St improvements (S of Wicker)



U-5975 US 1 synchronized street from Pendergrass to 15-501



AV-5762 airport apron expansion phase 1



EB-5863 Carthage St improvements (N of Wicker)



EB-5742 Wicker St greenway



EB-5867 Fields Dr sidewalk



EB-5870 S Main St sidewalk in Broadway



EB-5868 Woodland Ave sidewalk

How Can We Affect the STIP?

Strategic Transportation Investments (STI) In 2013, the General Assembly passed the Strategic Transportation Investments (STI) law, which set up a new formula and process for selecting transportation projects to fund. The process is primarily driven by data, with some local input as well. STI takes the money that NCDOT has for capital projects (from state and federal sources) and divides it into three buckets of funding: 40% to Statewide Mobility 30% to Regional Impact 30% to Division Needs For the 2020-29 STIP, the projected available funding total is $23 billion over the ten-year period. About 2/3 of this is already committed to projects, with 1/3 available to program.

How Can We Affect the STIP?

The STI process requires that all funding decisions for the Statewide Mobility category be based 100% on data, with no local input (other than on submission of projects for consideration). Based on scoring results, no projects in

• ur area were selected for

Statewide Mobility funding. For the Regional Impact category, 70% of the scoring is based on data and 30% is based on local

• input. For the Division Needs

category, 50% is based on data and 50% is based on local input. NCDOT has a Prioritization Work Group that develops the scoring criteria for the data portion of the score. The local points are divided with equal weight between points assigned by NCDOT Division Engineers and by MPOs and RPOs. All scoring is done on a 0-100

• scale. Scoring systems are

different depending on the funding category (statewide, etc.) and the mode of transportation (highway, aviation, etc.).

NCDOT Highway Scoring:

SPOT ID Highest Tier Description Cost to NCDOT HWY ‐ Congestion (Regional) HWY ‐ Congestion (Division) HWY ‐ Benefit/Cost (Regional) HWY ‐ Benefit/Cost (Division) HWY ‐ Safety HWY ‐ Freight HWY ‐ Access/ Connect (Region) HWY ‐ Access/ Connect (Division) Regional Impact TOTAL Division Needs TOTAL H090760 Regional US 421 from US 401 to NC 87 ‐ Construct turn lanes, widen and pave shoulders where needed and enhance corridor from Lillington in Harnett County to Sanford in Lee County. 79,000,000 $ 51.41 54.82 50.00 61.71 65.41 65.66 28.62 28.62 36.25 28.72 H150148 Division SR 1521 (Kelly Drive) from SR 1519 (Nash St) to northeast of Central Carolina Community College campus ‐ Realign Kelly Drive to bypass Central Carolina Community College campus. 4,600,000 $ N/A 30.65 N/A 37.46 40.72 47.72 N/A 30.86 17.87 H150159 Regional NC 78 (Tramway Rd) from US 1 to SR 1001 (Lemon Springs Rd) ‐ widen to multilane divided facility. 45,500,000 $ 65.57 69.19 36.08 21.18 31.24 48.84 30.86 30.86 31.42 19.78 H170591 Division SR 1136/1240 (Wilson Rd) from NC 87 (Horner Blvd) to SR 1239 (Industrial Dr) ‐ Widen to multilanes. 11,000,000 $ N/A 48.01 N/A 12.04 34.05 21.18 30.86 30.86 15.66 H170747 Division SR 1423/1483 (Farrell Rd/Rod Sullivan Rd) from US 1 to Raleigh Executive Jetport entrance ‐ Modernize, and realign intersection at SR 1423 and SR 1483 to provide direction connection between US 1 and the airport. Improve railroad bridge on SR 1483. 7,000,000 $ N/A 1.25 N/A 17.03 40.50 36.09 30.86 30.86 10.36 H170748 Division SR 1133 (Lee Ave) at Williams St/Fayetteville St ‐ Improve

• intersection. Possibly a roundabout,

but open to other possibilities as well. 1,700,000 $ N/A 44.77 N/A 92.19 50.68 47.59 30.86 30.86 29.69 H170749 Statewide US 1 at NC 42 (Wicker St) ‐ Improve intersections at US 1 on/off ramps terminals for NC 42 (Wicker St). Possibly roundabouts, but open to

• ther possibilities.

10,800,000 $ 43.87 33.39 64.29 72.34 70.91 85.51 30.86 30.86 40.36 28.04 H170750 Division Commerce Drive Extension from SR 1133 (Lee Ave) to existing Commerce Drive ‐ Construct 2‐lane extension of existing Commerce Drive to connect to Lee Ave. 6,200,000 $ N/A 37.29 N/A 71.68 23.17 29.03 30.86 30.86 21.36 H171637 Regional NC 87 (S Horner Blvd) from US 421 Bus (Wilson Rd) to SR 1138 (Harvey Faulk Rd) ‐ Convert 5‐lane to synchronized street. 7,600,000 $ 59.40 54.82 72.29 78.74 28.41 45.93 30.86 30.86 36.86 25.84 NCDOT P5.0 Quantitative Scores Project Data

NCDOT Bike/Ped Scoring:

SPOT ID Highest Tier Description Total Cost Cost to NCDOT B/P ‐ Safety B/P ‐ Access B/P ‐ Demand/ Density B/P ‐ Connectivity B/P ‐ Cost Effectiveness Regional Impact TOTAL Division Needs TOTAL B150941 Division Little Buffalo Creek Greenway from SR 1002 (Charlotte Ave) to Sanford City Hall ‐ Construct greenway from downtown Sanford at Charlotte Ave to the vicinity of Sanford City Hall, including tunnel under Weatherspoon Street. 1,176,000 $ 940,800 $ 30.73 99.62 59.55 55.15 41.41 28.11 B171446 Division Wicker St/McIver St from Moore St to Oakwood Ave ‐ Construct sidewalks, add bike lanes, and improve railroad crossing. 992,000 $ 793,600 $ 81.98 94.28 68.13 80.53 52.67 39.22 B171458 Division Vance St from Wicker St to SR 1107 (Fields Dr) ‐ Construct sidewalks and add bike lanes. 358,000 $ 286,400 $ 30.73 91.80 73.95 31.68 73.47 28.03 B171464 Division US 1 Business (Hawkins Ave) from US 1 Business (Carthage St) to SR 1406 (Burns Dr) ‐ Construct sidewalks and bike lanes on a portion of Hawkins

• Ave. Construct multi‐use sidepath on

remaining portion. 1,765,000 $ 1,412,000 $ 62.02 99.62 52.10 37.02 29.58 29.66 B171472 Division SR 1515 (3rd St) from SR 1560 (Weatherspoon St) to NC 87 (Horner Blvd) ‐ Construct/improve sidewalks, ramps, and railroad crossing. Add bike lanes through road diet. 423,000 $ 338,400 $ 60.69 99.62 56.01 3.24 66.79 28.33 B171473 Division SR 1100 (Spring Lane) from SR 1560 (Weatherspoon St) to York Place ‐ Construct multi‐use sidepath. 2,182,000 $ 1,745,600 $ 73.36 99.62 52.96 15.84 23.66 29.03 B172057 Division SR 1002 (Charlotte Ave) from Chatham St to SR 1002 (11th St) ‐ Construct sidewalks and add bike lanes. Perform road diet. 1,476,000 $ 1,180,800 $ 79.89 99.62 55.44 100.00 43.32 39.66 NCDOT P5.0 Quantitative Scores Project Data

NCDOT Aviation Scoring:

SPOT ID Highest Tier Description Cost to NCDOT AVN ‐ NCDOA Rating AVN ‐ FAA ACIP Rating AVN ‐ Nonstate Contribution AVN ‐ Benefit/ Cost Regional Impact TOTAL Division Needs TOTAL A130488 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Site development for expansion of the Corporate Hangar Apron Phase II (Partner Connect ID 2401) 3,500,000 $ 70.10 57.73 0.00 24.74 25.77 A172210 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Build airplane run‐up lane at both ends of taxiway (Partner Connect IDs 3687 and 3688). 1,160,000 $ 78.87 98.97 0.00 62.89 35.90 A172214 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Build new taxi lane connecting south ramp road and all taxi lanes on Ammons Farm Road side of T‐hangars (Partner Connect ID 3883). 2,500,000 $ 78.87 98.97 0.00 39.69 33.58 A172217 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Acquire land for future airport development (Partner Connect ID 3878). 450,000 $ 0.00 36.08 0.00 27.32 6.34 A172219 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Develop new aviation‐related business areas east of airport (Partner Connect ID 3877). 6,925,000 $ 0.00 36.08 0.00 1.55 3.76 A172222 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Construct control tower (Partner Connect ID 3879). 7,500,000 $ 0.00 28.35 0.00 1.03 2.94 A172223 Division TTA Raleigh Executive Jetport at Sanford‐Lee County ‐ Extend runway from 6500 feet to 8500 feet (Partner Connect ID 3880). 15,000,000 $ 100.00 83.51 0.00 6.70 34.02 NCDOT P5.0 Quantitative Scores Project Data

When Do We Interact with STI?

Project Submissions – TARPO submitted projects for funding consideration in August 2017. These projects were scored for consideration in the 2020-2029 STIP. The next

• pportunity to submit projects will likely be in either

Spring/Summer 2019 or Spring/Summer 2020 (NCDOT has discussed possibly doing a three-year update cycle next time, but this has not yet been decided). County Rankings – TARPO uses a system that is 50% based on data and 50% based on “county-level project rankings” to help us determine how to assign local points. These county-level rankings are developed/adopted by the local jurisdictions within each of our four counties. This is

• ur main focus today.

How Does TARPO Scoring Work?



Two factors, weighted equally:



NCDOT quantitative score



Project Priority Ranking assigned at county level



NCDOT Regional scores rescaled from 70 point to 50 point scale. No rescaling necessary for NCDOT Division scores (already 50 point scale)



County-level Rankings convert to points as follows:



#1 – 50 points



#2 – 45 points



#3 – 40 points



#4 – 35 points



#5 – 30 points



#6 – 25 points



#7 – 20 points



#8 – 15 points



#9 – 10 points



#10 – 5 points

How Does TARPO Scoring Work?

 After scoring all projects, we put them in order by TARPO

score, then work our way down that list assigning the maximum number of points to each project (usually 100)

 Our policy calls for each county to get points assigned to

at least 2 projects in that county

 The point assignments derived from this methodology

create a draft recommended point assignment, but the TARPO RTAC has the final authority to assign points and is permitted to deviate from the draft (must document the reasoning)

How Does TARPO Scoring Work?

Upcoming Steps



All counties must submit their ranked lists to TARPO by May 15,

• 2018. At that time, TARPO staff will calculate scores and release the

draft recommended point assignment list. This will be posted at www.tarpo.org.



TARPO will hold a public drop-in meeting in each county in late May

• r early June to gather feedback on the point assignments.

Comments can also be sent by email to mday@tjcog.org.



The TARPO RTAC will approve Regional point assignments at its June 14, 2018 meeting in Pittsboro.



NCDOT will release the list of programmed Regional projects at the end of August. TARPO staff will adjust the draft Division point assignments as needed to account for already-funded projects and post this information online.



The TARPO RTAC will approve Division point assignments at its October 11, 2018 meeting in Pittsboro.

Contact Information & Website

Please contact me with any questions you might have. I am here to serve you! Matt Day, AICP CTP Principal Planner Triangle Area Rural Planning Organization Triangle J Council of Governments (919) 558-9397 mday@tjcog.org www.tarpo.org
