Status report of the gravitational wave detector AURIGA J.P. Zendri * For the Auriga Collaboration I.N.F.N. Padova Section, Via Marzolo 8, 35010 Padova, Italy, Zendri@lnl.infn.it Next Auriga run 1. More sensitive readout 2. New cryogenic

slide-1
SLIDE 1

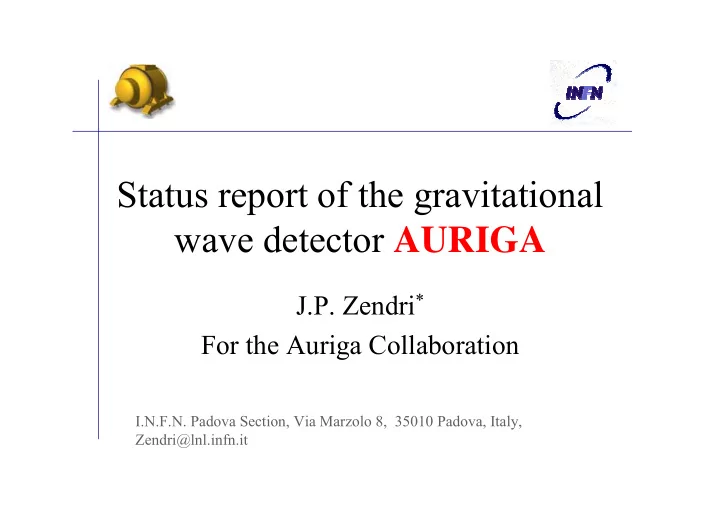

Status report of the gravitational wave detector AURIGA

J.P. Zendri* For the Auriga Collaboration

I.N.F.N. Padova Section, Via Marzolo 8, 35010 Padova, Italy, Zendri@lnl.infn.it

slide-2
SLIDE 2

Next Auriga run

1. More sensitive readout 2. New cryogenic suspensions 3. Simplified cryogenics 4. New DAQ system and data analysis

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-3
SLIDE 3

1.The new readout

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

Scheme

slide-4
SLIDE 4
  • 1. The new readout

Transducer Test Facility

  • Cryogenic suspensions 180 db @ 1KHz
  • Dilution refrigerator
  • Fast thermal cycle (few days)

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-5
SLIDE 5

1.The new readout:results

Separated modes: Transducer thermal noise

T=4.6±0.4 K Measures at 4.2 K

6 6

938.18 1.1 10 3.8 1168.6 0.4 10

mec mec Tr el el

Hz Q m Kg Hz Q ν ν = = × = = = ×

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

( )

el mec

ν ν ≠

slide-6
SLIDE 6

1.The new readout

Separated modes: amplifier W.B. noise and LC thermal noise

1.5 2.0 2.5 3.0 3.5 4.0 4.5 0.6 0.8 1.0 1.2 1.4 1.6

White Band Noise

Msq

2SII [(µφ0) 2)/Hz])

Termodynamic Temperature [K]

1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5

Back-Action plus Thermal noise (el. Mode) Mode Temperature [K] Thermodinamic Temperature [K]

Measured Energy Sensitivity a 20 E t 1.5 K = ( ) / 350

el

K µ ω ∆ h

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

( )

el mec

ν ν ≠

slide-7
SLIDE 7

1.The new readout

Tuned modes: noise measurements

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

(measured) Fitting function: PSD (measured)

1 e ( ) Z ω   ℜ    

B

1 T 4.2 0. 2 k e ( ) 2 Z T K ω   ℜ  = ±   

slide-8
SLIDE 8

2.The new cryogenic suspensions

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-9
SLIDE 9

2.The new cryogenic suspensions

Mode Number FEM predict [Hz] FEM accur acy [%] Meas ured [Hz] FEM pred. brass [Hz] FEM accura cy [%] Measur ed [Hz] 1 74.8 4.3 69.4 38.4 4.5 38.8 2 74.9 4.9 69.4 38.6 5.2 40.0 3 149.4 4.0 140.0 74.6 4.1 74.2 4 168.3 1.9 160.6 86.1 2.7 82.5 5. 185.7 3.2 190.0 86.5 1.8 86.9 6. 186.0 3.2 190.1 86.6 3.2 87.7 7. 1796.0 2.1 1820. 1852.0 2.5 1815.0

Mode 1-2 Mode 3 Mode 4 Mode 5-6 Mode 7

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-10
SLIDE 10
  • 2. The new cryogenic suspension

Last suspension stage

Bar Suspension Tube (CuAl)

Old Set-up New configuration

  • Geometric attenuation gain 10 db
  • First violin 1300 Hz
  • First longitudinal 200 Hz

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-11
SLIDE 11
  • 2. The new cryogenic suspension

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

Transducer Electronics wiring support LHe4 vessel Al2081 holder Main Attenuator Compression Spring Thermal Shield

slide-12
SLIDE 12
  • 2. The new cryogenic suspensions

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

Present Status

slide-13
SLIDE 13
  • 3. The new cryogenics

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

Cryostat 100 K 20 K IVC Liquid helium Dewar: 100 liters

A new 100 liters LHe4 dewar is installed For the next Auriga run the detector temperature will be 1.5 K

  • Stable cryogenic temperature
  • Time to solve 1K-pot problem

In the next run this dewar will hold the cold part of the dilution refrigerator

slide-14
SLIDE 14
  • 4. New DAQ & data analysis

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

DAQ ( CHEP03 at www-conf.slac.standford.edu)

  • Same Front-end
  • Linux, C++
  • Frame format

Data analysis

  • Optimized for the incremented bandwidth
  • Frame format
  • Burst
  • More general templates (less then few seconds)
slide-15
SLIDE 15

Predicted noise curve for the next AURIGA run

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

For impulsive signal:

23 1 min

H ( ) 6 10 1500 Hz ω ε

− −

= × = h For a ms pulse:

19 min

1.2 10 h

−

= ×

slide-16
SLIDE 16

Near future improvements

Auriga Ultracryogenic

Preliminary results

  • At 0.2 K the SQUID

noise is 35 ħ (P.Falferi this conf.) Still Open Questions:

  • Is the LC resonator

thermal at 0.1 K?

  • Are we able to reduce

the disturbances of the 1K pot vibrations?

XXXVIIIth Rencontre de Moriond, 2003, J.-P.Zendri

slide-17
SLIDE 17

Conclusions

  • 1. The resonant detector of gravitational wave

AURIGA is about to start its second run

  • 2. Compared to the previous run the sensitivity and

the bandwidth should be increased of at least one

  • rder of magnitude
  • 3. The up-graded detector has been designed to

maximize the observation duty cycle and to reduce as much as possible the non gaussian noise which strongly affected the G.W. detectors sensitivity
