Status of Tube assembly in Univ. of Athens V. Birioukov (Protvino) D.Fassouliotis P. Ioannou C. Kourkoumelis A. Koulemzine (Prrotvino) V. Pancheluga T. Pappas V. Gapienko (Visitor Protvino) D. Fassouliotis 08-2-2000 PC meeting Changes -

SLIDE 1

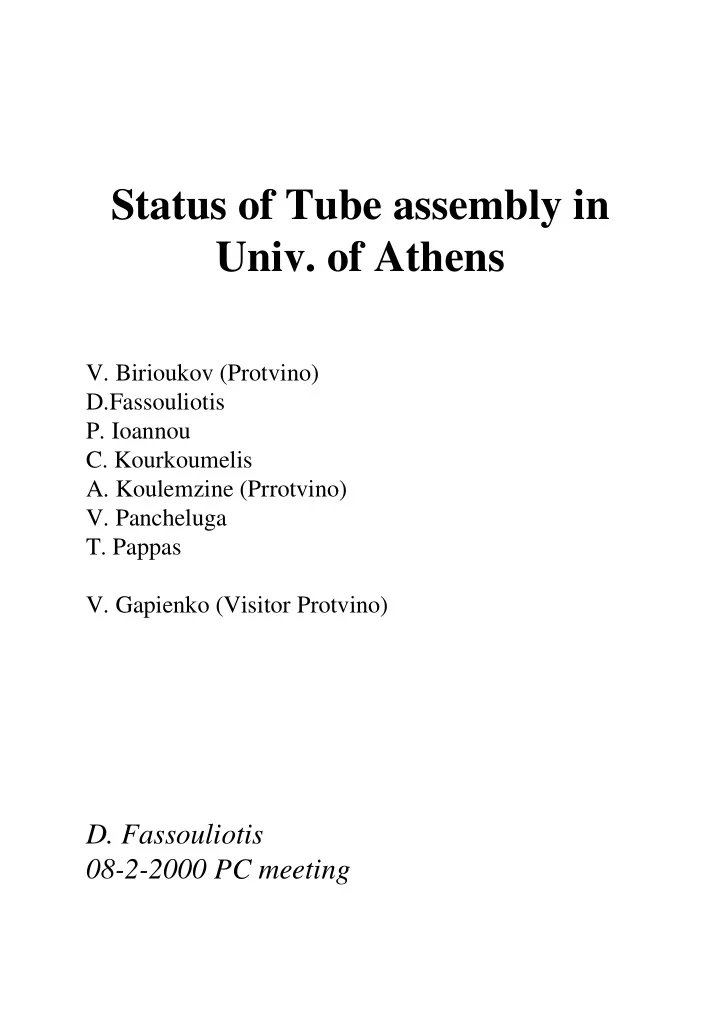

Status of Tube assembly in

Univ. of Athens
V. Birioukov (Protvino)

D.Fassouliotis

P. Ioannou
C. Kourkoumelis
A. Koulemzine (Prrotvino)
V. Pancheluga
T. Pappas
V. Gapienko (Visitor Protvino)
D. Fassouliotis

08-2-2000 PC meeting

SLIDE 2

Changes - Improvements Problems - Difficulties Miscellaneous Summary

SLIDE 3

Changes - Improvements

1- Pneumatic Pin Crimpers installed (Operation at 8 Bar) 2- Bar Code Reader installed 3- New Crimping Tool installed coper pin on brass pin. Two altenatives : * special chock (tested over 100 end-plugs with no failure) * New Specialy designed instrument (see photo) under tests 4- Reinforcment of wiring Table next week (to not allow misalignments ) 5- Adjustable basis for clamps-crimpers next week (to facilitate cure of possible misalignments) 6- Wire Tension Measurement next 2 weeks

n the wiring table

7- Electronic Transducers soon to replace micrometers for quality checks (automatic readout --> complete automatic input of data to database)

SLIDE 4

New tool for crimping coper pin on brass pin

SLIDE 5

Problems - Difficulties in the start of next BIS module

1- Spring groove too shallow by 0.3 mm Solution: deeeper machining of end-plugs 2- Brass Pin different hole diameter Solution: Change of tooling used for crimping 3- Step Motor Drive Failure for Wire Tensioning Solution: Tensioning with weights in fallback Station 5 (Quality of tensioning : see next figure)

SLIDE 6

SLIDE 7

Miscellaneous 46 boxes of tubes arrived - recived and stored with safety (Reliable procedure) Electronic setup for operating single tubes verified and operated (example : gas gain measurements see next figure)

SLIDE 8

SLIDE 9

Summary * 50 tubes reeady for QA/QC control New Important issues: end-plug machining spring characteristics * Wiring operating at 6 min per tube including quality tests not including endplug preparation * Wiring precedure very transparent (6 min achieved after 1 hour train

f second operator)
