Static Detection of Second-Order Vulnerabilities in Web Applications Johannes Dahse and Thorsten Holz Ruhr-University Bochum USENIX Security 14, 20-22 August 2014, San Diego, CA, USA 1. Introduction 2. Implementation 3. Evaluation 4.

slide-1
SLIDE 1

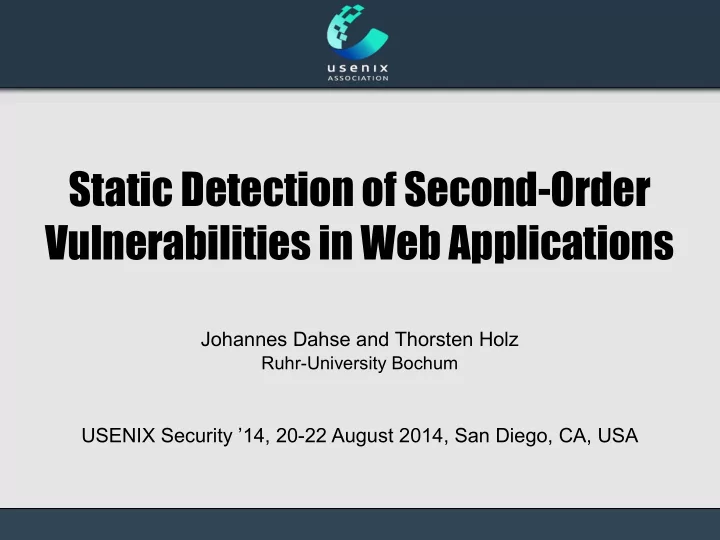

Static Detection of Second-Order Vulnerabilities in Web Applications

Johannes Dahse and Thorsten Holz

Ruhr-University Bochum

USENIX Security ’14, 20-22 August 2014, San Diego, CA, USA

slide-2
SLIDE 2

2

„First-Order“ Vulnerabilities

<?php $name = $_POST['name']; // ', 1), (version(), 1)-- - $sql = “INSERT INTO users VALUES ('$name', '$pwd')“; mysql_query($sql); ?>

  • SQL injection
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

user input

application

send

!“*$()&/'\

slide-3
SLIDE 3

3

Sanitization

<?php $name = mysql_real_escape_string($_POST['name']); $sql = “INSERT INTO users VALUES ('$name', '$pwd')“; mysql_query($sql); ?>

  • SQL injection (prevented)
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

user input

application

send

!“*$()&/'\

slide-4
SLIDE 4

4

Second-Order Vulnerability (1)

<?php $name = mysql_real_escape_string($_POST['name']); $sql = “INSERT INTO users VALUES ('$name', '$pwd')“; mysql_query($sql); ?>

  • Database Write
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

user input

application database

send write

slide-5
SLIDE 5

5

Second-Order Vulnerability (2)

  • Database Read
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

user input

application database

send write

<?php $result = mysql_query('SELECT * FROM users'); $row = mysql_fetch_assoc($result); echo $row['name']; ?>

read

slide-6
SLIDE 6

6

Multi-Step Exploit (1)

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

database

<?php $name = $_POST['name']; // ', 'payload')-- - $sql = “INSERT INTO users VALUES ('$name', '$pwd')“; mysql_query($sql); ?>

  • First-Order SQL injection

user input

application

send

!“*$()&/'\

slide-7
SLIDE 7

7

Multi-Step Exploit (1)

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

database

write

<?php $name = $_POST['name']; // ', 'payload')-- - $sql = “INSERT INTO users VALUES ('$name', '$pwd')“; mysql_query($sql); ?>

  • Exploit First-Order SQL injection

user input

application

send

slide-8
SLIDE 8

8

Multi-Step Exploit (2)

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

database

read

  • Second-Order Command Execution

application

request

<?php $result = mysql_query('SELECT * FROM users'); $row = mysql_fetch_assoc($result); system('htpasswd -b .htpasswd Admin '.$row['pwd']); ?>

slide-9
SLIDE 9

9

Second-Order Vulnerabilities

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
  • $_GET
  • $_POST
  • $_COOKIE
  • $_FILES
  • $_SERVER

...

  • Databases
  • File Names
  • $_SESSION (File Content)

...

  • Cross-Site Scripting
  • SQL Injection
  • Code Execution
  • File Inclusion
  • File Disclosure

... User input Persistent Data Store (PDS) Sensitive Sink 1. 2.

slide-10
SLIDE 10

10

Second-Order Vulnerabilities

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
  • $_GET
  • $_POST
  • $_COOKIE
  • $_FILES
  • $_SERVER

...

  • Databases
  • File Names
  • $_SESSION (File Content)

...

  • Cross-Site Scripting
  • SQL Injection
  • Code Execution
  • File Inclusion
  • File Disclosure

... User input Sensitive Sink 1. 2. Persistent Data Store (PDS)

slide-11
SLIDE 11

11

Our Approach

  • Static Code Analysis (no access to environment)
  • Analyze writes and reads to persistent data stores
  • Connect input and output points at the end of the analysis

to detect second-order and multi-step vulnerabilities

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-12
SLIDE 12

12

Source: http://rewalls.com

  • 2. Implementation
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

(Overview)

slide-13
SLIDE 13

13

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

First-Order Taint Analysis

mysql_query('insert into users values(null, '$name', '$pwd');

$name = $_POST['name'];

slide-14
SLIDE 14

14

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

First-Order Taint Analysis

mysql_query('insert into users values(null, '$name', '$pwd');

$name = $_POST['name'];

slide-15
SLIDE 15

15

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

First-Order Taint Analysis

mysql_query('insert into users values(null, '$name', '$pwd');

$name = $_POST['name'];

slide-16
SLIDE 16

16

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

First-Order Taint Analysis

mysql_query('insert into users values(null, '$name', '$pwd');

$name = $_POST['name'];

Vulnerability Report POST[name] SQLi

slide-17
SLIDE 17

17

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Analysis (write)

mysql_query('insert into users values(null, '$name', '$pwd');

$name = escape($_POST['name']);

id name pass

users

slide-18
SLIDE 18

18

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Multi-Step Taint Analysis (write)

mysql_query('insert into users values(null, '$name', '$pwd');

$name = $_POST['name'];

id name pass

users

Vulnerability Report POST[name] SQLi

slide-19
SLIDE 19

19

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Analysis (read)

echo('Hi ' . $res['name'] . ' !');

$res = mysql_query('select name

from users');

$row = mysql_fetch_assoc($res);

PDS *

slide-20
SLIDE 20

20

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Analysis (read)

echo('Hi ' . $res['name'] . ' !');

$res = mysql_query('select name

from users');

$row = mysql_fetch_assoc($res);

PDS *

slide-21
SLIDE 21

21

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Analysis (read)

echo('Hi ' . $res['name'] . ' !');

$res = mysql_query('select name

from users');

$row = mysql_fetch_assoc($res);

PDS *

slide-22
SLIDE 22

22

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Analysis (read)

echo('Hi ' . $res['name'] . ' !');

$res = mysql_query('select name

from users');

$row = mysql_fetch_assoc($res);

PDS *

Temporary Vulnerability Report users[name] XSS

slide-23
SLIDE 23

23

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Decision

PDS *

Temporary Vulnerability Report users[name] XSS

id name pass

PDS'

users

Reads Writes

connect

slide-24
SLIDE 24

24

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Decision

PDS *

Temporary Vulnerability Report users[name] XSS

id name pass

PDS'

users

tainted? Reads Writes

slide-25
SLIDE 25

25

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Decision

PDS *

Temporary Vulnerability Report users[name] XSS

id name pass

PDS'

users

sanitized? Reads Writes

slide-26
SLIDE 26

26

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Second-Order Taint Decision

PDS *

Temporary Vulnerability Report users[name] XSS

id name pass

PDS'

users

Second-Order Vulnerability Report XSS

Reads Writes

slide-27
SLIDE 27

27

Source: http://rewalls.com

  • 3. Evaluation
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-28
SLIDE 28

28

Selected Software

  • osCommerce 2.3.3.4
  • HotCRP 2.61
  • OpenConf 5.30
  • MyBloggie 2.1.4
  • NewsPro 1.1.5
  • Scarf 2007-02-27
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-29
SLIDE 29

29 False Positive True Positive False Negative

PDS Usage and Coverage (first-order)

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

Non-Taintable Taintable '"\<>

Manually counted PDS (841) Detected Taintable PDS

71%

6%

29%

77% 23%

PDS

slide-30
SLIDE 30

30

Second-Order Vulnerabilities

  • 159 True Positives (79%)

97% persistent XSS (database)

Missed by previous work

  • 43 False Positives (21%)

Root cause: Path-sensitive sanitization

E.g., store only valid email

Failures in 1st step propagate to 2nd step

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

PDS

slide-31
SLIDE 31

31

Multi-Step Exploits

  • 14 True Positives (93%)

2 based on file upload

12 based on SQLi

Missed by previous work

  • 1 False Positives (7%)

False positive SQLi

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

PDS

slide-32
SLIDE 32

32

Second-Order LFI in OpenConf

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

$r = mysql_query("select setting, value from " . OCC_TABLE_CONFIG); while ($l = mysql_fetch_assoc($r)) { $config[$l['setting']] = $l['value']; } function printHeader($what, $function="0") { require $GLOBALS['pfx'] . $GLOBALS['config']['OC_headerFile']; }

PDS

slide-33
SLIDE 33

33

Second-Order LFI in OpenConf

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

$r = mysql_query("select setting, value from " . OCC_TABLE_CONFIG); while ($l = mysql_fetch_assoc($r)) { $config[$l['setting']] = $l['value']; } function printHeader($what, $function="0") { require $GLOBALS['pfx'] . $GLOBALS['config']['OC_headerFile']; }

PDS

slide-34
SLIDE 34

34

Second-Order LFI in OpenConf

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

$r = mysql_query("select setting, value from " . OCC_TABLE_CONFIG); while ($l = mysql_fetch_assoc($r)) { $config[$l['setting']] = $l['value']; } function printHeader($what, $function="0") { require $GLOBALS['pfx'] . $GLOBALS['config']['OC_headerFile']; } function updateConfigSetting($setting, $value) {

  • csql_query("UPDATE `" . OCC_TABLE_CONFIG . "`

SET `value`=' " . safeSQLstr(trim($value)) . " ' WHERE `setting`='" . safeSQLstr($setting) . " ' "); } foreach (array_keys($_POST) as $p) { if (preg_match("/^OC_[\w-]+$/", $p)) { updateConfigSetting($p, $_POST[$p]); } }

PDS

PDS

slide-35
SLIDE 35

35

Multi-Step Exploitation in OpenConf

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion

/data/papers/1.pdf

  • 1. upload
  • 2. escalate
  • 3. reconfigure

OC_headerFile

  • 4. included

SQLi or XSS

Remote Command Execution

All issues are fixed in version 5.31 and 6.01

File Upload Second-Order LFI

slide-36
SLIDE 36

36

Source: http://rewalls.com

  • 4. Conclusion
  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-37
SLIDE 37

37

Conclusion

  • Static detection of second-order vulnerabilities is possible

Analyze and collect reads/writes to PDS (database, file names, session data)

Determine sensitive data flow at the end of analysis

  • > 150 new vulnerabilities

Leading to RCE in NewsPro, Scarf, OpenConf, osCommerce

Overlooked problem in practice, missed in previous work

  • Future work

Support prepared statements

Improve SQL parser

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-38
SLIDE 38

38

Thank you Facebook

for the generous award

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-39
SLIDE 39

39

Questions?

johannes.dahse@rub.de

  • 1. Introduction
  • 2. Implementation
  • 3. Evaluation
  • 4. Conclusion
slide-40
SLIDE 40

40

Thank you! Enjoy the conference.
