standards Efficient 3D editing with optimal graphical control of all - - PowerPoint PPT Presentation

PFAHL 1

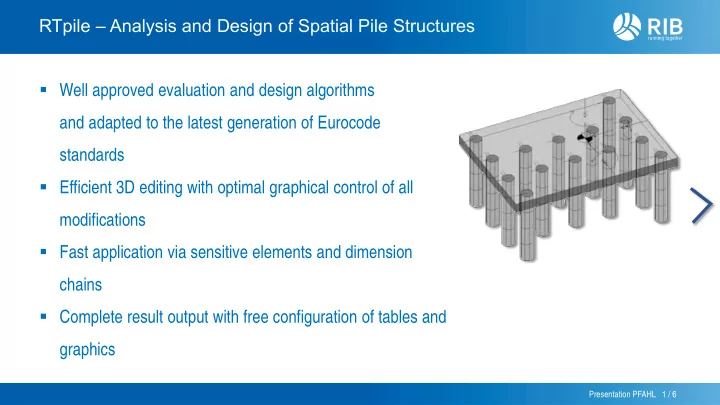

RTpile – Analysis and Design of Spatial Pile Structures ▪ Well approved evaluation and design algorithms and adapted to the latest generation of Eurocode standards ▪ Efficient 3D editing with optimal graphical control of all modifications ▪ Fast application via sensitive elements and dimension chains ▪ Complete result output with free configuration of tables and graphics

Presentation PFAHL 1 / 6

PFAHL 2

RTpile - Versatile foundation engineering application

Interactive working environment with 2D and 3D graphics Dialog for input of polygonal loads Different support conditions

Presentation PFAHL 2 / 6

PFAHL 3

RTpile - Conveniant processing of 3D systems

Object-oriented applications Graphical representation

• f the transverse

bedding providing direct visual control Quick editing

Presentation PFAHL 3 / 6

PFAHL 4

RTpile - Structural Analysis with Special Features

Specification of different reinforcement arrangements Dialog for input of reinforced concrete parameters Different standards

Presentation PFAHL 4 / 6

PFAHL 5

RTpile - Efficient and economical dimensioning

Configurable results output Different calculation options

Presentation PFAHL 5 / 6

PFAHL 6

RTpile - Clear and verifiable Report

Clear documentation including graphics Design stress resultants Deformations and internal forces

Presentation PFAHL 6 / 6
