Kosciuszko Bridge Project Stakeholders Advisory Committee Meeting Streetscaping Opportunities in Brooklyn and Queens New York State Department of Transportation Commissioner Joan McDonald 1 June 25, 2015 Regional Director Sonia A. Pichardo 2

slide-1
SLIDE 1

1

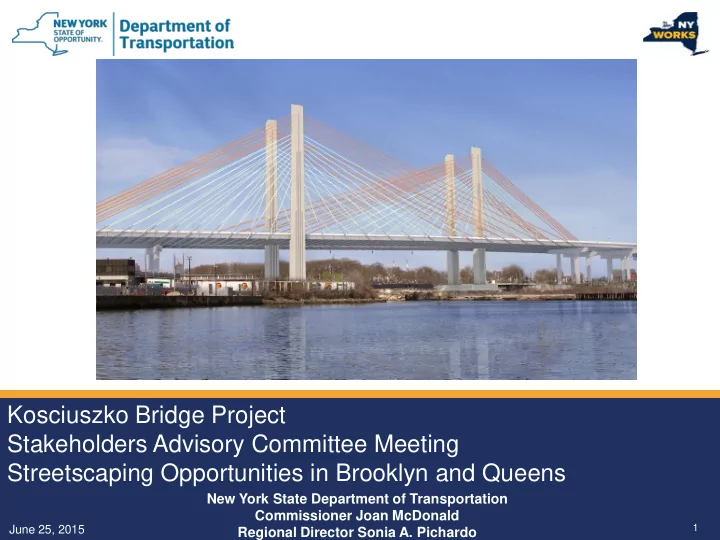

Kosciuszko Bridge Project Stakeholders Advisory Committee Meeting Streetscaping Opportunities in Brooklyn and Queens

June 25, 2015

New York State Department of Transportation Commissioner Joan McDonald Regional Director Sonia A. Pichardo

slide-2
SLIDE 2

2

  • Opportunities resulting from new bridge alignment
  • Streetscaping improvements
  • Sustainable design elements

Kosciuszko Bridge Project Area Streetscaping Opportunities in Brooklyn

Existing BQE Alignment New BQE Alignment Re-Aligned Brooklyn- Queens Expressway Shared-Use Path (Phase 2)

slide-3
SLIDE 3

3

Kosciuszko Bridge Streetscaping Opportunities in Brooklyn

  • Redesigned Sergeant Dougherty Park
  • Future shared use path (bicycles/pedestrians) connection to Queens
  • Future open space adjacent to shared use path
  • Four streetscaping opportunities

Anthony Street Re-Aligned Cherry Street Re-Aligned Brooklyn-Queens Expressway NYCT Bus Stops New Streetscape Area New Streetscape Areas Shared-Use Path (Phase 2) Future Open Space Sergeant Dougherty Park

slide-4
SLIDE 4

4

Streetscaping Opportunities in Brooklyn:

WB Meeker Avenue between Hausman Street & Apollo Street

View A View B View C

B C A

Approximate Proposed Dimensions: 20’ x 65’

slide-5
SLIDE 5

5 View B

B

Streetscaping Opportunities in Brooklyn:

Approximate Proposed Dimensions: 115’ x 25’

View A

West side of Vandervoort Avenue between Anthony Street & EB Meeker Avenue A

slide-6
SLIDE 6

6 View A View B

B

Streetscaping Opportunities in Brooklyn:

WB Meeker Avenue between Van Dam Street & Apollo Street

Approximate Dimensions:

  • A: 180’ x 200’ x 23’
  • B: 100’ x 150’ x 140’

A B

A

slide-7
SLIDE 7

7

  • Streetscaping improvements
  • Sustainable design elements

Kosciuszko Bridge Project Area Streetscaping Opportunities in Queens

Existing BQE Alignment New BQE Alignment Old Calvary Cemetery Sunnyside Shared-Use Path (Phase 2)

slide-8
SLIDE 8

8

  • Restore and enhance open space at new Pedestrian Bridge
  • Access to new bikeway/walkway on new WB bridge

Kosciuszko Bridge Streetscaping Opportunities in Queens

Old Calvary Cemetery

Pedestrian Overpass Re-aligned Brooklyn-Queens Expressway

slide-9
SLIDE 9

9

Streetscaping Examples:

Fidelity Triangle: Intersection of Meeker Avenue & Monitor Street, Brooklyn

“Traditional” design:

  • Cobble pavers
  • Central Park bench
  • Decorative iron fence
  • Deciduous trees and

shrubs

  • Located three blocks from

project area

  • Approximate dimensions:

40’ x 45’ x 60’

slide-10
SLIDE 10

10

Streetscaping Examples:

Father Giorgio Triangle: Intersection of Lorimer Street & Meeker Avenue, Brooklyn

“Traditional” design:

  • Cobble pavers
  • Central Park bench
  • Deciduous trees and

shrubs

  • Near project corridor
  • Approximate

dimensions: 40’ x 55’ x 45’

slide-11
SLIDE 11

11

Streetscaping Examples:

Holy Name Square: Intersection of Engert Avenue & McGuinness Boulevard, Brooklyn

Photo Source: Google Maps

“Traditional” design:

  • Concrete sidewalk
  • Small fence
  • Deciduous trees and

shrubs

  • Evergreen shrubs
  • Approximate

dimensions: 20’ x 45’ x 50’

slide-12
SLIDE 12

12

Streetscaping Examples:

Memorial Gore: Intersection of Metropolitan Ave, Humboldt St, Bushwick Ave & Maspeth Ave, Brooklyn

“Traditional” design:

  • Decorative fencing
  • Shrubs and trees
  • Memorial statue
  • No internal access
  • Approximate dimensions: 75’ x 50’
slide-13
SLIDE 13

13

Streetscaping Examples:

Clemens Triangle: Intersection of Cypress Avenue & Myrtle Avenue, Queens

“Traditional” design:

  • Brick pavers
  • Central Park

benches

  • Deciduous trees
  • Approximate

dimensions: 50’ x 30’ x 40’

slide-14
SLIDE 14

14

Streetscaping Examples:

Francis Lewis Boulevard between 217th and 220th Streets, Queens

“Modern” design:

  • Bio-swale (filters runoff from adjacent

streets and sidewalks)

  • Reduces stormwater entering the

combined sewer system

  • Aesthetic benefits
  • Approximate dimensions: 120’ x 100’ x 45’
slide-15
SLIDE 15

15

Streetscaping Examples:

Intersection of Colfax Street & Murdock Avenue, Queens

“Modern” design:

  • Bio-swale (filters runoff from

adjacent streets and sidewalks)

  • Aesthetic benefits
  • Reduces stormwater entering the

combined sewer system

  • Approximate dimensions:

120’ x 100’ x 45’

slide-16
SLIDE 16

16

Streetscaping Examples:

Intersection of Furmanville Avenue, 80th Street & Dry Harbor Road, Queens

“Modern” design:

  • Bio-swale (filters runoff from adjacent streets and

sidewalks)

  • Reduces stormwater entering the combined sewer system
  • Aesthetic benefits
  • Approximate dimension: 37’ x 45’ x 25’
slide-17
SLIDE 17

17

Streetscaping Examples:

  • E. Houston Street between Avenue B & Avenue C, Manhattan

“Modern” design:

  • Furnishings and decorative fence
  • Bio-swale (filters runoff from adjacent streets and sidewalks)
  • Reduces stormwater entering the combined sewer system
  • Aesthetic benefits
slide-18
SLIDE 18

18

Streetscaping Elements: Lighting & Benches

NYC Street Furniture Standards – Approved Lighting Galleon LED Luminaire Detail NYC Street Furniture Standards – Approved Bench

slide-19
SLIDE 19

19

Scholar Tree

B

Gingko

  • Urban tolerance

 Pollutant and drought tolerant  Ability to survive in compacted soils

  • Compatible with structural soils

 Survive in alkaline soil

  • Pest and disease resistant

 Emerald ash borer  Asian long-horned beetle

  • Multi-seasonal visual interest

Final tree selection subject to review by NYC Department of Parks, Forestry

Japanese Zelkova Honey Locust Silver Linden American Linden

Streetscaping Element: Street Trees

English Oak Turkish filburt

Selection Criteria

slide-20
SLIDE 20

20

Streetscaping Element: Street Trees

Street Trees with Granite Cobble Edging and Structural Soil

Structural Soil:

  • Sustainable design element
  • Continuous underground

trench between tree pits

  • Supports sidewalk
  • Maintains drainage
  • Improves longevity, vigor and

health of tree

slide-21
SLIDE 21

21

Streetscaping Element: Street Trees

Examples of Freshly-Planted Street Trees in New York City

New Street Trees in Late Fall: Brooklyn New Street Trees with Cobble Border: Queens New Street Trees on Columbia Street: Brooklyn

slide-22
SLIDE 22

22 Proposed Condition: United States Access Board Compliant Crosswalk Existing Condition: Crosswalk

Streetscaping Improvements: Accessibility

Brooklyn and Queens

High visibility crosswalks:

  • Reflective paint for improved nighttime visibility
  • Help identify crossing locations for pedestrians
  • Alert drivers of pedestrian crossing zone
  • Longer lasting; require less maintenance
slide-23
SLIDE 23

23 Crosswalk Curb Ramp with Tactile Warning Strip

Accessible curb ramps:

  • Textured cue to help the

visually impaired

  • Bright color alerts people with

limited vision

  • Fully compliant with the

Americans with Disabilities Act

Streetscaping Improvements: Accessibility

Brooklyn and Queens

slide-24
SLIDE 24

24 Pedestrian Signal with Countdown Timer

Pedestrian Signal:

  • Countdown timer shows

remaining crossing time

  • May feature audio cues for the

visually impaired

  • Americans with Disabilities

Act compliant

Pedestrian Signal Button Activated Sound

Streetscaping Improvements: Accessibility

Brooklyn and Queens

slide-25
SLIDE 25

25

Sustainable Design Elements

  • Street trees
  • Stormwater treatment
  • Structural soil
  • LED street lighting
  • Dark Sky Compliant lighting
  • High visibility crosswalks
  • Tactile warning strips
  • Pedestrian countdown lights
slide-26
SLIDE 26

26

Waterfront Opportunities

Waterfront access areas

Newtown Creek

New pylon (tower)

New Bridge

Development

  • pportunity
