Old Dominion Drive ( Route 309) Pedestrian Safety Project Phase II North Glebe Road to 38 th Street N Prepared: 12/2010 The presentation you are about to review represents a 90 percent completed design. The intent of this presentation is to

slide-1
SLIDE 1

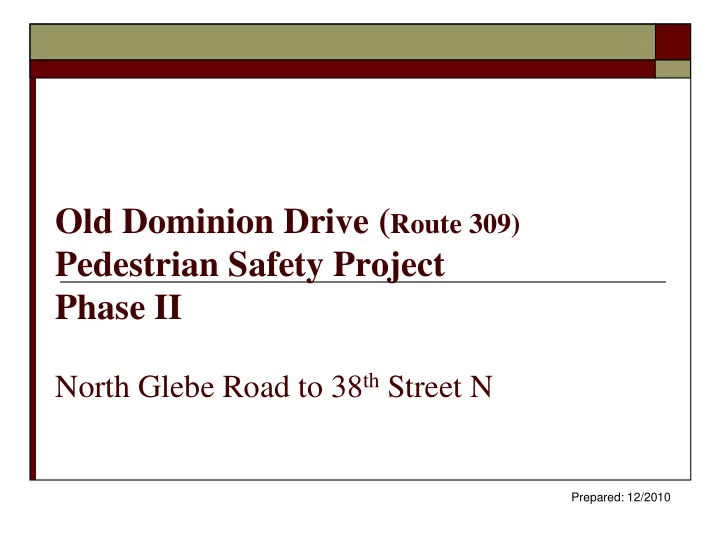

Old Dominion Drive (Route 309) Pedestrian Safety Project Phase II

North Glebe Road to 38th Street N

Prepared: 12/2010

slide-2
SLIDE 2

The presentation you are about to review represents a 90 percent completed design. The intent of this presentation is to provide an overview

  • f the design and the elements within the plan.

The design and all elements are subject to Virginia Department of Transportation (VDOT) review.

slide-3
SLIDE 3

Old Dominion Drive - Phase I

Lee Highway to 26th Street N

Before After

*Street lights and street trees pending

slide-4
SLIDE 4

Project Map – Phase II

slide-5
SLIDE 5

Background Information

Owned & maintained by Virginia Department of Transportation (VDOT)

Old Dominion Drive is classified as an principal arterial

Length of roadway from N. Glebe Rd. to Fairfax County line is approximately 1.18 miles

Speed limit is 35 mph

Roadway was used previously as a railroad

Average Daily Traffic Volume is 16,000

1% Bus Traffic

1% Truck Traffic

slide-6
SLIDE 6

Purpose

 Improve pedestrian and bicycle safety & connectivity  Improve the storm water system  Improve intersection safety  Enhance transit  Goal: complete the County’s sidewalk network system

slide-7
SLIDE 7

Constraints & Challenges

Working with constraints:

 Subject to VDOT requirements & review  Limited right of way, in some areas  Easements  Tree impacts  Topography  Intersection geometry

slide-8
SLIDE 8

Design Considerations

 Balancing the Needs

 Pedestrians access  Bicycle access  Residents of Old Dominion Drive  Residents of Arlington  Trees  Stormwater

slide-9
SLIDE 9

Project Elements

 Sidewalk with curb & gutter  Improve stormwater system  Upgrade street lights  Street trees  Upgrade bus stops  Upgrade traffic signals

 Upgrading pedestrian signals

slide-10
SLIDE 10

Projects Outside of Phase II

 Street Improvements for Old Dominion Drive

 From George Mason Dr. to 37th Street

Designed with the culvert project

All necessary easements have been obtained

 From 37th Street N to N. Edison Street

Outside of scope of the project due to significant topography

slide-11
SLIDE 11

Out of scope: Old Dominion Drive 37th Street N to N. Edison

Old Dominion Drive: 37th Street N to N. Edison St.

  • Difficult area due to the

terrain.

  • Alternate walking

connectivity can be achieved by using 37th Street

slide-12
SLIDE 12

Out of Scope: George Mason Dr. to 37th Street N

Was design with the culvert project. Currently obtaining funds.

slide-13
SLIDE 13

Sidewalk Standards

Sidewalk standards are per the County Board approved Master Transportation Plan, if necessary, waivers will be filed with VDOT. 5’ sidewalk with 2’ to 4’utility strip

4’ minimum utility strip for tree planting

2.5’ minimum utility strip for driveway entrances

Utility strips are used also for street lights, road signage, water meters, fire hydrants, etc.

6’ sidewalk minimum, County standard, when sidewalk is located at the back of the curb. Sidewalk at back of curbs are only used when necessary

slide-14
SLIDE 14

Crosswalk

Suggested Crosswalk Locations: Pending VDOT review:

  • Rock Springs Road
  • Little Falls Road
  • Williamsburg Blvd.
  • N. Edison Street
slide-15
SLIDE 15

County Standard

Zebra Crosswalk Laddered Crosswalk has also been used Old Dominion Drive @ 26th St. N

slide-16
SLIDE 16

Transit Enhancements

 Improve bus locations  Bus pads or landings  Rock Springs Road stop

 Bench  Bicycle accommodations  Trash Receptacle

slide-17
SLIDE 17

Transit Enhancement- Old Dominion Drive and Rock Springs Road

 Current Condition

Current Elements:

  • Bench
  • Trash Can
  • Bus Flag
  • Possible location

for the historical marker

  • Not ADA

accessible

  • Does not

drain well

  • Not easily

pedestrian accessible

  • Poor sight

distance

slide-18
SLIDE 18

Possible Bus Shelters Shelter #1 – County Standard

Features are as follows:

  • 5’ x 8’ Slimline Series

Aluminum Structure

  • Three Sides with Open

Front

  • Black Anodized

Aluminum Finish

  • ¼” Clear Tempered

Safety Glass

  • Black Standing Seam

Hip Roof with 2½” Fascia and Integral Gutter

  • Prefabricated Black

Upper Arch Pattern Grillwork

  • Prefabricated Black

Lower Circle Pattern Grillwork

Lee Highway @ 21st Street N All shelters will be ADA accessible

slide-19
SLIDE 19

Bench for bus shelter & Additional Elements

Trash - Black Bench in Black

A center armrest will be installed.

slide-20
SLIDE 20

Bicycle Rack Options

Location: Old Dominion & Rock Springs Rd. next to bus stop

Option 1 Option 2

slide-21
SLIDE 21

Street Lights – Globe County Standard

25th Street N from George Mason Dr. to N. Columbus Street

slide-22
SLIDE 22

Street Light – County Standard LED

LED’s Provide:

  • Energy efficient
  • White light
  • “Cone” lighting (downward)
  • No bounce lighting
  • Nationally certified for dark sky

Lighting calculations are conducted to determine spacing and quantity

slide-23
SLIDE 23

Street Light – County Standard Pole

slide-24
SLIDE 24

Traffic Signal Upgrade

County Standard

The upgraded traffic signal components are:

Black pole

Black mask arm

LED Street light on top

CCTV – Traffic monitoring camera

Emergency Signal Pre-emption

Pedestrian Signal

Pedestrian Pushbuttons (ADA Compatible)

LED Signal Heads

Old Dominion Dr.@ 26th Street N

slide-25
SLIDE 25

Pedestrian Signal County Standard

Countdown Signal Pushbutton devices will be ADA accessible

slide-26
SLIDE 26

Tree Replacement Policy

Staff has completed:

Tree survey

Tree inventory

Trees will be replaced in accordance with the County Tree Replacement Policy

Trees 10” caliber of less will be replaced on a one-for-one basis

Trees greater than 10” the formula will be used

Staff will work with the individual homeowner for replacement of trees

slide-27
SLIDE 27

Stormwater

Watershed retrofit projects will treat 5 acres of impervious surface. These include:

  • Williamsburg Blvd (Old Dominion to 35th St N) = 1.07 acres
  • Williamsburg Blvd (Harrison to Edison N) = 1.67 acres
  • Kensington St. (at 33rd) = 0.77 acres
  • 32nd St N (at Kensington St.) = 0.42 acres

John Marshall Drive = 1.07 acres The project impervious surface will be approximately 0.68 acres DES Watershed Planner continue to look for opportunities Possible Constraints: for bio-retention and bio-swales:

  • Residents requests for additional street trees
  • Protection of existing trees
  • Narrow rights-of-way in many locations
  • Need to create a sidewalk that can support both pedestrian and bike traffic
  • Utility conflicts and slopes
slide-28
SLIDE 28

Railroad – Jewell Station

Old Dominion Drive and Rock Springs Road

slide-29
SLIDE 29

Marker

The marker previously located at the intersection

  • f Old Dominion Drive and

Rock Spring Road is in storage awaiting to be rehabilitated. It will be installed somewhere along Old Dominion Drive near Rock Springs Road once the project has been completed. Rock Springs Civic Association has researched the background

  • f the marker.
slide-30
SLIDE 30

Project Contact Information

If you have any questions or concerns I would like to hear from you, please contact me at: Elizabeth (Betty) Logan Diggs Capital Project Management Coordinator Department of Environmental Services Division of Transportation, Planning Bureau 2100 Clarendon Boulevard, Suite 900 Arlington, VA 22201 703-228-3202 ediggs@arlingtonva.us
