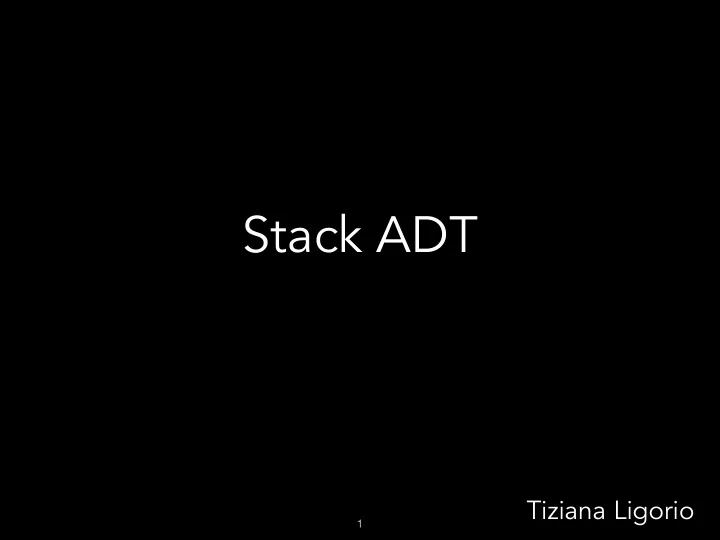

SLIDE 1
Stack ADT
Tiziana Ligorio
1
Today’s Plan
Questons? Stack ADT
2
Stack ADT Tiziana Ligorio 1 Todays Plan Questons? Stack ADT 2 - - PowerPoint PPT Presentation
Stack ADT Tiziana Ligorio 1 Todays Plan Questons? Stack ADT 2 - - PowerPoint PPT Presentation
Stack ADT Tiziana Ligorio 1 Todays Plan Questons? Stack ADT 2 Abstract Data Types Bag List Stack 3 Stack 34 A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
SLIDE 2
SLIDE 3
Abstract Data Types
Bag List Stack
3
SLIDE 4
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
4
34
SLIDE 5
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
5
34
SLIDE 6
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
6
127 34
SLIDE 7
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
7
34 127
SLIDE 8
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
8
13 34 127
SLIDE 9
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
9
34 127 13
SLIDE 10
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack
10
13 34 127
SLIDE 11
Stack
A data structure representing a stack of things Objects can be pushed onto the stack or popped from the stack LIFO: Last In First Out Only top of stack is accessible (top), no other
- bjects on the stack are visible
11
34 127
SLIDE 12
Applications
Very simple structure Many applications: program stack balancing parenthesis evaluating postfix expressions backtracking . . . and more
12
SLIDE 13
Program Stack
13
SLIDE 14
Program Stack
1 void f(int x, int y) 2 { 3 int a; 4 // stuff here 5 if(a<13) 6 a = g(a); 7 // stuff here 8 } 9 int g(int z) 10 { 11 int p ,q; 12 // stuff here 13 return q; 14 }
14
SLIDE 15
Program Stack
1 void f(int x, int y) 2 { 3 int a; 4 // stuff here 5 if(a<13) 6 a = g(a); 7 // stuff here 8 } 9 int g(int z) 10 { 11 int p ,q; 12 // stuff here 13 return q; 14 }
Stack Frame for f() parameters return address local variables
a x y
15
Address of instruction after call to f()
. . .
SLIDE 16
Program Stack
16
Stack Frame for f() Stack Frame for g() parameters parameters return address return address local variables local variables
a p q x y z
Address of instruction after call to f()
Address of instruction on line 7
. . . . . .
1 void f(int x, int y) 2 { 3 int a; 4 // stuff here 5 if(a<13) 6 a = g(a); 7 // stuff here 8 } 9 int g(int z) 10 { 11 int p ,q; 12 // stuff here 13 return q; 14 }
SLIDE 17
Program Stack
17
Stack Frame for f() parameters return address local variables
a x y
Address of instruction after call to f()
. . .
1 void f(int x, int y) 2 { 3 int a; 4 // stuff here 5 if(a<13) 6 a = g(a); 7 // stuff here 8 } 9 int g(int z) 10 { 11 int p ,q; 12 // stuff here 13 return q; 14 }
SLIDE 18
Balancing Parentheses
18
SLIDE 19
Balancing Parentheses
19
int f(){if(x*(y+z[i])<47){x += y}}
SLIDE 20
Balancing Parentheses
20
int f(){if(x*(y+z[i])<47){x += y}}
SLIDE 21
Balancing Parentheses
21
int f(){if(x*(y+z[i])<47){x += y}}
SLIDE 22
Balancing Parentheses
22
int f(){if(x*(y+z[i])<47){x += y}}
SLIDE 23
Balancing Parentheses
23
int f(){if(x*(y+z[i])<47){x += y}}
SLIDE 24
Balancing Parentheses
24
int f(){if(x*(y+z[i])<47){x += y}}
push
(
SLIDE 25
Balancing Parentheses
25
int f(){if(x*(y+z[i])<47){x += y}}
pop
SLIDE 26
Balancing Parentheses
26
int f(){if(x*(y+z[i])<47){x += y}}
push
{
SLIDE 27
Balancing Parentheses
27
int f(){if(x*(y+z[i])<47){x += y}} {
SLIDE 28
Balancing Parentheses
28
int f(){if(x*(y+z[i])<47){x += y}} {
SLIDE 29
{
Balancing Parentheses
29
int f(){if(x*(y+z[i])<47){x += y}} (
push
SLIDE 30
Balancing Parentheses
30
int f(){if(x*(y+z[i])<47){x += y}} { (
SLIDE 31
Balancing Parentheses
31
int f(){if(x*(y+z[i])<47){x += y}} { (
SLIDE 32
{ (
Balancing Parentheses
32
int f(){if(x*(y+z[i])<47){x += y}} (
push
SLIDE 33
Balancing Parentheses
33
int f(){if(x*(y+z[i])<47){x += y}} { ( (
SLIDE 34
Balancing Parentheses
34
int f(){if(x*(y+z[i])<47){x += y}} { ( (
SLIDE 35
Balancing Parentheses
35
int f(){if(x*(y+z[i])<47){x += y}} { ( (
SLIDE 36
{ ( (
Balancing Parentheses
36
int f(){if(x*(y+z[i])<47){x += y}} [
push
SLIDE 37
Balancing Parentheses
37
int f(){if(x*(y+z[i])<47){x += y}} { ( ( [
SLIDE 38
Balancing Parentheses
38
int f(){if(x*(y+z[i])<47){x += y}}
pop
{ ( (
SLIDE 39
Balancing Parentheses
39
int f(){if(x*(y+z[i])<47){x += y}}
pop
{ (
SLIDE 40
Balancing Parentheses
40
int f(){if(x*(y+z[i])<47){x += y}} { (
SLIDE 41
Balancing Parentheses
41
int f(){if(x*(y+z[i])<47){x += y}} { (
SLIDE 42
Balancing Parentheses
42
int f(){if(x*(y+z[i])<47){x += y}} { (
SLIDE 43
Balancing Parentheses
43
int f(){if(x*(y+z[i])<47){x += y}}
pop
{
SLIDE 44
Balancing Parentheses
44
int f(){if(x*(y+z[i])<47){x += y}}
push
{ {
SLIDE 45
Balancing Parentheses
45
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 46
Balancing Parentheses
46
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 47
Balancing Parentheses
47
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 48
Balancing Parentheses
48
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 49
Balancing Parentheses
49
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 50
Balancing Parentheses
50
int f(){if(x*(y+z[i])<47){x += y}} { {
SLIDE 51
Balancing Parentheses
51
int f(){if(x*(y+z[i])<47){x += y}}
pop
{
SLIDE 52
Balancing Parentheses
52
int f(){if(x*(y+z[i])<47){x += y}}
Finished reading Stack is empty Parentheses are balanced
pop
SLIDE 53
Balancing Parentheses
53
int f(){if(x*(y+z[i])<47){x += y}
Finished reading Stack not empty Parentheses NOT balanced
{
SLIDE 54
Balancing Parentheses
54
for(char ch : st) { if ch is an open parenthesis character push it on the stack else if ch is a close parenthesis character if it matches the top of the stack pop the stack else return unbalanced // else it is not a parenthesis } if stack is empty return balanced else return unbalanced
SLIDE 55
Evaluating Postfix Expressions
55
SLIDE 56
Postfix Expressions
Operator applies to the two operands immediately preceding it
56
Infix: 2 * (3 + 4) 2 * 3 + 4 Postfix: 2 3 4 + * 2 3 * 4 +
SLIDE 57
Evaluating Postfix Expressions
Operator applies to the two operands immediately preceding it Assumptions / simplifications:
- String is syntactically correct postfix expression
- No unary operators
- No exponentiation operation
- Operands in string are single integer values
57
Postfix: 2 3 4 + *
SLIDE 58
Evaluating Postfix Expressions
58
Postfix: 2 3 4 + *
2
SLIDE 59
Evaluating Postfix Expressions
59
Postfix: 2 3 4 + *
2 3
SLIDE 60
Evaluating Postfix Expressions
60
Postfix: 2 3 4 + *
2 3 4
SLIDE 61
Evaluating Postfix Expressions
61
Postfix: 2 3 4 + *
2 3 4
SLIDE 62
Evaluating Postfix Expressions
62
Postfix: 2 3 4 + *
4
+
2 3
SLIDE 63
Evaluating Postfix Expressions
63
Postfix: 2 3 4 + *
3 4
+
2
SLIDE 64
Evaluating Postfix Expressions
64
Postfix: 2 3 4 + *
3 4
+ = 7
2
SLIDE 65
2
Evaluating Postfix Expressions
65
Postfix: 2 3 4 + *
7
SLIDE 66
Evaluating Postfix Expressions
66
Postfix: 2 3 4 + *
2 7
SLIDE 67
Evaluating Postfix Expressions
67
Postfix: 2 3 4 + *
7 2
SLIDE 68
Evaluating Postfix Expressions
68
Postfix: 2 3 4 + *
2 7
*
SLIDE 69
Evaluating Postfix Expressions
69
Postfix: 2 3 4 + *
2 7
* = 14
SLIDE 70
Evaluating Postfix Expressions
70
Postfix: 2 3 4 + *
14
Done reading string The top of the stack is the result
SLIDE 71
Evaluating Postfix Expressions
Operator applies to the two operands immediately preceding it Assumptions / simplifications:
- string is syntactically correct postfix expression
- No unary operators
- No exponentiation operation
- Operands in string are single integer values
71
Postfix: 2 3 * 4 +
SLIDE 72
Evaluating Postfix Expressions
72
Postfix: 2 3 * 4 +
2
SLIDE 73
Evaluating Postfix Expressions
73
Postfix: 2 3 * 4 +
2 3
SLIDE 74
Evaluating Postfix Expressions
74
Postfix: 2 3 * 4 +
3
*
2
SLIDE 75
Evaluating Postfix Expressions
75
3
Postfix: 2 3 * 4 +
2
* = 6
SLIDE 76
Evaluating Postfix Expressions
76
Postfix: 2 3 * 4 +
6
SLIDE 77
4
Evaluating Postfix Expressions
77
Postfix: 2 3 * 4 +
6
SLIDE 78
Evaluating Postfix Expressions
78
Postfix: 2 3 * 4 +
4
+
6
SLIDE 79
Evaluating Postfix Expressions
79
Postfix: 2 3 * 4 +
6 4 10
+ =
SLIDE 80
Evaluating Postfix Expressions
80
Postfix: 2 3 * 4 +
10
Done reading string The top of the stack is the result
SLIDE 81
Evaluating Postfix Expressions
for(char ch : st) { if ch is an operand push it on the stack else // ch is an operator op { //evaluate and push the result
- perand2 = pop stack
- perand1 = pop stack
result = operand1 op operand2 push result on stack } }
81
SLIDE 82
Lecture Activity
Describe an algorithm that translates the infix expression below into postfix (you can use drawings to explain): Hint: use 2 stacks, one for operators and parentheses another one for the operands and postfix expression. Once converted use the empty stack to invert the order
82
Infix: 2 * (3 + 4) Postfix: 2 3 4 + *
SLIDE 83
83
2 3 4 (
+
Infix: 2 * (3 + 4) Postfix: 2 3 4 + *
2 3 4 *
+
1. Read characters onto corresponding stack until ‘)’
- 2. Pop operator stack and push
it onto postfix stack ignoring ‘(‘
Postfix Stack Operator Stack Postfix Stack Operator Stack
*
Postfix Stack Operator Stack
- 3. Push everything onto empty
stack to invert Then read pop and print.
2 3 4 *
+
SLIDE 84
84
2 3 (
Infix: (2 * 3 )+ 4 Postfix: 2 3 *4 +
2 3 4 *
+
1. Read characters
- nto corr. stack until ‘)’
- r end of string
- 2. If reading a ‘)’, move operators
to Postfix Stack until a ‘(‘ discard it and continue reading string
Postfix Stack Operator Stack Postfix Stack Operator Stack
* 2 3 *
Postfix Stack Operator Stack
- 3. Keep reading
until ‘)’ -> 2.
- r end of string -> 4.
- 4. Move operators to
Postfix Stack
2 3 4 *
+
Postfix Stack Operator Stack
SLIDE 85
Infix: (2 * 3 )+ 4 Postfix: 2 3 *4 +
2 3 4 *
+
- 4. Move operators to
Postfix Stack
Postfix Stack Operator Stack Postfix Stack Operator Stack
- 5. Pop and push onto empty
stack to invert, then print
2 3 4 *
+
SLIDE 86
Search a Flight Map
Fly from Origin to Destination following map
- 1. Reach destination
- 2. Reach city with no departing flights (dead end)
- 3. Go in circles forever
86
SLIDE 87
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
87
P Origin = P , Destination = Z C = visited C = backtracked
SLIDE 88
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
88
P Origin = P , Destination = Z R C = visited C = backtracked
SLIDE 89
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
89
P Origin = P , Destination = Z R X C = visited C = backtracked
SLIDE 90
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
90
P Origin = P , Destination = Z R X C = visited C = backtracked
SLIDE 91
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
91
P Origin = P , Destination = Z R X C = visited C = backtracked
SLIDE 92
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
92
P Origin = P , Destination = Z R X C = visited C = backtracked
SLIDE 93
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
93
P Origin = P , Destination = Z R X W C = visited C = backtracked
SLIDE 94
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
94
P Origin = P , Destination = Z R X W S C = visited C = backtracked
SLIDE 95
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
95
P Origin = P , Destination = Z R X W S T C = visited C = backtracked
SLIDE 96
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
96
Origin = P , Destination = Z R X W S T P C = visited C = backtracked
SLIDE 97
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
97
Origin = P , Destination = Z R X W S T P C = visited C = backtracked
SLIDE 98
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
98
Origin = P , Destination = Z R X W S T P C = visited C = backtracked
SLIDE 99
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
99
Origin = P , Destination = Z R X W S T Y P C = visited C = backtracked
SLIDE 100
Backtracking
Avoid dead end by backtracking Avoid traveling in circles by marking visited cities
100
Origin = P , Destination = Z R X W S T Y Z P C = visited C = backtracked
SLIDE 101
Backtracking
101
Origin = P , Destination = Z
P
SLIDE 102
P
Backtracking
102
Origin = P , Destination = Z
R
SLIDE 103
P
Backtracking
103
Origin = P , Destination = Z
R X
SLIDE 104
P
Backtracking
104
Origin = P , Destination = Z
R
SLIDE 105
Backtracking
105
Origin = P , Destination = Z
P
SLIDE 106
P W
Backtracking
106
Origin = P , Destination = Z
SLIDE 107
P W
Backtracking
107
Origin = P , Destination = Z
S
SLIDE 108
P W
Backtracking
108
Origin = P , Destination = Z
S T
SLIDE 109
Backtracking
109
Origin = P , Destination = Z
P W S
SLIDE 110
Backtracking
110
Origin = P , Destination = Z
P W
SLIDE 111
P W
Backtracking
111
Origin = P , Destination = Z
Y
SLIDE 112
P W Y
Backtracking
112
Origin = P , Destination = Z
Z
SLIDE 113
Backtracking
while(not found flights from origin to destination) { if no flight exists from city on top of stack to unvisited destination pop the stack //BACKTRACK else { select an unvisited city C accessible from city currently at top of stack push C on stack mark C as visited } }
113
SLIDE 114
Program Stack and Recursion
Recursion works because function waiting for result/ return from recursive call are on program stack Order of execution determined by stack
114
SLIDE 115
More Applications
Balancing anything!
- html tags (e.g <p> matches </p>
Reverse characters in a word or words in a sentence Undo mechanism for editors or backups Traversals (graphs / trees) . . .
115
SLIDE 116
Stack ADT
116
#ifndef STACK_H_ #define STACK_H_ template<<typename ItemType> class Stack { public: Stack(); void push(const ItemType& new_entry); //adds an element to top of stack void pop(); // removes element from top of stack ItemType top() const; // returns a copy of element at top of stack int size() const; // returns the number of elements in the stack bool isEmpty() const;//returns true if no elements on stack, else false private: //implementation details here }; //end Stack #include "Stack.cpp" #endif // STACK_H_`
