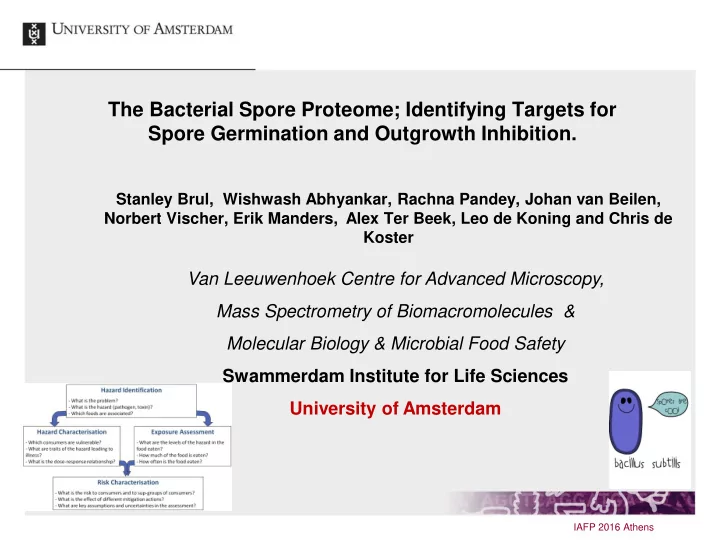

The Bacterial Spore Proteome; Identifying Targets for Spore Germination and Outgrowth Inhibition.

Stanley Brul, Wishwash Abhyankar, Rachna Pandey, Johan van Beilen, Norbert Vischer, Erik Manders, Alex Ter Beek, Leo de Koning and Chris de Koster

Van Leeuwenhoek Centre for Advanced Microscopy, Mass Spectrometry of Biomacromolecules & Molecular Biology & Microbial Food Safety Swammerdam Institute for Life Sciences University of Amsterdam

IAFP 2016 Athens

2

Genomes & proteomes are accessible (see Mol. Biol. of the Cell 2015)

IAFP 2016 Athens

3

Spore physiology & proteomics

Study of the effect of growth conditions on spore outer layers Study of the effect of sporulation temperature on the spore coat proteome and stress resistance GeLC-MS/MS study of spore IM germination receptors & associated targets

IAFP 2016 Athens

4

Study of the effect of growth conditions on spore outer layers and stress resistance

• B. subtilis PY79

Kamphorst et al., 2016; Manuscript under preperation

Bacillus subtilis studies (genomes available)

IAFP 2016 Athens

5

Spores cultured on solid agar medium possess higher thermal resistance than spores cultured in a liquid medium. How does the sporulation environment affect spore resistance? Comparison of the outer layer protein levels of spores cultures on solid and liquid medium using metabolic 15N labeling.

Study aims

Kamphorst et al., 2016; Manuscript under preperation

IAFP 2016 Athens

• 14N spores made on solid 2xSG agar

medium plates.

• 15N spores made in 15NH4Cl supplied

MOPS buffered liquid medium.

• Sporulation allowed for 120 hrs. (5

days).

• Sporulation was induced by glucose

starvation and cell crowding.

• Mixing based on OD600.

Kamphorst et al., 2016; Manuscript under preperation

Relative quantification approach

IAFP 2016 Athens

TS agar plate TSB liquid medium

14N

2xSG liquid medium

15N

MOPS liquid medium

15N MOPS

liquid medium

15N MOPS

liquid medium

14N

2xSG Agar plates 5 day incubation at 37°C

Growth at 37°C till OD600 ~ 0.3-0.4 Growth at 37°C till OD600 ~ 0.3-0.4 Growth at 37°C till OD600 ~ 0.3-0.4 Growth at 37°C till

• max. dilution reaches

OD600 ~ 0.3-0.4 Growth at 37°C till OD600 ~ 0.3-0.4

5 day incubation at 37°C Mixing 14N & 15N spores (1:1 mixing based on OD600)

14N

2xSG liquid medium Spore coat isolation & SDS extraction Reduction, Alkylation & Trypsin digestion LC-FT-ICR-MS/MS analysis &

14N/15N ratio calculations

Observations of spore crops

7 14N 15N 14N spores 15N spores Kamphorst et al., 2016; Manuscript under preperation

IAFP 2016 Athens

8

Up regulated in solid medium Up regulated in liquid medium

14N 15N

Kamphorst et al., 2016; Manuscript under preperation

Outer Coat & Crust Inner Coat

IAFP 2016 Athens

Electron micrographs of 14N & 15N spores

9 14N (solid medium) 15N (liquid medium)

Thickness of Outer coat layer varies significantly in the two spore populations! Inner coat layers possibly more cross-linked

Kamphorst et al., 2016; Manuscript under preperation

Spore morphology

IAFP 2016 Athens

10



Spores cultured in the liquid medium have significant thicker outer coat than spores cultured on the solid medium.



Spores cultured in the liquid medium have a significant different coat protein composition compared to the spores cultured on solid medium.



The large variation over the replica’s in the 14N/15N peptide ratios for certain proteins suggest variations in cross-linking between these coat proteins.

Kamphorst et al., 2016; Manuscript under preperation

Summary

IAFP 2016 Athens

Possible cross-link targets in the coat

11

Cross-linking of coat proteins?

30% of the coat proteins are resistent to extraction

Inner coat Outer coat Peptidoglycan Cortex SpoIVA

IAFP 2016 Athens

Abhyankar et al., 2015. Food Microbiology

12

Spore physiology & Proteomics

Study of the effect of sporulation temperature on the spore coat proteome

• B. weihenstephanensis WSBC10204

Psychrotolerant spore former (genome was unavailable)

IAFP 2016 Athens

13

The newest genome of B. weihenstephanensis

IAFP 2016 Athens

14 12°C 30°C

Spore harvest Spore coat isolation & protein extraction Tryptic Soy Broth liquid medium Minimal Sporulation medium

Overnight, 30°C

10 days 5 days

Reduction, Alkylation & Trypsin digestion LC-FT-ICR-MS/MS analysis

Method

Stelder et al., 2016; Manuscript under review

IAFP 2016 Athens

15

Temperature dependence of identified proteins

17 3 3

Proteins with unknown function

27 10 8

Proteins with known spore association

18 9 14

Non-spore associated proteins

30°C 12°C

Stelder et al., 2016; Manuscript under review

IAFP 2016 Athens

16

• B. Weihenstephanensis data indicate arginase as 12ºC target

IAFP 2016 Athens 12 ºC

17

Spores physiology & Proteomics

GeLC-MS/MS study of spore IM germination receptors & associated targets

• B. subtilis PY79

Zheng et al., 2016

IAFP 2016 Athens

18 Zheng et al., 2016

Method

Proteomic analysis of the purified

• B. subtilis spore inner membrane

IAFP 2016 Athens

19

IM protein identification

Zheng et al., 2016

IAFP 2016 Athens

20

Some specific proteins identified:

 Enzymes involved in Coenzyme A synthesis viz. PanB, PanC, PanE, CoaBC, CoaE and IlvD.  CoA reported to be di-sulfide cross-linked to proteins in B. megaterium spores Setlow & Setlow, 1977  Role of CoA as a modulator of metabolism in germinating spores is worth studying.  SpeA & SpeE involved in biosynthesis of Spermidine (polyamine) were identified.  Spermidine produced in germinating spores of B. megaterium. What is its role there?

Taken from Hobley et al. 2012; established by Setlow, 1974)

IAFP 2016 Athens

21

HTrC & YpeB are found in the inner membrane and may be targets to interfere with the basis of germination triggering SleB and thus cortex and coat lysis

(Zheng et al. 2016, Journal Proteome Res.; see also Bernhards et al. J. Bact. 2015; Meany et al. Anaerobe 2015 )

SleB CwlJ (hydrolases) Germinants Coat CORTEX ? ? Ca2+ DPA HtcR YpeB

IAFP 2016 Athens

22

Spores in AmBiC buffer Bead beating + Urea+ DTT Addition of Acetonitrile Alkylation with Iodoacetamide

LysC Trypsin

ZIC-HILIC peptide pre-fractionation FT-ICR-MS/MS Double digestion of proteins

Disrupted spores

Swarge et al., Manuscript under preparation

 Recent developments in the studies of sporulation and germination processes have brought forward the need of comprehensive time lapse spore proteome analyses.  In order to enable monitoring of protein levels during sporulation and germination we have developed a ‘one pot’ spore processing method for mass spectrometric analysis of proteins from all spore layers. The method is applicable to Bacillus subtilis, B. cereus and Clostridium difficile.

‘One pot’ sample processing method for time resolved spore proteomics

IAFP 2016 Athens

Further developments 1:

23

 Nowadays using 'omics' tools molecular mechanistic data can be gathered to answer questions pertaining to predictive molecular modelling of microbial behavior.

Cooperativity of SpoVA channel gating introduces spore memory for germination stimuli

New:

Single spore & cell analysis using Spore-Tracker

Papers  Accurate single cell germination and outgrowth data is needed for building accurate models (use of reporter proteins)!

IAFP 2016 Athens

Further developments 2:

Pandey et al., 2013, 2015 & Manuscript under review

24

Spore-tracker allows single spore data analysis (Pandey et al. 2013, 2015)

IAFP 2016 Athens

25

3 mM Potassium Sorbate Control Observation of germination and outgrowth Heterogenity of wt and sorbic acid stressed B.subtilis spores

IAFP 2016 Athens

pHi measurements in single bacteria with improved (I)pHluorin possible

Van Beilen & Brul (2013)

Three “pH probes” using three promoters at the

amyE locus to drive IpHluorin:  PptsG → vegetative cell specific (growth on glucose)  PspoIIA → mothercell specific  PsspE → forespore specific

26

PptsG-IpHluorin PspoIIA-IpHluorin PsspE-IpHluorin

IAFP 2016 Athens

27

Lineage tracing allows identification of single cell heterogeneity in microcolonies under acid stress

IAFP 2016 Athens

Phase contrast 390 nm 470 nm

Conclusions

 Live-imaging of intracellular pH using IpHluorin in

Bacillus subtilis is possible in vegetative cells (and now germinating / outgrowing spores).

 Heterogeneity in stress response to potassium acetate

and sorbate (food preservatives) exists at the microcolony level.

 Lineage tracing shows similar heterogeneity in stress

response in individual cells of micro-colonies upon (acetate) acid stress.

28 IAFP 2016 Athens

29

Cooperativity of SpoVA channel gating introduces spore memory for germination stimuli

New:  Accurate single cell germination and outgrowth data is needed for building accurate models (use of reporter proteins)!

IAFP 2016 Athens

Further developments 2:

 Nowadays using 'omics' tools molecular mechanistic data can be gathered to answer questions pertaining to predictive molecular modelling of microbial behavior.

Quantitative proteomics for Mathematical modelling to describe and pinpoint the molecular details of the germination DPA release target



Ultimately we aim at quantitative prediction of the spore population germination time distribution and germination efficiency.



Recently, it was found that spores exhibit memory for germination.



Spores given a short germinant pulse respond more readily to a second brief exposure.



The experiments provide excellent transient kinetic data for mathematical modelling of the germinosome mode of action.

30

Wang et al. MBio. 2015.

IAFP 2016 Athens

Germinosome of a B. subtilis spore

Coats Cortex (PG) Core (CaDPA) Outer membrane Inner membrane GerP germinosome SpoVA channel CLEs Water Nutrient gerninant Spore germination triggered by nutrient Signal transduction pathway

• utcome

SpoVAD: ~6,500 molecules/spore. Germinosome: GerAA and GerAC each at ~1,100, and GerBA, GerBC and GerKA each at~700. GerD, ~3,500 and……?

Stewart and Setlow 2013 & Wang et al. 2015; New candidates from Zheng et al. 2016.

Germinants

IAFP 2016 Athens

Molecular model for SpoVA channel opening that exhibits memory

32

germinant inactive receptor active receptor closed channel activated closed channel

• pen channel

k1 k-1 k2 k3 k4 k5 k5

IAFP 2016 Athens

De Koster et al., Manuscript in preparation

Germinant concentration and opening of SpoVA channels

33

Time (min) Time (min) 4.0 – 2.7 mM 2.6– 1.8 mM 1.7– 1.0 mM

Two germinant pulses @ 2 < t < 2.2 min @ 20 < t < 20.2 min Interestingly, also a time lag period from germinant stimulus to opening is predicted. Cooperativity of SpoVA channel gating introduces spore memory for germination stimuli

IAFP 2016 Athens

De Koster et al., Manuscript in preparation

34

 Proteomics approaches aid the understanding of spore physiology.  Proteomics methods can allow for comprehensive time resolved spore proteome analyses.  Proteomics methods lay the basis for quantitative cellular physiology i.e. the germination kinetics of bacterial spores. Overall Summary
