SPECTRAL THEORY OF REDUCIBLE NONNEGATIVE MATRICES: A GRAPH THEORETIC APPROACH Hans Schneider Chemnitz October 2010 reducible100920 version 20 Sep 2010 19:00 printed September 21, 2010 Hans Schneider Reducible nonnegative matrices 1 / 28

slide-1

SLIDE 1

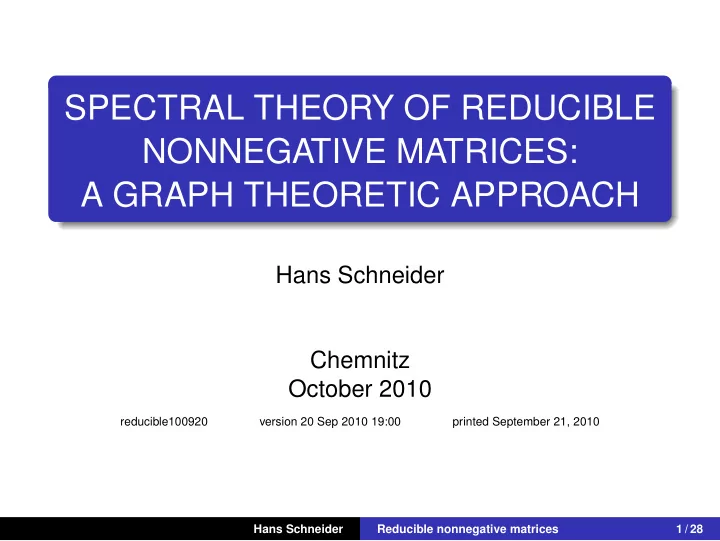

SPECTRAL THEORY OF REDUCIBLE NONNEGATIVE MATRICES: A GRAPH THEORETIC APPROACH

Hans Schneider Chemnitz October 2010

reducible100920 version 20 Sep 2010 19:00 printed September 21, 2010 Hans Schneider Reducible nonnegative matrices 1 / 28

slide-2

SLIDE 2

Aim of talk After reviewing the classical Perron-Frobenius theory of irreducible matrices we turn to the reducible case and discuss it in terms of underlying graphs.

Hans Schneider Reducible nonnegative matrices 2 / 28

slide-3

SLIDE 3

Graph of A A ∈ Rnn

+ , A ≥ 0

G(A): Graph of A

Vertex set {1,...,n}

Hans Schneider Reducible nonnegative matrices 3 / 28

slide-4

SLIDE 4

Graph of A A ∈ Rnn

+ , A ≥ 0

G(A): Graph of A

Vertex set {1,...,n} i → j : aij > 0 i

∗

→ j : ∃(i1,...,ik) i → i1 → ··· → ik → j

r

i = j

Hans Schneider Reducible nonnegative matrices 3 / 28

slide-5

SLIDE 5

Irreducibility A irreducible:

G(A) strongly connected (∀i,j,

i

∗

→ j): ⇐ ⇒ NOT, after permutation similarity, A11 A12 A22

with A11,A22 square, really there

Hans Schneider Reducible nonnegative matrices 4 / 28

slide-6

SLIDE 6

Irreducibility A irreducible:

G(A) strongly connected (∀i,j,

i

∗

→ j): ⇐ ⇒ NOT, after permutation similarity, A11 A12 A22

with A11,A22 square, really there

(0) irreducible

Hans Schneider Reducible nonnegative matrices 4 / 28

slide-7

SLIDE 7

Irreducible Perron-Frobenius ρ(A) = max{|λ| : λ ∈ spec(A)} spectral radius of A ∈ Rnn

Hans Schneider Reducible nonnegative matrices 5 / 28

slide-8

SLIDE 8

Irreducible Perron-Frobenius ρ(A) = max{|λ| : λ ∈ spec(A)} spectral radius of A ∈ Rnn Perron (1907, 1907) Frobenius (1908, 1909, 1912) Theorem A ≥ 0, irreducible, THEN 0 < ρ(A) ∈ spec(A), (A = (0))

Hans Schneider Reducible nonnegative matrices 5 / 28

slide-9

SLIDE 9

Irreducible Perron-Frobenius ρ(A) = max{|λ| : λ ∈ spec(A)} spectral radius of A ∈ Rnn Perron (1907, 1907) Frobenius (1908, 1909, 1912) Theorem A ≥ 0, irreducible, THEN 0 < ρ(A) ∈ spec(A), (A = (0)) ρ(A) simple eigenvalue

Hans Schneider Reducible nonnegative matrices 5 / 28

slide-10

SLIDE 10

Irreducible Perron-Frobenius ρ(A) = max{|λ| : λ ∈ spec(A)} spectral radius of A ∈ Rnn Perron (1907, 1907) Frobenius (1908, 1909, 1912) Theorem A ≥ 0, irreducible, THEN 0 < ρ(A) ∈ spec(A), (A = (0)) ρ(A) simple eigenvalue ∃ unique x, Ax = ρx, & x > 0

Hans Schneider Reducible nonnegative matrices 5 / 28

slide-11

SLIDE 11

Irreducible Perron-Frobenius ρ(A) = max{|λ| : λ ∈ spec(A)} spectral radius of A ∈ Rnn Perron (1907, 1907) Frobenius (1908, 1909, 1912) Theorem A ≥ 0, irreducible, THEN 0 < ρ(A) ∈ spec(A), (A = (0)) ρ(A) simple eigenvalue ∃ unique x, Ax = ρx, & x > 0 x is the only nonnegative evector

Hans Schneider Reducible nonnegative matrices 5 / 28

slide-12

SLIDE 12

By continuity Theorem A ≥ 0 THEN ρ(A) ∈ spec(A),

Hans Schneider Reducible nonnegative matrices 6 / 28

slide-13

SLIDE 13

By continuity Theorem A ≥ 0 THEN ρ(A) ∈ spec(A), ∃x 0, Ax = ρx

Hans Schneider Reducible nonnegative matrices 6 / 28

slide-14

SLIDE 14

By continuity Theorem A ≥ 0 THEN ρ(A) ∈ spec(A), ∃x 0, Ax = ρx   1  

Hans Schneider Reducible nonnegative matrices 6 / 28

slide-15

SLIDE 15

By continuity Theorem A ≥ 0 THEN ρ(A) ∈ spec(A), ∃x 0, Ax = ρx   1   Much, much more may be said about reducible nonneg A

Hans Schneider Reducible nonnegative matrices 6 / 28

slide-16

SLIDE 16

Frobenius Normal Form (FNF) collect strong conn cpts of G(A)

Hans Schneider Reducible nonnegative matrices 7 / 28

slide-17

SLIDE 17

Frobenius Normal Form (FNF) collect strong conn cpts of G(A) After permutation similarity A =        A11 ... ... A21 A22 ... . . . . . . ... ... . . . . . . . . . ... Ak1 Ak2 ... ... Akk        each diagonal block irreducible

Hans Schneider Reducible nonnegative matrices 7 / 28

slide-18

SLIDE 18

Frobenius Normal Form (FNF) collect strong conn cpts of G(A) After permutation similarity A =        A11 ... ... A21 A22 ... . . . . . . ... ... . . . . . . . . . ... Ak1 Ak2 ... ... Akk        each diagonal block irreducible

R (A): Reduced Graph of A

Vertex set {1,...,k} (classes) i → j ⇐ ⇒ Aij 0 i has access to j in R(A): i

∗

→ j in R (A)

Hans Schneider Reducible nonnegative matrices 7 / 28

slide-19

SLIDE 19

Frobenius Normal Form (FNF) collect strong conn cpts of G(A) After permutation similarity A =        A11 ... ... A21 A22 ... . . . . . . ... ... . . . . . . . . . ... Ak1 Ak2 ... ... Akk        each diagonal block irreducible

R (A): Reduced Graph of A

Vertex set {1,...,k} (classes) i → j ⇐ ⇒ Aij 0 i has access to j in R(A): i

∗

→ j in R (A) partial order of classes

Hans Schneider Reducible nonnegative matrices 7 / 28

slide-20

SLIDE 20

Marked reduced graph Each vertex marked with its Perron root (spec rad) Example     A11 · · · A22 · · A31 A32 A33 · ? ? A43 A44    

Hans Schneider Reducible nonnegative matrices 8 / 28

slide-21

SLIDE 21

Marked reduced graph Each vertex marked with its Perron root (spec rad) Example     A11 · · · A22 · · A31 A32 A33 · ? ? A43 A44     (ρ1) (ρ2) \ / (ρ3) | (ρ4) ρi = ρ(Aii)

Hans Schneider Reducible nonnegative matrices 8 / 28

slide-22

SLIDE 22

QUESTIONS Nonnegativity of eigenvectors Nonnegativity of generalized eigenvectors: (A−λI)kx = 0 Nonnegativity of basis for generalized eigenspace for ρ(A) Nonnegativity of Jordan basis for ρ Relation of Jordan form to graph structure for ρ

Hans Schneider Reducible nonnegative matrices 9 / 28

slide-23

SLIDE 23

QUESTIONS Nonnegativity of eigenvectors Nonnegativity of generalized eigenvectors: (A−λI)kx = 0 Nonnegativity of basis for generalized eigenspace for ρ(A) Nonnegativity of Jordan basis for ρ Relation of Jordan form to graph structure for ρ We explore how the nonnegativity, combinatorial, spectral properties inter-relate, see e.g. LAA 84 (1986), 161 - 189.

Hans Schneider Reducible nonnegative matrices 9 / 28

slide-24

SLIDE 24

Frobenius 1912, Victory 1985 Definition Vertex i of is a R (A) is a distinguished vertex if i

∗

← j = ⇒ ρi > ρj Theorem Let A be a nonnegative matrix in FNF. Then the nonnegative eigenvectors of A correspond to the distinguish vertices of A:

Hans Schneider Reducible nonnegative matrices 10 / 28

slide-25

SLIDE 25

Frobenius 1912, Victory 1985 Definition Vertex i of is a R (A) is a distinguished vertex if i

∗

← j = ⇒ ρi > ρj Theorem Let A be a nonnegative matrix in FNF. Then the nonnegative eigenvectors of A correspond to the distinguish vertices of A: for each distinguished vertex i of

R (A) there is nonnegative eigenvector xi with Axi = ρixi

such that xi

j > 0

if i

∗

← j xi

j = 0

therwise

Hans Schneider Reducible nonnegative matrices 10 / 28

slide-26

SLIDE 26

Frobenius 1912, Victory 1985 Definition Vertex i of is a R (A) is a distinguished vertex if i

∗

← j = ⇒ ρi > ρj Theorem Let A be a nonnegative matrix in FNF. Then the nonnegative eigenvectors of A correspond to the distinguish vertices of A: for each distinguished vertex i of

R (A) there is nonnegative eigenvector xi with Axi = ρixi

such that xi

j > 0

if i

∗

← j xi

j = 0

therwise

These are linearly independent, and for any part evalue, extremals of the cone of nonneg evectors. (Carlson 1963)

Hans Schneider Reducible nonnegative matrices 10 / 28

slide-27

SLIDE 27

Example     A11 · · · A22 · · A31 A32 A33 · ? ? A43 A44     ρ1 > ρ3 = ρ4 > ρ2 (ρ1)∗∗ (ρ2) \ / (ρ3)∗ | (ρ4)∗∗

Hans Schneider Reducible nonnegative matrices 11 / 28

slide-28

SLIDE 28

continuation ρ1 > ρ3 = ρ4 > ρ2 (ρ1)∗∗ (ρ2) \ / (ρ3)∗ | (ρ4)∗∗ ρ1 ρ4 + + + +

Hans Schneider Reducible nonnegative matrices 12 / 28

slide-29

SLIDE 29

Warning! Nonnegative eigenvectors!   · · · 1 1   (0) (0) \ / (0) Eigenvectors   1     1 −1  

Hans Schneider Reducible nonnegative matrices 13 / 28

slide-30

SLIDE 30

Reminder: Jordan Form Jordan block (of size 4):     λ 1 λ 1 λ 1 λ     Theorem Over the complex numbers, every matrix is similar to a direct sum of Jordan blocks. indλ(A) : = max size of J–block for λ = min{k : N = N (λI −A)k+1 = N (λI −A)k}

N – generalized nullspace of A

Hans Schneider Reducible nonnegative matrices 14 / 28

slide-31

SLIDE 31

Reminder: Jordan Form Jordan block (of size 4):     λ 1 λ 1 λ 1 λ     Theorem Over the complex numbers, every matrix is similar to a direct sum of Jordan blocks. indλ(A) : = max size of J–block for λ = min{k : N = N (λI −A)k+1 = N (λI −A)k}

N – generalized nullspace of A

Q: Does the red graph determine the J-form for ρ?

Hans Schneider Reducible nonnegative matrices 14 / 28

slide-32

SLIDE 32

Special case 1: S 1952/56 Theorem A ∈ Rnn

+ . TFAE:

(a) dim(N (A−ρI)) = 1 (a’) All Jordan block for ρ are size 1 (b) The ρ classes are trivially ordered. (a) & (a’) are complex algebra (b) is combinatorial

Hans Schneider Reducible nonnegative matrices 15 / 28

slide-33

SLIDE 33

Example     A11 · · · A22 · · A31 A32 A33 · ? ? A43 A44     (ρ1)∗∗ (ρ2)∗∗ \ / (ρ3) | (ρ4) (ρ =) ρ1 = ρ2 > ρ3 = ρ4 J-form for ρ is (1,1)

Hans Schneider Reducible nonnegative matrices 16 / 28

slide-34

SLIDE 34

continuation (ρ1)∗∗ (ρ2)∗∗ \ / (ρ3) | (ρ4) + + + + + + These are the only evecs for ρ

Hans Schneider Reducible nonnegative matrices 17 / 28

slide-35

SLIDE 35

Special case 2: S 1952/56 Theorem A ∈ Rnn

+ . TFAE:

(a) dim null(A−ρI) = multρ(A) (a’) There is only one Jordan block for ρ (b) The ρ classes are linearly ordered.

Hans Schneider Reducible nonnegative matrices 18 / 28

slide-36

SLIDE 36

Example (ρ1)∗∗ (ρ2) \ / (ρ3) | (ρ4)∗∗ (ρ =) ρ1 = ρ4 > ρ2 = ρ3 x z + + + + (ρI −A)x = z, (ρI −A)z = 0

Hans Schneider Reducible nonnegative matrices 19 / 28

slide-37

SLIDE 37

Example (ρ1)∗∗ (ρ2) \ / (ρ3) | (ρ4)∗∗ (ρ =) ρ1 = ρ4 > ρ2 = ρ3 x z + + + + (ρI −A)x = z, (ρI −A)z = 0 J-form form for ρ is (2)

Hans Schneider Reducible nonnegative matrices 19 / 28

slide-38

SLIDE 38

General case?? Example that stopped me in 1952     · · · . · · 1 1 · a 1 ·    

Hans Schneider Reducible nonnegative matrices 20 / 28

slide-39

SLIDE 39

General case?? Example that stopped me in 1952     · · · . · · 1 1 · a 1 ·     × Jordan form a = 1 (2,2) a = 1 (2,1,1)

Hans Schneider Reducible nonnegative matrices 20 / 28

slide-40

SLIDE 40

General case?? Example that stopped me in 1952     · · · . · · 1 1 · a 1 ·     × Jordan form a = 1 (2,2) a = 1 (2,1,1) Hershkowitz-S (1991) "Solved" the problem using majorization

Hans Schneider Reducible nonnegative matrices 20 / 28

slide-41

SLIDE 41

Rothblum index thm 1975 indρ(A) : = max size of J–block for A = min{k : N = N (ρI −A)k+1 = N (ρI −A)k} Theorem indρ = max length of chain of ρ classes

Hans Schneider Reducible nonnegative matrices 21 / 28

slide-42

SLIDE 42

Example     · · · . · · 1 1 · a 1 ·    

Hans Schneider Reducible nonnegative matrices 22 / 28

slide-43

SLIDE 43

Example     · · · . · · 1 1 · a 1 ·     × max chain of 0 classes = 2

Hans Schneider Reducible nonnegative matrices 22 / 28

slide-44

SLIDE 44

Example     · · · . · · 1 1 · a 1 ·     × max chain of 0 classes = 2 Jordan form: either (2,2) or (2,1,1) either case ind0 = 2

Hans Schneider Reducible nonnegative matrices 22 / 28

slide-45

SLIDE 45

generalized eigenvectors x a gen evector of A for λ (A−λI)rx = 0, r > 0

Hans Schneider Reducible nonnegative matrices 23 / 28

slide-46

SLIDE 46

generalized eigenvectors x a gen evector of A for λ (A−λI)rx = 0, r > 0

Nλ(A) := {x : (A−λI)rx = 0, r ≥ n}

Hans Schneider Reducible nonnegative matrices 23 / 28

slide-47

SLIDE 47

generalized eigenvectors x a gen evector of A for λ (A−λI)rx = 0, r > 0

Nλ(A) := {x : (A−λI)rx = 0, r ≥ n}

i is a semi-distinguished vertex: i

∗

← j = ⇒ ρi ≥ ρj

Hans Schneider Reducible nonnegative matrices 23 / 28

slide-48

SLIDE 48

Preferred basis Theorem Rothblum(1975), Richman-S(1978), Hershkowitz-S(1988) Theorem Let λ ≥ 0. Suppose the semi-dist vertices of A with ρi = λ are i1 < ... < is. Then there exist xp, p = 1,...,s in N (A) such that xp

j > 0

if ip

∗

← j xp

j = 0

therwise

Hans Schneider Reducible nonnegative matrices 24 / 28

slide-49

SLIDE 49

Preferred basis Theorem Rothblum(1975), Richman-S(1978), Hershkowitz-S(1988) Theorem Let λ ≥ 0. Suppose the semi-dist vertices of A with ρi = λ are i1 < ... < is. Then there exist xp, p = 1,...,s in N (A) such that xp

j > 0

if ip

∗

← j xp

j = 0

therwise

and such that (A−λI)xp = ∑

q

cpqxq where cpq > 0 if ip

∗

← iq, q = p cpq = 0

therwise

Hans Schneider Reducible nonnegative matrices 24 / 28

slide-50

SLIDE 50

Example     · · · . · · 1 1 · 1 1 ·    

Hans Schneider Reducible nonnegative matrices 25 / 28

slide-51

SLIDE 51

Example     · · · . · · 1 1 · 1 1 ·     0∗ 0∗ × 0∗∗ 0∗∗

Hans Schneider Reducible nonnegative matrices 25 / 28

slide-52

SLIDE 52

Example     · · · . · · 1 1 · 1 1 ·     0∗ 0∗ × 0∗∗ 0∗∗ x1 x2 x3 x4 1 1 1 1 1 1 1 1

Hans Schneider Reducible nonnegative matrices 25 / 28

slide-53

SLIDE 53

Example     · · · . · · 1 1 · 1 1 ·     0∗ 0∗ × 0∗∗ 0∗∗ x1 x2 x3 x4 1 1 1 1 1 1 1 1 Ax1 = Ax2 = x3 +x4 Ax3 = Ax4 = 0

Hans Schneider Reducible nonnegative matrices 25 / 28

slide-54

SLIDE 54

more     · · · . · · 1 1 · 1 1 ·     Ax1 = Ax2 = x3 +x4 Ax3 = Ax4 = 0

Hans Schneider Reducible nonnegative matrices 26 / 28

slide-55

SLIDE 55

more     · · · . · · 1 1 · 1 1 ·     Ax1 = Ax2 = x3 +x4 Ax3 = Ax4 = 0 These vectors span N0 but are not lin indep Rothblum(1975) Theorem The gen null space for ρ(A) has a nonneg basis

Hans Schneider Reducible nonnegative matrices 26 / 28

slide-56

SLIDE 56

proofs? By Frobenius tracedown method: Solve successively equations for xi ≥ 0 of the form (Aii −ρiIii)xi = bi where bi ≥ 0.

Hans Schneider Reducible nonnegative matrices 27 / 28

slide-57

SLIDE 57

proofs? By Frobenius tracedown method: Solve successively equations for xi ≥ 0 of the form (Aii −ρiIii)xi = bi where bi ≥ 0. Carlson1963 Ax +b = ρx given reducible A ≥ 0 and b ≥ 0.

Hans Schneider Reducible nonnegative matrices 27 / 28

slide-58

SLIDE 58

two references H.S The influence of the marked reduced graph of a nonnegative matrix on the Jordan form and related properties: A survey, Lin. Alg. Appl. 84 (1986), 161-189.

D. Hershkowitz and H.S, On the existence of matrices

with prescribed height and level characteristics, Israel Math J. 75 (1991), 105-117.

Hans Schneider Reducible nonnegative matrices 28 / 28

slide-59

SLIDE 59

two references H.S The influence of the marked reduced graph of a nonnegative matrix on the Jordan form and related properties: A survey, Lin. Alg. Appl. 84 (1986), 161-189.

D. Hershkowitz and H.S, On the existence of matrices

with prescribed height and level characteristics, Israel Math J. 75 (1991), 105-117. THANK YOU

Hans Schneider Reducible nonnegative matrices 28 / 28
