Solidity 0.5: when typed does not mean type-safe S. Crafa M. Di Pirro Universit di Padova, Italy Kynetics, Italy crafa@math.unipd.it matteo.dipirro@kynetics.com FMBC - 11 October 2019 - Porto Agenda Smart contracts and Solidity

slide-1
SLIDE 1

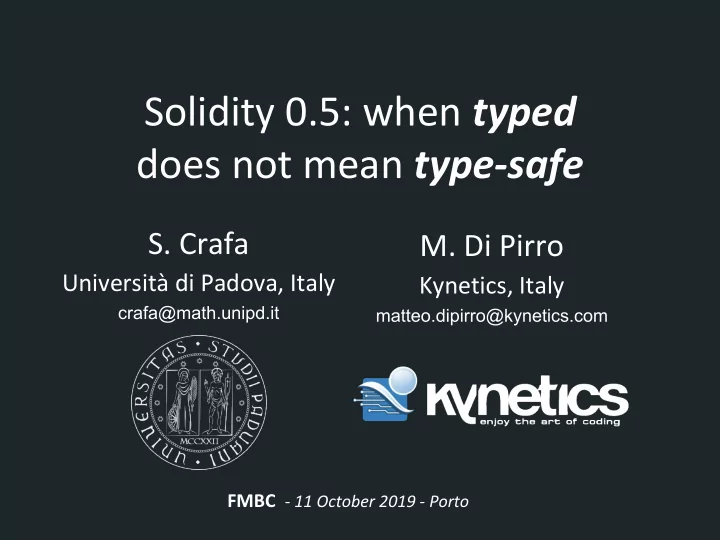

Solidity 0.5: when typed does not mean type-safe

  • S. Crafa

Università di Padova, Italy

crafa@math.unipd.it

  • M. Di Pirro

Kynetics, Italy

matteo.dipirro@kynetics.com

FMBC - 11 October 2019 - Porto

slide-2
SLIDE 2

Agenda

  • Smart contracts and Solidity
  • Unsafe gambling game
  • Safe gambling game
  • Conclusion
slide-3
SLIDE 3

Trusted Solidity contracts

  • Smart contracts are intended to be automatically enforced
  • Solidity

○ Statically typed language ○ Claimed to be “type safe”

  • Solidity programmers commonly use the

compiler to check type errors in the source code

slide-4
SLIDE 4

Trusted Solidity contracts

Unfortunately…

  • Solidity’s type safety is limited
  • address payable is intended to prevent Ether transfers to smart

contracts that are not supposed to receive money ○ The compiler fails to enforce such semantics!

  • Incorrect contracts lead to gas losses and money indefinitely locked
slide-5
SLIDE 5

Trusted Solidity contracts

Unfortunately…

  • Solidity’s type safety is limited
  • address payable is intended to prevent Ether transfers to smart contracts that

are not supposed to receive money ○ The compiler fails to enforce such semantics!

  • Incorrect contracts lead to gas losses and money indefinitely locked

Formal methods come to the rescue!

slide-6
SLIDE 6

A gambling game

GamblingGame Bookmaker Gambler

Web server

slide-7
SLIDE 7

contract Gambler { constructor () payable public {} function bet(address bookmaker, string guess, uint n) external{ require(amount < address(this).balance); Bookmaker(bookmaker).placeBet.value(n)(guess); } }

A gambling game

slide-8
SLIDE 8

contract Bookmaker {

mapping (address => uint) private currentBets;

GamblingGame private game; constructor(address _game) public {game = GamblingGame(_game); } function placeBet(string guess) external payable {

currentBets[msg.sender] += msg.value;

game.play("http://...", guess, msg.sender); } function callback(...) external {...}

}

contract Gambler { constructor () payable public {} function bet(address bookmaker, string guess, uint n) external{ require(amount < address(this).balance); Bookmaker(bookmaker).placeBet.value(n)(guess); } }

A gambling game

slide-9
SLIDE 9

contract GamblingGame { event Play(address, string, string, address payable); function play(string url, string guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); // eventually calls msg.sender.callback(outcome, gambler) } }

A gambling game

slide-10
SLIDE 10

contract GamblingGame { event Play(address, string, string, address payable); function play(string url, string guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); // eventually calls msg.sender.callback(outcome, gambler) } } contract Bookmaker { GamblingGame private game; function placeBet(..) external payable {...} function callback(bool outcome,address payable gambler) external{ // if (outcome) gambler.transfer( ... ) // otherwise gambler loses its bet

} }

A gambling game

slide-11
SLIDE 11

A gambling game

GamblingGame Bookmaker Gambler play callback transfer

placeBet

  • Gambler has no fallback function!

○

transfer will cause a runtime revert

○ Gambler’s bet indefinitely locked into Bookmaker

→ Gambler’s code correctly compiles

Web server

Play

slide-12
SLIDE 12

contract Bookmaker { function placeBet(string guess) external payable { ... game.play("...", guess, msg.sender); } function callback(bool outcome, address payable gambler) { // if (outcome) gambler.transfer( ... ) // otherwise gambler loses its bet }

}

The compiler is happy

  • transfer is defined on address payable
slide-13
SLIDE 13

contract GamblingGame { function play(string url, string guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); } } contract Bookmaker { function placeBet(string guess) external payable { ... game.play("...", guess, msg.sender); } function callback(bool outcome, address payable gambler) { // if (outcome) gambler.transfer( ... ) // otherwise gambler loses its bet }

}

The compiler is happy

  • transfer is defined on address payable
  • gambler has type address payable!!
slide-14
SLIDE 14

The compiler is happy

  • msg.sender has always type address payable

➔ But it will be substituted with a non-payable address ➔ The use of address (payable) is unsound

◆ Message-not-understood errors at run-time

slide-15
SLIDE 15

The compiler is happy

  • msg.sender has always type address payable

➔ But it will be substituted with a non-payable address ➔ The use of address (payable) is unsound

◆ Message-not-understood errors at run-time

No Type Soundness!

Subject Reduction fails

Solidity 0.5 compiler is unsound

slide-16
SLIDE 16

The problem…

  • Solidity’s type address is an untyped pointer, like void *
  • Two features of Solidity make this problem pervasive

○ Instances of smart contracts can only be accessed through their public (“untyped”) address ○ Extensive use of msg.sender

■

The caller is referred to through an untyped pointer

■

All the callback expressions undergo potentially unsafe usages

slide-17
SLIDE 17

The problem…

  • Solidity’s type address is an untyped pointer, like void *
  • Two features of Solidity make this problem pervasive

○ Instances of smart contracts can only be accessed through their public (“untyped”) address ○ Extensive use of msg.sender

■

The caller is referred to through an untyped pointer

■

All the callback expressions undergo potentially unsafe usages

msg.sender.transfer(n) and C(msg.sender).f()

are typical (dangerous!) Solidity patterns.

slide-18
SLIDE 18
  • 1. Refined address types

○

address<C> is the address of contracts of type C (or subtypes)

  • 2. Refined function signatures to constrain function callers

○

function foo<C> (T x) can be called only by contracts of

type (lower than) C 3. This solution is retro-compatible with legacy Solidity code, allowing new, safer, contracts to interact with s.c. already deployed

…and the solution

slide-19
SLIDE 19
  • 1. Refined address types

○

address<C> is the address of contracts of type C (or subtypes)

  • 2. Refined function signatures to constrain function callers

○

function foo<C> (T x) can be called only by contracts of

type (lower than) C Example: Let Top_fb be the supertype of all the contracts providing a fallback

  • address<Top_fb>
  • function foo<Top_fb>(T x)

…and the solution

slide-20
SLIDE 20
  • 1. Refined address types

○

address<C> is the address of contracts of type C (or subtypes)

  • 2. Refined function signatures to constrain function callers

○

function foo<C> (T x) can be called only by contracts of

type (lower than) C

…and the solution

Cast safety Transfer safety

slide-21
SLIDE 21

contract GamblingGame {

event Play(address<Bookmaker>, string,string, address payable); function play<Bookmaker>(string url, string guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); // eventually calls msg.sender.callback(...) } }

Oracle pattern

play can be invoked only by a

(subcontract of) Bookmaker

slide-22
SLIDE 22

contract GamblingGame {

event Play(address<Bookmaker>, string,string, address payable); function play<Bookmaker>(string url, string guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); // eventually calls msg.sender.callback(...) } }

msg.sender: address<Bookmaker>

Oracle pattern

slide-23
SLIDE 23

contract Gambler { ... function bet(...) external{ Bookmaker(bookmaker).placeBet.value(n)(guess); } }

Transfer safety

contract Bookmaker {

... function placeBet(string guess) external payable payback { ... game.play(..., msg.sender); }

}

slide-24
SLIDE 24

contract Gambler { ... function bet(...) external{ Bookmaker(bookmaker).placeBet.value(n)(guess); } }

Transfer safety

contract Bookmaker {

... function placeBet(string guess) external payable payback { ... game.play(..., msg.sender); }

}

The call of placeBet in Gambler does not compile

slide-25
SLIDE 25

contract Gambler {

constructor () payable public {}

function bet(address<Bookmaker> bookmaker, string guess, uint n) external{ require(amount < address(this).balance); Bookmaker(bookmaker).placeBet.value(n)(guess); } }

bet requires a Bookmaker

Cast safety

slide-26
SLIDE 26

contract Gambler {

constructor () payable public {}

function bet(address<Bookmaker> bookmaker, string guess, uint n) external{ require(amount < address(this).balance); Bookmaker(bookmaker).placeBet.value(n)(guess); } }

The cast is safe

Cast safety

slide-27
SLIDE 27

Conclusion

address address payable address<C> In Solidity 0.5 address payable essentially provides only a refined documentation about addresses

○ The address of a contract that can “safely” receive Ether ➔ Programmers expect that “safely” means “type-safely”

slide-28
SLIDE 28

Conclusion

address address payable address<C> In Solidity 0.5 address payable essentially provides only a refined documentation about addresses

○ The address of a contract that can “safely” receive Ether ➔ Programmers expect that “safely” means “type-safely”

In [Crafa - Di Pirro - Zucca 19] we prove the type soundness of this solution

  • n Featherweight Solidity
slide-29
SLIDE 29

THANK YOU

Solidity 0.5 Typed does not mean type-safe

Silvia Crafa

crafa@math.unipd.it

Matteo Di Pirro

matteo.dipirro@kynetics.com

slide-30
SLIDE 30

pragma solidity >= 0.5.0 <0.6.0; contract Gambler { constructor () payable public {} function bet(address bookmaker, string calldata guess, uint amount) external { require(amount < address(this).balance, "Not enough balance for the bet"); Bookmaker(bookmaker).placeBet.value(amount)(guess); } } contract GamblingGame { event Play(address, string, string, address payable); function play(string calldata url, string calldata guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); } } contract Bookmaker { GamblingGame private game; mapping (address => uint) private currentBets; constructor(address _game) public payable { game = GamblingGame(_game); } function placeBet(string calldata guess) external payable payback { currentBets[msg.sender] += msg.value; game.play("...", guess, msg.sender); } function callback(bool outcome, address payable gambler) external { uint toBePaid = currentBets[gambler]; currentBets[gambler] = 0; if (outcome && toBePaid != 0) { gambler.transfer(toBePaid + (toBePaid * 20)/100); } // otherwise msg.value is added to Bookmaker's balance } }

Unsafe Gambling System

slide-31
SLIDE 31

pragma solidity >= 0.5.0 <0.6.0; contract Gambler { constructor () payable public {} function bet(address<Bookmaker> bookmaker, string calldata guess, uint amount) external { require(amount < address(this).balance, "Not enough balance for this bet"); Bookmaker(bookmaker).placeBet.value(amount)(guess); } } contract GamblingGame { event Play(address<Bookmaker>, string, string, address payable); function play<Bookmaker>(string calldata url, string calldata guess, address payable gambler) external { emit Play(msg.sender, url, guess, gambler); } }

Safer Gambling System /1

slide-32
SLIDE 32

contract Bookmaker { GamblingGame private game; mapping (address => uint) private currentBets; constructor(address<GamblingGame> _game) public payable { game = GamblingGame(_game); } function placeBet(string calldata guess) external payable payback { currentBets[msg.sender] += msg.value; game.play("...", guess, msg.sender); } function callback(bool outcome, address payable gambler) external { uint toBePaid = currentBets[gambler]; currentBets[gambler] = 0; if (outcome && toBePaid != 0) { gambler.transfer(toBePaid + (toBePaid * 20)/100); } // otherwise msg.value is added to Bookmaker's balance }

Safer Gambling System /2
