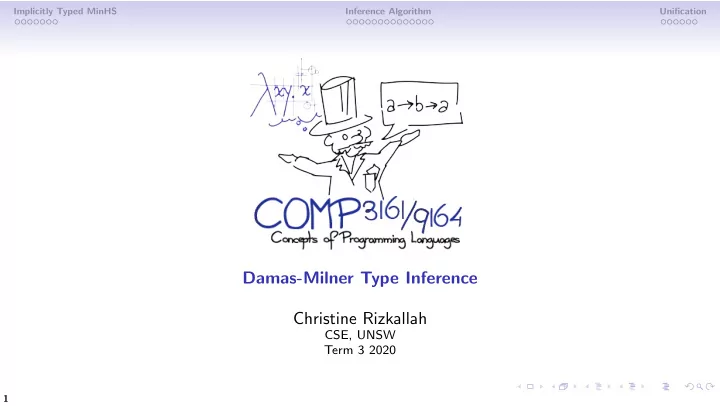

Damas-Milner Type Inference Christine Rizkallah CSE, UNSW Term 3 - - PowerPoint PPT Presentation

Implicitly Typed MinHS Inference Algorithm Unification

Damas-Milner Type Inference Christine Rizkallah

CSE, UNSW Term 3 2020

1

Implicitly Typed MinHS Inference Algorithm Unification

Implicitly Typed MinHS

Explicitly typed languages are awkward to use1. Ideally, we’d like the compiler to determine the types for us. Example What is the type of this function? recfun f x = fst x + 1 We want the compiler to infer the most general type.

1See Java 2

Implicitly Typed MinHS Inference Algorithm Unification

Implicitly Typed MinHS

Start with our polymorphic MinHS, then: remove type signatures from recfun, let, etc. remove explicit type abstractions, and type applications (the @ operator). keep ∀-quantified types.

3

Implicitly Typed MinHS Inference Algorithm Unification

Implicitly Typed MinHS

Start with our polymorphic MinHS, then: remove type signatures from recfun, let, etc. remove explicit type abstractions, and type applications (the @ operator). keep ∀-quantified types. remove recursive types, as we can’t infer types for them.

see whiteboard for why. 4

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

x : τ ∈ Γ Γ ⊢ x : τ Var

5

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

x : τ ∈ Γ Γ ⊢ x : τ Var Γ ⊢ e1 : τ1 → τ2 Γ ⊢ e2 : τ1 Γ ⊢ e1 e2 : τ2 App

6

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

x : τ ∈ Γ Γ ⊢ x : τ Var Γ ⊢ e1 : τ1 → τ2 Γ ⊢ e2 : τ1 Γ ⊢ e1 e2 : τ2 App Γ ⊢ e1 : τ1 Γ ⊢ e2 : τ2 Γ ⊢ (Pair e1 e2) : τ1 × τ2 ConjI

7

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

x : τ ∈ Γ Γ ⊢ x : τ Var Γ ⊢ e1 : τ1 → τ2 Γ ⊢ e2 : τ1 Γ ⊢ e1 e2 : τ2 App Γ ⊢ e1 : τ1 Γ ⊢ e2 : τ2 Γ ⊢ (Pair e1 e2) : τ1 × τ2 ConjI Γ ⊢ e1 : Bool Γ ⊢ e2 : τ Γ ⊢ e3 : τ Γ ⊢ (If e1 e2 e3) : τ If

8

Implicitly Typed MinHS Inference Algorithm Unification

Primitive Operators

For convenience, we treat prim ops as functions, and place their types in the environment. (+) : Int → Int → Int, Γ ⊢ (App (App (+) (Num 2)) (Num 1)) : Int

9

Implicitly Typed MinHS Inference Algorithm Unification

Functions

x : τ1, f : τ1 → τ2, Γ ⊢ e : τ2 Γ ⊢ (Recfun (f .x. e)) : τ1 → τ2 Func

10

Implicitly Typed MinHS Inference Algorithm Unification

Sum Types

Γ ⊢ e : τ1 Γ ⊢ InL e : τ1 + τ2 DisjI1 Γ ⊢ e : τ2 Γ ⊢ InR e : τ1 + τ2 DisjI2 Note that we allow the other side of the sum to be any type.

11

Implicitly Typed MinHS Inference Algorithm Unification

Polymorphism

If we have a polymorphic type, we can instantiate it to any type: Γ ⊢ e : ∀a.τ Γ ⊢ e : τ[a := ρ]AllE

12

Implicitly Typed MinHS Inference Algorithm Unification

Polymorphism

If we have a polymorphic type, we can instantiate it to any type: Γ ⊢ e : ∀a.τ Γ ⊢ e : τ[a := ρ]AllE We can quantify over any variable that has not already been used. Γ ⊢ e : τ a / ∈ TV (Γ) Γ ⊢ e : ∀a. τ AllI (Where TV (Γ) here is all type variables occurring free in the types of variables in Γ)

13

Implicitly Typed MinHS Inference Algorithm Unification

The Goal

We want an algorithm for type inference: With a clear input and output. Which terminates. Which is fully deterministic.

14

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

Γ ⊢ e1 : τ1 Γ ⊢ e2 : τ2 Γ ⊢ (Pair e1 e2) : τ1 × τ2 Can we use the existing typing rules as our algorithm? infer :: Context → Expr → Type

15

Implicitly Typed MinHS Inference Algorithm Unification

Typing Rules

Γ ⊢ e1 : τ1 Γ ⊢ e2 : τ2 Γ ⊢ (Pair e1 e2) : τ1 × τ2 Can we use the existing typing rules as our algorithm? infer :: Context → Expr → Type This approach can work for monomorphic types, but not polymorphic ones. Why not?

16

Implicitly Typed MinHS Inference Algorithm Unification

First Problem

Γ ⊢ e : ∀a.τ Γ ⊢ e : τ[a := ρ]AllE The rule to add a ∀-quantifier can always be applied: . . . Γ ⊢ (Num 5) : ∀a. ∀b. Int Γ ⊢ (Num 5) : ∀a. Int AllE Γ ⊢ (Num 5) : Int AllE This makes the rules give rise to a non-deterministic algorithm – there are many possible rules for a given input. Furthermore, as it can always be applied, a depth-first search strategy may end up attempting infinite derivations.

17

Implicitly Typed MinHS Inference Algorithm Unification

Another Problem

Γ ⊢ e : ∀a.τ Γ ⊢ e : τ[a := ρ]AllE The above rule can be applied at any time to a polymorphic type, even if it would break later typing derivations: Γ ⊢ fst : ∀a. ∀b. (a × b) → a Γ ⊢ fst : (Bool × Bool) → Bool · · · Γ ⊢ (Pair 1 True) : (Int × Bool) Γ ⊢ (Apply fst (Pair 1 True)) : ???

18

Implicitly Typed MinHS Inference Algorithm Unification

Yet Another Problem

The rule for recfun mentions τ2 in both input and output positions. x : τ1, f : τ1 → τ2, Γ ⊢ e : τ2 Γ ⊢ (Recfun (f .x. e)) : τ1 → τ2 Func In order to infer τ2 we must provide a context that includes τ2 — this is circular. Any guess we make for τ2 could be wrong.

19

Implicitly Typed MinHS Inference Algorithm Unification

Solution

We allow types to include unknowns, also known as unification variables or schematic

• variables. These are placeholders for types that we haven’t worked out yet. We shall

use α, β etc. for these variables. Example (Int × α) → β is the type of a function from tuples where the left side of the tuple is Int, but no other details of the type have been determined yet. As we encounter situations where two types should be equal, we unify the two types to determine what the unknown variables should be.

20

Implicitly Typed MinHS Inference Algorithm Unification

Example

Γ ⊢ fst : ∀a. ∀b. (a × b) → a Γ ⊢ fst : (α × β) → α · · · Γ ⊢ (Pair 1 True) : (Int × Bool) Γ ⊢ (Apply fst (Pair 1 True)) : γ

21

Implicitly Typed MinHS Inference Algorithm Unification

Example

Γ ⊢ fst : ∀a. ∀b. (a × b) → a Γ ⊢ fst : (α × β) → α · · · Γ ⊢ (Pair 1 True) : (Int × Bool) Γ ⊢ (Apply fst (Pair 1 True)) : γ (α × β) → α ∼ (Int × Bool) → γ

22

Implicitly Typed MinHS Inference Algorithm Unification

Example

Γ ⊢ fst : ∀a. ∀b. (a × b) → a Γ ⊢ fst : (α × β) → α · · · Γ ⊢ (Pair 1 True) : (Int × Bool) Γ ⊢ (Apply fst (Pair 1 True)) : γ (α × β) → α ∼ (Int × Bool) → γ [α := Int, β := Bool, γ := Int]

23

Implicitly Typed MinHS Inference Algorithm Unification

Unification

We call this substitution a unifier. Definition A substitution S to unification variables is a unifier of two types τ and ρ iff Sτ = Sρ. Furthermore, it is the most general unifier, or mgu, of τ and ρ if there is no other unifier S′ where Sτ ⊑ S′τ. We write τ U ∼ ρ if U is the mgu of τ and ρ. Example (Whiteboard) α × (α × α) ∼ β × γ (α × α) × β ∼ β × γ Int + α ∼ α + Bool (α × α) × α ∼ α × (α × α)

24

Implicitly Typed MinHS Inference Algorithm Unification

Back to Type Inference

We will decompose the typing judgement to allow for an additional output — a substitution that contains all the unifiers we have found about unknowns so far. Inputs Expression, Context Outputs Type, Substitution We will write this as SΓ ⊢ e : τ, to make clear how the original typing judgement may be reconstructed.

25

Implicitly Typed MinHS Inference Algorithm Unification

Application, Elimination

S1Γ ⊢ e1 : τ1 S2S1Γ ⊢ e2 : τ2 S2τ1

U

∼ (τ2 → α) US2S1Γ ⊢ (Apply e1 e2) : Uα (α fresh) (x : ∀a1. ∀a2. . . . ∀an. τ) ∈ Γ Γ ⊢ x : τ[a1 := α1, a2 := α2, . . . , an = αn] (α1 . . . αn fresh) Example (Whiteboard) (fst : ∀a b. (a × b) → a) ⊢ (Apply fst (Pair 1 2))

26

Implicitly Typed MinHS Inference Algorithm Unification

Functions

S(Γ, x : α1, f : α2) ⊢ e : τ Sα2

U

∼ (Sα1 → τ) USΓ ⊢ (Recfun (f .x. e)) : U(Sα1 → τ) (α1, α2 fresh) Example (Whiteboard) (Recfun (f .x. (Pair x x))) (Recfun (f .x. (Apply f x)))

27

Implicitly Typed MinHS Inference Algorithm Unification

Generalisation

In our typing rules, we could generalise a type to a polymorphic type by introducing a ∀ at any point in the typing derivation. We want to be able to restrict this to only

• ccur in a syntax-directed way.

Consider this example: let f = (recfun f x = (x, x)) in (fst (f 4), fst (f True)) Where should generalisation happen?

28

Implicitly Typed MinHS Inference Algorithm Unification

Let-generalisation

To make type inference tractable, we restrict generalisation to only occur when a binding is added to the context via a let expression.

29

Implicitly Typed MinHS Inference Algorithm Unification

Let-generalisation

To make type inference tractable, we restrict generalisation to only occur when a binding is added to the context via a let expression. This means that let expressions are now not just sugar for a function application, they actually play a vital role in the language’s syntax, as a place for generalisation to occur.

30

Implicitly Typed MinHS Inference Algorithm Unification

Let-generalisation

To make type inference tractable, we restrict generalisation to only occur when a binding is added to the context via a let expression. This means that let expressions are now not just sugar for a function application, they actually play a vital role in the language’s syntax, as a place for generalisation to occur. We define Gen(Γ, τ) = ∀(TV (τ) \ TV (Γ)). τ Then we have: S1Γ ⊢ e1 : τ S2(S1Γ, x : Gen(S1Γ, τ)) ⊢ e2 : τ ′ S2S1Γ ⊢ (Let e1(x. e2)) : τ ′

31

Implicitly Typed MinHS Inference Algorithm Unification

Summary

The rest of the rules are straightforward from their typing rule. We’ve specified Robin Milner’s algorithm W for type inference. Many other algorithms exist, for other kinds of type systems, including explicit constraint-based systems. This algorithm is restricted to the Hindley-Milner subset of decidable polymorphic instantiations, and requires that polymorphism is top-level — polymorphic functions are not first class. We still need an algorithm to compute the unifiers.

32

Implicitly Typed MinHS Inference Algorithm Unification

Unification

unify :: Type → Type → Maybe Unifier (where the Type arguments do not include any ∀ quantifiers and the Unifier returned is the mgu) We shall discuss cases for unify τ1 τ2

33

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both type variables: τ1 = v1 and τ2 = v2: v1 = v2 ⇒ empty unifier v1 = v2 ⇒ [v1 := v2]

34

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both primitive type constructors: τ1 = C1 and τ2 = C2: C1 = C2 ⇒ empty unifier C1 = C2 ⇒ no unifier

35

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both are product types τ1 = τ11 × τ12 and τ2 = τ21 × τ22.

36

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both are product types τ1 = τ11 × τ12 and τ2 = τ21 × τ22.

1

Compute the mgu S of τ11 and τ21.

37

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both are product types τ1 = τ11 × τ12 and τ2 = τ21 × τ22.

1

Compute the mgu S of τ11 and τ21.

2

Compute the mgu S′ of Sτ12 and Sτ22.

38

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both are product types τ1 = τ11 × τ12 and τ2 = τ21 × τ22.

1

Compute the mgu S of τ11 and τ21.

2

Compute the mgu S′ of Sτ12 and Sτ22.

3

Return S ∪ S′

39

Implicitly Typed MinHS Inference Algorithm Unification

Cases

Both are product types τ1 = τ11 × τ12 and τ2 = τ21 × τ22.

1

Compute the mgu S of τ11 and τ21.

2

Compute the mgu S′ of Sτ12 and Sτ22.

3

Return S ∪ S′ (same for sum, function types)

40

Implicitly Typed MinHS Inference Algorithm Unification

Cases

One is a type variable v, the other is just any term t. v occurs in t ⇒ no unifier

• therwise ⇒ [v := t]

41

Implicitly Typed MinHS Inference Algorithm Unification

Done

Implementing this algorithm will be the focus of Assignment 2. See course website for deadlines etc. You should allow plenty of time to tackle it. You will be given a generous deadline but it requires time to complete. Haskell-wise, this code will use a monad to track errors and the state needed to generate fresh unification variables.

42
